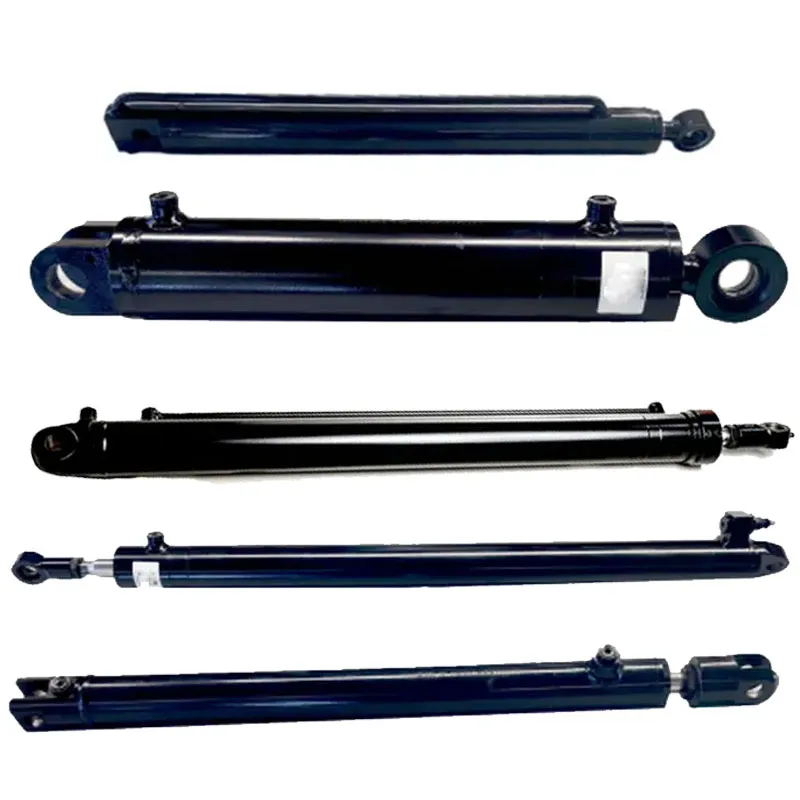

A Hydraulic Cylinder is a mechanical actuator that converts hydraulic energy into linear motion and force. It is widely used in various industries, including construction, manufacturing, and automotive, due to its efficiency and reliability.
| Parameter | Description | Common Values |
|---|---|---|
| Bore Diameter | Internal diameter of cylinder barrel | 1.5" to 24" (38mm to 610mm) |
| Rod Diameter | Diameter of piston rod | 0.5" to 12" (13mm to 305mm) |
| Stroke Length | Distance piston moves | 1" to 20 feet (25mm to 6m) |
| Operating Pressure | Max pressure capacity | Up to 5000 psi (345 bar) |
| Mounting Style | Attachment method | Flange, Clevis, Trunnion |
| Seal Material | Type of sealing used | Polyurethane, Nitrile, Viton |
| Port Size | Hydraulic connection size | 1/4" to 2" NPT or SAE |
Hydraulic Cylinder is utilized in numerous sectors. In construction, it powers excavators and bulldozers. In manufacturing, it operates presses and injection molding machines. The automotive industry uses it for lifting systems and brakes. Its versatility makes it essential for heavy-duty tasks requiring precise linear motion.
What is the typical lifespan of a hydraulic cylinder?
The lifespan varies based on usage, maintenance, and operating conditions, but a well-maintained hydraulic cylinder can last 10,000 to 20,000 hours of operation. Regular inspections and fluid changes extend longevity.
How do I choose the right bore size for my application?
Select the bore size based on the required force output; use the formula Force = Pressure × Area. Larger bore diameters generate more force but may require higher fluid volume. Consult engineering specifications for precise calculations.
What are common causes of hydraulic cylinder failure?
Common causes include seal leaks due to wear or contamination, rod bending from misalignment, internal corrosion from fluid issues, and overpressure leading to barrel damage. Proper installation and maintenance prevent most failures.
Can hydraulic cylinders be custom-made for specific needs?
Yes, many manufacturers offer custom hydraulic cylinders with tailored parameters like unique stroke lengths, mounting styles, or materials to suit specialized applications, ensuring optimal performance.
How often should hydraulic fluid be changed in a system with cylinders?
Hydraulic fluid should be changed every 1,000 to 2,000 operating hours or as recommended by the manufacturer, depending on contamination levels and operating conditions, to maintain efficiency and prevent damage.
What is the difference between single-acting and double-acting hydraulic cylinders?
Single-acting cylinders use hydraulic pressure to extend the piston and rely on external forces like gravity to retract, while double-acting cylinders use hydraulic pressure for both extension and retraction, offering better control.
Are there environmentally friendly options for hydraulic cylinders?
Yes, eco-friendly options include cylinders with biodegradable hydraulic fluids and seals made from sustainable materials, reducing environmental impact without compromising performance.
