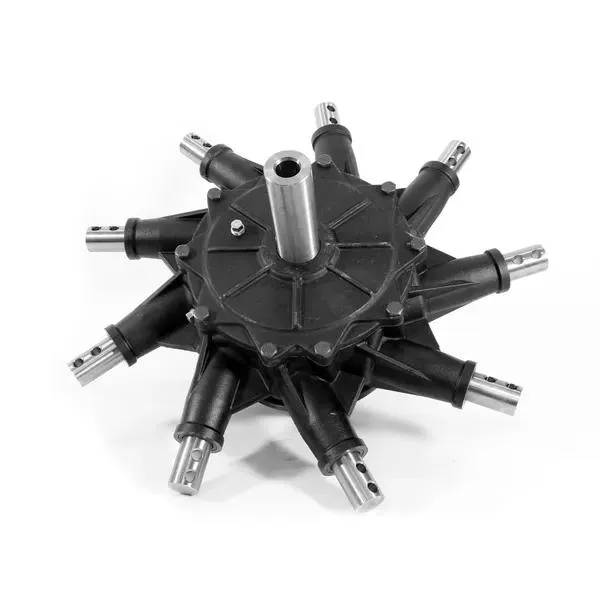

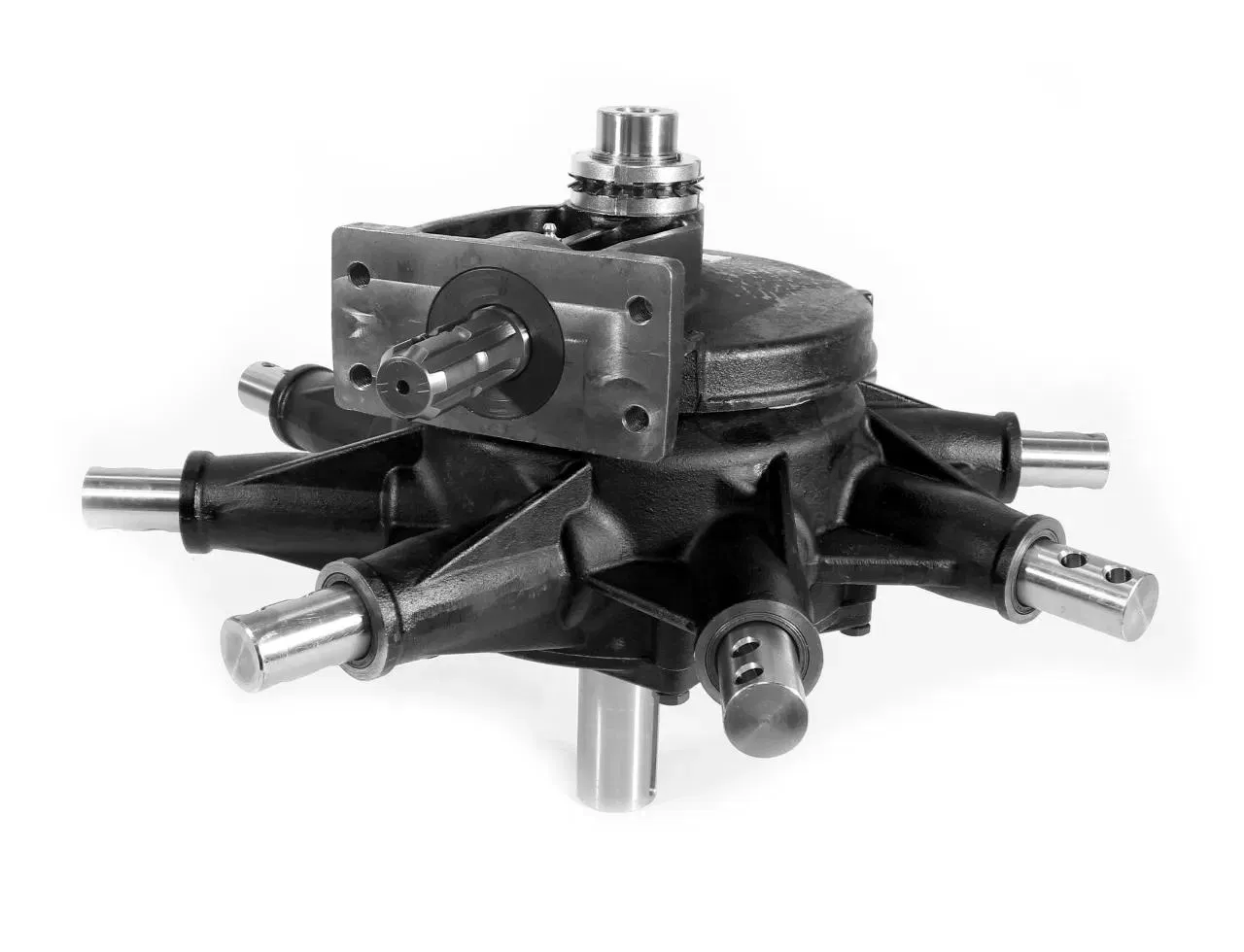

A Rotary Rake Gearbox is a crucial mechanical component used in agricultural machinery, specifically in rotary rakes for hay and forage handling. It is designed to transfer power from the tractor to the rake’s rotating tines, enabling efficient gathering and windowing of cut crops. Built for durability and high torque applications, these gearboxes ensure smooth operation, reduce maintenance needs, and enhance the overall productivity of farming equipment. They are commonly constructed from high-strength materials like cast iron or hardened steel to withstand harsh environmental conditions and heavy workloads.
| Parameter | Specification | Units |
|---|---|---|
| Input Speed | 540 or 1000 | RPM |
| Output Speed | 200-400 | RPM |
| Gear Ratio | 1:1.5 to 1:3 | Ratio |
| Maximum Torque | 500-1200 | Nm |
| Housing Material | Cast Iron or Aluminum Alloy | - |
| Weight | 15-30 | kg |
| Lubrication Type | Grease or Oil Bath | - |
| Operating Temperature | -20°C to 80°C | °C |
Rotary rake gearboxes are primarily used in agricultural machinery for tasks such as hay tedding, raking, and windowing. They are integral to equipment like wheel rakes, rotary rakes, and tedders, helping farmers manage forage crops efficiently. These gearboxes enable consistent performance in varying field conditions, supporting both small-scale farms and large agricultural operations. Their design allows for attachment to tractors via PTO (Power Take-Off) shafts, making them versatile and essential for modern farming practices aimed at optimizing crop handling and reducing labor costs.
What is the typical lifespan of a rotary rake gearbox?
With proper maintenance, including regular lubrication and inspection, a high-quality rotary rake gearbox can last between 5 to 10 years, depending on usage intensity and environmental conditions.
How often should I lubricate the gearbox?
It is recommended to check and lubricate the gearbox every 50-100 hours of operation. Use the specified grease or oil as per the manufacturer's guidelines to ensure optimal performance.
Can I replace a rotary rake gearbox myself?
Yes, if you have mechanical experience and the right tools. However, for safety and warranty purposes, it is advisable to consult a professional technician or follow the detailed installation manual provided.
What are the signs of gearbox failure?
Common indicators include unusual noises (grinding or knocking), overheating, oil leaks, decreased performance, and difficulty in engaging the PTO. Address these issues promptly to avoid further damage.
Are these gearboxes compatible with all tractor models?
Most rotary rake gearboxes are designed to be universal, fitting standard PTO systems. Always verify the input speed (540 or 1000 RPM) and mounting specifications to ensure compatibility with your tractor.
What maintenance steps can extend the gearbox's life?
Regularly clean the exterior to prevent dirt buildup, check for leaks, maintain proper lubrication levels, and inspect gears and bearings during off-seasons. Store the equipment in a dry, covered area when not in use.
