Gear couplings are highly efficient mechanical devices used to connect two shafts together at their ends for the purpose of transmitting power. They accommodate misalignment and are known for their durability and high torque capacity. In this detailed guide, we will explore the technical specifications, benefits, and common questions about Gear Coupling to help you make an informed decision for your industrial applications.

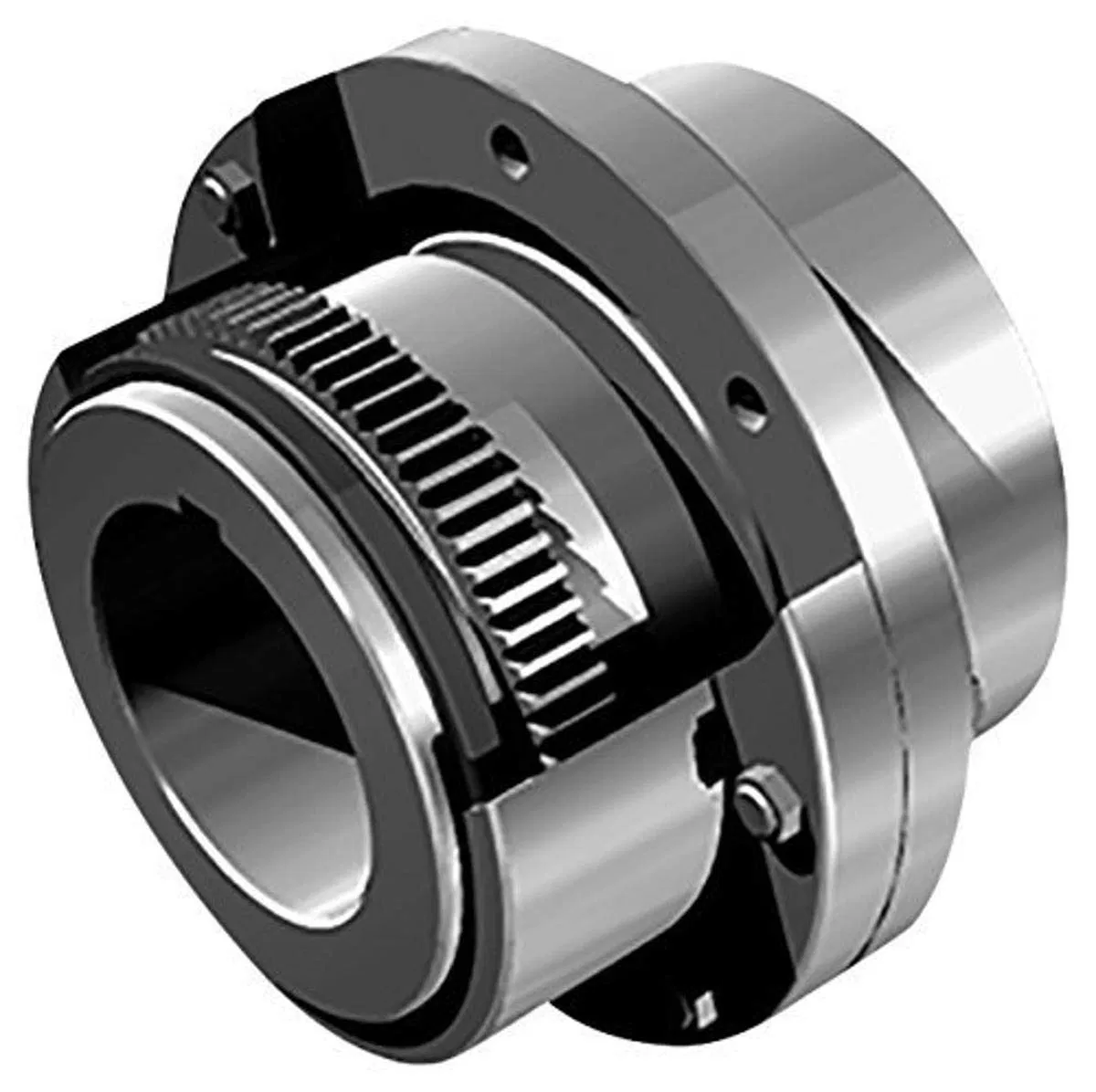

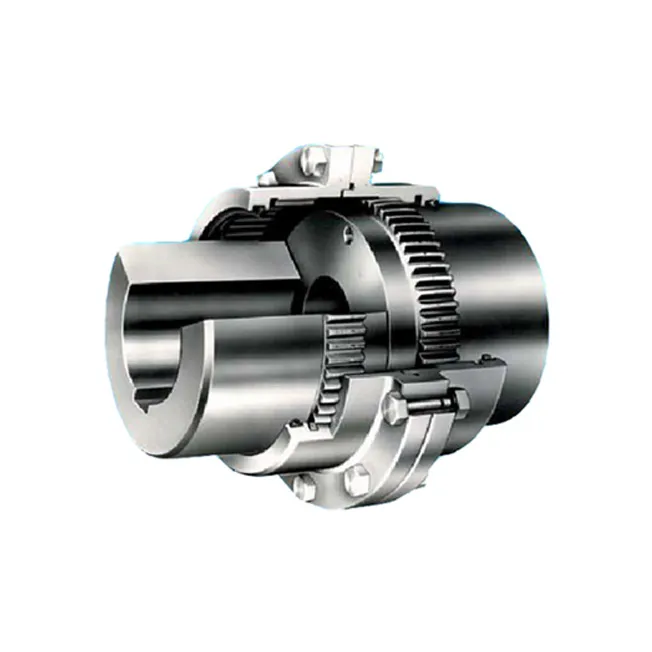

Gear couplings consist of two hubs with external teeth and a sleeve with internal teeth, allowing for angular, parallel, and axial misalignments. They are widely used in heavy-duty industries such as mining, steel, and power generation due to their robustness and reliability.
Below is a comprehensive table outlining the standard specifications for our gear coupling series. These parameters are based on industry standards and can be customized to meet specific needs.
| Model | Bore Diameter (mm) | Max Torque (Nm) | Max Speed (RPM) | Weight (kg) | Material |
|---|---|---|---|---|---|
| GC-100 | 20-50 | 500 | 5000 | 2.5 | Alloy Steel |
| GC-200 | 50-100 | 1500 | 4000 | 5.8 | Stainless Steel |
| GC-300 | 100-150 | 3000 | 3000 | 12.3 | Carbon Steel |
| GC-400 | 150-200 | 6000 | 2500 | 25.0 | Alloy Steel |
Proper installation is crucial for optimal performance. Ensure shafts are aligned within specified tolerances and lubricate the gear teeth regularly with high-temperature grease. Inspect for wear and tear periodically, especially in high-vibration environments.
Gear couplings are versatile and used in various sectors:
What is a gear coupling and how does it work?
A gear coupling is a mechanical device that connects two shafts to transmit torque while accommodating misalignment. It consists of two hubs with external gear teeth and a sleeve with internal teeth, allowing flexibility and efficient power transfer.
What types of misalignment can a gear coupling handle?
Gear couplings can handle angular misalignment (up to 1.5 degrees), parallel misalignment (up to 0.5 mm), and axial misalignment (up to 5 mm), depending on the model and size.
How do I select the right gear coupling for my application?
Consider factors such as torque requirements, shaft size, speed, misalignment tolerance, and environmental conditions. Refer to the product parameters table and consult with our engineering team for customized solutions.
What maintenance is required for gear couplings?
Regular lubrication with appropriate grease, inspection for wear, and ensuring proper alignment are essential. Maintenance intervals depend on operating conditions but typically range from 3 to 12 months.
Can gear couplings be used in high-temperature environments?
Yes, many gear couplings are designed with heat-resistant materials and lubricants, allowing operation in temperatures up to 200°C. Specify your temperature requirements when ordering.
What are the common failure modes of gear couplings?
Common failures include tooth wear due to inadequate lubrication, misalignment beyond specifications, and overloading. Regular maintenance and proper installation can prevent these issues.
Are there customizable options available?
Yes, we offer customizations in bore size, material, and special coatings to meet specific operational needs. Contact our sales team for more details.
How does a gear coupling compare to other types of couplings?
Gear couplings offer higher torque capacity and better misalignment accommodation compared to flexible couplings like jaw or disc couplings, but they may require more maintenance. The choice depends on application requirements.
