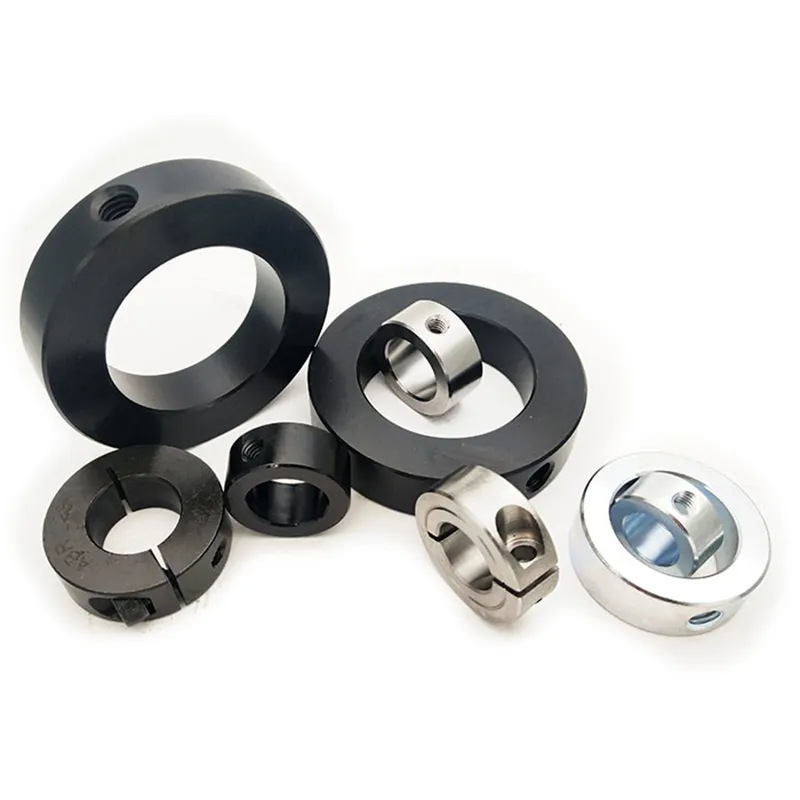

A Shaft Collar is a crucial mechanical component used to secure parts onto shafts, typically in machinery and equipment. It acts as a mechanical stop, providing precise positioning for gears, bearings, sprockets, and other elements along a shaft. Made from durable materials like steel, stainless steel, or aluminum, shaft collars are essential for maintaining alignment, preventing lateral movement, and ensuring the smooth operation of rotating systems. They are widely used in industries such as manufacturing, automotive, aerospace, and robotics due to their reliability and ease of installation.
Below is a table summarizing the specifications for common shaft collar types. These parameters help in selecting the right collar for specific applications, considering factors like shaft size, load, and environmental conditions.
| Parameter | Set Screw Collar | One-Piece Clamping Collar | Two-Piece Clamping Collar | Threaded Collar |
|---|---|---|---|---|
| Material Options | Carbon steel, stainless steel | Aluminum, stainless steel | Steel, aluminum | Stainless steel, steel |
| Bore Size Range | 1/8" to 2" | 1/4" to 3" | 1/2" to 6" | 1/4" to 1.5" |
| Load Capacity (Axial) | Up to 2,000 lbs | Up to 5,000 lbs | Up to 10,000 lbs | Up to 3,000 lbs |
| Installation Method | Set screws tightened with hex key | Single clamping screw | Multiple screws for even pressure | Threads onto shaft or component |
| Corrosion Resistance | Moderate (depends on finish) | High (with stainless steel) | Variable (material-dependent) | High (stainless steel options) |
| Typical Applications | Light-duty machinery, prototypes | General industrial use | Heavy-duty equipment, high loads | Precision adjustments, linkages |
Shaft collars are versatile components found in numerous industries. In manufacturing, they secure conveyor system parts and assembly line machinery. Automotive applications include use in engines and transmission systems to hold components in place. Aerospace industries rely on them for precision in control mechanisms, while robotics utilize shaft collars for accurate positioning in joints and actuators. Their ability to provide reliable stopping and locating functions makes them indispensable in any rotating shaft setup.
What is the primary function of a shaft collar?
A shaft collar primarily serves as a mechanical stop or barrier on a shaft, preventing lateral movement of components like bearings or gears, and ensuring they remain固定在 desired positions.
How do I choose the right shaft collar for my application?
Select based on shaft diameter, load requirements, environmental conditions (e.g., corrosion needs), and type of installation. For high loads, use clamping collars; for ease of use, set screw types might suffice.
Can shaft collars be reused?
Yes, most shaft collars, especially clamping types, can be reused multiple times without significant wear, provided they are not damaged during removal and are reinstalled properly.
What materials are best for corrosive environments?
Stainless steel shaft collars, particularly grades like 316 or 304, offer excellent corrosion resistance and are ideal for harsh conditions, such as marine or chemical industries.
How tight should the screws be on a clamping collar?
Tighten screws to the manufacturer's specified torque, usually provided in documentation. Over-tightening can damage the shaft or collar, while under-tightening may lead to slippage.
Are there shaft collars for non-round shafts?
Yes, specialized shaft collars are available for non-round shafts, such as hex or D-shaped shafts, designed to fit securely without slipping.
What is the difference between one-piece and two-piece collars?
One-piece collars are simpler and cheaper, suitable for general use, while two-piece collars provide more even clamping force and are better for high-load applications or frequent adjustments.
Can I customize a shaft collar?
Many manufacturers offer custom options, including unique bore sizes, materials, and finishes, to meet specific application requirements.
