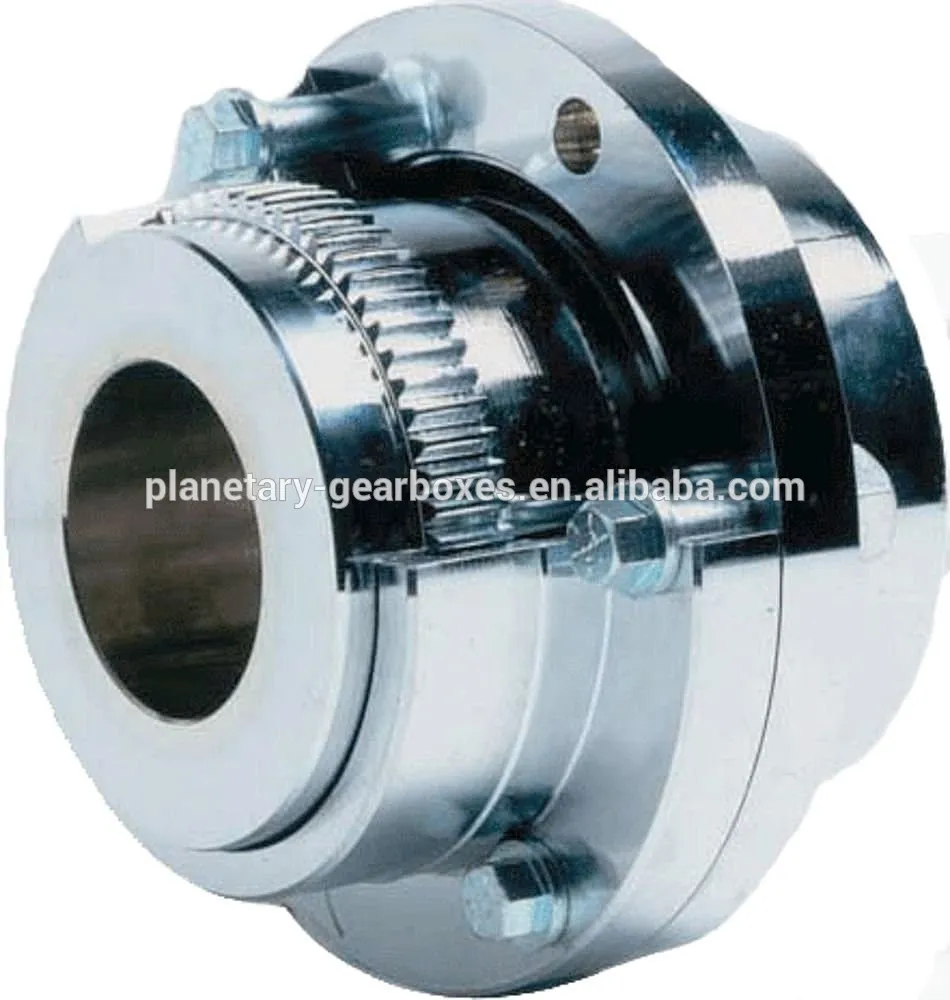

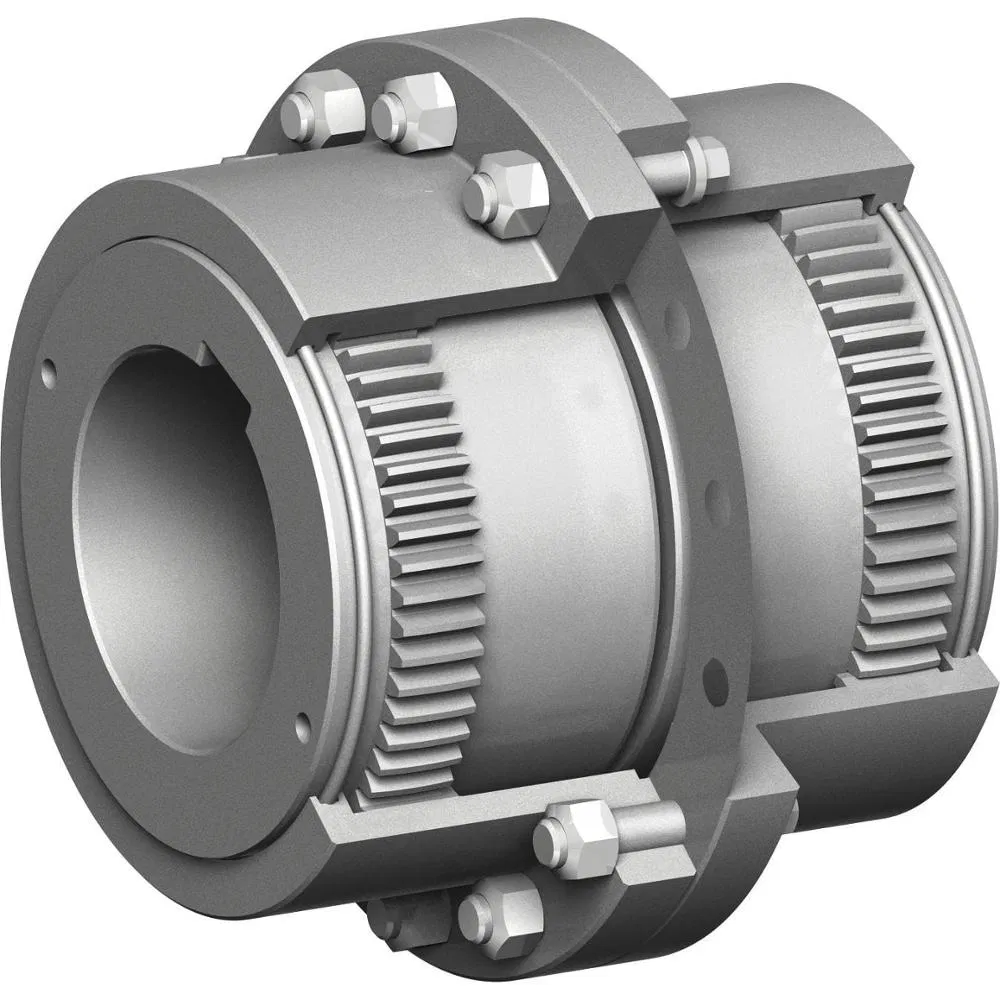

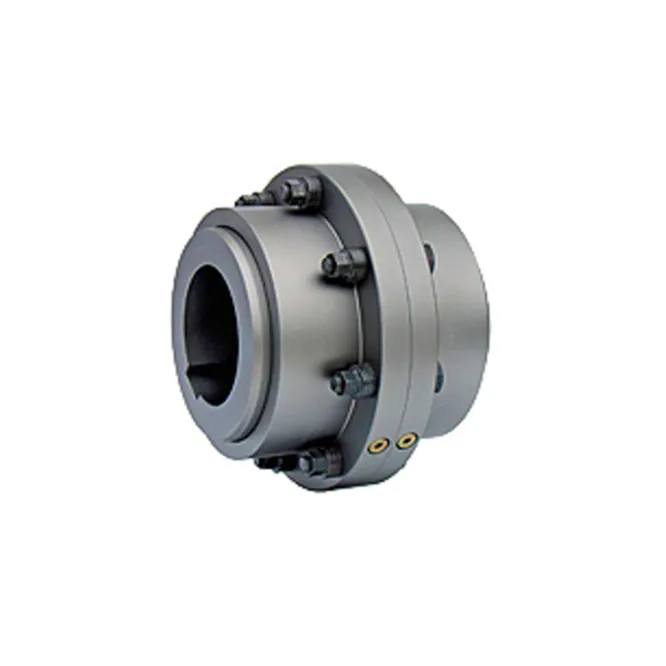

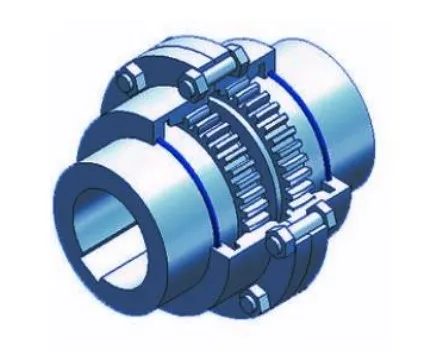

A flexible gear coupling is a mechanical device used to connect two shafts, allowing for the transmission of torque while accommodating misalignment and reducing vibration. It consists of two hubs with external gear teeth and a flexible element, often made of elastomer or metal, that fits between the hubs.
Here's how a flexible gear coupling operates:
Torque Transmission: The external gear teeth on the hubs of the coupling mesh together, creating a solid connection between the two shafts. As one shaft rotates, the torque is transferred through the meshing gears to the other shaft, enabling power transmission.
Misalignment Compensation: One of the key advantages of a flexible gear coupling is its ability to accommodate misalignment between the connected shafts. It can handle angular misalignment, axial misalignment, and radial misalignment to some extent. The flexible element between the hubs allows for slight angular and axial movement, reducing stress on the connected machinery and improving overall performance.
Vibration Dampening: The flexible element of the coupling helps in dampening vibrations that may occur during operation. It absorbs shocks and vibrations, reducing their transmission between the connected shafts. This feature helps to protect the machinery and improve its longevity.
Maintenance and Lubrication: Flexible gear couplings generally require regular inspection and maintenance to ensure optimal performance. Lubrication is essential to reduce wear and friction between the gear teeth, ensuring smooth rotation and minimizing heat generation.
Applications: Flexible gear couplings find application in various industries, including power generation, mining, steel production, and more. They are used in heavy-duty machinery, such as pumps, compressors, conveyors, and turbines, where torque transmission and misalignment compensation are critical.
