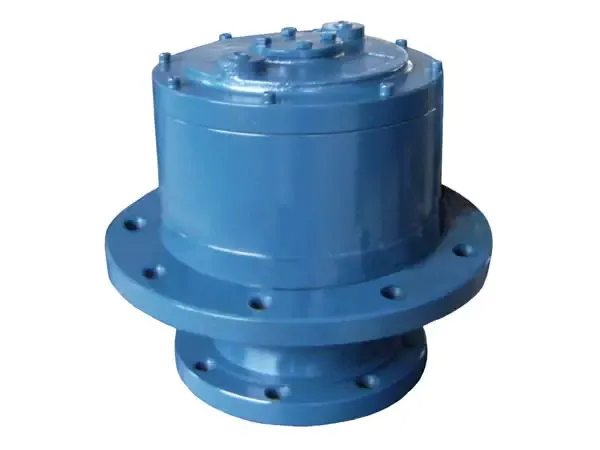

CTU planetary transmission track drive product information
Brevini riduttori power transmission compact planetary track transmission is designed for Tracked Vehicles: excavators and earth moving machinery.
They have heavier housings, shorter overall lengths, and greater radial and axial load capacity.
They have an integrated multi disc fail safe brake, which can be directly installed on the hydraulic motor, and are ready to accept the plug-in hydraulic motor.
The compact design of the device allows power to be transmitted directly from the Brevini axial piston hydraulic motor to the operating machine, thereby reducing the overall size of the hydrostatic transmission.
High radial load capacity, special sealing system and manual separation allow the final drive to operate under harsh and heavy load conditions.
The internal multi disc parking brake, motion control valve and smooth displacement variability provided by Brevini hydraulic motor are additional advantages, enabling Dana to provide a complete, reliable and integrated transmission kit as a partner.
Technical Features of CTU Track Drive
| Model | T2max(Nm) | Indicative Machine Weight(Ton) | Ratio(from...to) | Brake release pressure(bar) | Parking Brake | Max. brake torque(Nm) | Notes/Options | Weight(kg) |
| CTD2051 | 5.500 | 5 | 16...53 | 16 | M | 355 | 55 | |
| CTD2100.1 | 10.000 | 10 | 15...50 | 18 | M | 320 | 65 | |
| CTU3150.1 | 18.000 | 18 | 66...141 | 14 | M | 230 | Two stages available | 135 |
| CTU3200.1 | 25.000 | 20 | 67...130 | 10...18 | M | 140 | ||
| CTU3300.1 | 35.000 | 25 | 67...130 | 10...18 | M | 485 | Two stages available | 162 |
| CTU3500.1 | 45.000 | 30 | 87...169 | 10 | M | 495 | Two stages available | 205 |
| CTU3700.1 | 70.000 | 40 | 98...191 | 14 | M | 500 | Two stages available | 300 |
| CTU3850 | 85.000 | 50 | 83,5...198 | 15 | M | 1160 | 380 | |
| CTU31100 | 110.000 | 70 | 83,5...198 | 15 | M | 1345 | 400 | |
| CTU31400 | 140.000 | 80 | 109...198 | 15 | M | 1545 | 585 | |
| CTU31700 | 170.000 | 90 | 109...198 | 15 | M | 1545 | 585 |
features:
The large radial and axial load capacity is due to the strong tapered roller bearings.
High torque capacity
Reliable oil seal protection, designed according to our field experience.
Universal and SAE input direct mount flanges
These devices are designed for direct installation into the rim.
Sample application:
* food processing machinery
* packer
* breweries, filling plants and production lines
* baking machine
* chocolate blender
* milk collection technology
* milk processing
* machines in dusty environments, such as flour dust
* plant and bulk material transportation system

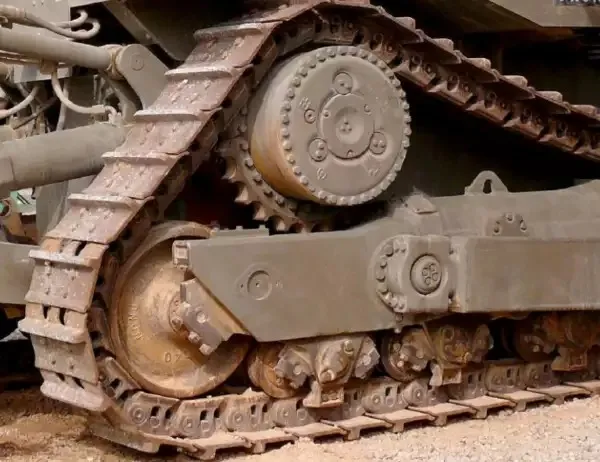

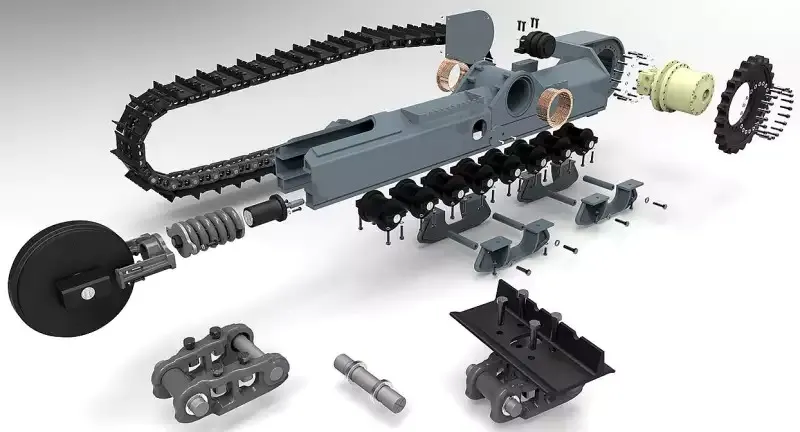

Continuous track can be traced back to 1770, and is now commonly used in various vehicles, including bulldozers, excavators, tanks and tractors. However, the inherent additional traction, low ground pressure and durability of continuous track propulsion systems can be found on vehicles used in any application.
Track Drive Manufacturer

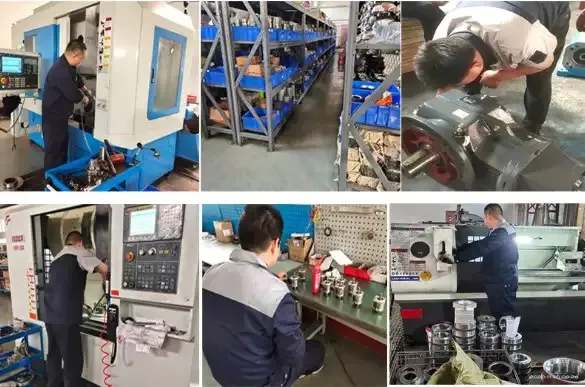

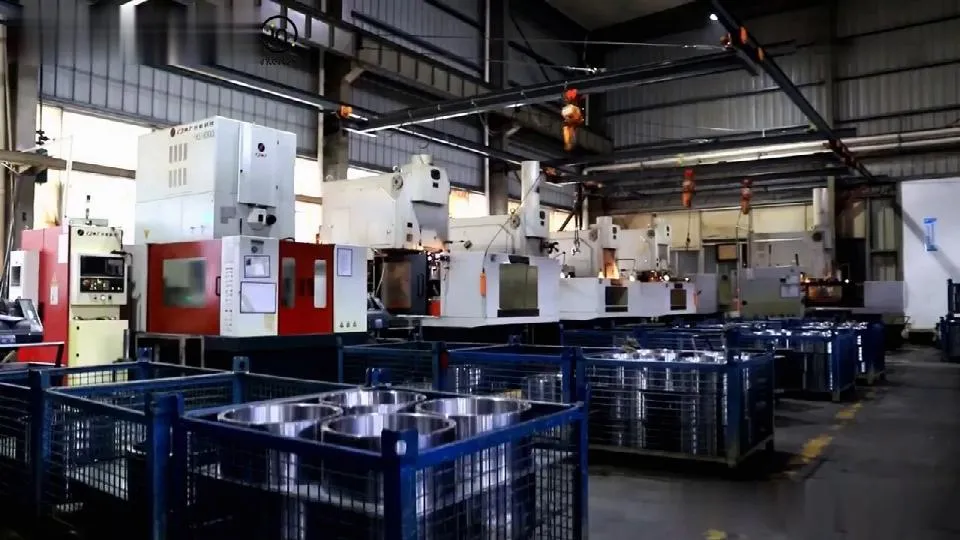

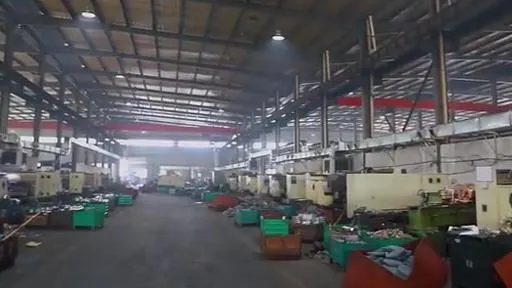

Our company is located in Hangzhou, Zhejiang Province, the famous capital of construction machinery. It is the production base of Shantui bulldozer and PC excavator. We specialize in exporting construction machinery and parts.

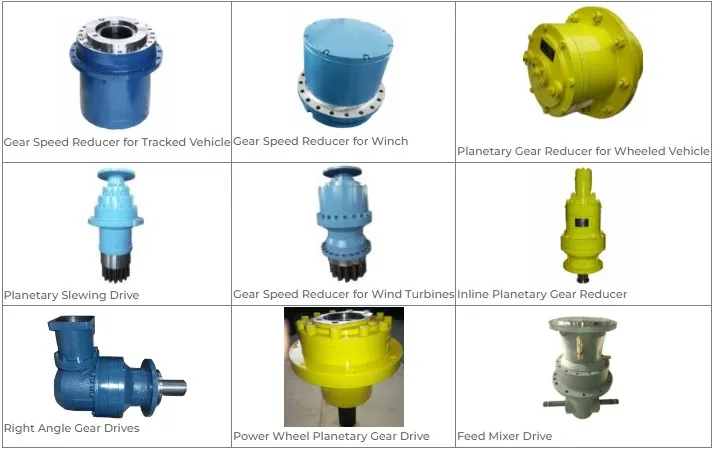

We can provide original or OEM parts that are compatible with many brands. The products include main reducer, hydraulic pump, slewing motor, chassis system parts, engine parts, excavator cab, Boom Bucket, etc. We will provide you with all high-quality parts at competitive prices.
Customers at home and abroad are welcome to contact us and establish mutually beneficial business relations.
 |
 |
 |
 |
