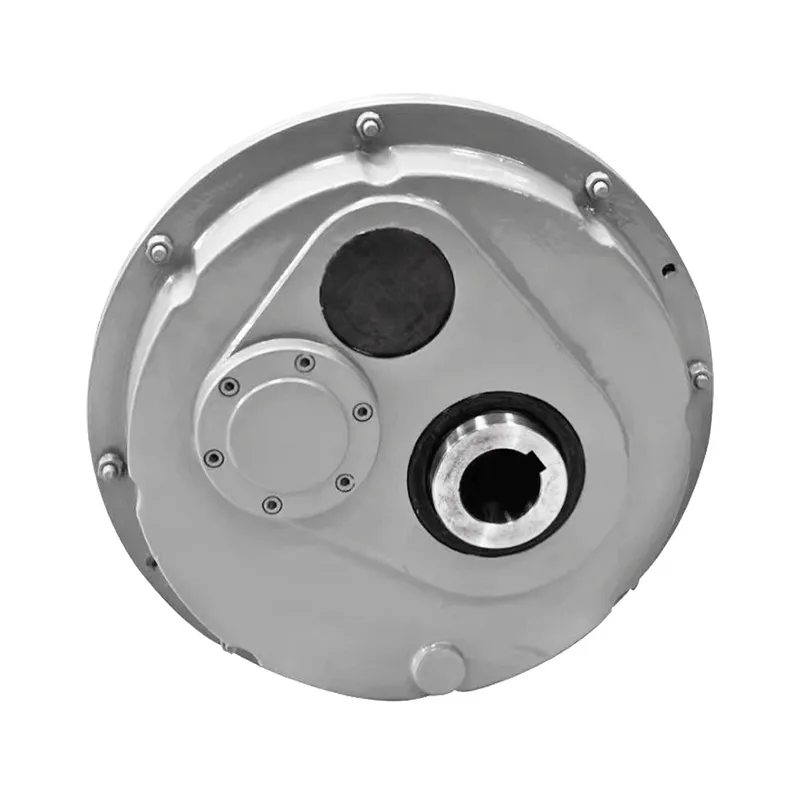

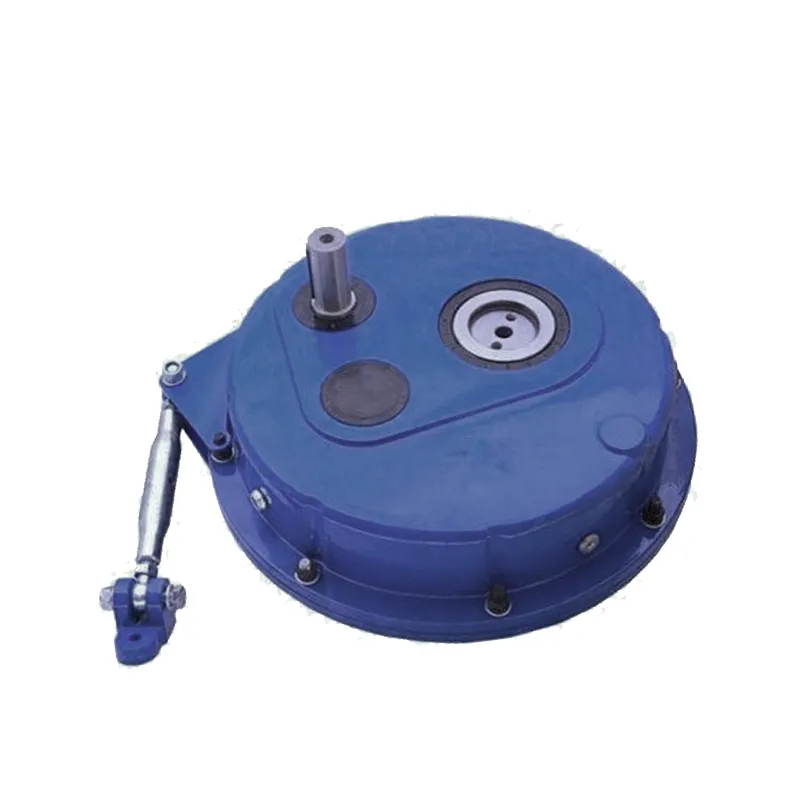

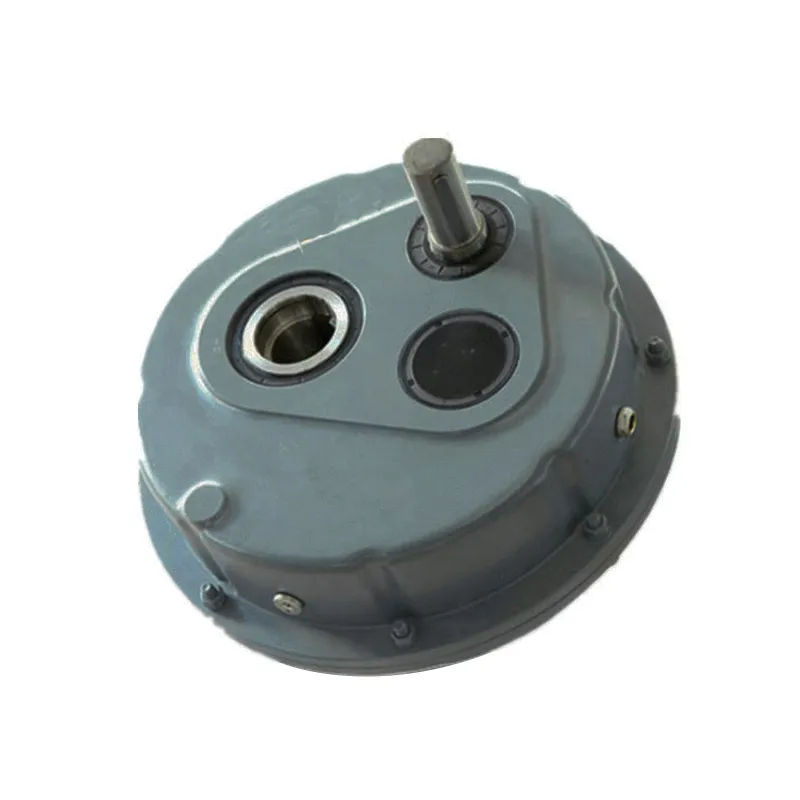

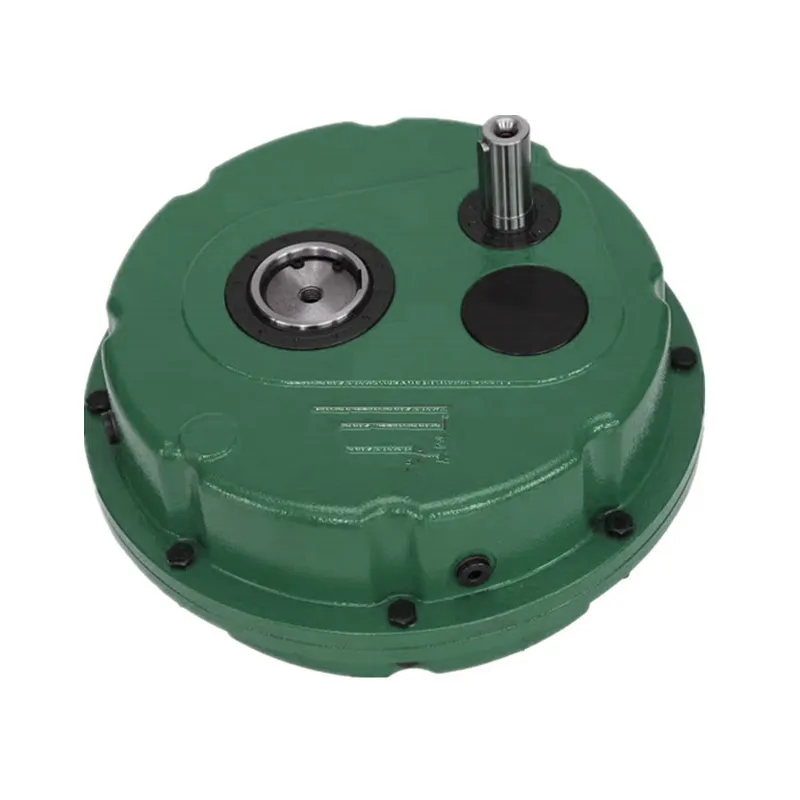

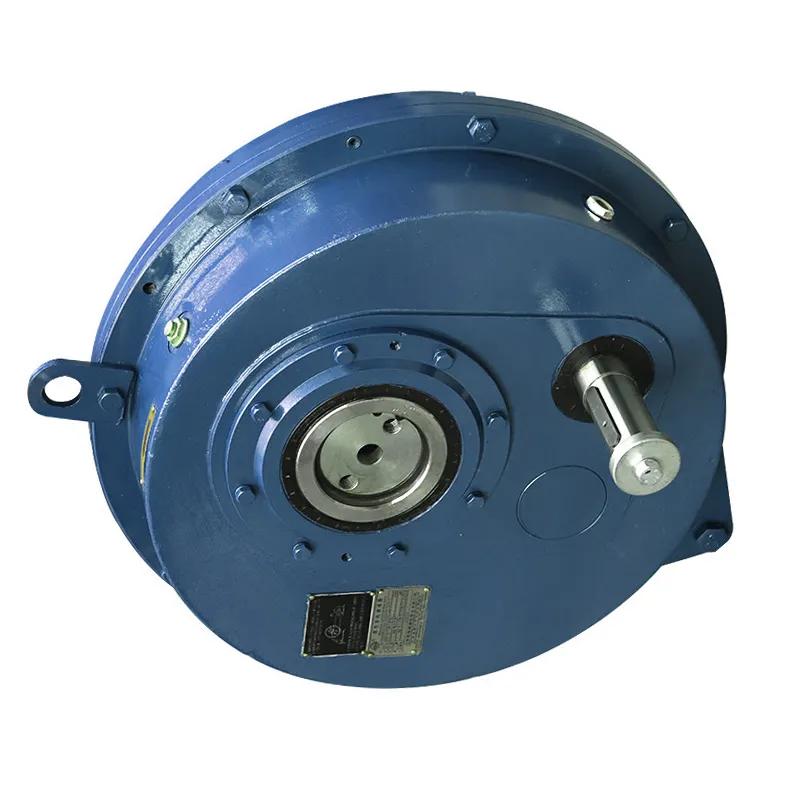

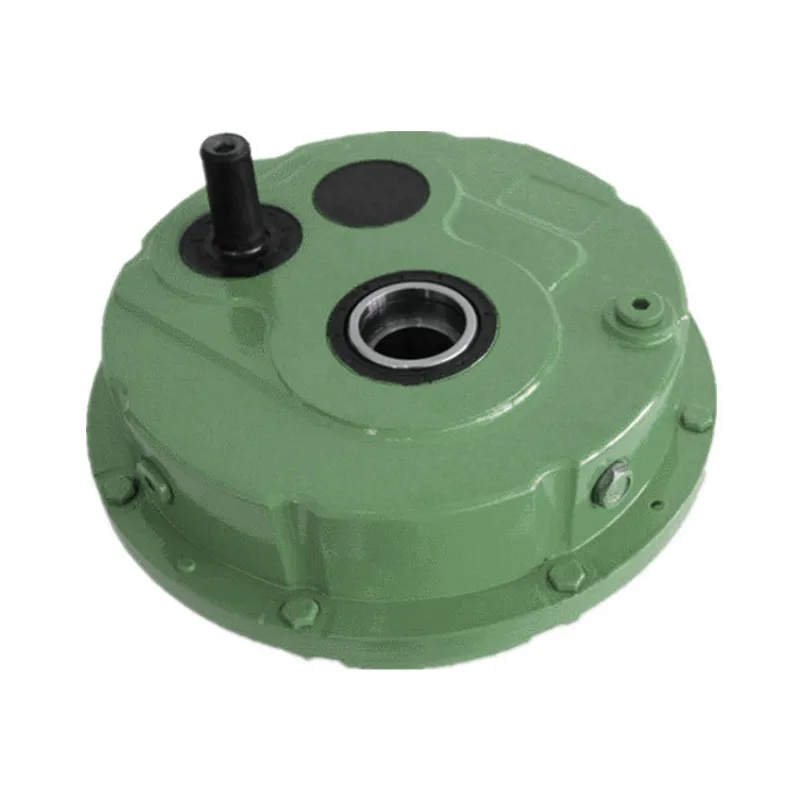

Ta Series Parallel Shaft Arm Mounted Gearbox Gearmotor Conveyor Speed Gear Reducer For Mining Belt Transmission System
Engineering / Technical
Standard Hub Bores
Hubs are bored to F7 limits, A shaft tolerance grade h7 is recommended. 8haft keyways must be to appropriate standard dimensions. 8 maller bores are available to customer requirements. The Altern ative hub bore is the maximum bore available in each unit size
Standard Hub K eyways
Keyways for the standard output hubs are machined by 180 standards , Output hub keys are not supplied.
8haft keyways shuld be machined to suit the standard key size shown below
Standard Input Shaft and Keys
Input shafts are ground to h6 limits, the pulley or other bores tolerance grade H7 is recommended . 8haft keyways are milled in accordance with 180 standards, see the dimensions in the table, the key is supplied.
