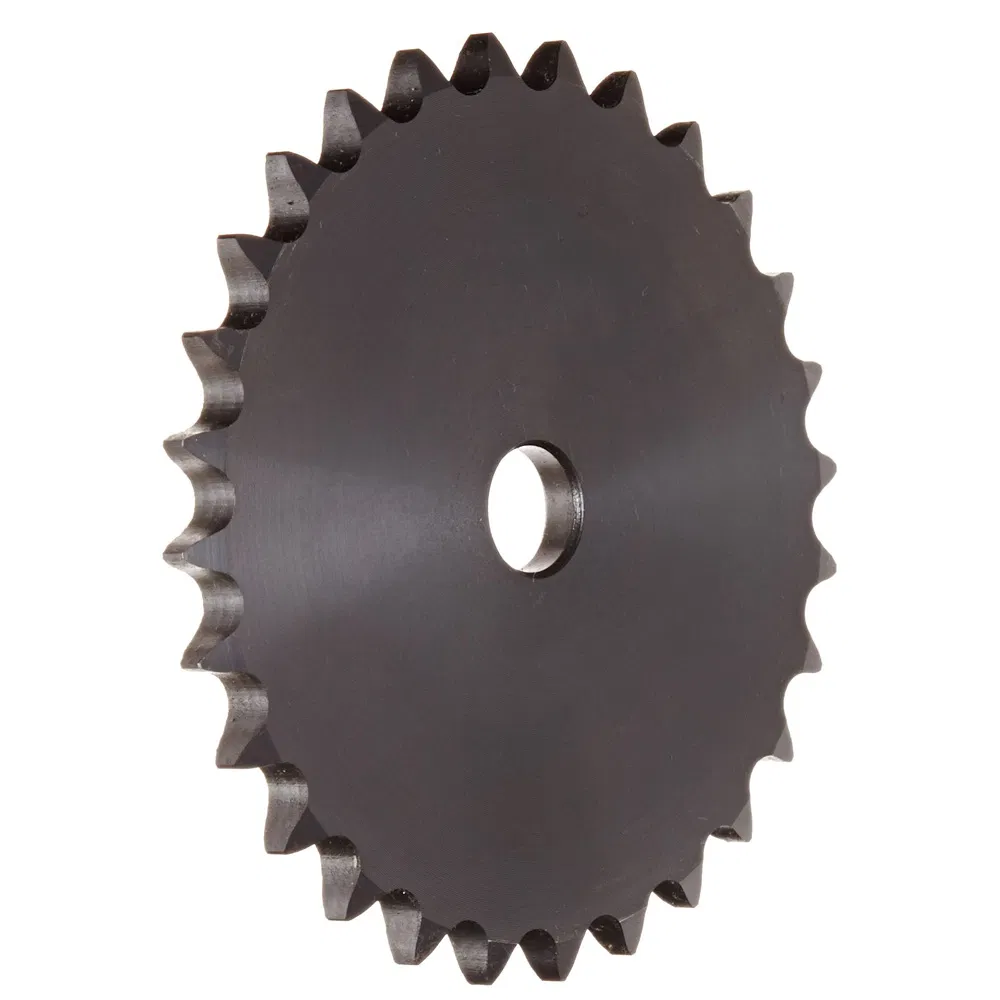

180 roller chain sprockets are manufactured specifically for 180 roller chains and conform to ANSI B29.1 standards. Our sprockets are manufactured from high-grade 1045 steel and can be supplied with heat-treated hardened teeth for improved wear life. Using 1045 steel instead of the industry standard 1018 gives these sprockets an edge on the competition with being able to withstand higher tensile loads, having improved working life, and better wear characteristics.
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | (D) | Weight (LBS) |
|---|---|---|---|---|---|---|
| 180A11 | 11 | A | 9.010 | 1 -/2'' | 5-1/2'' | 14.0 |
| 180A12 | 12 | A | 9.750 | 1-1/2'' | 6'' | 16.0 |
| 180A13 | 13 | A | 10.480 | 1-1/2'' | 6-3/4'' | 20.0 |
| 180A14 | 14 | A | 11.210 | 1-1/2'' | 7 | 24.0 |
| 180A15 | 15 | A | 11.930 | 1-1/2'' | 7 | 28.0 |
| 180A16 | 16 | A | 12.660 | 1-1/2'' | 7 | 32.0 |
| 180A17 | 17 | A | 13.390 | 1-1/2'' | 7 | 37.0 |
| 180A18 | 18 | A | 14.110 | 1-1/2'' | 7 | 43.0 |
| 180A19 | 19 | A | 14.830 | 1-1/2'' | 7-1/2'' | 47.0 |
| 180A20 | 20 | A | 15.560 | 1-1/2'' | 7-1/2'' | 53.0 |
| 180A21 | 21 | A | 16.280 | 1-1/2'' | 7-1/2'' | 57.0 |
| 180A22 | 22 | A | 17.000 | 1-1/2'' | 7-1/2'' | 62.0 |
| 180A23 | 23 | A | 17.720 | 1 -1/2'' | 7-1/2'' | 69.0 |
| 180A24 | 24 | A | 18.440 | 1-1/2'' | 7-1/2'' | 77.0 |
| 180A25 | 25 | A | 19.160 | 1-1/2'' | 7-1/2'' | 84.0 |
| 180A28 | 28 | A | 21.320 | 1-1/2'' | 8 | 104.0 |
| 180A30 | 30 | A | 22.760 | 1-1/2'' | 8-1/2'' | 120.0 |
| 180A35 | 35 | A | 26.350 | 1-1/2'' | 8-1/2'' | 172.0 |
| 180A40 | 40 | A | 29.940 | 1-1/2'' | 8-1/2'' | 229.0 |
| 180A45 | 45 | A | 33.530 | 1-1/2'' | 9'' | 284.0 |
| 180A54 | 54 | A | 39.980 | 1-1/2'' | 9'' | 420.0 |
| 180A60 | 60 | A | 44.280 | 1 -1/2'' | 9-1/2'' | 505.0 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
