Characteristic

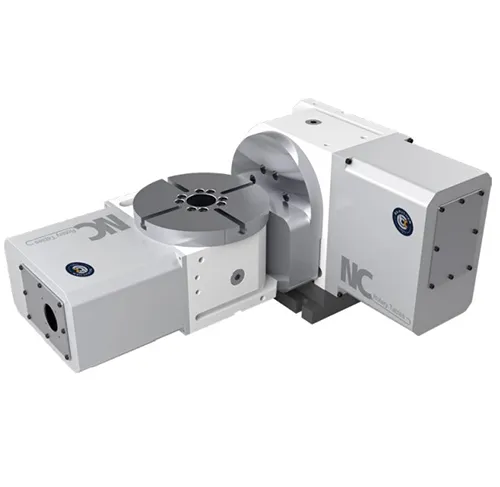

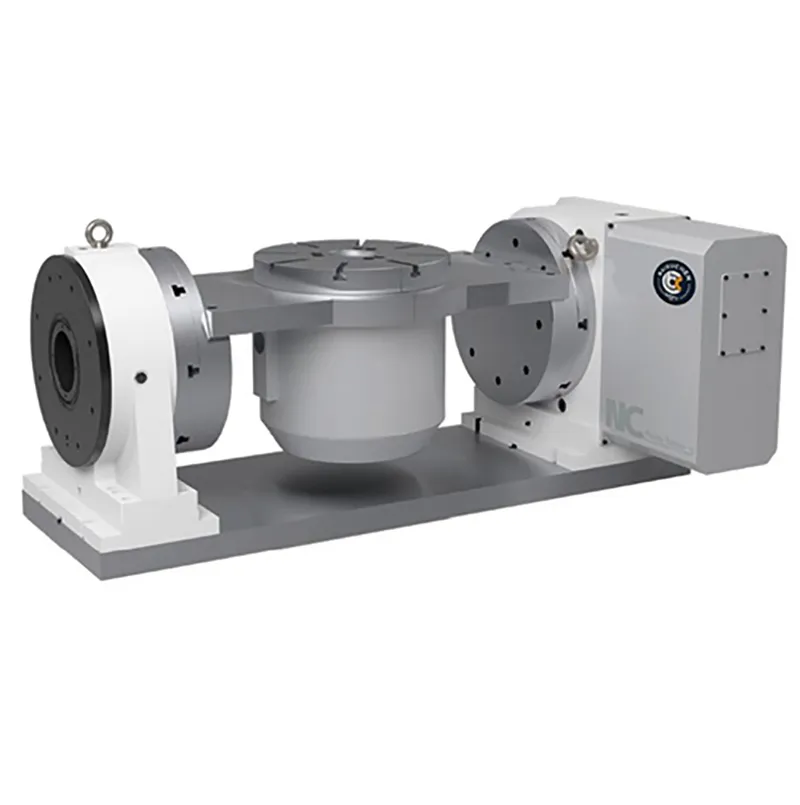

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

CNC machining centers are advanced manufacturing machines used to produce complex parts with a high degree of precision and accuracy. 5-axis CNC machining centers can machine parts from multiple angles and directions, making them capable of producing very complex shapes and designs. Here are some common accessories used with 5-axis CNC machining centers:

1. Toolholders: Toolholders are used to hold the cutting tools in place during the machining process. They come in a variety of sizes and shapes to accommodate different types of cutting tools.

2. High-speed spindles: High-speed spindles are used to spin the cutting tool at high speeds during machining. They are designed to provide precise control over the cutting process and can be adjusted to accommodate different materials and cutting speeds.

3. Probes: Probes are used to measure the dimensions of the machined part and ensure that it is machined correctly. They can be used to check for deviations from the design specifications and make adjustments as necessary.

4. Workholding fixtures: Workholding fixtures are used to hold the part being machined in place during the machining process. They come in a variety of shapes and sizes to accommodate different types of parts and can be adjusted to hold the part securely in place.

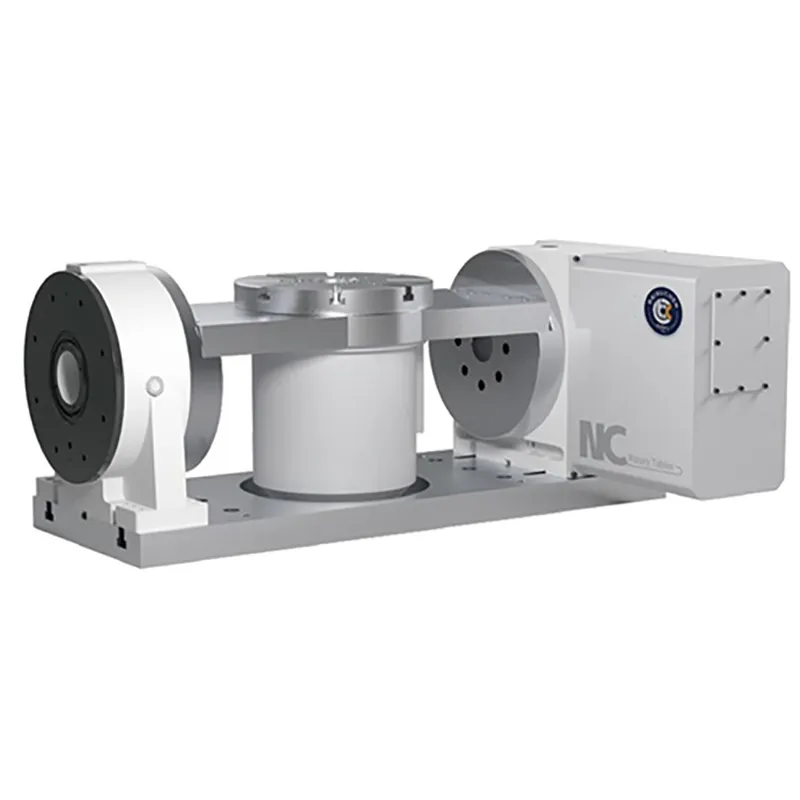

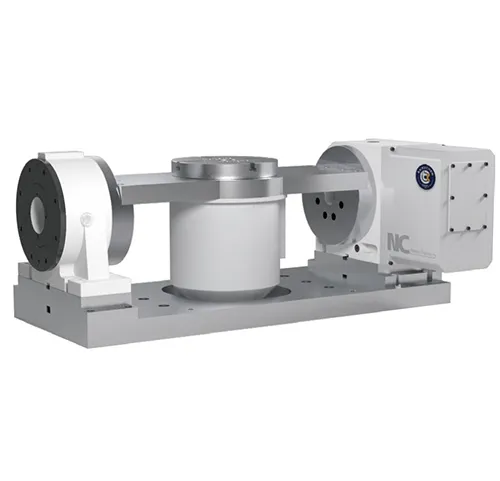

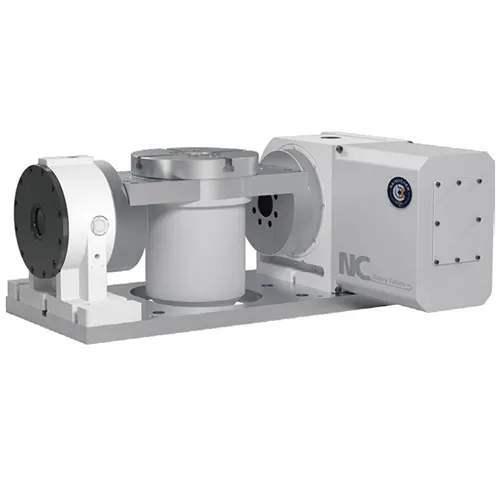

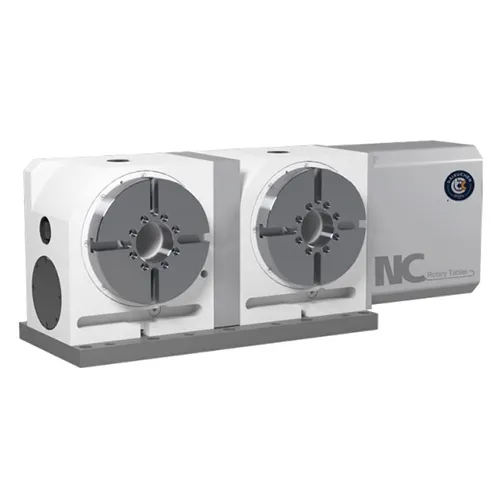

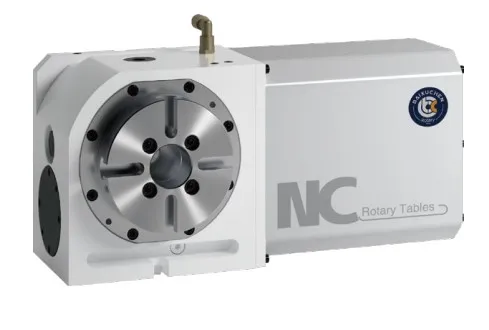

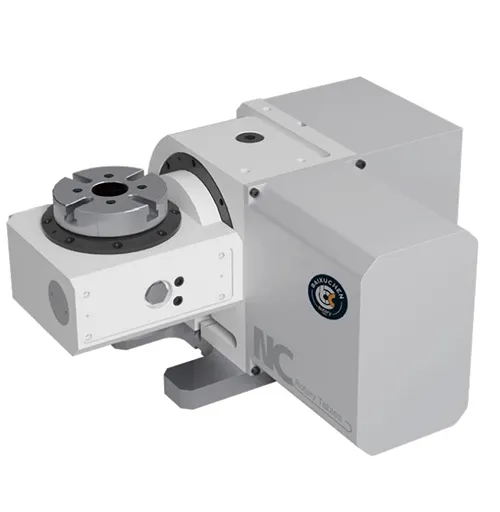

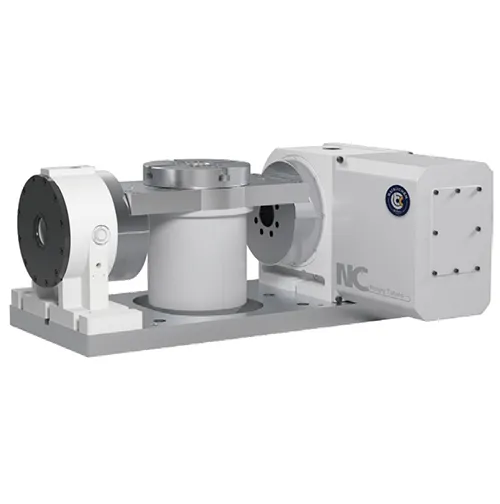

5. Rotary tables: Rotary tables are used to rotate the part being machined during the machining process. They can be used to machine parts from multiple angles and directions, which makes them ideal for producing complex shapes and designs.

6. Coolant systems: Coolant systems are used to cool the cutting tool and the part being machined during the machining process. They are designed to reduce heat buildup and prevent damage to the cutting tool and the part being machined.

7. Chip conveyors: Chip conveyors are used to collect and remove the chips and debris generated during the machining process. They are designed to keep the work area clean and prevent damage to the machine and the machining part.

Conclusion:

In conclusion, 5-axis CNC machining centers are advanced manufacturing machines that require various accessories to operate effectively. Toolholders, high-speed spindles, probes, work holding fixtures, rotary tables, coolant systems, and chip conveyors are all important accessories used with 5-axis CNC machining centers to produce complex parts with high precision and accuracy.
