Product Description

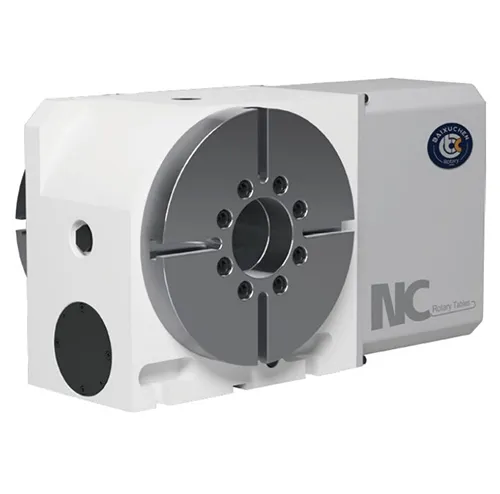

WT-170 cnc machining center accessories for numerical control machine

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

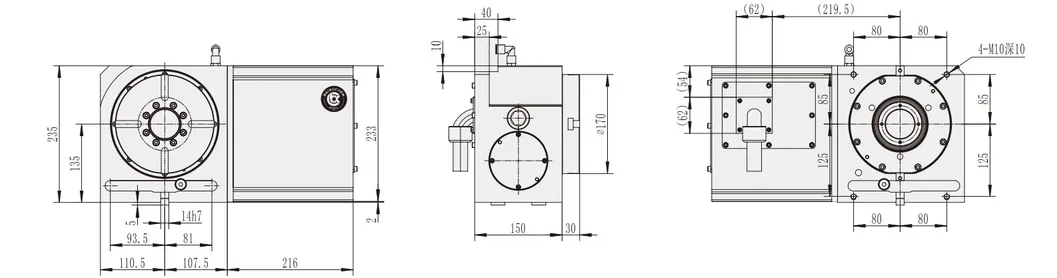

Product Model	WT-170	Segmentation accuracy	20 ″
Disk Diameter	Φ170mm	Repeat positioning	4 ″
Center Diameter	Φ55H7mm	Locking Mode	31kg.m
Spindle Hole	Φ50mm	Servo Motor	β8is;HF-104
Center Height	135mm	Speed Reduction Ratio	1:90
T-Slot Width	12H7mm	Maximun Speed	44.4r.p.m
Positioning Button	14H7mm	Allowable Work Inertia	5.4kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	18Kg.m
Weight(Without Motor)	60Kg	Vertical	80KG
Horizontal	160KG	Tailstock applied	160KG

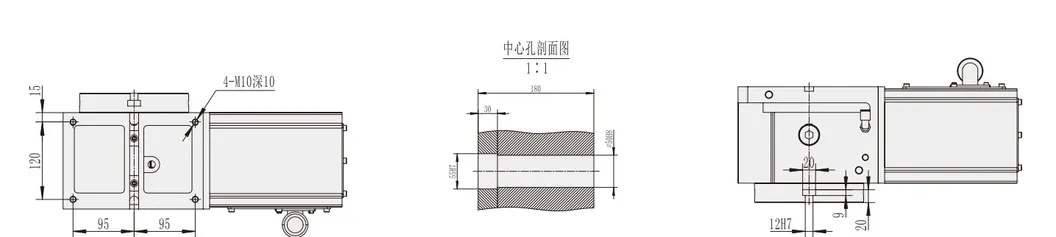

Wt-170 CNC Machining Center Accessories for Numerical Control Machine
