5 Axis CNC Accessories

Raydafon Group's 5 Axis CNC Accessories deliver unmatched precision and durability for manufacturing professionals, enhancing productivity and efficiency in diverse applications with reliable, high-performance solutions.

Send Inquiry

Product Description

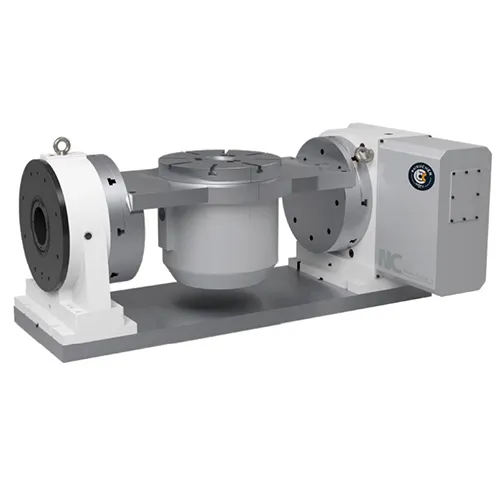

RTS-170 cnc machining center 5 axis accessories for numerical control machine

Characteristic

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

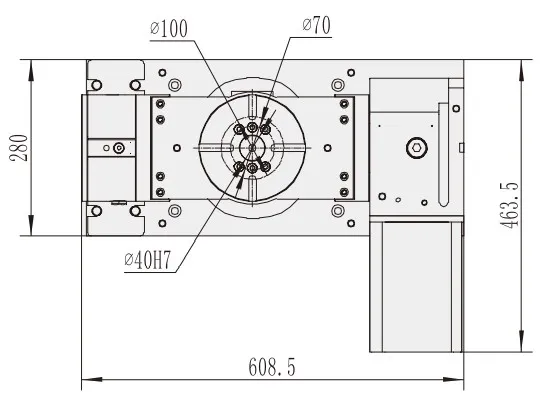

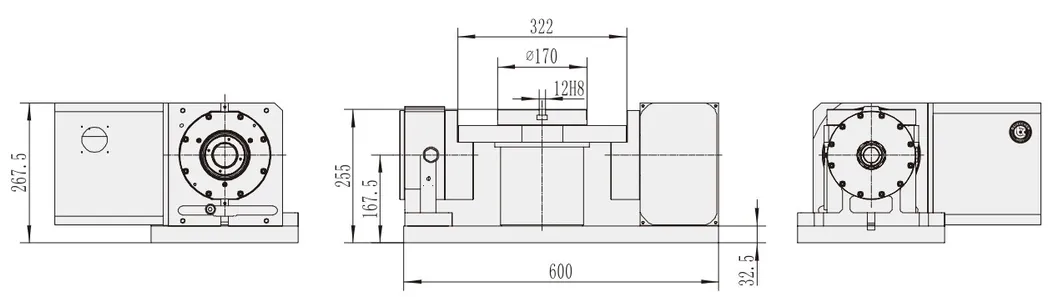

Product Model	RTS-170	Servo motor (optional)	Rotation axisβ2iFANUC;Tilt axisβ8iFANUC
Panel Size	170mm	Reduction Ratio	Rotation axis1:121 ;Tilt axis1:90
Disk Aperture	40mm	Maximum Rotation Speed Of Worktable	33.3 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	255mm	Locking torque of rotating shaft	Rotation axis412N.m;Tilt axis450N.m
90° Time Center Height	135mm	Brake Pressure	Rotation axis pressure Machinery;Tilt axis oil pressure15Kg/cm²
Net Weight (about)	180Kg	Allowable Cutting Force	Rotation axis18Kgf-m;Tilt axis30Kgf-m
Horizontal placement	80KG	Ninety ° Time	50KG

Rts-170 CNC Machining Center 5 Axis Accessories for Numerical Control Machine
