Metal CNC Machining Center

Raydofon Group's Metal CNC Machining Center delivers precision engineering for industrial applications, offering superior durability, advanced automation, and unmatched accuracy. Ideal for manufacturers seeking efficiency and reliability, it transforms production with seamless performance and innovation, setting a new standard in metalworking excellence.

Send Inquiry

Product Description

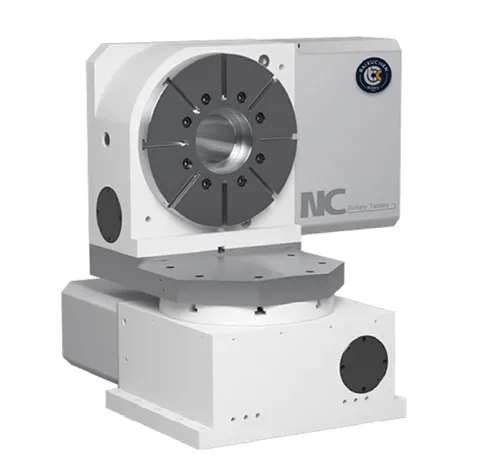

RTS-400 China Professional metal cnc machining center price 5 axis accessories

Characteristic

High precision, high performance and high efficiency
Five axis machining, modular design
Optional fixture oil circuit, optional hydraulic brake

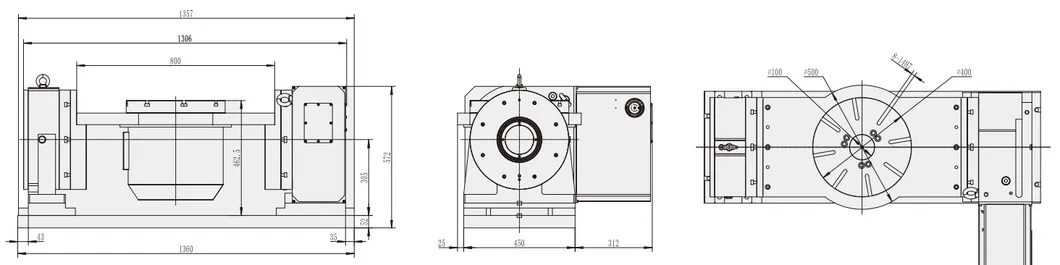

Product Model	RTS-400	Servo motor (optional)	Rotation axisβ 22iFANUC;Tilt axisβ 22iFANUC
Panel Size	400mm	Reduction Ratio	Rotation axis1:145 ;Tilt axis1:120
Disk Aperture	50mm	Maximum Rotation Speed Of Worktable	20 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±120°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis20″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	462.5mm	Locking torque of rotating shaft	Rotation axis7840N.m;Tilt axis1800N.m
90° Time Center Height	305mm	Brake Pressure	Rotation axis pressure Motor+Machinery;Tilt axis oil pressure35Kg/cm²
Net Weight (about)	650Kg	Allowable Cutting Force	Rotation axis300Kgf-m;Tilt axis170Kgf-m
Horizontal placement	400KG	Ninety ° Time	200KG

Rts-400 China Professional Metal CNC Machining Center Price 5 Axis Accessories
