5 Axis CNC Machining Accessories

RTS-255 Factory Sale Various metal cnc machining center 5 axis accessoriesCharacteristic High precision, high performance, high efficiency Five axis machining, modular designOptional fixture oil circuit, Optional hydraulic brakeProduct ModelRTS-255Servo motor (optional)Rotation axisβ8iFANUC;Tilt axi......

Send Inquiry

Product Description

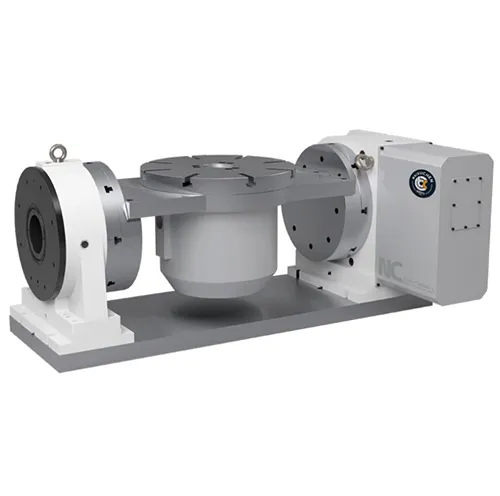

RTS-255 Factory Sale Various metal cnc machining center 5 axis accessories

Characteristic

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

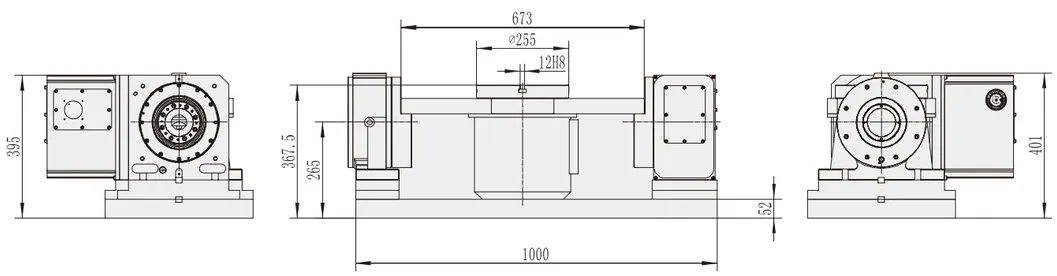

Product Model	RTS-255	Servo motor (optional)	Rotation axisβ8iFANUC;Tilt axisβ8iFANUC
Panel Size	255mm	Reduction Ratio	Rotation axis1:121 ;Tilt axis1:121
Disk Aperture	50mm	Maximum Rotation Speed Of Worktable	33 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±120°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis20″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	367.5mm	Locking torque of rotating shaft	Rotation axis1980N.m;Tilt axis1200N.m
90° Time Center Height	213mm	Brake Pressure	Rotation axis pressure Motor+Machinery;Tilt axis oil pressure35Kg/cm²
Net Weight (about)	270Kg	Allowable Cutting Force	Rotation axis160Kgf-m;Tilt axis120Kgf-m
Horizontal placement	150KG	Ninety ° Time	100KG

CNC machining centers are advanced machine tools that can perform various manufacturing operations with high precision and accuracy. 5-axis CNC machining centers can perform complex machining operations on parts and components with multiple surfaces and contours.

Accessories for 5-axis CNC machining centers can include various components and tools used to enhance their capabilities and improve their performance. Some common accessories for 5-axis CNC machining centers include:

1. Tool changers: Automated tool changers can quickly and efficiently change cutting tools during machining operations, allowing for greater flexibility and productivity.

2. Workholding systems: Specialized workholding systems, such as vises, chucks, and fixtures, can be used to securely hold parts and components in place during machining operations.

3. Probes and sensors: Probes and sensors can be used to accurately measure and align parts and components, ensuring precise machining and minimizing errors.

4. Rotary tables: Rotary tables can be used to rotate parts and components during machining operations, allowing for greater access to multiple surfaces and angles.

5. Coolant systems: Coolant systems can be used to lubricate and cool cutting tools during machining operations, improving their performance and extending their lifespan.

6. Software packages: Advanced software packages can be used to program and optimize machining operations, allowing for greater precision, efficiency, and flexibility.

Properly selecting and using accessories for 5-axis CNC machining centers is important to ensure their efficient operation and optimal performance. Careful consideration should be given to the specific requirements of the machining operations, as well as the capabilities and limitations of the machine and accessories.

Rts-255 Factory Sale Various Metal CNC Machining Center 5 Axis Accessories
