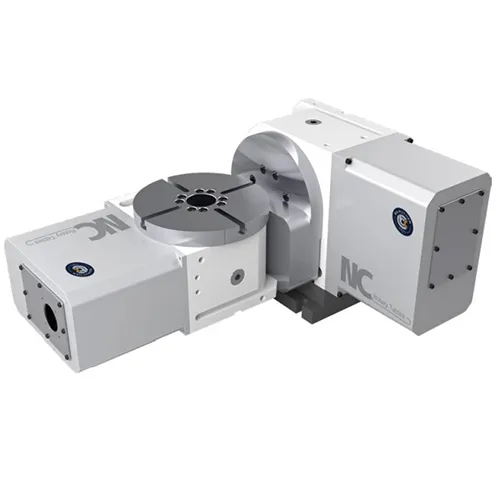

RT-250 CNC Parts

Raydafon Group's RT-250 CNC Parts deliver precision engineering for industrial machinery, offering durability and superior performance. Ideal for engineers and manufacturers, they enhance productivity and reliability, setting them apart with unmatched quality and innovation. Elevate your operations with trusted excellence.

Send Inquiry

Product Description

RT-250 Promotional Various cnc machining center parts accessories for numerical control machine

Characteristic

High precision, high performance, high efficiency

Five axis machining, modular design

Strong braking system

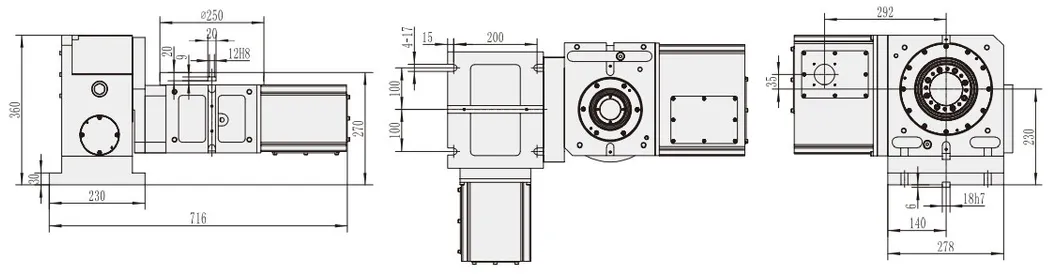

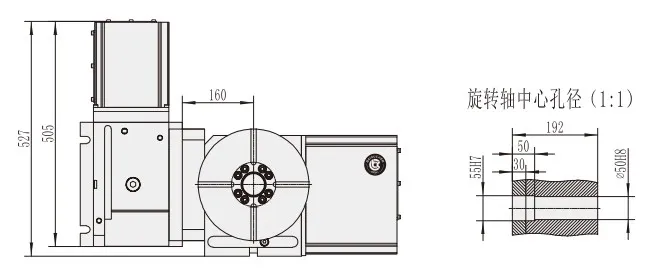

Product Model	RT-250	Servo motor (optional)	Rotation axisβ8iFANUC ;Tilt axisβ8iFANUC
Panel Size	250mm	Reduction Ratio	Rotation axis1:72 ;Tilt axis1:120
Disk Aperture	55mm	Maximum Rotation Speed Of Worktable	55.5 r.p.m
T-groove Of Disk Surface	14H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	270mm	Locking torque of rotating shaft	Rotation axis310N.m;Tilt axis500N.m
90° Time Center Height	230mm	Brake Pressure	Rotation axis pressure10Kg/cm²;Tilt axis oil pressure35Kg/cm²
Net Weight (about)	200Kg	Allowable Cutting Force	Rotation axis18Kgf-m;Tilt axis30Kgf-m
Horizontal placement	60KG	Ninety ° Time	40 KG

Rt-250 Promotional Various CNC Machining Center Parts Accessories for Numerical Control Machine
