CNC Machining Center Accessories

Raydafon Group's CNC Machining Center Accessories offer precision performance for manufacturers. With high-quality materials and innovative design, they boost efficiency and reliability, ideal for industrial professionals. Experience seamless operation and enhanced productivity—upgrade your setup with Raydafon's superior accessories.

Send Inquiry

Product Description

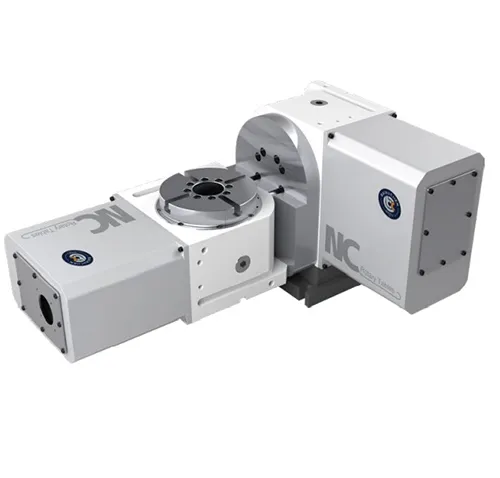

RT-170 High quality cnc machining center accessories for numerical control machine

Characteristic

High precision, high performance, high efficiency

Five axis machining, modular design

Strong braking system

Product Model	RT-170	Servo motor (optional)	Rotation axis β8iFANUC ;Tilt axisβ8iFANUC
Panel Size	170mm	Reduction Ratio	Rotation axis1:60 ;Tilt axis1:72
Disk Aperture	55mm	Maximum Rotation Speed Of Worktable	55.5 r.p.m
T-groove Of Disk Surface	14H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	240mm	Locking torque of rotating shaft	Rotation axis310N.m;Tilt axis500N.m
90° Time Center Height	230mm	Brake Pressure	Rotation axis pressure 5Kg/cm²;Tilt axis oil pressure10Kg/cm²
Net Weight (about)	160Kg	Allowable Cutting Force	Rotation axis18Kgf-m;Tilt axis20Kgf-m
Horizontal placement	40KG	Ninety ° Time	20 KG

Rt-170 High Quality CNC Machining Center Accessories for Numerical Control Machine
