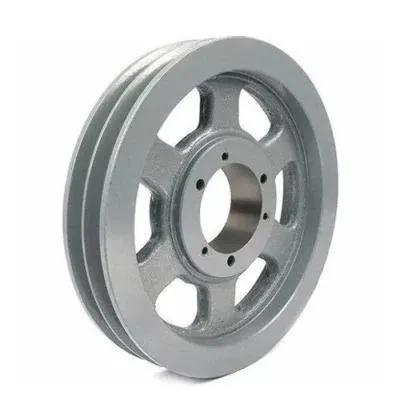

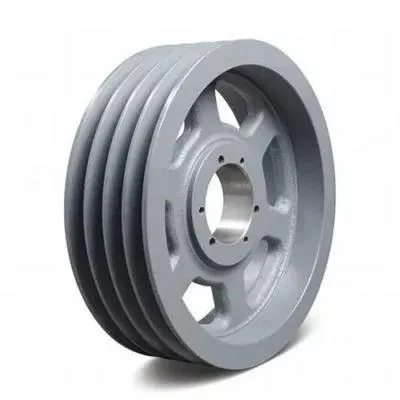

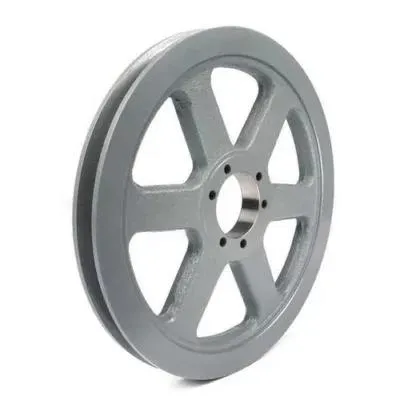

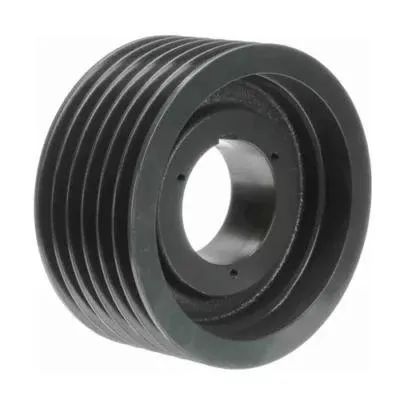

American Standard 5TC Series Cast Iron Sheaves With Split Taper Bushings For All C Section Belts

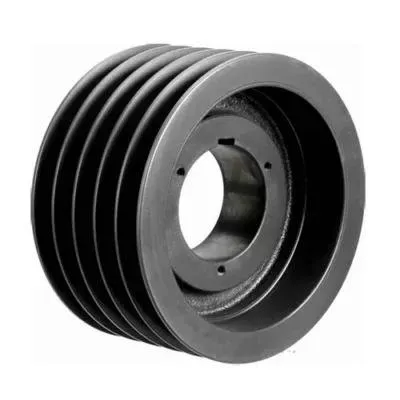

5TC series five groove pulley is used for C, CX, belt, and CC v belt. Their diameters range from 7.40 inches to 24.40 inches. According to the pulley size, they use Q2 tapered bushing, which we also have in stock. Most 5TC pulleys are made of high-strength grade 35 cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure the smooth operation of the machine.

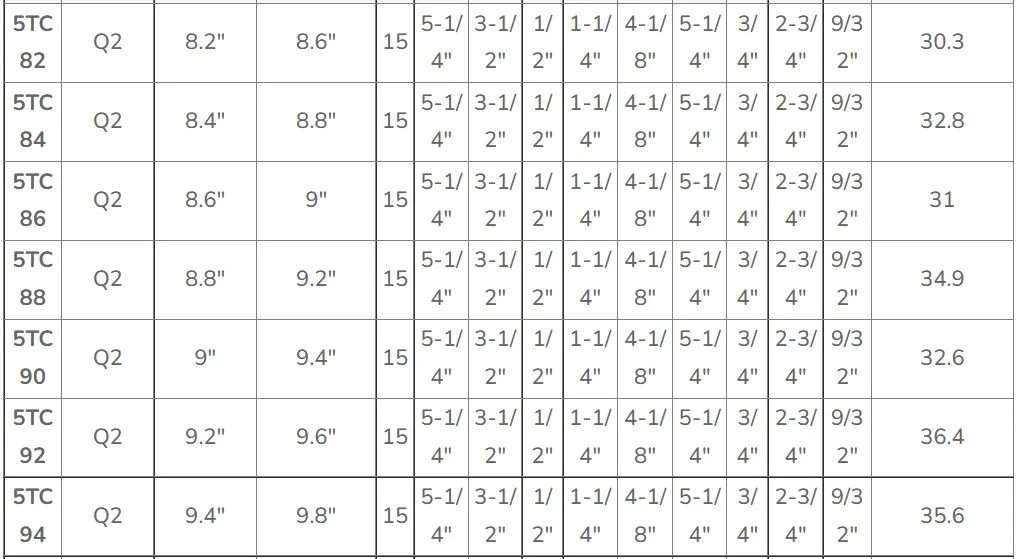

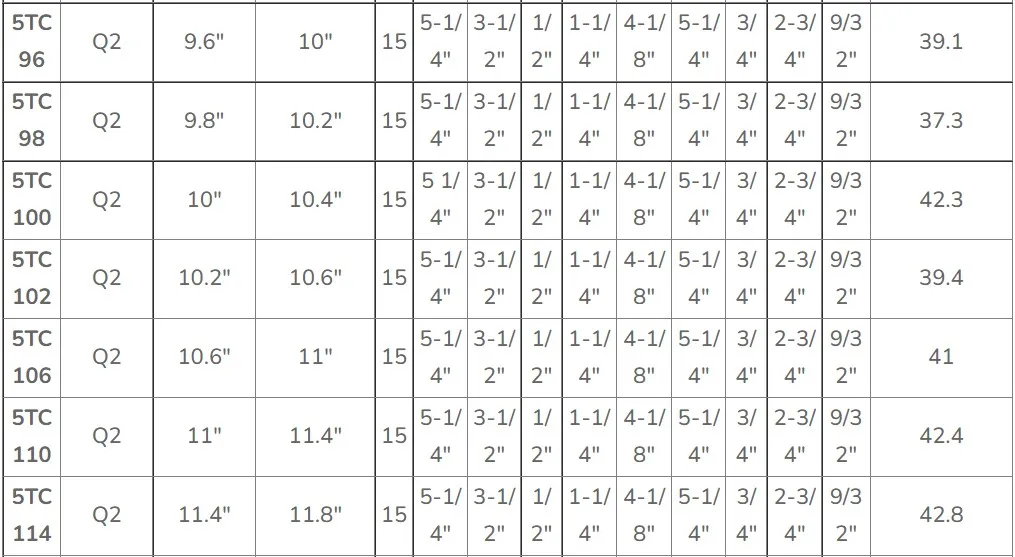

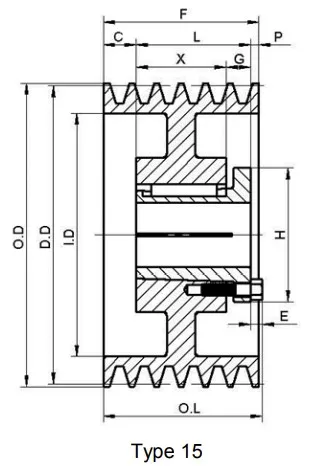

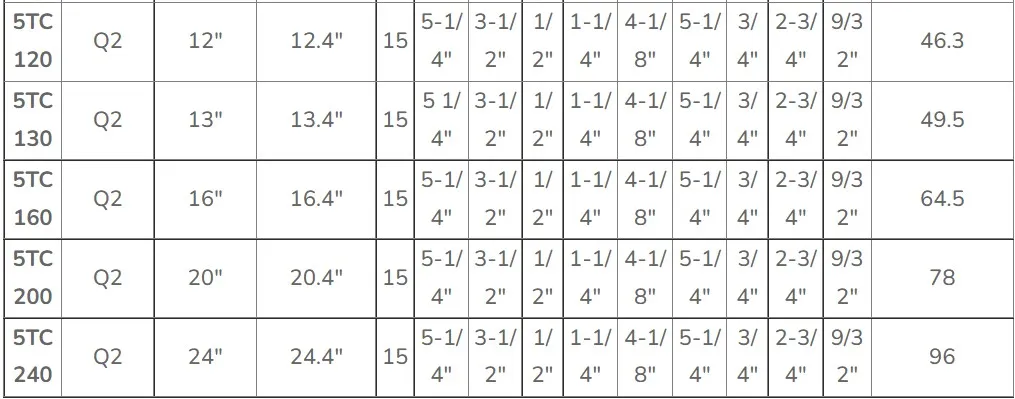

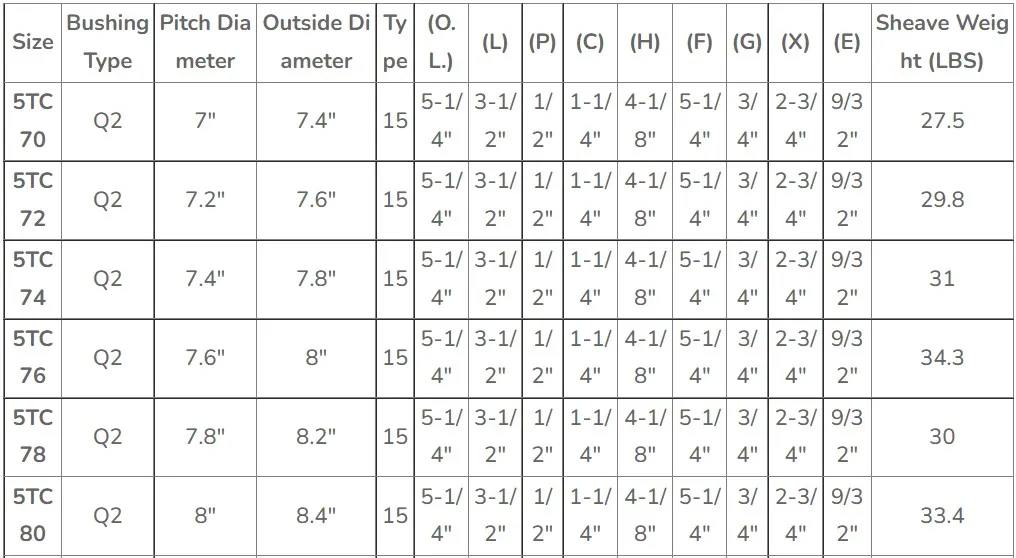

5TC Style Sheave Size Chart

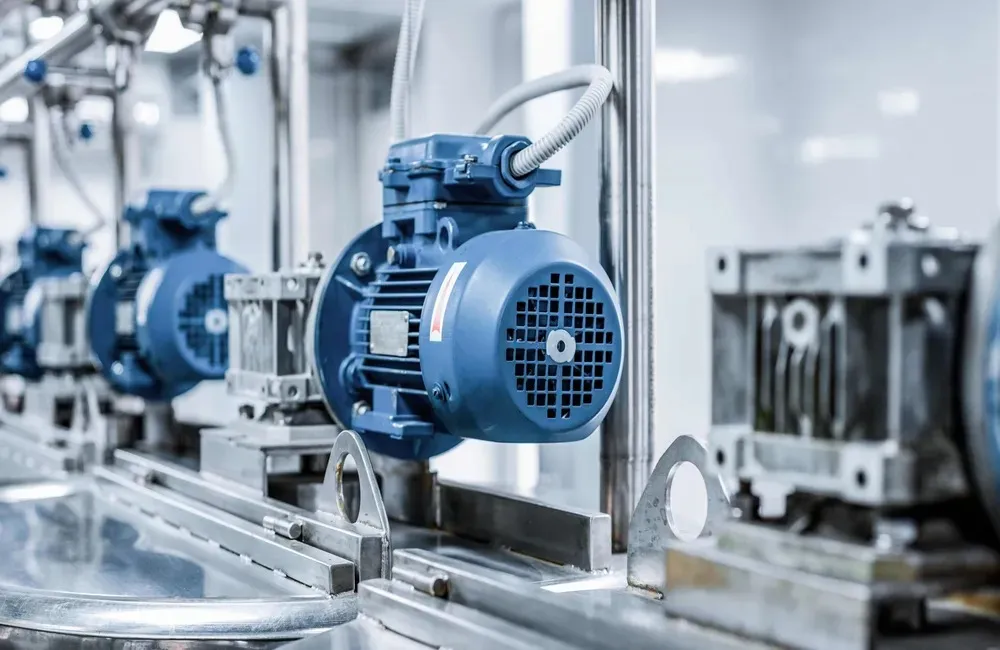

Application of 5TC series pulley
The products are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machinery, some small horsepower motorcycle power transmission, agricultural machinery power transmission, air compressors, reducers, reducers, and generators.
Agricultural machinery;Electric machinery;Marine Machinery American standard pulley
American standard pulley is a kind of pulley conforming to ANSI standard size and design. These pulleys are ideal for 2L, 3L, 4L, and 5L belts. They are also suitable for 3V, 5V and 8V belts. Depending on the application, they have different bushing types, some even suitable for front and rear installation.
American standard pulleys are usually made of cast iron, statically balanced and machined. They are also coated with powder or electronic coatings to improve their durability. The packaging may consist of ordinary cartons or plywood boxes. American standard pulleys are mainly purchased by domestic wheel manufacturers and rarely used by foreign companies.
