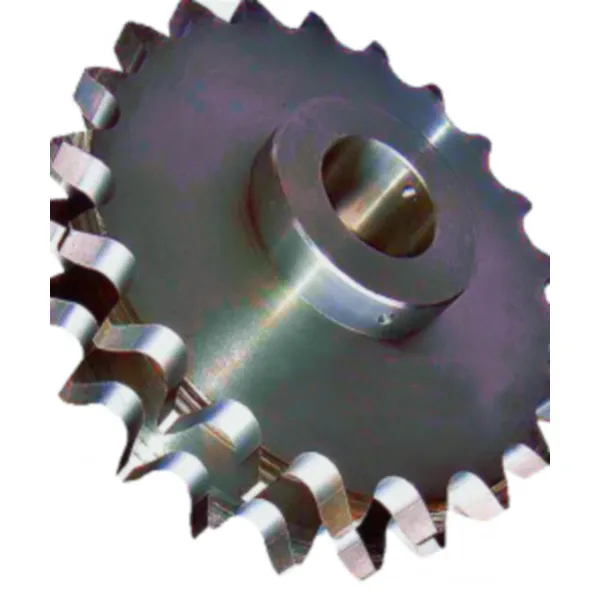

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.
Below is a chart of all of the standard C2082H double pitch roller chain sprockets. We also stock a full line of high quality C2082H roller chain.
| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
|
2082A11
|
11 | 8.010" | 15/16" | -- | -- | 5.7 LBS |
|
2082A12
|
12 | 8.660" | 15/16" | -- | -- | 6.8 LBS |
|
2082A13
|
13 | 9.310" | 1-3/16" | -- | -- | 7.7 LBS |
|
2082A14
|
14 | 9.960" | 1-3/16" | -- | -- | 9.1 LBS |
|
2082A15
|
15 | 10.610" | 1-3/16" | -- | -- | 10.7 LBS |
|
2082A16
|
16 | 11.250" | 1-3/16" | -- | -- | 12.4 LBS |
|
2082A17
|
17 | 11.900" | 1-3/16" | -- | -- | 14.1 LBS |
|
2082A18
|
18 | 12.540" | 1-3/16" | -- | -- | 15.4 LBS |
|
2082A19
|
19 | 13.190" | 1-3/16" | -- | -- | 18.0 LBS |
|
2082A20
|
20 | 13.830" | 1-3/16" | -- | -- | 19.2 LBS |
|
2082A21
|
21 | 14.470" | 1-1/4" | -- | -- | 20.8 LBS |
|
2082A22
|
22 | 15.110" | 1-1/4" | -- | -- | 23.7 LBS |
|
2082A23
|
23 | 15.750" | 1-1/4" | -- | -- | 24.9 LBS |
|
2082A24
|
24 | 16.390" | 1-1/4" | -- | -- | 27.6 LBS |
|
2082A25
|
25 | 17.030" | 1-1/4" | -- | -- | 30.2 LBS |
|
2082A26
|
26 | 17.670" | 1-1/4" | -- | -- | 32.8 LBS |
|
2082A28
|
28 | 18.950" | 1-1/4" | -- | -- | 38.6 LBS |
|
2082A30
|
30 | 20.230" | 1-1/4" | -- | -- | 43.8 LBS |
| 2082B8 | 8 | 6.030" | 1" | 2-17/32" | 1-3/4" | 6.4 LBS |
| 2082B9 | 9 | 6.700" | 1" | 2-3/4" | 1-3/4" | 8.2 LBS |
| 2082B10 | 10 | 7.360" | 1" | 2-3/4" | 1-3/4" | 9.2 LBS |
| 2082B11 | 11 | 8.010" | 1" | 2-3/4" | 1-3/4" | 10.1 LBS |
| 2082B12 | 12 | 8.660" | 1" | 2-3/4" | 1-3/4" | 11.2 LBS |
| 2082B13 | 13 | 9.310" | 1-1/4" | 3-1/4" | 2" | 15.0 LBS |
| 2082B14 | 14 | 9.960" | 1-1/4" | 3-1/4" | 2" | 15.8 LBS |
| 2082B15 | 15 | 10.610" | 1-3/16" | 3-1/4" | 2" | 17.8 LBS |
| 2082B16 | 16 | 11.250" | 1-3/16" | 3-1/4" | 2" | 19.3 LBS |
| 2082B17 | 17 | 11.900" | 1-3/16" | 3-1/4" | 2" | 21.4 LBS |
| 2082B18 | 18 | 12.540" | 1-3/16" | 3-1/4" | 2" | 22.9 LBS |
|
2082B19
|
19 | 13.190" | 1-3/16" | 3-1/4" | 2" | 24.4 LBS |
|
2082B20
|
20 | 13.830" | 1-3/16" | 3-1/4" | 2" | 26.7 LBS |
|
2082B21
|
21 | 14.470" | 1-1/4" | 3-1/4" | 2" | 28.4 LBS |
|
2082B22
|
22 | 15.110" | 1-1/4" | 3-1/4" | 2" | 30.8 LBS |
|
2082B23
|
23 | 15.750" | 1-1/4" | 3-1/4" | 2" | 32.2 LBS |
|
2082B24
|
24 | 16.390" | 1-1/4" | 3-1/4" | 2" | 34.9 LBS |
|
2082B25
|
25 | 17.030" | 1-1/4" | 3-1/4" | 2" | 37.8 LBS |
|
2082B26
|
26 | 17.670" | 1-1/4" | 3-1/2" | 2" | 41.5 LBS |
|
2082B28
|
28 | 18.950" | 1-1/4" | 3-1/2" | 2" | 47.7 LBS |
|
2082B30
|
30 | 20.230" | 1-1/4" | 3-1/2" | 2" | 54.5 LBS |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
