Product Description

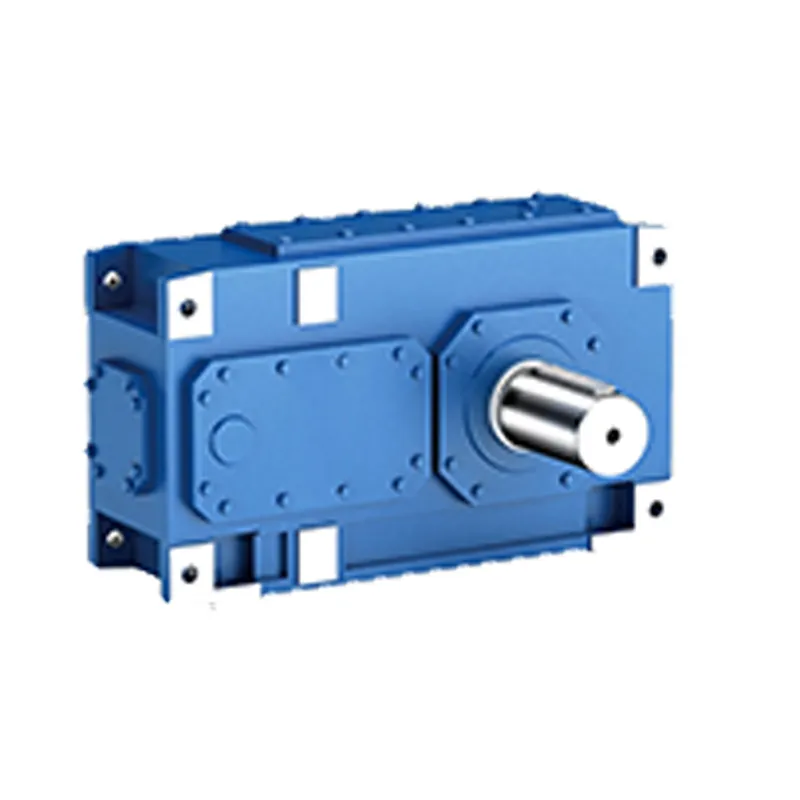

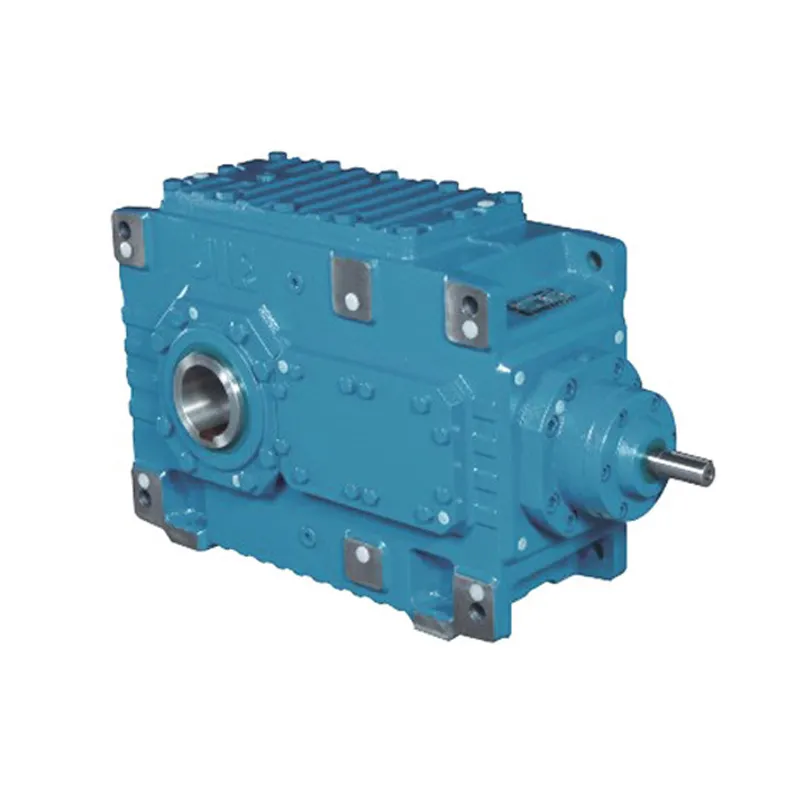

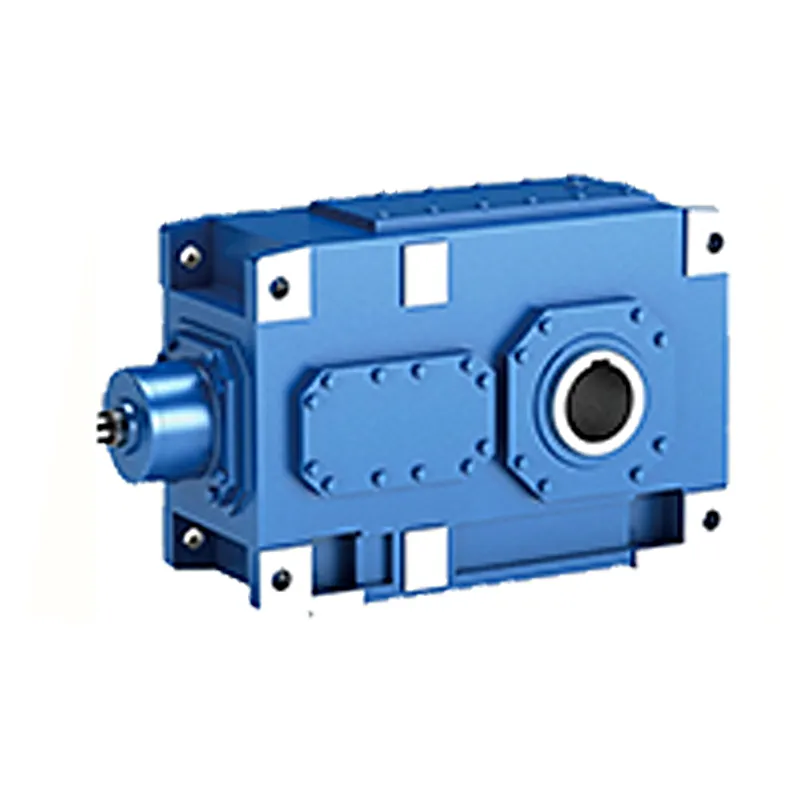

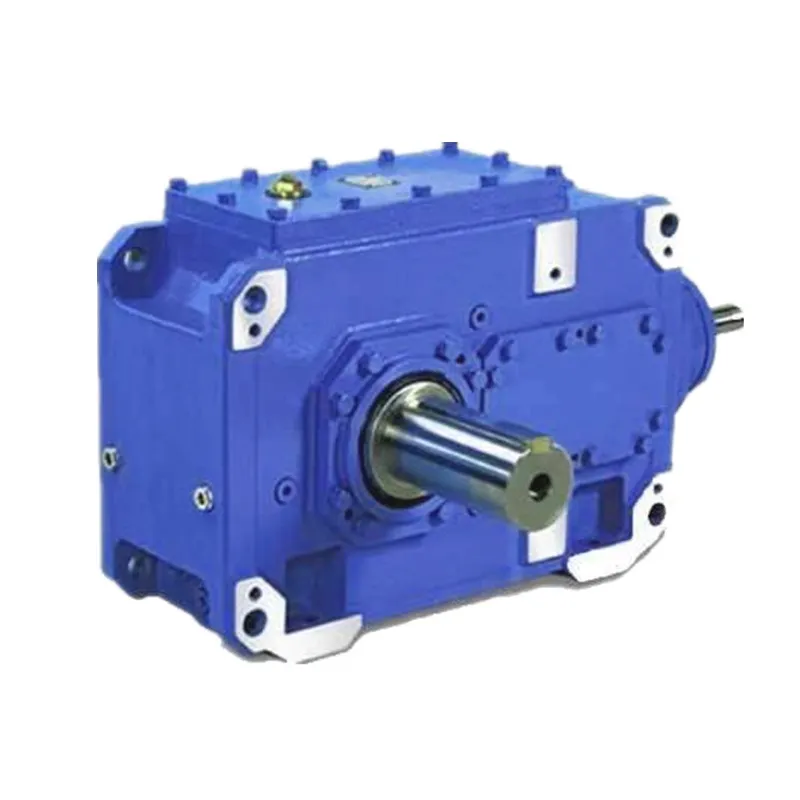

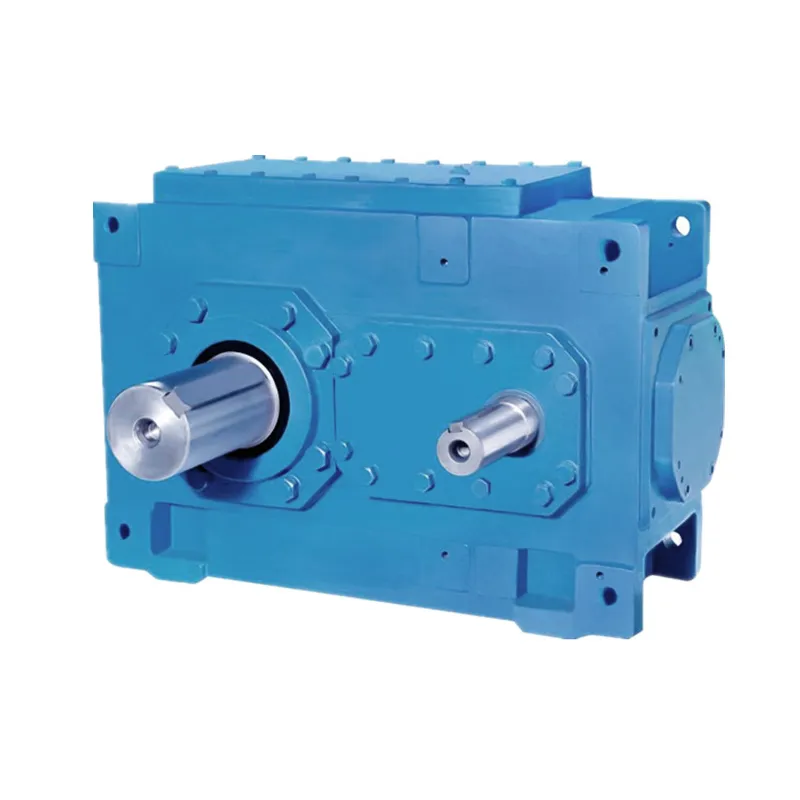

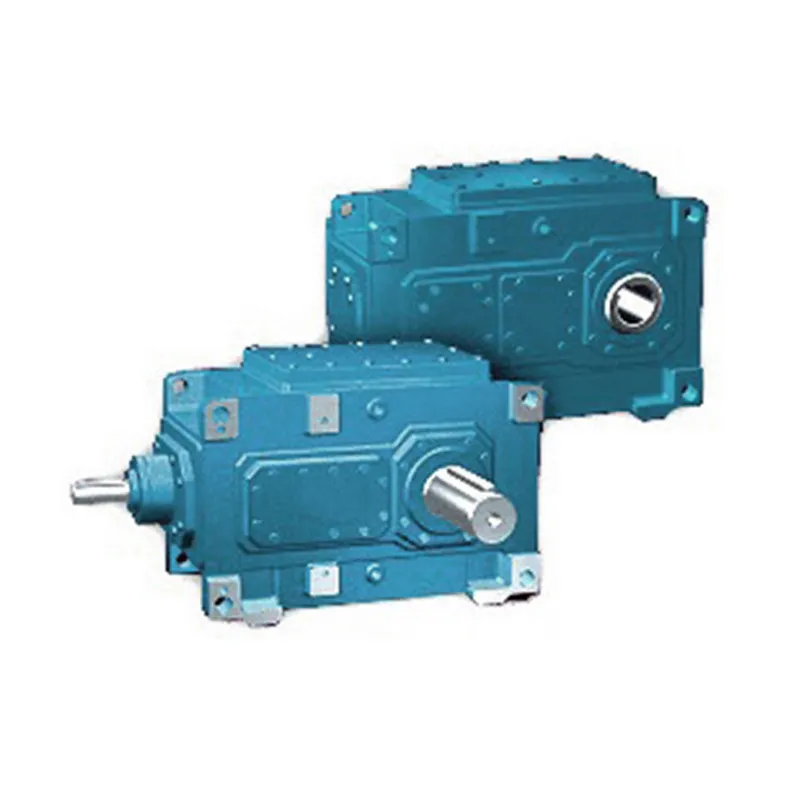

H/m Series Heavy Duty transmission Horizontal Vertical Gearbox Parallel Hollow Shaft Helical Bevel Gear Unit Reducer Gear Box

Design --Gear units are a completely new design. Outsanding innovations are --More sizes with a reduced variety of parts

--Higher operational reliabilty combined with increased power capacity

--Flanged output shafts to facilitate assembly of gear units in confined spaces ( on request )

Mounting position

--Gear units can be supplied for either horizontal or vertical installation

--Other arrangements are also possible on request

--Motor bell housings , Torque supports are part of our standard productrange

Noise behaviour

--New concepts were applied to clearly improve the noise emission of the gear units

--Designing noise-absorbing housings

--Achieving exceptionally large contact ratios

Thermal conduction

gear units not only have a high efficiency but also a favourable thermal conduction

--Through enlarged housing surface areas ,

--because large fans incorporating a new type of air conduction fan cowl are being used .

--The selection of gear units is based on a lower maximum oil temperature . By that , the operational

reliability will be increased and the cost of maintenance reduced due to longer oil change intervals .

Storing

gear units have been designed according to a new unit construction principle

1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing

Please click here for more types!

Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and efficiently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.

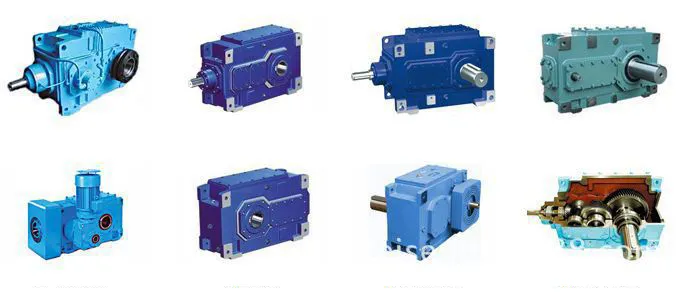

Related Products
