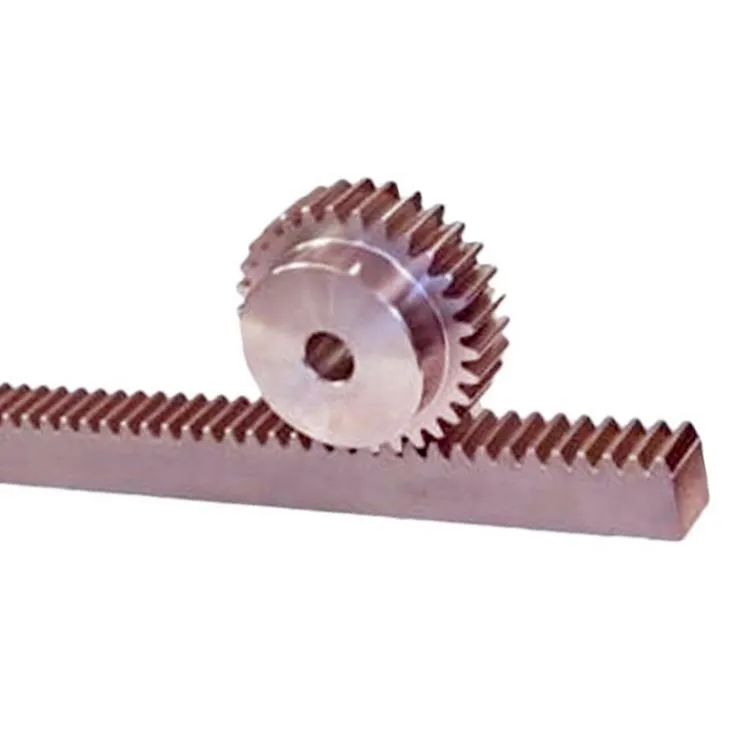

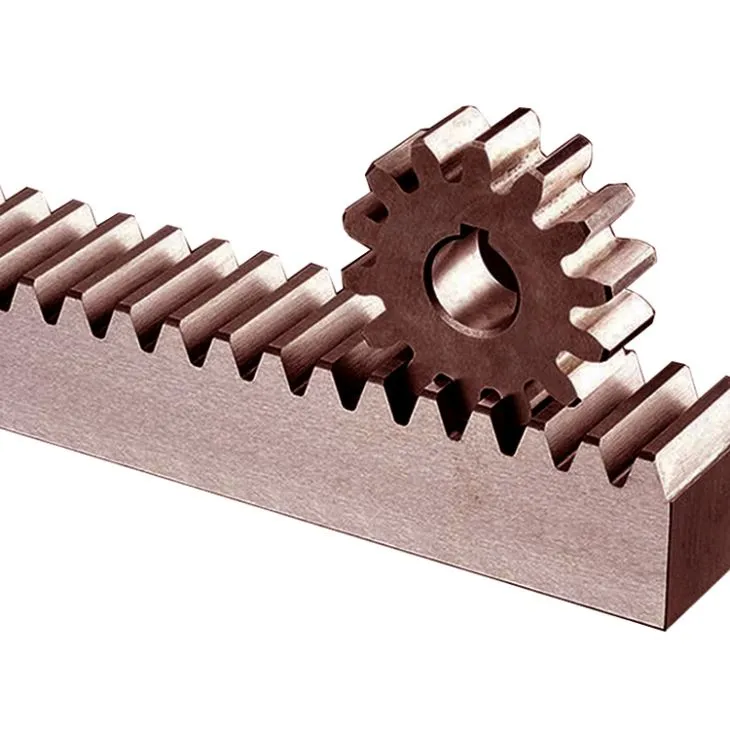

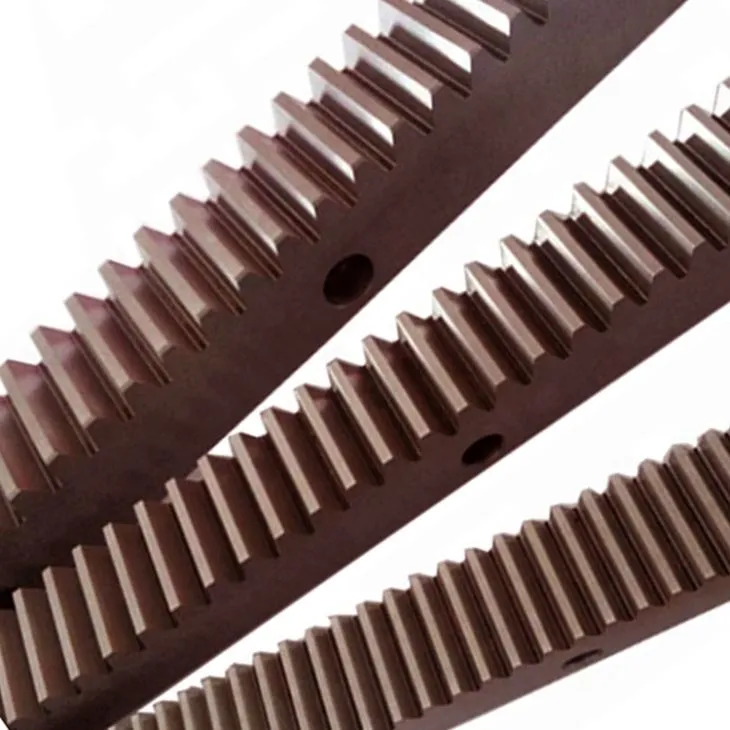

M1 Engraving Machine Gear Rack

The allowable forces shown in the table are the calculated values according to the assumed usage conditions.
In cases of using a molded flexible rack in an arc shape, proper meshing cannot be obtained as the pitch error and the tooth profile error increases. Be sure and adjust the center distance so that the pinion turns without any problem.
Molded Flexible Racks are not suitable for use when positioning accuracy is required.
To find the dimensional tolerance of these racks, please see the Dimensional Tolerance Table. The overall length tolerance is ±10 mm.
    The importance of Engraving Machine Gear Rack

The gear rack in an engraving machine plays a crucial role in ensuring precise and accurate movement of the machine's cutting head or engraving tool. It is an essential component that directly impacts the quality and precision of the engravings. Here are some key reasons highlighting the importance of the gear rack in an engraving machine:

1. Precision and Accuracy: The gear rack provides a linear motion mechanism that translates rotary motion into precise linear movement. This enables the engraving machine to move the cutting head or engraving tool with high accuracy and repeatability. The teeth on the gear rack mesh with the gears on the machine's drive system, ensuring smooth and precise positioning, resulting in sharp and detailed engravings.

2. Stability and Rigidity: The gear rack enhances the strength and rigidity of the engraving machine's motion system. It provides a solid and robust structure for the drive mechanism, minimizing flexing or bending during operation. This stability is crucial to maintain consistent cutting depths and prevent vibrations or deviations that could compromise the quality of the engravings.

3. Load Distribution: The gear rack distributes the load evenly across its length, minimizing the stress on individual components of the engraving machine. This helps to ensure that the device operates smoothly and extends the lifespan of the drive system. By distributing the load effectively, the gear rack helps prevent premature wear and tear, maintaining the overall performance and longevity of the machine.

4. Speed and Efficiency: The gear rack allows for efficient and rapid motion of the cutting head or engraving tool. The precise meshing of the teeth with the drive gears ensures smooth and consistent movement, enabling the machine to operate at higher speeds without sacrificing accuracy. This results in increased productivity and reduced engraving time.

5. Versatility and Adaptability: Engraving machines often require versatility to accommodate various engraving tasks and materials. The gear rack can be designed to fit different sizes and lengths, allowing for customization and adaptability to specific machine requirements. This flexibility enables the engraving machine to handle a wide range of applications and meet diverse engraving needs.
