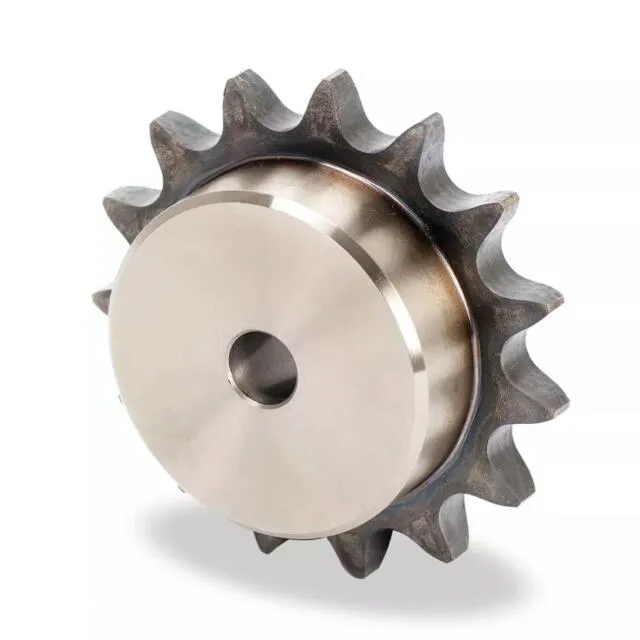

NK50B Sprockets B Type

Product DescriptionSprocket No.Outside Dia.DoPitch Dia.DpBore Dia.HubWeight(kg) TypeZStock Bore Min.MaxBDBL NK50B84841.4811.513.513.5*22250.12 95346.4211.513.518*34250.20 105851.3714.516.522*40250.27 116456.3514.516.528*45.5250.33 126961.3414.516.530*50250.41 137466.3414.516.532*51250.46 147971.3414......

Send Inquiry

Product Description

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia.			Hub		Weight (kg)
Type	Z	Outside Dia. Do	Pitch Dia. Dp	Stock Bore	Min.	Max	BD	BL	Weight (kg)
NK50B	8	48	41.48	11.5	13.5	13.5	*22	25	0.12
	9	53	46.42	11.5	13.5	18	*34	25	0.20
	10	58	51.37	14.5	16.5	22	*40	25	0.27
	11	64	56.35	14.5	16.5	28	*45.5	25	0.33
	12	69	61.34	14.5	16.5	30	*50	25	0.41
	13	74	66.34	14.5	16.5	32	*51	25	0.46
	14	79	71.34	14.5	16.5	32	52	25	0.52
	15	84	76.35	14.5	16.5	35	57	25	0.62
	16	89	81.37	14	16	40	62	25	0.72
	17	94	86.39	14	16	45	67	25	0.83
	18	100	91.42	14	16	48	72	28	1.00
	19	105	96.45	14	16	48	73	28	1.10
	20	110	101.48	14	16	48	73	28	1.20
	21	115	106.51	14	16	48	73	28	1.20
	22	120	111.55	16	18	48	73	28	1.30
	23	125	116.58	16	18	48	73	28	1.30
	24	130	121.62	16	18	48	73	28	1.40
	25	135	126.66	16	18	48	73	28	1.50
	26	140	131.70	16	18	48	73	28	1.50
	27	145	136.74	16	18	48	73	28	1.50
	28	150	141.79	16	18	48	73	28	1.60
	29	155	146.83	16	18	48	73	28	1.70
	30	161	151.87	16	18	48	73	28	1.80
	31	166	156.92	16	18	48	73	28	1.85
	32	171	161.96	16	18	48	73	28	1.90
	33	176	167.01	16	18	48	73	28	2.00
	34	181	172.05	16	18	48	73	28	2.10
	35	186	177.10	16	18	48	73	28	2.20
	36	191	182.14	16	18	55	83	35	2.85
	37	196	187.19	16	18	55	83	35	2.95
	38	201	192.24	16	18	55	83	35	3.05
	39	206	197.29	16	18	55	83	35	3.15
	40	211	202.33	16	18	55	83	35	3.25
	41	216	207.38	16	18	55	83	35	3.40
	42	221	212.43	16	18	55	83	35	3.50
	43	226	217.48	16	18	55	83	35	3.60
	44	231	222.53	16	18	55	83	35	3.70
	45	237	227.58	16	18	55	83	35	3.85
	46	242	232.63	16	18	55	83	35	3.96
	47	247	237.68	16	18	55	83	35	4.09
	48	252	242.73	16	18	55	83	35	4.20
	49	257	247.78	16	18	55	83	35	4.35
	50	262	252.83	16	18	55	83	35	4.50
	51	267	257.88	16	18	55	83	35	4.62
	52	272	262.92	16	18	55	83	35	4.76
	53	277	267.97	16	18	55	83	35	4.91
	54	282	273.02	16	18	55	83	35	5.05
	55	287	278.08	16	18	55	83	35	5.20
	56	292	283.13	16	18	55	83	35	5.36
	57	297	288.18	16	18	55	83	35	5.51
	58	302	293.23	16	18	55	83	35	5.67
	60	312	303.33	16	18	55	83	35	6.00
	65	338	328.58	20	22	63	93	40	7.40
	68	353	343.74	20	22	63	93	40	7.94
	70	363	353.84	20	22	63	93	40	8.30
	75	388	379.10	20	22	63	93	40	9.35
	80	414	404.36	20	22	66	98	45	10.50
	85	439	429.62	20	22	66	98	45	12.00
	90	464	454.88	20	22	66	98	45	13.20

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Japanese Kana Nk Standard Nk50b Sprockets B Type
