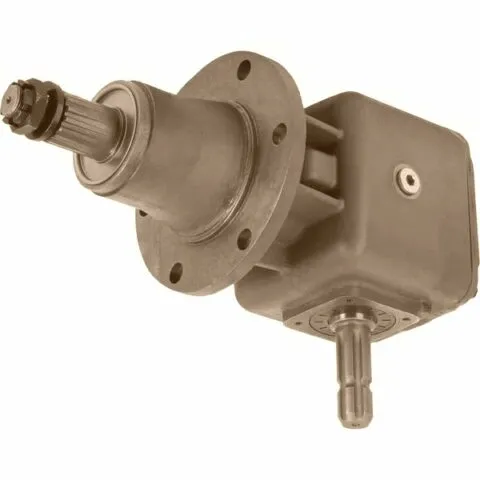

The rotary mower gearbox LF-227J features a sturdy cast-iron housing that is designed to resist the forces and strains produced during the operation of the mower. The gearbox is also designed with large bearings and gears that offer high reliability and a longer lifespan. One of the key features of the rotary mower gearbox LF-227J is its excellent lubrication design, which allows for smooth and efficient operation of the gearbox. The gearbox is equipped with an oil seal to prevent oil leaks, and it also features an oil bath lubrication system.
| Product | Rotary Mowers Gearboxes - Replacement of Gearbox LF-227J |
| Application | Mowers |
| Technical information |
|
| Max. input power | 55 kW |
| Contains oil | No |
| Max. oil capacity | 0,8 l |
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade | 80W-90 |
| Housing material |
Cast iron GGG40
|
| Weight | 37 kg |
| Gear arrangement Increasing | 3 |
| Gear ratio | 1: 1.83 |
| Input power kW / HP Increasing | 55 / 75 kW/HP |
| Input shaft Increasing | X |
| Output Torque DaNm Increasing | 51.7 daNm |
| Ratio Increasing |
1: 1.83
|
| Ratio Reducing |
1.83: 1
|

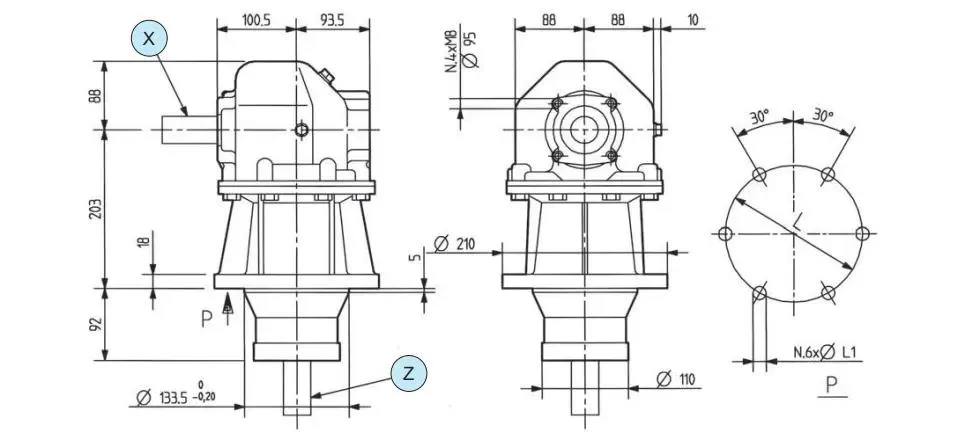

| Shaft X |
1 3/8" (6)
|
| Shaft Z |
ASA Z15 D.P. 8/16
|
We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.
Our Equipments
PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
