The AQUA-TECH SERIES of stainless steel motor, which have special feat performance and value, top-notch features make AQUA-TECH SERIES products the be a worldwide influence. It includes NEMA and IEC standard motors which have per differ manufacturer standard
It is also available if you have any special requirements for the motor.

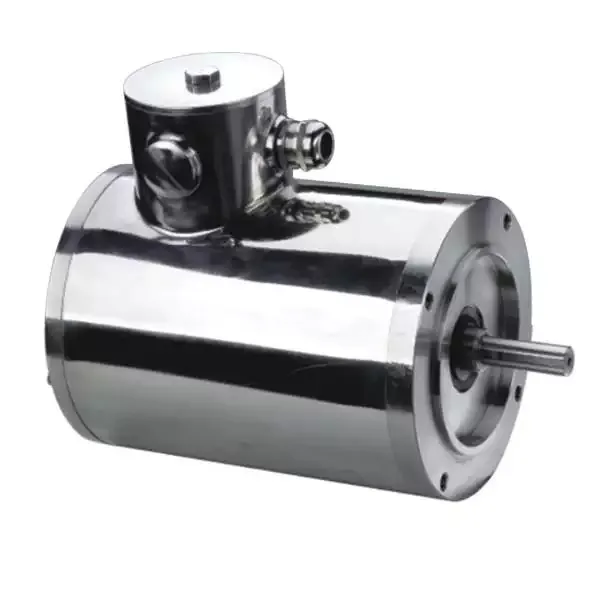

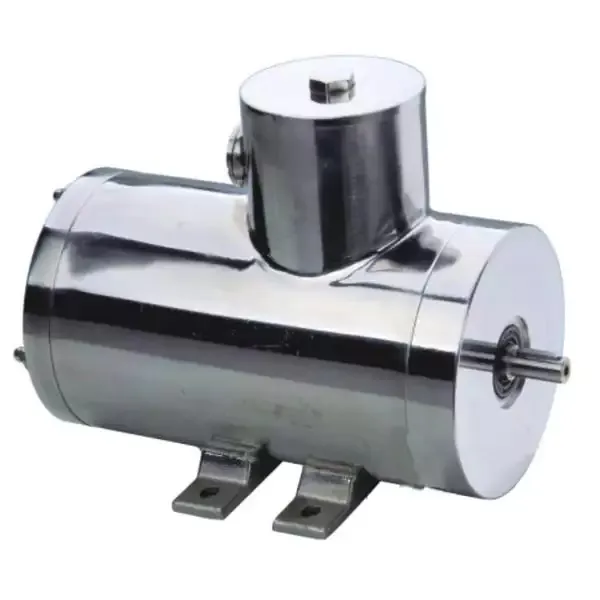

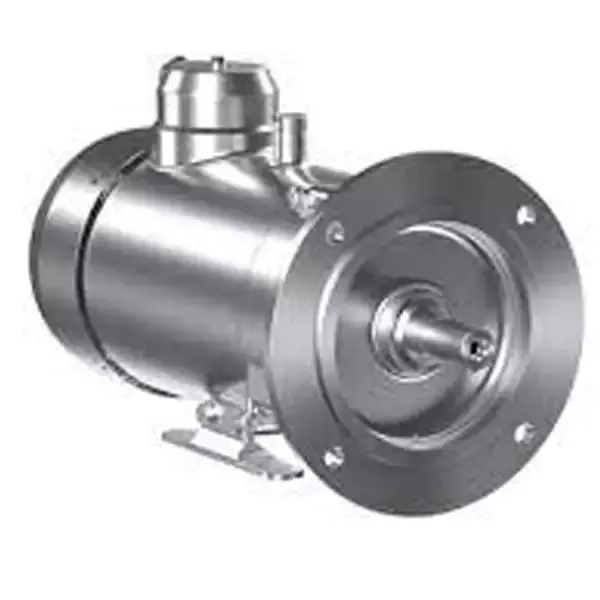

Features of IEC Stainless steel motor
Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm
Stainless steel servo reduction motor with planetary gear or bevel gear
The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell
Surface and flange installation (imb5, IMB14)
Protection grade up to ip66k / ip69k under flushing conditions
Large speed regulation range
Ul/CSA certification
EHEDG certification is pending (expected in 2022)
Feedback using a resolver or preface, EnDat, or drive clip encoder
Single cable technology (OCT)
Braking options
AC servo motor, DC servo motor, and AC asynchronous motor
Decentralized servo motor with integrated servo controller
Delivered with servo controller or frequency converter
Custom design
| Frame | KW | Mounting | IP |
| 63 | 0.18 | B3, B5, B14, B34, B35 | IP55 |
| 71 | 0.25, 0.37 | ||
| 80 | 0.55, 0.75 | ||
| 90 | 1.1, 1.5 | ||
| 100 | 2.2, 3.0 | ||
| 112 | 4.0 | ||
| 1332 | 5.5, 7.5 |

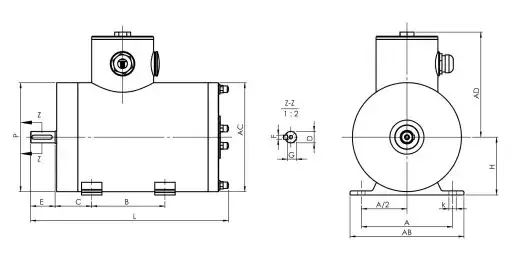

| Frame Type | Poles | A | A/2 | B | C | D | E | F | G | H | K | P | Shaft Hole | AB | AC | AD |
| 63 | 2, 4 | 100 | 50 | 80 | 40 | 11 | 23 | 23 | 8.5 | 63 | 7 | 114 | M4 | 125 | 114 | 117 |
| 71 | 2,4,6 | 112 | 56 | 90 | 45 | 14 | 30 | 30 | 11 | 71 | 7 | 134 | M5 | 140 | 134 | 129 |
| 80 | 125 | 62.5 | 100 | 50 | 19 | 40 | 40 | 15.5 | 80 | 10 | 144 | M6 | 150 | 144 | 135 | |
| 90S | 140 | 70 | 100 | 56 | 24 | 50 | 50 | 20 | 90 | 9 | 164 | M8 | 164 | 164 | 147 |
