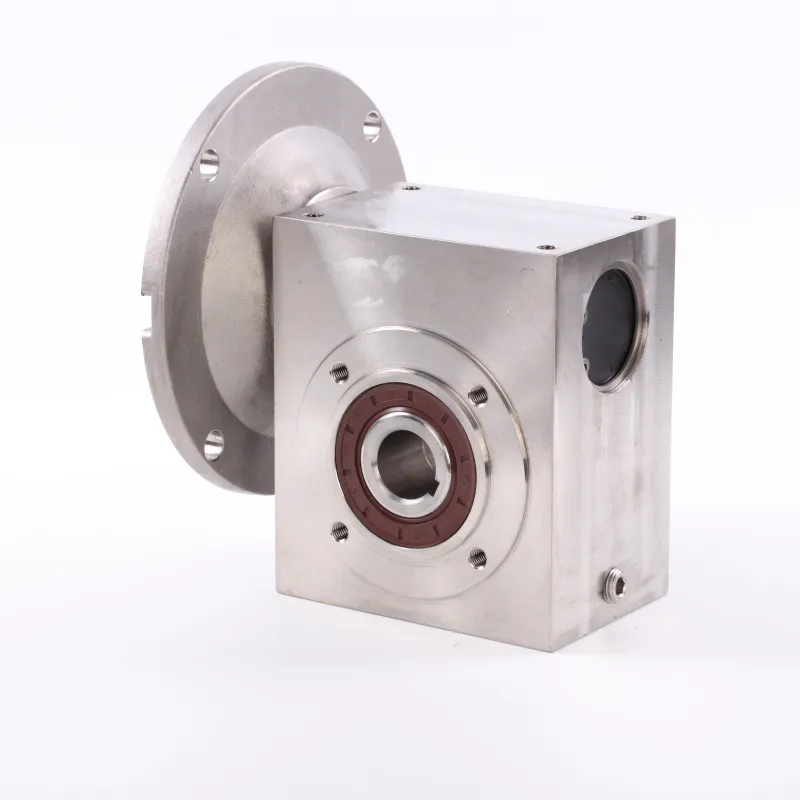

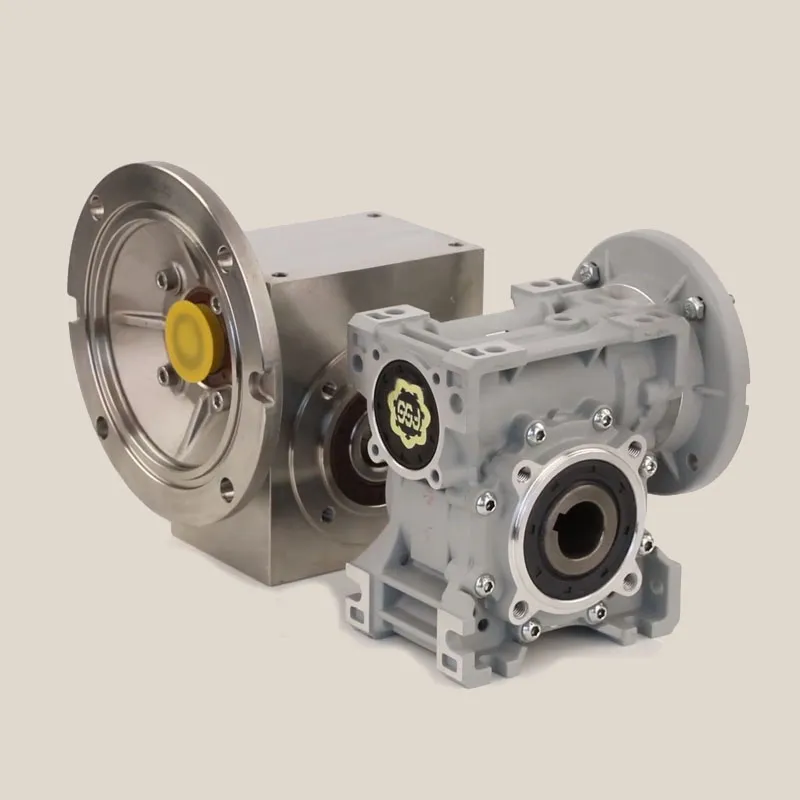

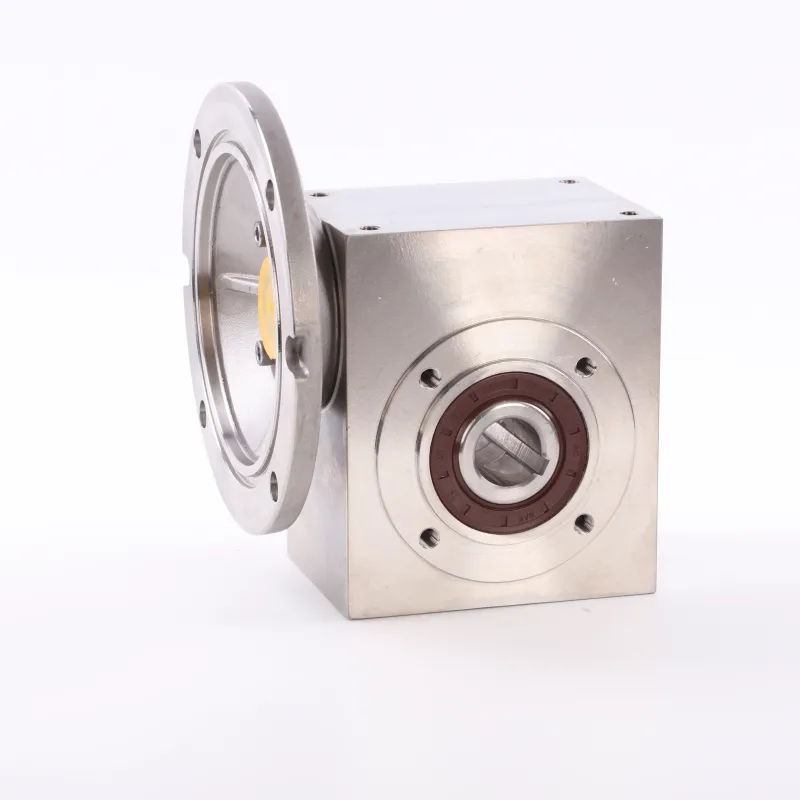

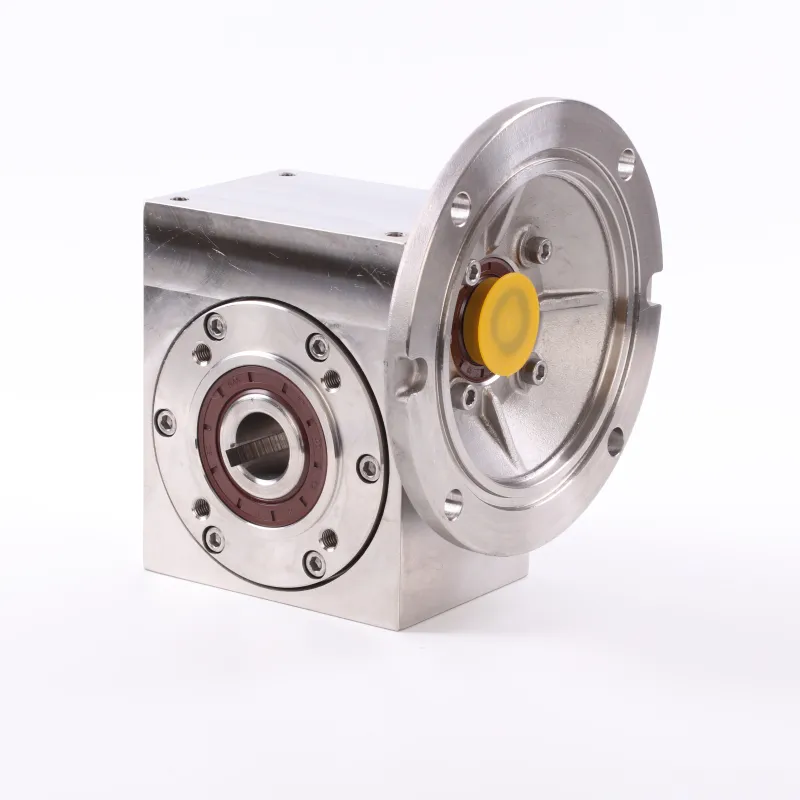

Stainless Steel Worm Gearbox

Raydafon Group's Stainless Steel Worm Gearbox delivers superior durability and precision for industrial applications, ensuring smooth operation and corrosion resistance. Ideal for engineers and manufacturers, it enhances efficiency and reliability, outperforming competitors with its high-quality build. Experience unmatched performance and trust in our commitment to excellence.

Send Inquiry

Product Description

Industrial Transmission Drive Rv Series nmrv Reduction Gear Box Stainless Steel Worm Gearbox Speed Reducer

PRODUCTS CHARACTERISTICS
1. Made of high-quality aluminum alloy,light weight and non-rusting
2. Large output torque
3. Smooth in running and low in noise,can work long time in dreadful conditions.
4. High in radiating efficiency.
5. Good-looking in appearance,durable in service life and small in volume.
6. Suitable for omnibearing installation.

Features of Worm Reducer /Gearbox
1.Common mounting dimensions.
2.Aluminum and cast iron housing.
3.Worm and worm wheel transmission.
4.Compact structure and light-weight.
5.Wide range of accessories.

Benefits of Worm Gearbox / Reducer
1.Unique housing design will distinguish you from other competitors.
2.Multiple choice for oil seal.
3.The dimensions can be customized according to customer's requirements.

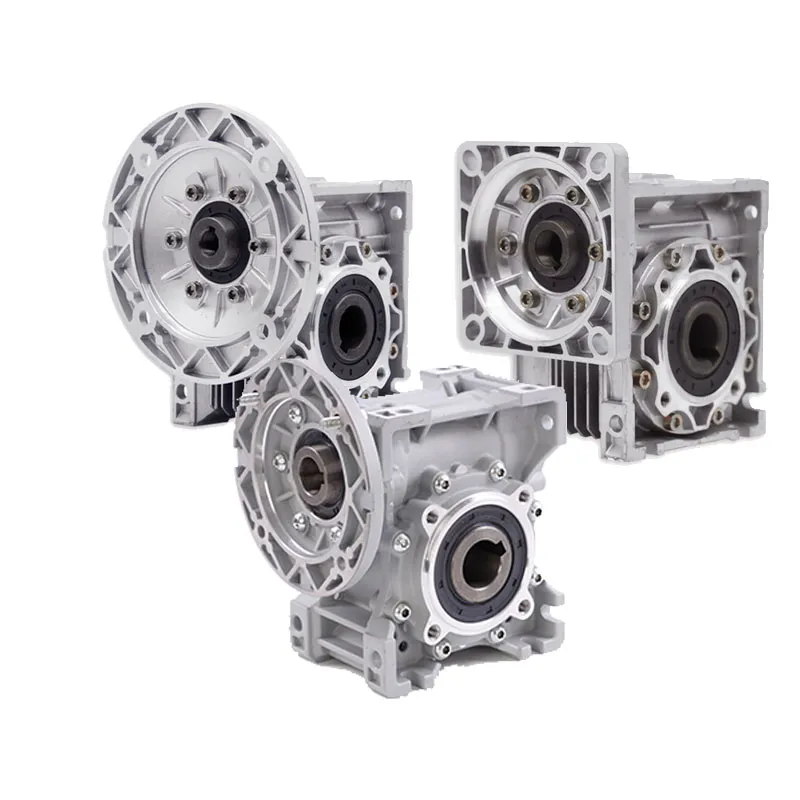

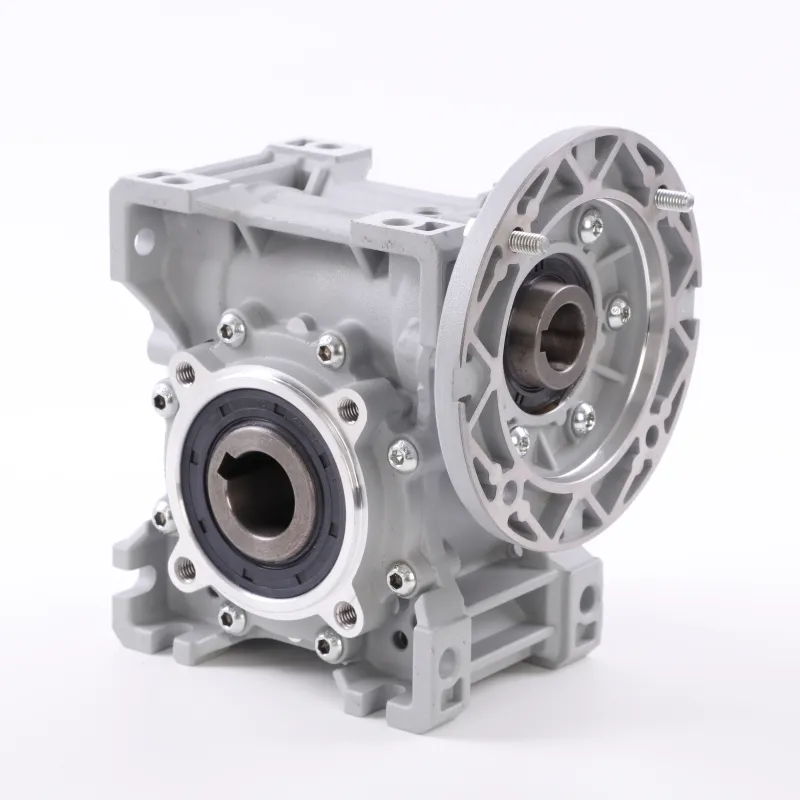

Model No	NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV075, NMRV090, NMRV110, NMRV130, NMRV150
Ratio	5,7.5,10,15,20,25,30,40,50,60,80,100
Material	Housing: Size 25-110 Is Aluminum Alloy, Size 110-150 Is Cast-Iron
	Worm Wheel: ZCuSn10Pb1
	Worm:20Cr
	Pinion:Tin Bronze
	Output Shaft: Steel-45#
Type	Worm Gear Speed Reducer / Gearbox / Reductor
Color	Customized Color
Packing	Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage	Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.

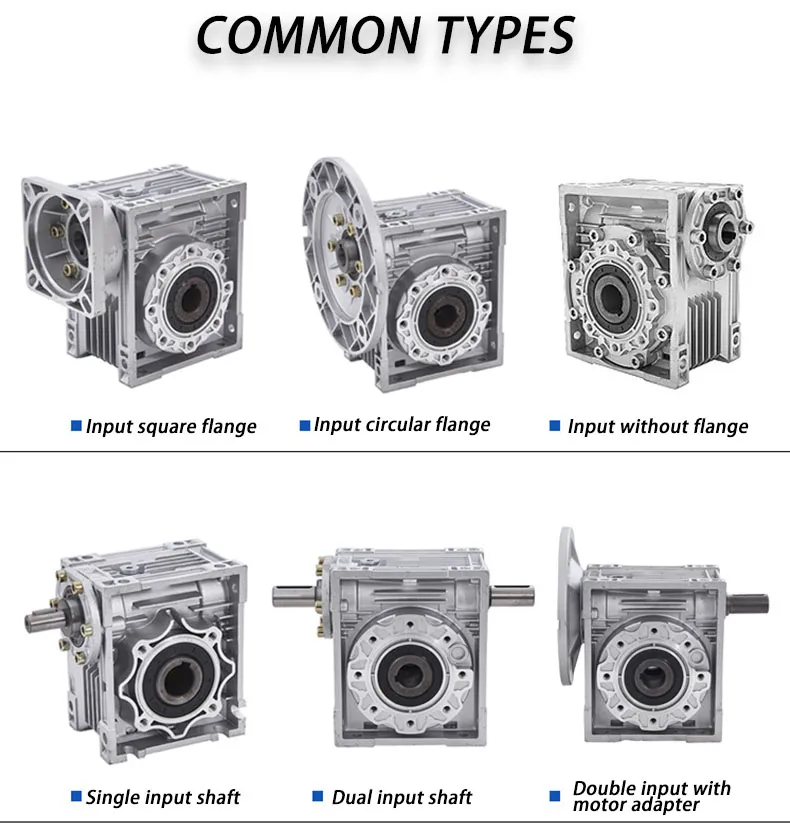

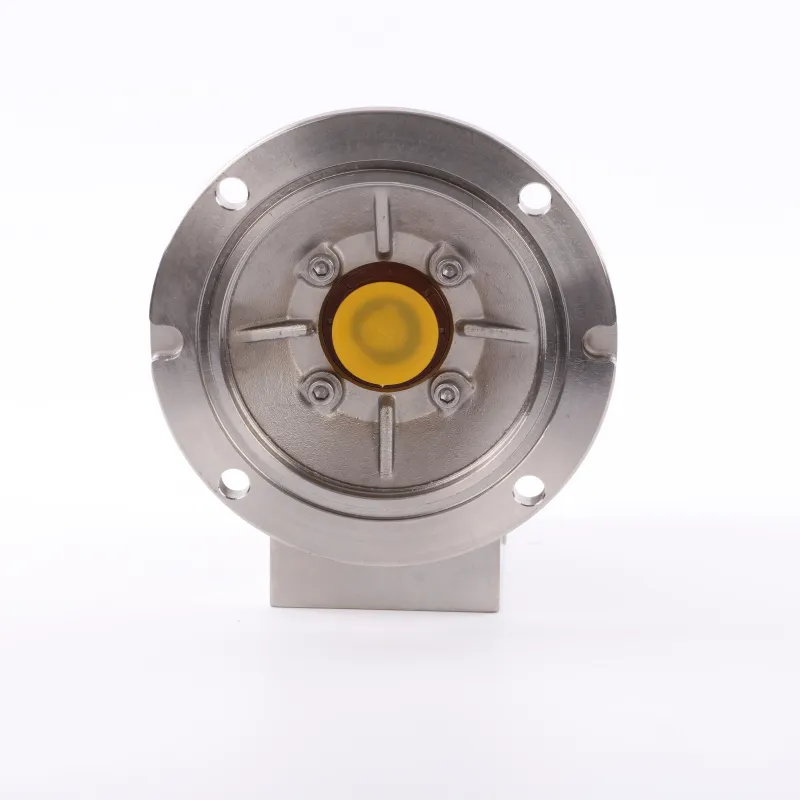

Flange	IEC standard flange or customized dimensions
Housing Material	Aluminum&Cast iron
Size	11 sizes(WMRV25~WMRV185)
Power	0.06~22 KW
Nominal torque	≤2548 N.m
Ratio	5~100
