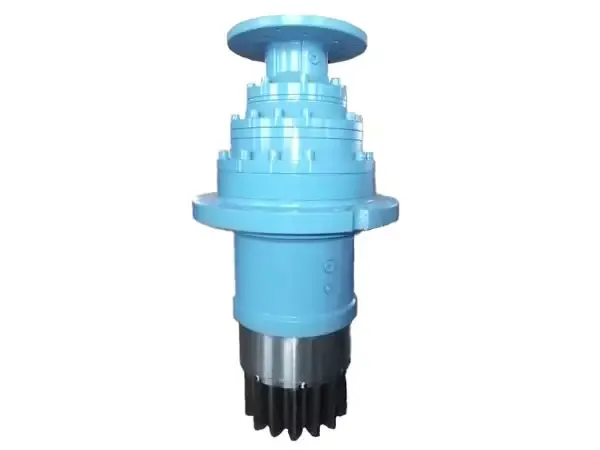

Rotating gearbox is mainly used for turning gear rings and large diameter wear-resistant rotating bearings. For example, cranes have proven to be in the worst application conditions. The rotary gearbox is based on a modular design and has a more extensive delivery range (motor, coupling, brake). In each application, the pinion rotating ring tooth pairing is checked, and the tooth profile of the pinion is optimized to ensure long-term use.
The advantage is
*Compact size
*Long service life
*Modular design of gear mechanism
*Easy to maintain
*High performance
*Functional design
With these functions, mechanical designers can install equipment and achieve economic benefits.
Solutions can be found even in confined space conditions.

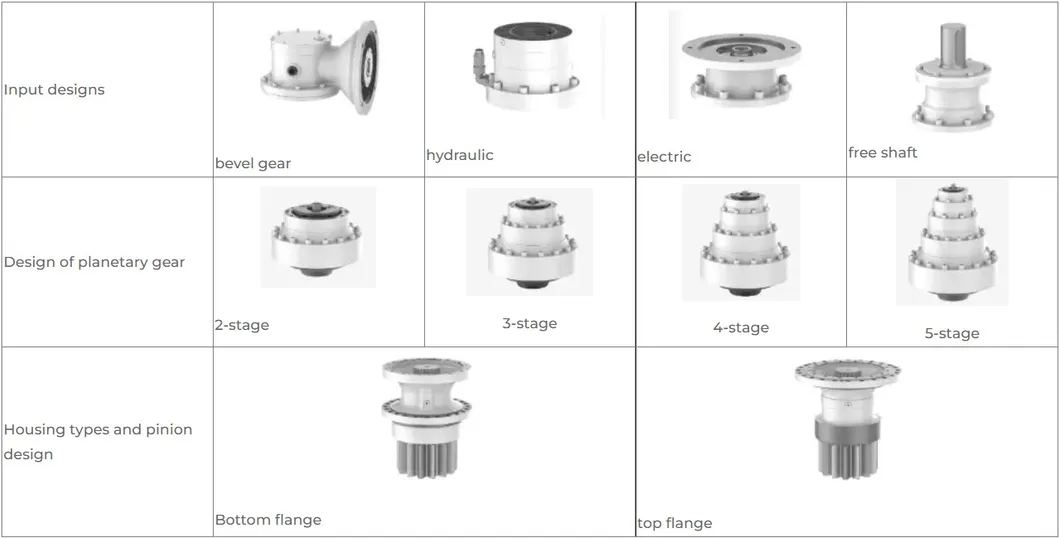

Modular Gear design of Slewing Gear

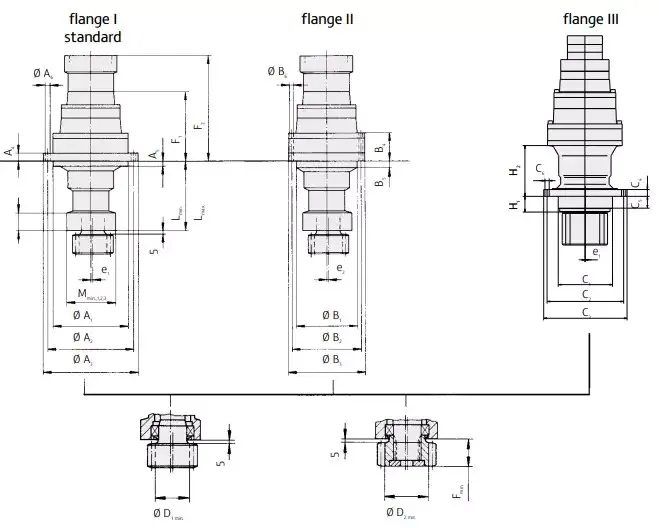

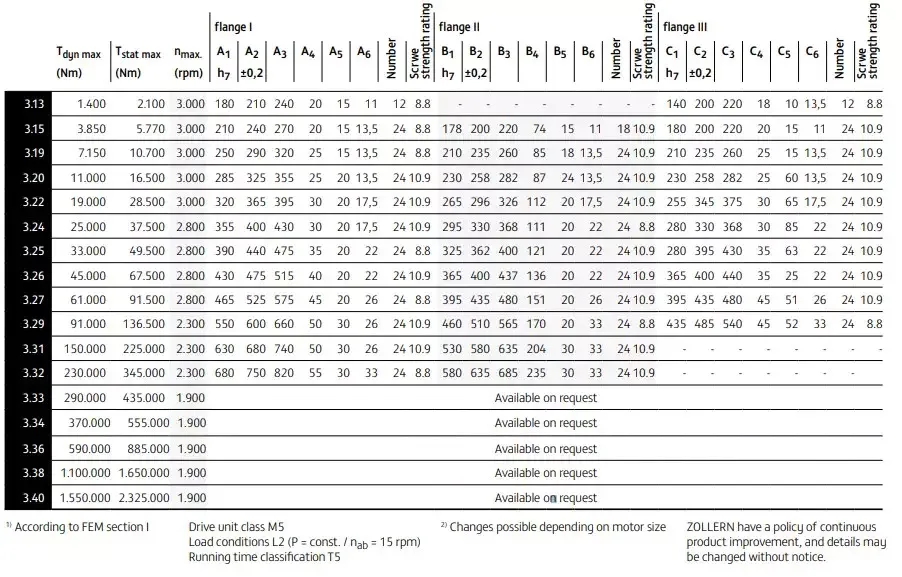

Parameters of Slewing Gear
How To Select a Complete planetary gearbox
| Input Component | Gear Reductions (co-axial stage 1-5 ,right angle 1-4 . ) | Output Component | Fittings |
| 1: AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fan
|
6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination
|
10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink disc |
16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc
|
Application of Slewing Gear
Potential applications
*Mobile crane
*Material and service elevator
*Marine and deck cranes
*Shipyard and port cranes
*Container gantry
*Yaw and pitch drive of wind turbines
*Construction cranes and conveyors
*Loading and cargo handling cranes
*Rescue and rescue vehicles
*Offshore crane
*Access platform
 |
 |
 |
 |
