5b Gripbelt Sheaves

Various American Standard 5B Gripbelt Sheaves With Split Taper Bushings For All A And B Section BeltsThe 5B series pulleys are used for A, AX, AA, 4L, B, BX, BB, and 5L v-belts with diameters from 7.35 "to 38.35". Depending on the pulley size, they are used with R1 tapered bushes, which we......

Send Inquiry

Product Description

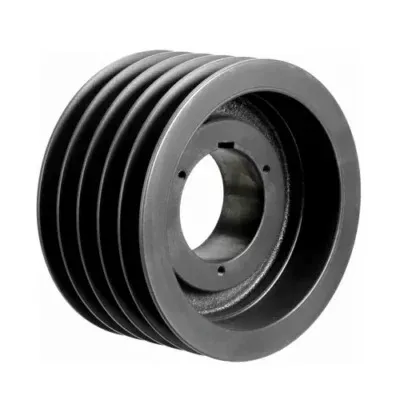

Various American Standard 5B Gripbelt Sheaves With Split Taper Bushings For All A And B Section Belts

The 5B series pulleys are used for A, AX, AA, 4L, B, BX, BB, and 5L v-belts with diameters from 7.35 "to 38.35". Depending on the pulley size, they are used with R1 tapered bushes, which we also have in stock. Our five-groove 5B split tapered bushing pulley is mainly made of high-strength grade 35 cast iron, coated with phosphate, and covered with anti-corrosion paint. All these are balanced at the factory to ensure the machine's smooth operation.

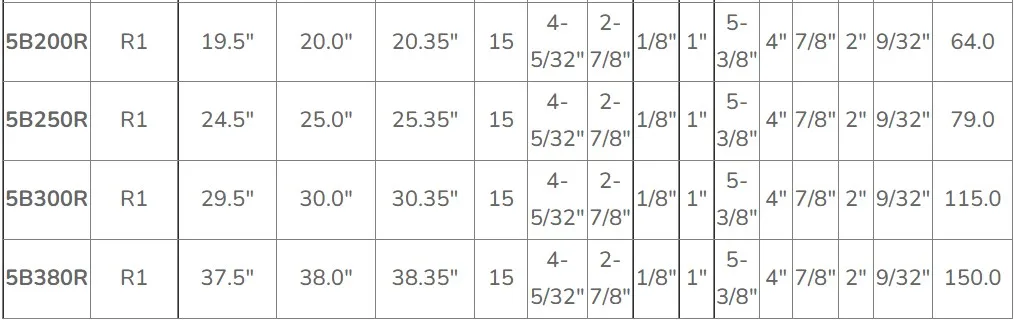

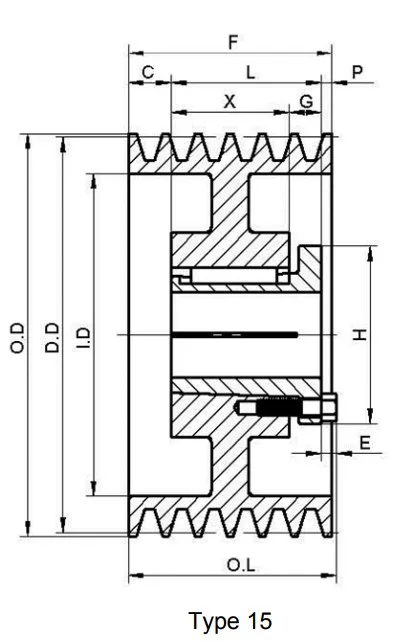

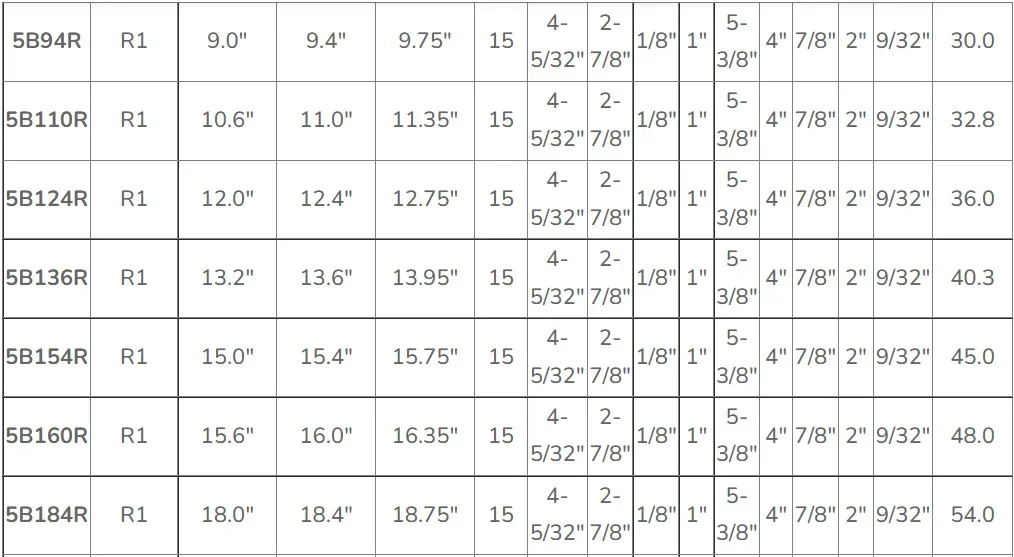

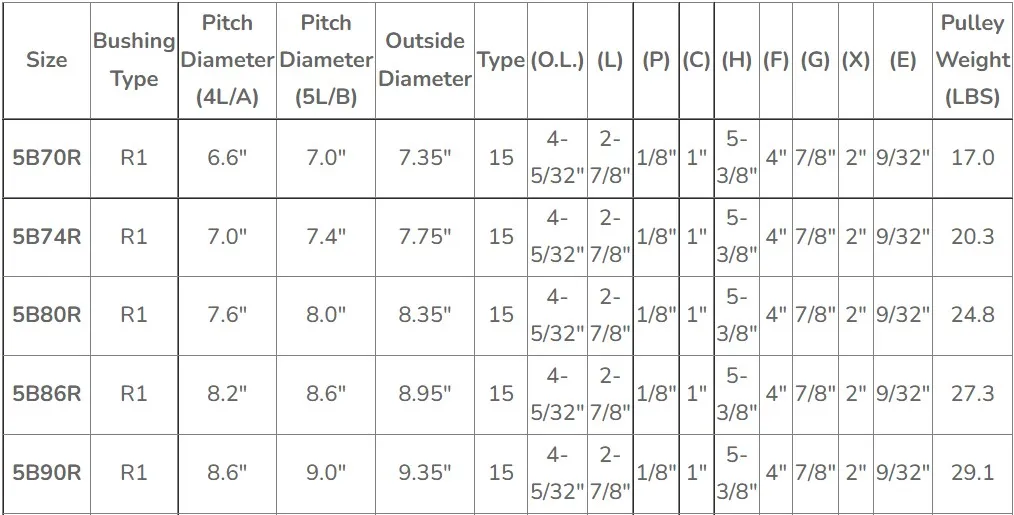

5B Style Pulley Size Chart

Various American Standard 5b Gripbelt Sheaves with Split Taper Bushings for All a and B Section Belts

V-belt Pulley Specifications:

V-Belt Pulley Type	Light Duty Bored to size Pulleys (AK, BK,2AK,2BK,3BK series)
	Light Duty Taper Bore Pulleys (AK-H, BK-H,2AK-H,2BK-H series)
	Split taper bushed Pulleys (1TB,2TB,3TB series)
	Heavy Duty QD Pulleys (1B,2B,3B,1C,2C,3C,4C,5C series etc)
	Light Duty Variable Speed Pulleys (1VP,2VP,1VL,1VM series)
	QD taper bore sheaves Pulleys (3V,5V,8V series)
	Single Groove Pulleys (OK, OL, AL series)
	According to customers' requirements or drawings
Materials	Cast iron, steel, aluminum, alloy, etc.
Surface treatment	powder coating, zinc plating, black oxide, etc
Standard	ANSI.API.BS.DIN.JIS.GB.etc.
Machine Equipment	CNC center, CNC milling machine, CNC turning machine, CNC drilling
Machine Equipment	machine, CNC lathes, lathes, 4-axis machines, etc.
Application field	Equipment accessories, Airplane, Ship, Bicycle, Motorcycle, Auto, Medical, Chemical, Wheel, Sports, Anchor, Weapon, etc.
Certification	ISO9001:2015
Warranty	One year after the shipment
QC	1. Materials are to be checked carefully before production.
	2. Strict processing quality control
	3.100% inspection before shipment.
Inspection Equipment	CMM, Projection, Calipers, Micro caliper, Thread Micro caliper; Automatic Two / Three Coordinate Measuring Instrument, etc.; Third party inspection available upon customer's requirements

features:
1. Iron pulleys of various sizes and series 1B, 2B, 3B, 1C, 2C, 3C, 4C, 5C, etc.
2. Tapered locking sleeve is installed on the pulley shaft for easy installation and removal.
3. After the long-time operation, the hole and keyway will be worn; You only need a new tapered bushing.
4. The pulley can use different shaft diameters and suitable tapered bushings.
5. The belt pulley with tapered bushing can be used for a long time. Therefore, repair and maintenance costs are reduced, and time and efficiency are saved.
Application field:
Applications include general machinery, factory construction, and agricultural and forestry technologies.

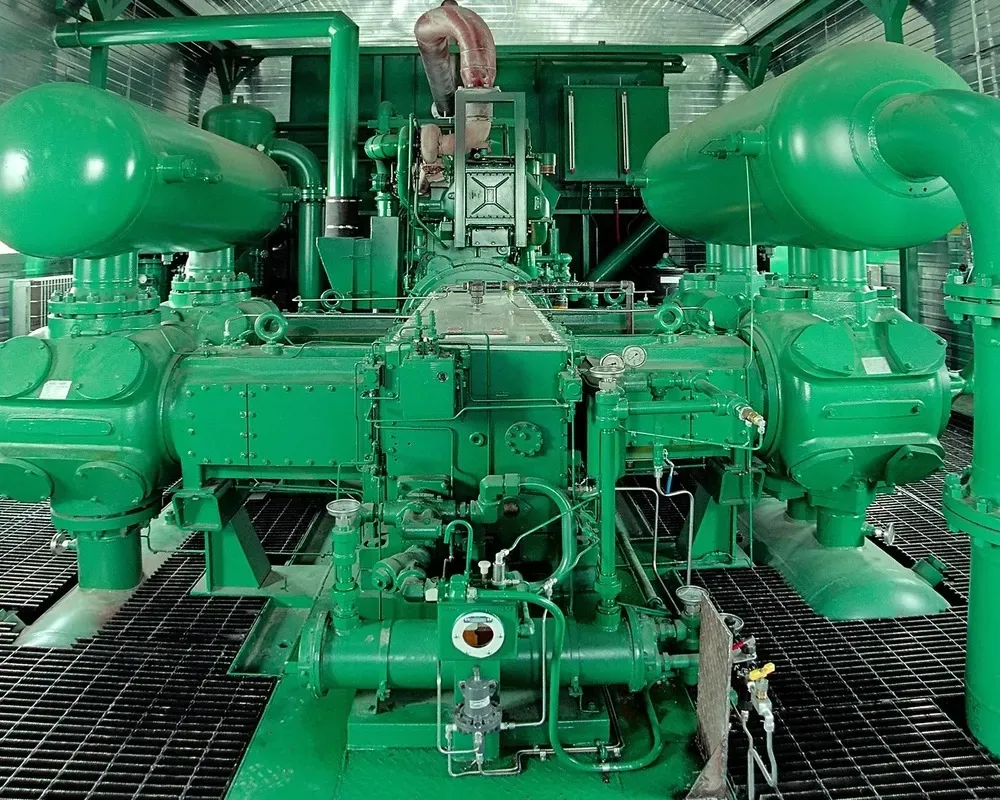

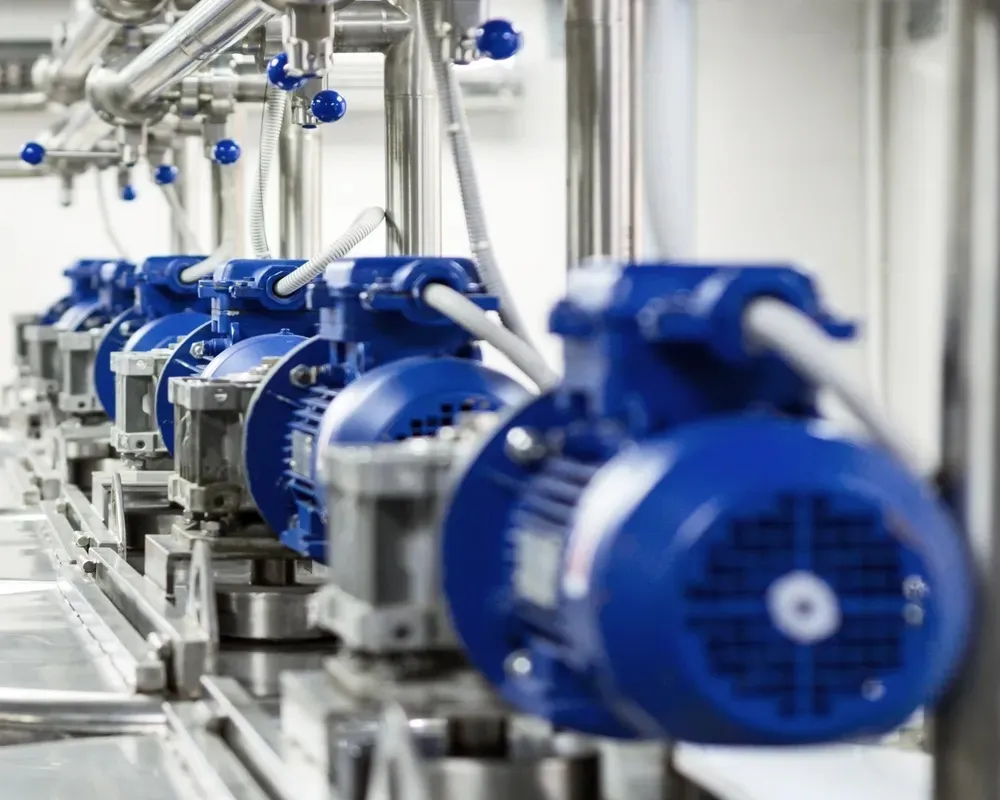

application for agriculture;application for compressors;application for electric machinery

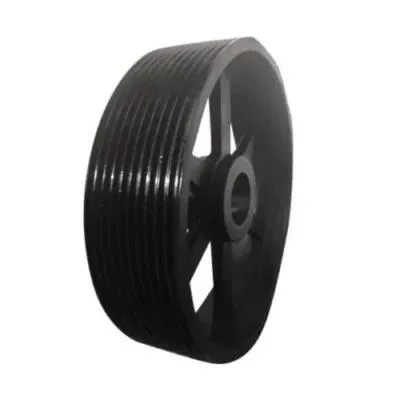

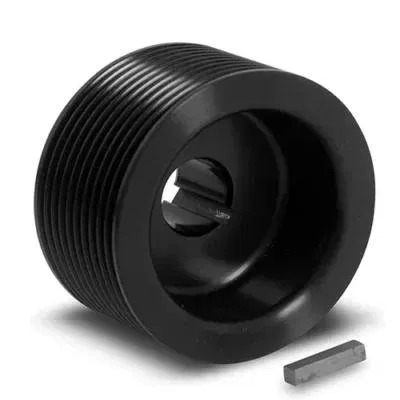

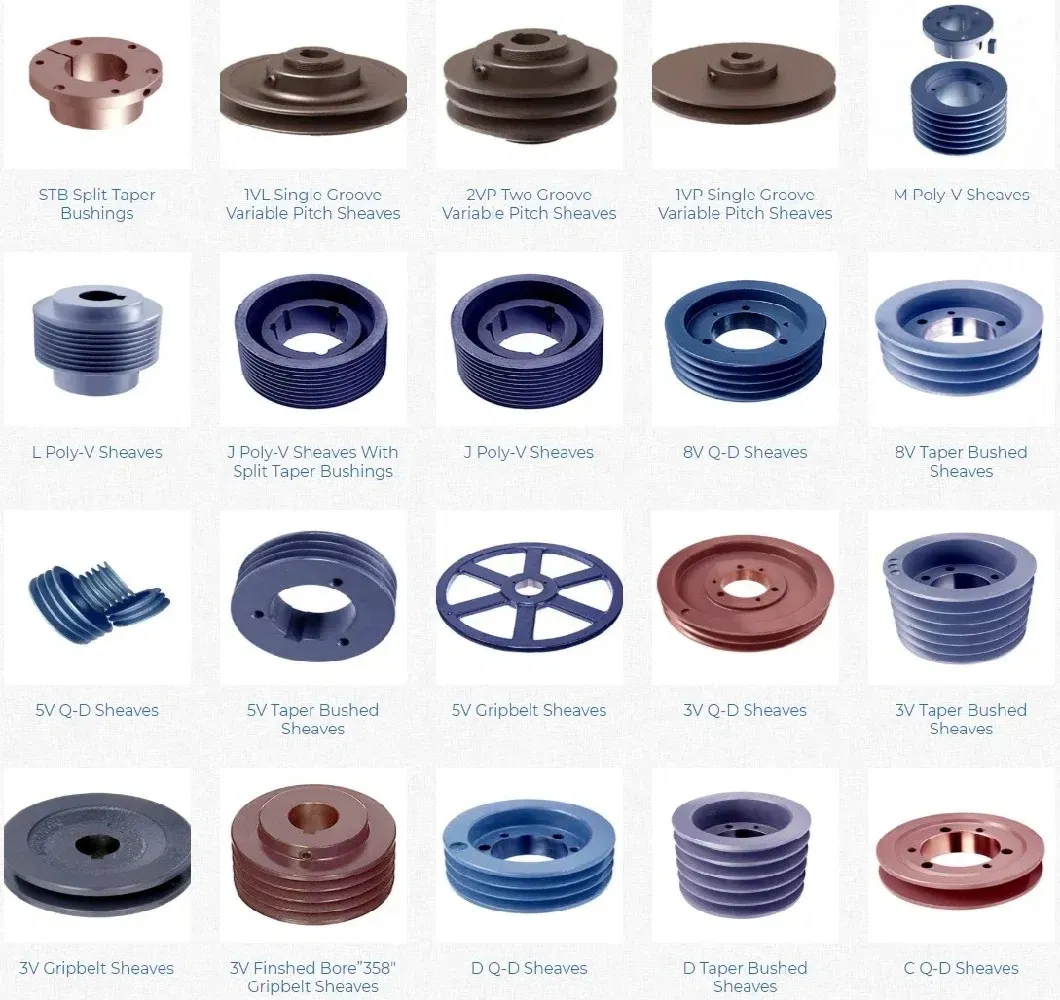

Other Sheaves
Various American Standard 5b Gripbelt Sheaves with Split Taper Bushings for All a and B Section Belts

How to measure V-pulleys | Dimensions, and dimensions
One of the most widely used and fastest-growing product types in the power transmission and automobile industry is the V-belt pulley, also known as "pulley." The V-belt pulley is an accessory that transmits energy between shafts through V-belt. However, to maintain the regular operation of this pair of crucial equipment, when the old V-belt pulley is worn, it must be ensured to replace the appropriate V-belt pulley. To do this, you need to know the size, size, and type of the V-pulley so that the replacement pulley can work properly. Learning to measure the size of the V-belt pulley and calculate it is a simple task; However, correctly identifying the V-pulley type can be complex. V-pulleys are available in various styles and options, including a, B, C, D, 3V, 5V, 8V, variable pitch, double grooves, and metric pulleys. We only stock more than 8000 different V-pulleys.
