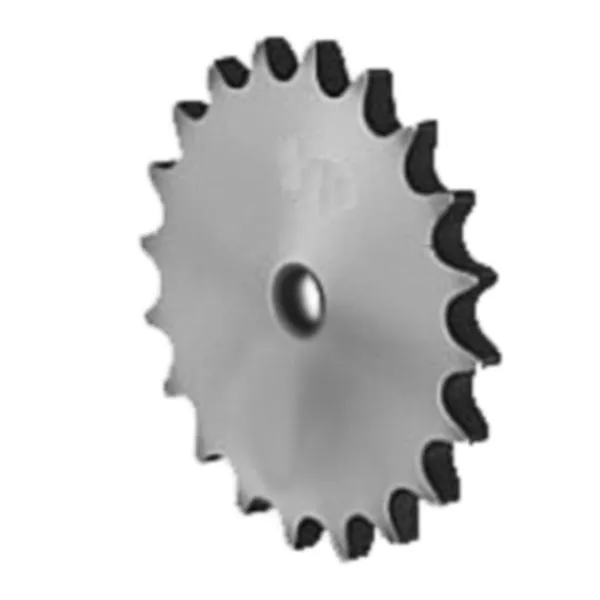

Conveyor Chain Sprocket P20

Product Description Plate wheels for Conveyor Chains P20plate wheels 20*16 mm For Chain ACC. DIN8164plate wheelsTooth radius r: 20 mmRadius width C: 1.7 mmTooth width B: 14.5 mmChainPitch: 20mmInternal width: 16mmRoller: 12mm Plate wheels for Conveyor Chains P30plate wheels 30*17.02 mm For Chain A......

Send Inquiry

Product Description

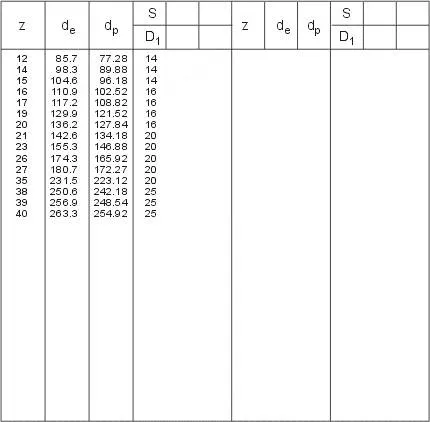

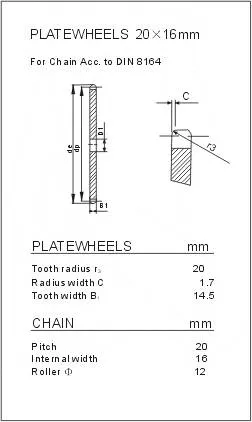

Plate wheels for Conveyor Chains P20

plate wheels 20*16 mm For Chain ACC. DIN8164

plate wheels

Tooth radius r: 20 mm
Radius width C: 1.7 mm
Tooth width B: 14.5 mm

Chain

Pitch: 20mm
Internal width: 16mm
Roller: 12mm

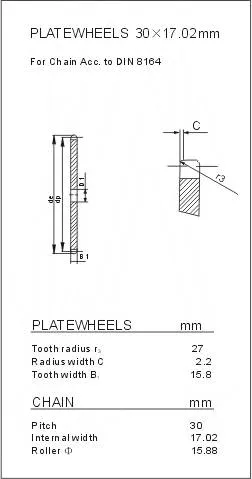

Plate wheels for Conveyor Chains P30

plate wheels 30*17.02 mm For Chain ACC. DIN8164

plate wheels

Tooth radius r: 27 mm
Radius width C: 2.2 mm
Tooth width B: 15.8 mm

Chain

Pitch: 30 mm
Internal width: 17.02 mm
Roller: 15.88 mm

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: European Standard Plate Wheels Sprocket for Conveyor Chains P20, P20 Sprocket, Cast Iron Sprocket
