Elastomer H Cushion Shaft Coupling

Single Piece Elastomer H Cushion Cast Iron Steel Connector Adapter H Type Fexible Spider Curved Jaw Flexible Shaft JAW Coupling With Rubber Elastomer

  A flexible coupling is a mechanical device used to connect two shafts together while allowing for a certain degree of misalignment or movement between them. It is designed to transmit torque and rotational motion from one shaft to another, while also compensating for any angular, parallel, or axial misalignments that may occur.

When selecting a flexible coupling, consider the following factors:

1. Type of Misalignment: Identify the type of misalignment that your application requires compensation for. There are different types of flexible couplings available, including:

   - Angular Misalignment: If your shafts are not perfectly aligned at an angle, consider flexible couplings like universal joints or Oldham couplings.
   - Parallel Misalignment: For shafts that are offset parallel to each other, consider flexible couplings like beam couplings or bellows couplings.
   - Axial Misalignment: If your shafts have axial movement or need to accommodate axial misalignment, consider flexible couplings like disc couplings or elastomeric couplings.

2. Torque and Power Requirements: Determine the torque and power transmission requirements of your application. Choose a flexible coupling that can handle the expected load without compromising performance or causing excessive wear.

3. Shaft Sizes: Consider the diameter and dimensions of the shafts that need to be connected. Ensure that the flexible coupling is compatible with the shaft sizes, and choose the appropriate coupling size accordingly.

4. Operating Conditions: Evaluate the environmental conditions in which the flexible coupling will operate. Consider factors such as temperature, humidity, chemical exposure, and vibration levels. Choose a coupling material that can withstand these conditions and maintain its performance over time.

5. Maintenance and Serviceability: Consider the ease of installation, maintenance, and replacement of the flexible coupling. Look for couplings that require minimal maintenance and have readily available spare parts if needed.

6. Cost: Evaluate the cost-effectiveness of the flexible coupling. Consider the initial purchase price, as well as the long-term durability and reliability of the coupling. It is often worth investing in a higher-quality coupling that offers better performance and longevity.

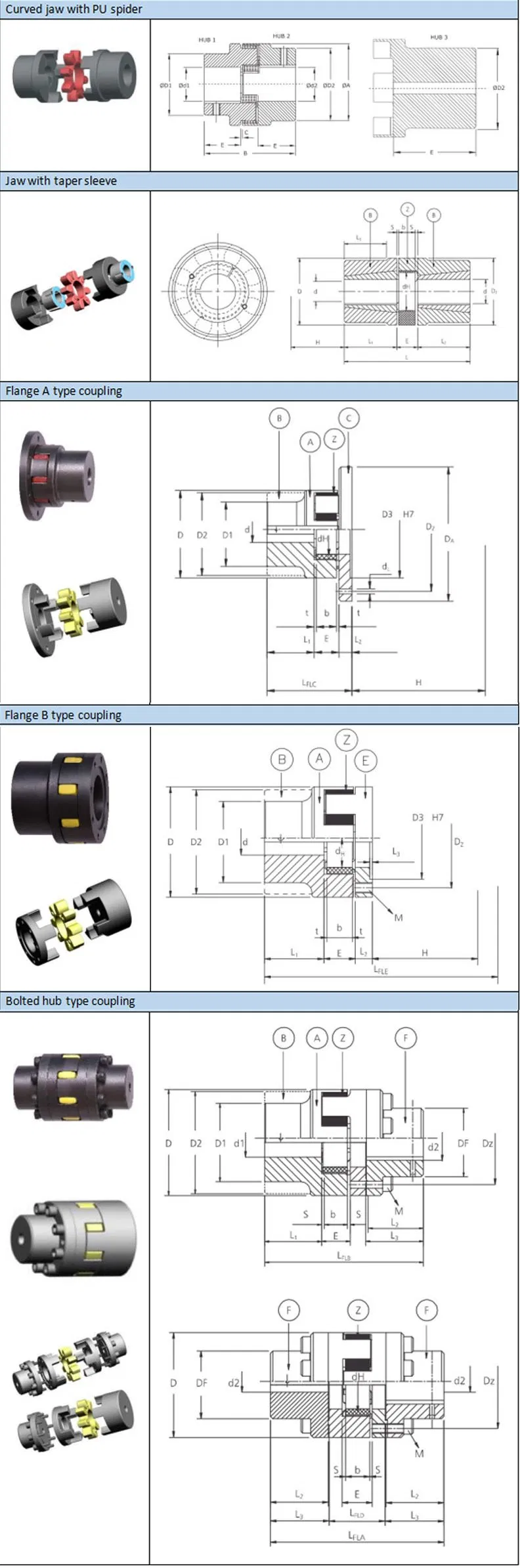

Product Description





FEATURES

1.Hubs made of cast iron GG25
2.Torsionally flexible, maintenance free, vibration-damping
3.Axial plug-in, fail-safe
4.Varying elastomer hardness of spiders
5.Compact design with small flywheel effect
6.Easy assembly/disassembly of the coupling hubs

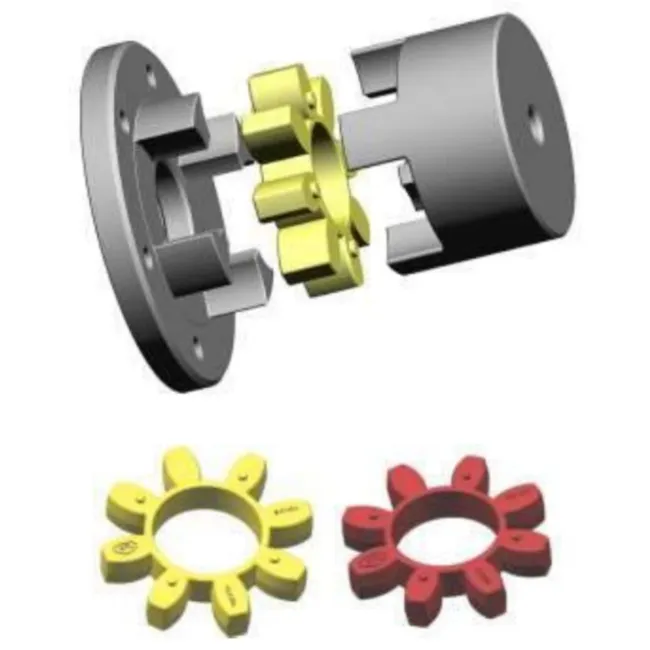

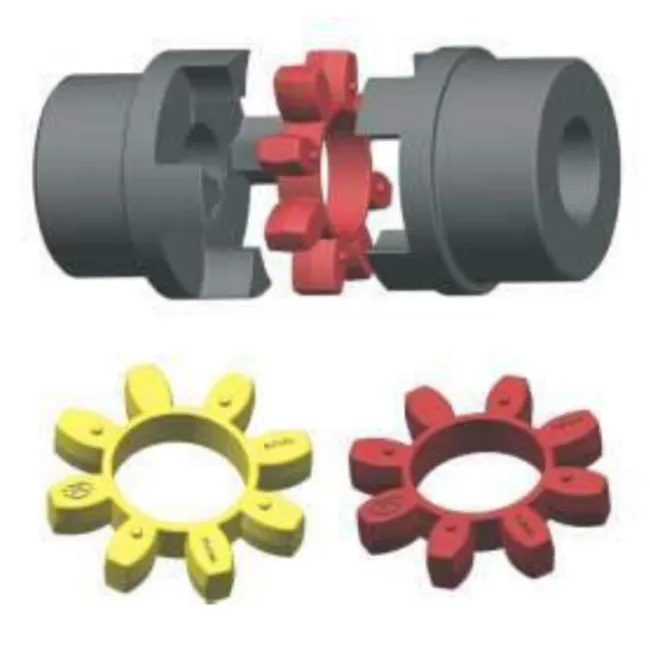

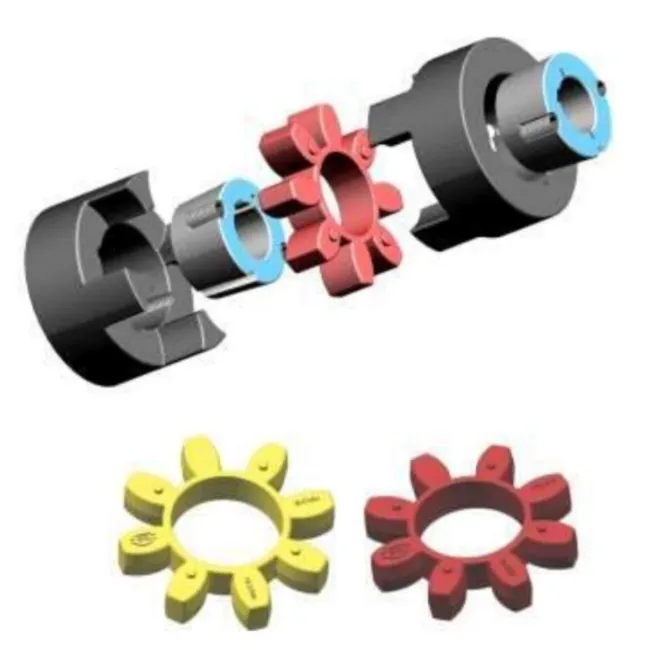

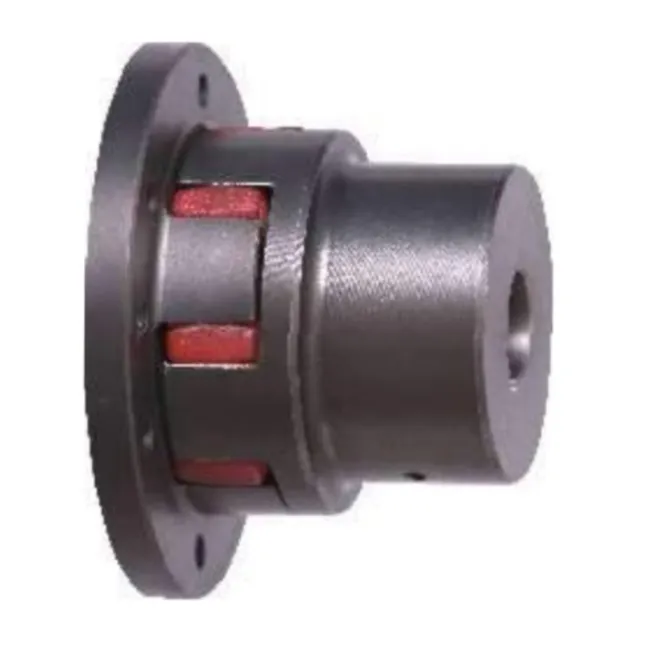

7.Available in two mounting version/Type H(external mounting) and type F (internal mounting)
8.Short mounting length
