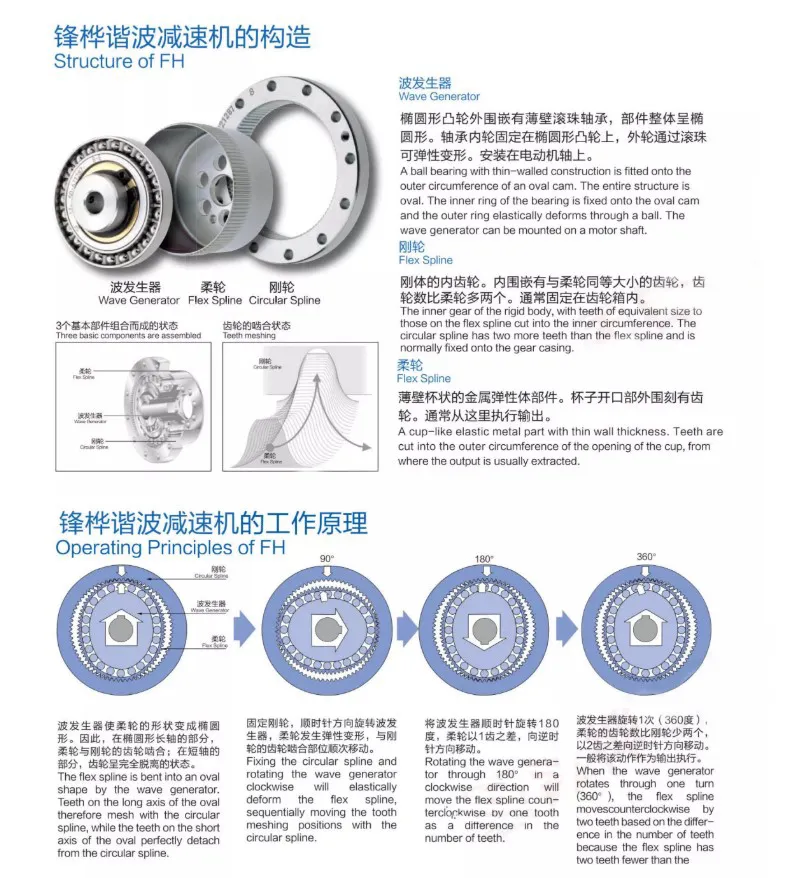

Product Description

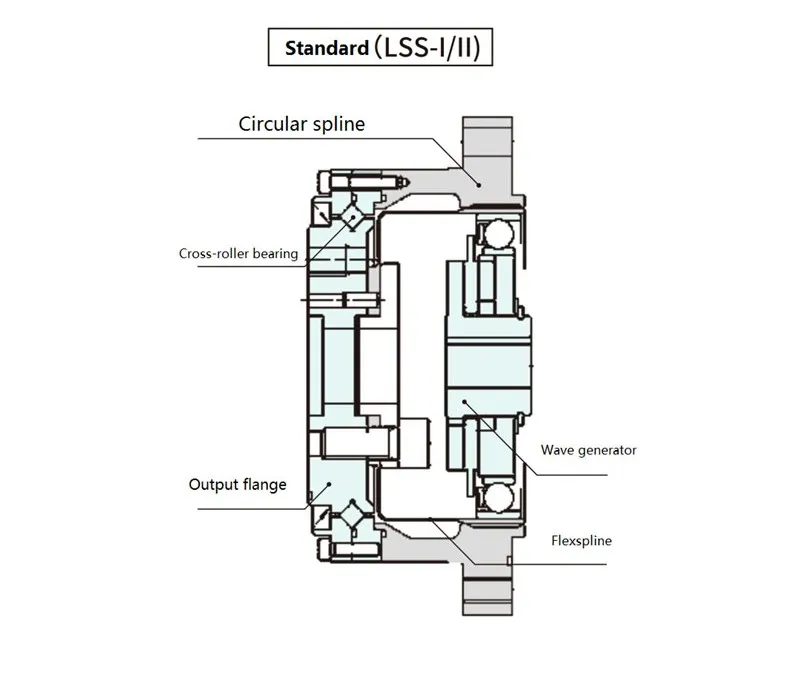

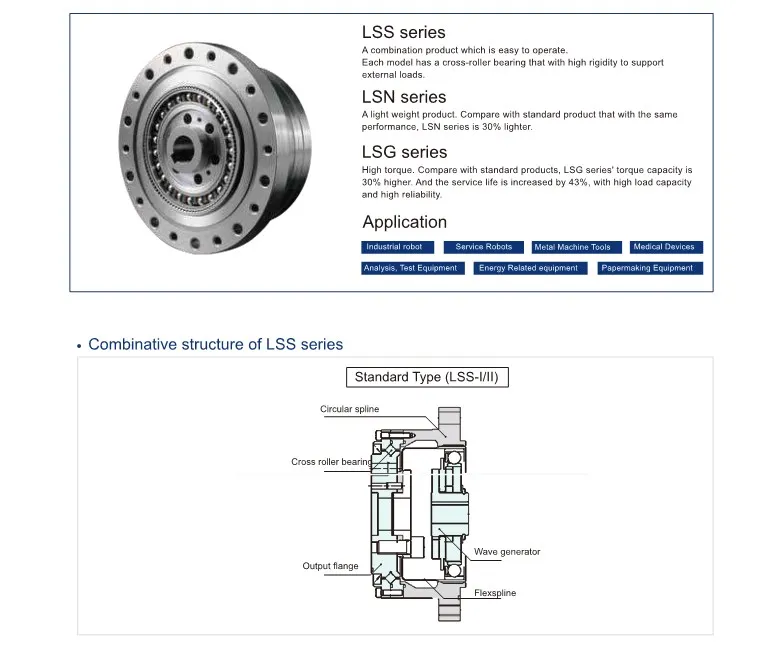

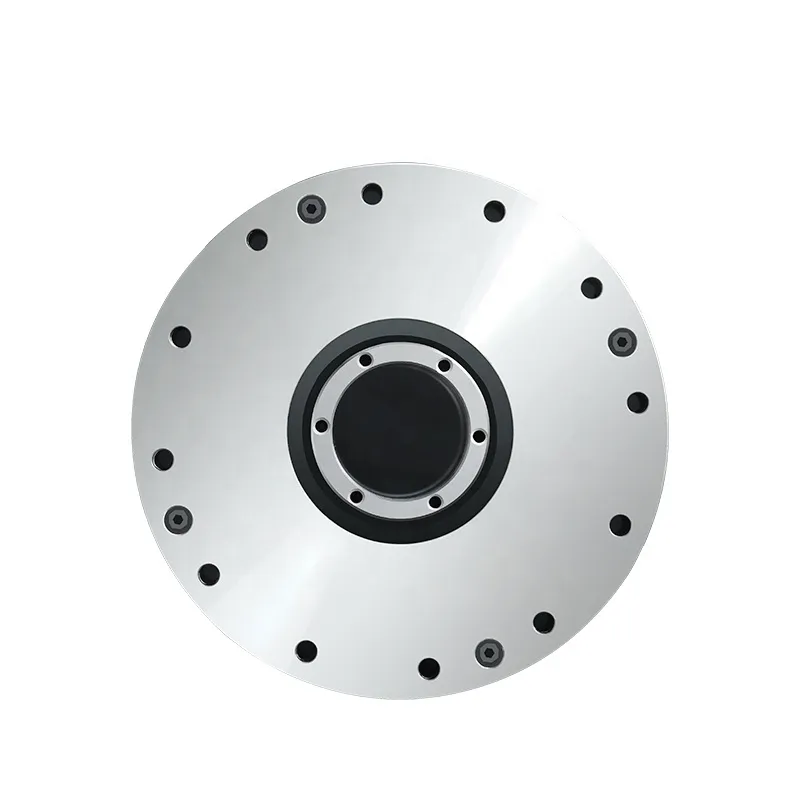

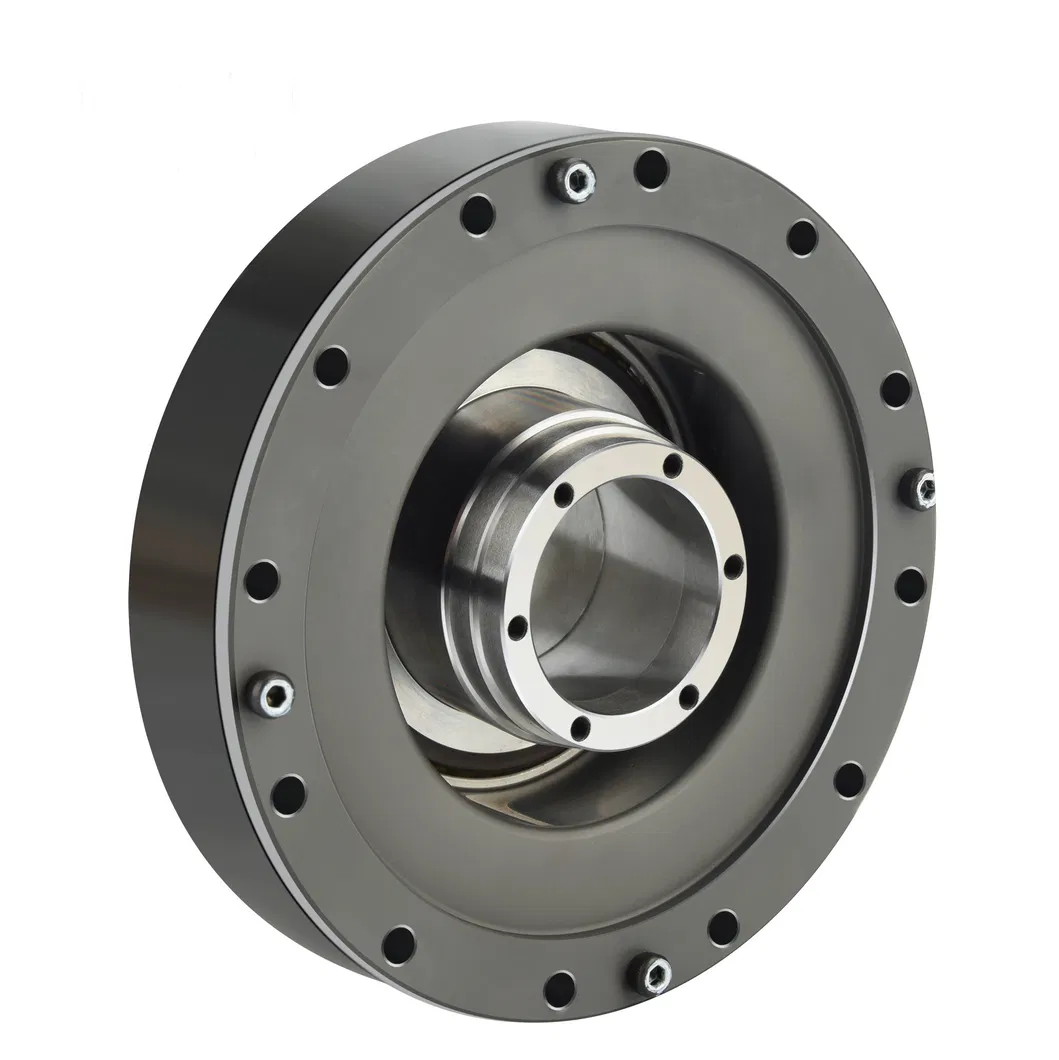

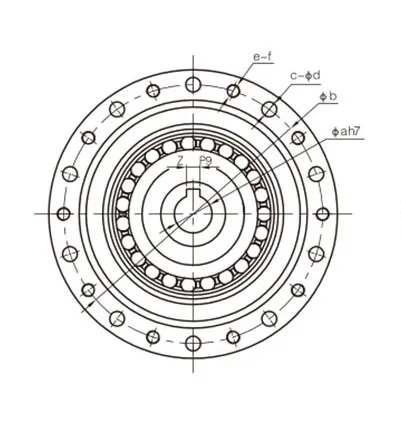

ELSS Series

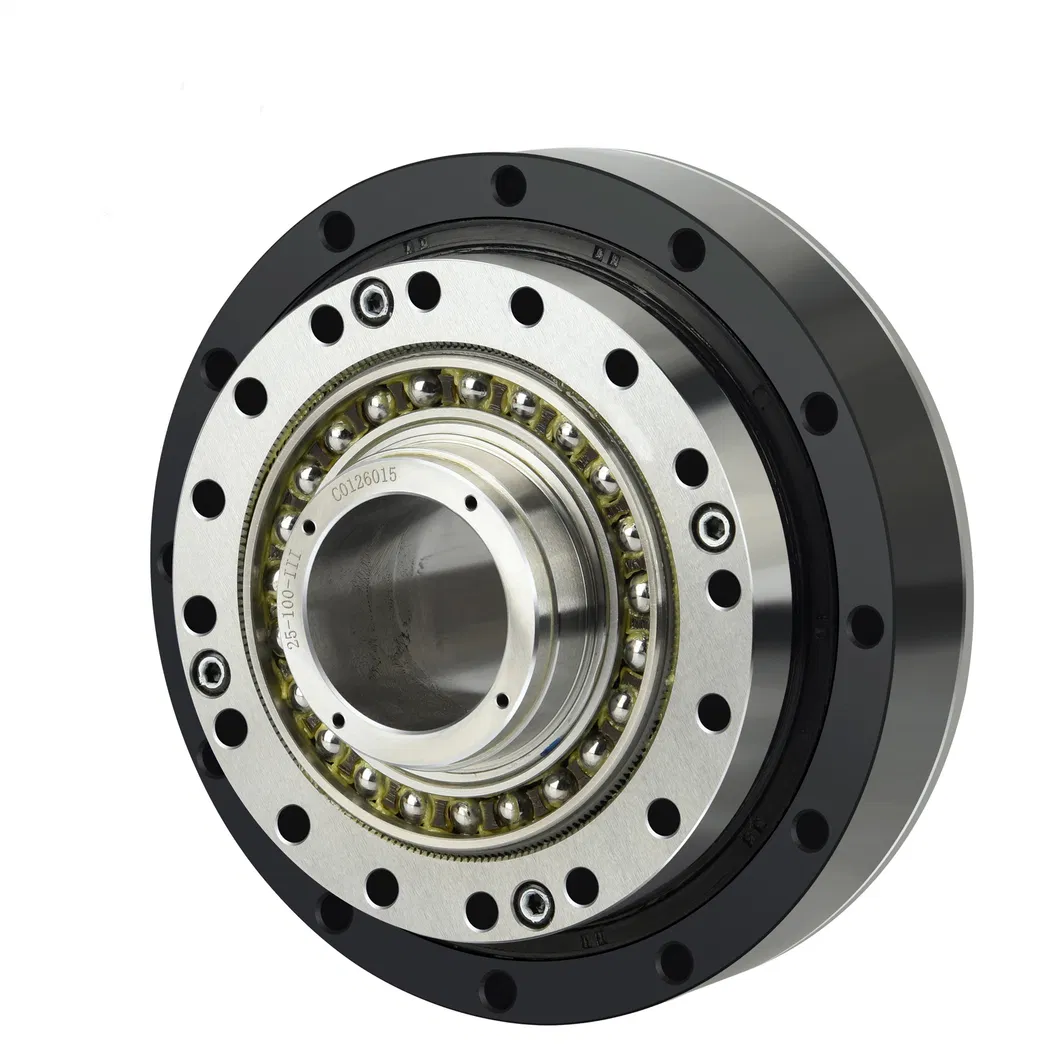

A combination product which is easy to operate. Each model has a cross-roller bearing that with high rigidity to support external loads.

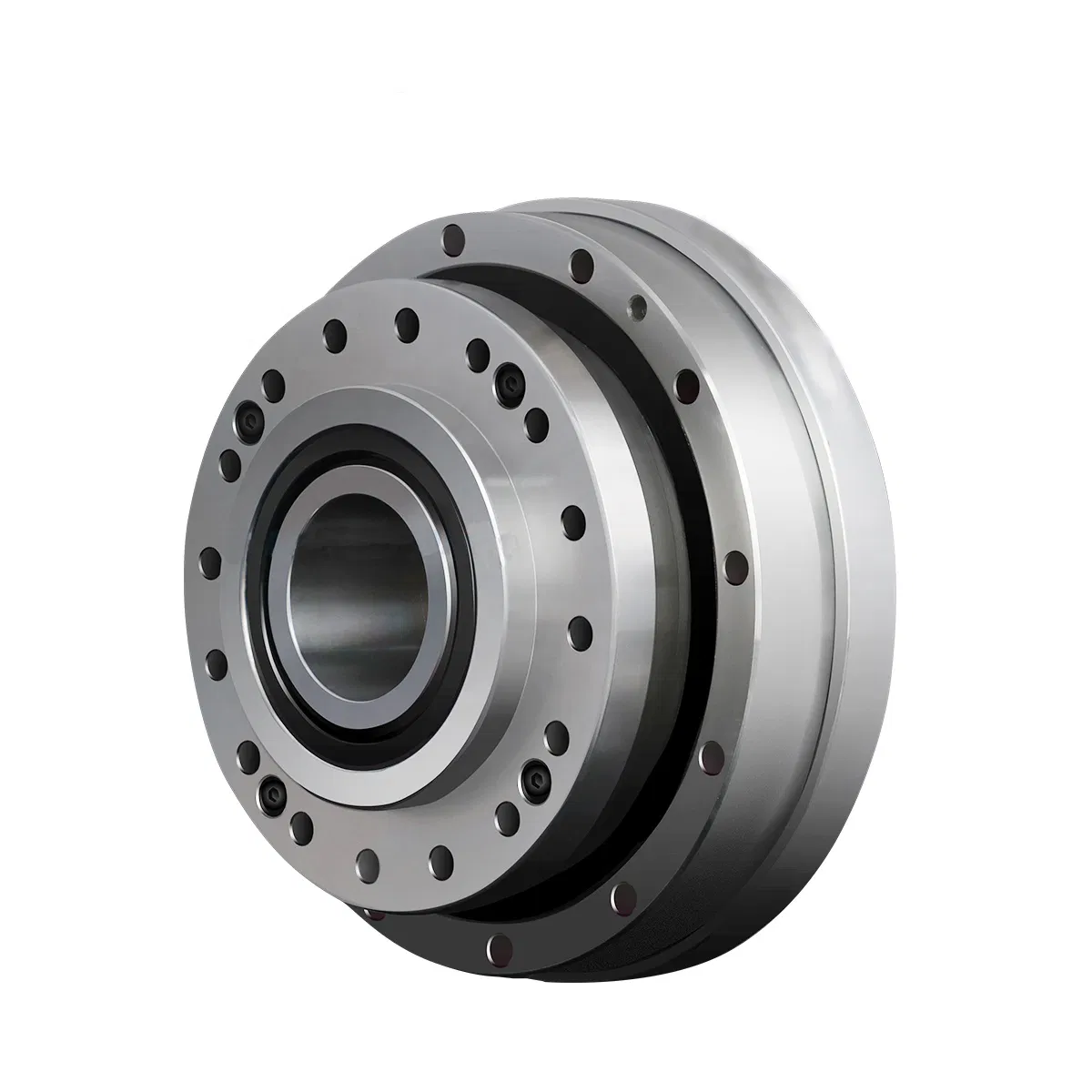

ELSN Series

A light weight product. Compare with standard product that with the same performance, LSN series is 30% lighter.

ELSG Series

High torque. Compare with standard products, LSG series' torque capacity is 30% higher. And the service life is increased by 43%, with high load capacity and high reliablity.

CONTAST US

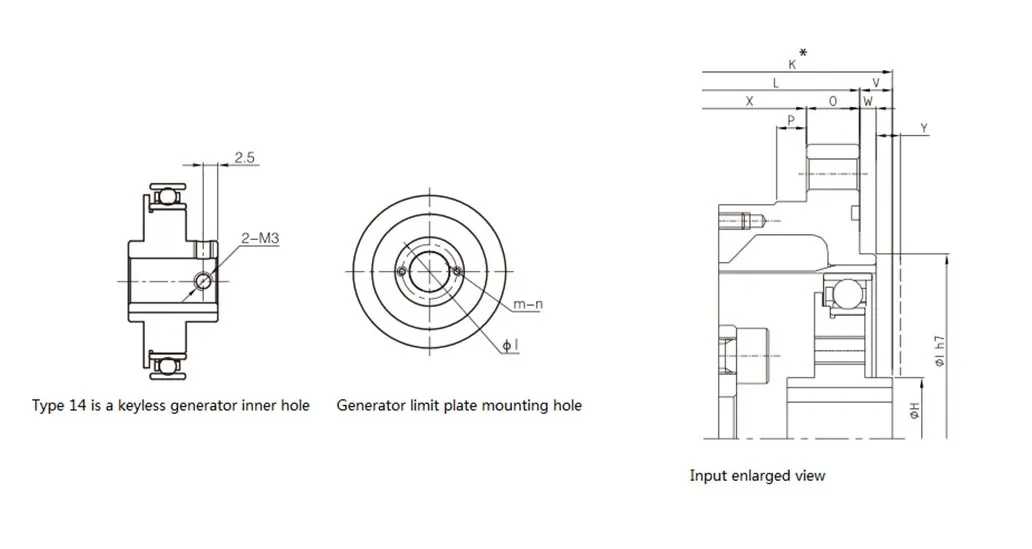

LSS/LSN Rated parameters

Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum inputrotational speed	Permissible average input rotational speed	Backlash	Design life
		Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Grease	Grease	Backlash	Design life
		Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	Hour
11	80	3.8	0.4	8.5	0.9	6.8	0.7	19.1	1.9	8000	3000	≤30	10000
11	100	4.1	0.4	8.9	0.9	7.2	0.7	20	2	8000	3000	≤30	10000
14	50	6.2	0.6	20.7	2.1	7.9	0.7	40.3	4.1	7000	3000	≤30	15000
	80	9	0.9	27	2.7	12.7	1.3	54.1	5.5
	100	9	0.9	32	3.3	12.7	1.3	62.1	6.3
17	50	18.4	1.9	39	4	29.9	3	80.5	8.2	6500	3000	≤30	15000
	80	25.3	2.6	49.5	5	31	3. 2	100.1	10.2
	100	27.6	2.8	62	6.3	45	4.6	124.2	12.7
20	50	28.8	2.9	64.4	6.6	39	4	112.7	11.5	5600	3000	≤30	15000
	80	39.1	4	85	8.8	54	5.5	146.1	14.9
	100	46	4.7	94.3	9.6	56	5.8	169.1	17. 2
	120	46	4.7	100	10.2	56	5.8	169.1	17.2
	160	46	4.7	112	10.9	56	5.8	169.1	17. 2
25	50	44.9	4.6	113	11.5	63	6. 5	213.9	21.8	4800	3000	≤30	15000
	80	72.5	7.4	158	16.1	100	10.2	293.3	29.9
	100	77.1	7.9	181	18.4	124	12. 7	326.6	33.3
	120	77.1	7.9	192	19.6	124	12.7	349.6	35.6
32	50	87.4	8.9	248	25.3	124	12.7	439	44.8	4000	3000	≤30	15000
	80	135.7	13.8	350	35.6	192	19.6	653	66.6
	100	157.6	16.1	383	39.1	248	25.3	744	75.9
	120	157.6	16.1	406	41.4	248	25.3	789	80.5

LSG Rated parameters

Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum input rotational speed	Permissible average input rotational speed	Backlash	Design life
		Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Grease	Grease	Backlash	Design life
		Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	Hour
11	80	3.8	0.4	8.5	0.9	6.8	0.7	19.1	1.9	8000	3000	<=20	10000
11	100	4.1	0.4	8.9	0.9	7.2	0.7	20	2	8000	3000	<=20	10000
14	50	7	0.7	23	2.3	9	0.9	46	4.7	10000	6500	<=20	15000
	80	10	1	30	3.1	14	1.4	61	6.2
	100	10	1	36	3.7	14	1.4	70	7.2
17	50	21	2.1	44	4.5	34	3.4	91	9	7500	5600	<=20	20000
	80	29	2.9	56	5.7	35	3.6	113	12
	100	31	3.2	70	7.2	51	5.2	143	15
20	50	33	3.3	73	7.4	44	4.5	127	13	7000	4800	<=20	20000
	80	44	4.5	96	9.8	61	6.2	165	17
	100	52	5.3	107	10.9	64	6.5	191	20
	120	52	5.3	113	11.5	64	6.5	191	20
	160	52	5.3	120	12.2	64	6.5	191	20
25	50	51	5.2	127	13	72	7.3	242	25	5600	4000	<=20	20000
	80	82	8.4	178	18	113	12	332	34
	100	87	8.9	204	21	140	14	369	38
	120	87	8.9	217	22	140	14	395	40
32	50	99	10	281	29	140	14	497	51	5600	3000	<=20	20000
	80	153	16	395	40	217	22	738	75
	100	178	18	433	44	281	29	841	86
	120	178	18	459	47	281	29	892	91
