Helical Geared Motor Gearbox

Raydofon Group's Helical Geared Motor Gearbox delivers superior power transmission with smooth, efficient operation. Ideal for industrial applications, it reduces noise and energy consumption. Experience reliable performance and enhanced productivity—trusted by professionals worldwide for durability and precision.

Send Inquiry

Product Description

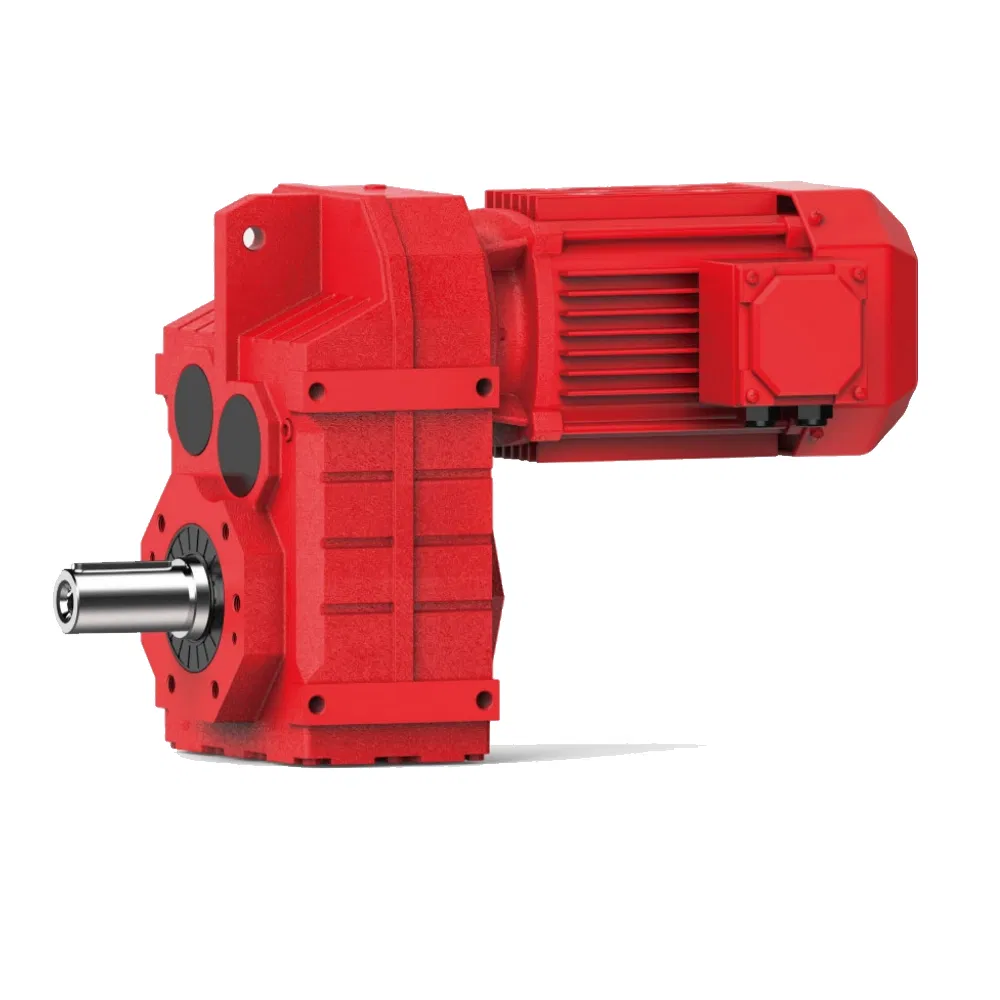

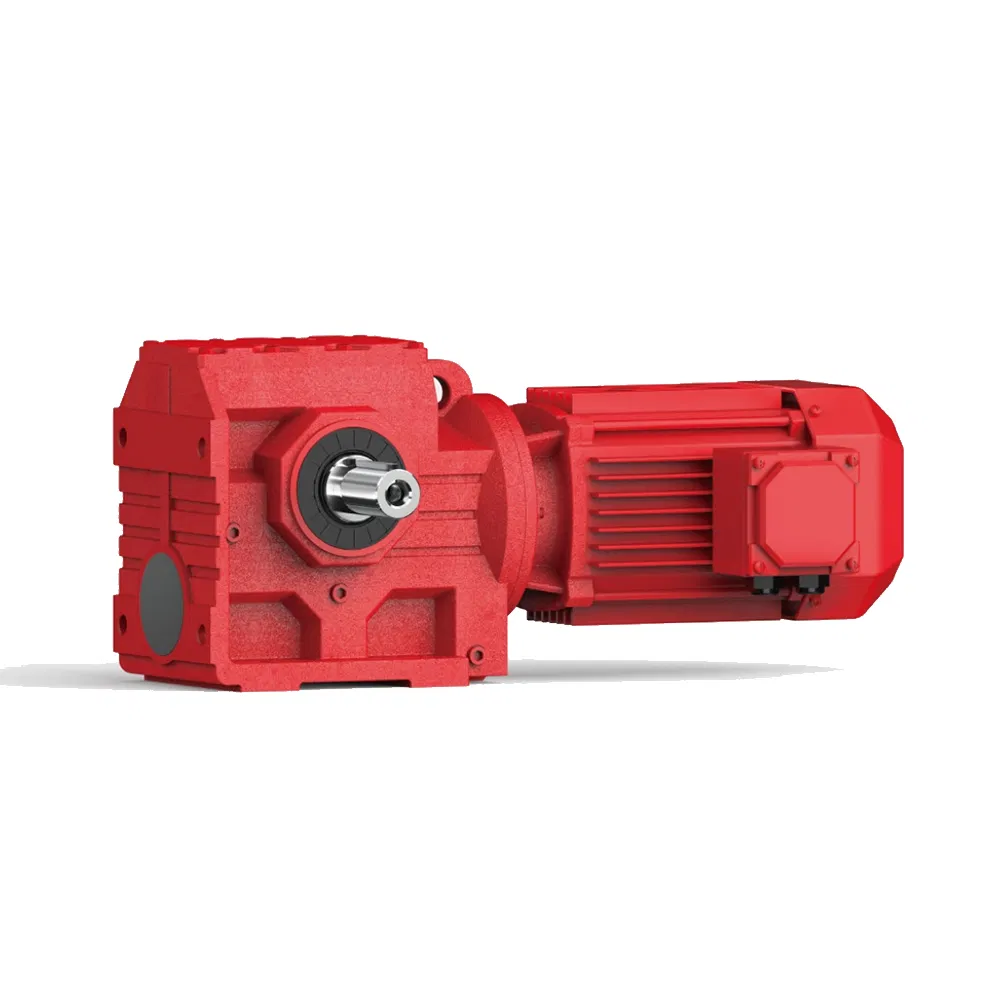

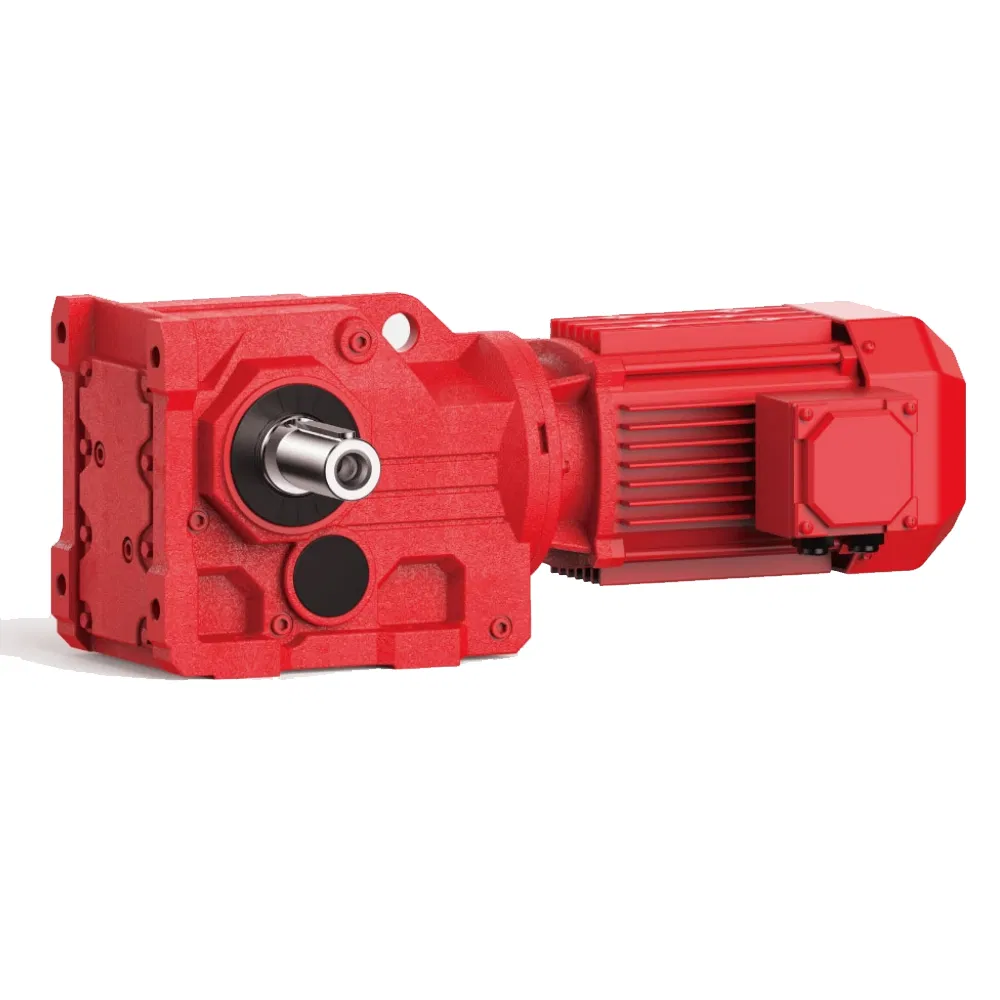

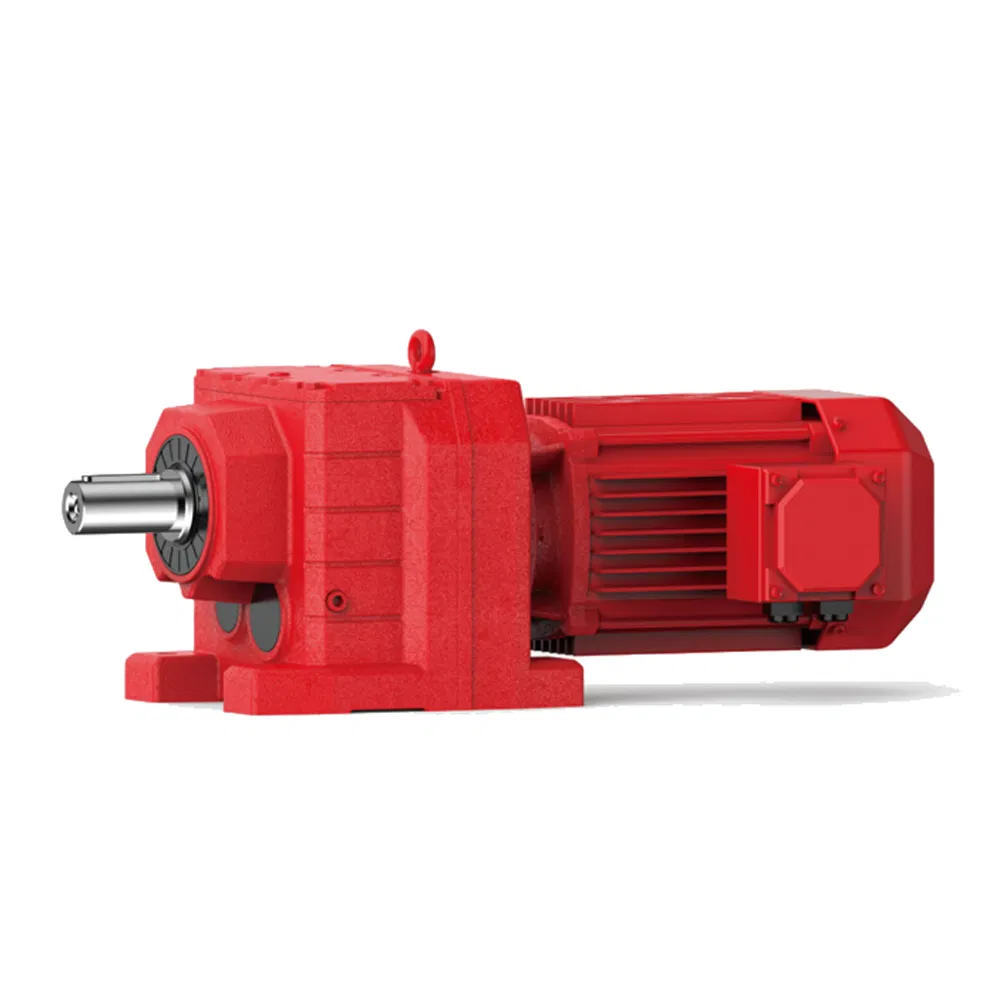

F/K/R/S Series Hollow Output Parallel Shaft Cast iron Housing Helical Geared Motor Gearbox Speed Reducer

Housing hardness	HBS90-240
Gear material	20CrMnTi
Surface hardnesss of gear	HRC58°-62°
Gear core hardness	HRC33°-40°
Input/Output shaft material	40CrMnTi
Input/Output shaft hardness	HBS241°-286°
Shaft at oil seal postion hardness	HRC48 ° -55 °
Machining precision of gears material	Accurate grinding 6-5 grade
Heat treatment	Tempering, Cementing, Quenching etc
Efficiency	up to 90%
Noise(Max)	50-68dB
Input Power	0.18~200kw
Allowable Torque ( N.m )	200~18000
Transmission Ratio	3.81~280.76
Unit model	Foot mounted,flange mounted,hollow shaft mounted
Input method	flange input,inline input,shaft input
Vibration	≤ 20um
Backlash	≤ 20Arcmin
Lubricant	VG220
Motor	IP55, F class
Motor shaft	40Cr, Tempering, cementing,quenching etc.
