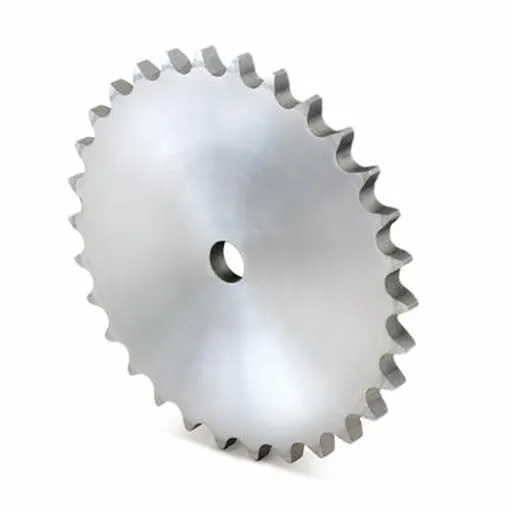

K80A Type K Standard Wheel Sprockets

Product Description K Standard Sprockets A type K80A "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"BIG INVENTORY.REASONABLE PRICES.DELIVERY ON TIME.AVAILABLE MADE-TO-ORDER SPROCKET.Chain Pitch(P)25.4mm (1 inch)Inner Width(W)15.88mmBush Dia.(Dr)15.88mmTooth Width(T)14.6mm(Dimension : mm)Spro......

Send Inquiry

Product Description

K Standard Sprockets A type K80A

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	25.4	mm (1 inch)
Inner Width	(W)	15.88	mm
Bush Dia.	(Dr)	15.88	mm
Tooth Width	(T)	14.6	mm

(Dimension : mm)
Sprocket No.	Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d	Weight (kg)	Material	Teeth
Type	Teeth	Stock Bore	Min.
K80A	10	93	82.19	16	18	0.60	Mild Steel	10
11	102	90.16	16	18	0.73	11
12	110	98.14	16	18	0.83	12
13	118	106.14	16	18	1.00	13
14	127	114.15	16	18	1.16	14
15	135	122.17	20	22	1.30	15
16	143	130.20	20	22	1.50	16
17	151	138.23	20	22	1.70	17
18	159	146.27	20	22	1.90	18
19	167	154.32	20	22	2.10	19
20	176	162.37	20	22	2.35	20
21	184	170.42	20	22	2.57	21
22	192	178.48	26	28	2.82	22
23	200	186.54	26	28	3.10	23
24	208	194.60	26	28	3.35	24
25	216	202.66	26	28	3.65	25
26	224	210.72	26	28	3.95	26
27	233	218.79	26	28	4.25	27
28	241	226.86	26	28	4.60	28
29	249	234.93	26	28	4.93	29
30	257	243.00	26	28	5.30	30
31	265	251.07	26	28	5.63	31
32	273	259.14	26	28	6.00	32
33	281	267.21	26	28	6.40	33
34	289	275.29	26	28	6.80	34
35	297	283.36	26	28	7.20	35
36	306	291.43	26	28	7.60	36
37	314	299.51	26	28	8.00	37
38	322	307.58	26	28	8.50	38
39	330	315.66	26	28	8.90	39
40	338	323.74	26	28	9.40	40
41	346	331.81	26	28	9.90	41
42	354	339.89	26	28	10.30	42
43	362	347.97	26	28	10.80	43
44	370	356.04	26	28	11.40	44
45	378	364.12	26	28	11.90	45
46	387	372.20	26	28	12.40	46
47	395	380.28	26	28	12.95	47
48	403	388.36	26	28	13.50	48
49	411	396.44	26	28	14.08	49
50	419	404.52	26	28	14.70	50
52	435	420.68	26	28	15.86	52
53	443	428.76	26	28	16.48	53
54	451	436.84	26	28	17.10	54
55	459	444.92	26	28	17.75	55
56	468	453.00	26	28	18.40	56
57	476	461.08	26	28	19.07	57
58	484	469.16	26	28	19.75	58
60	500	485.33	26	28	21.10	60
64	532	517.65	26	28	24.05	64
65	540	525.73	26	28	24.80	65
66	548	533.82	26	28	25.58	66
70	581	566.15	26	28	28.80	70
75	621	606.56	26	28	33.10	75
80	662	646.97	26	28	37.60	80
90	743	727.80	26	28	47.60	90

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

K Standard Plate Wheel Sprockets a Type K80A (Japanese KANA Standard)

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: K Standard Plate Wheel Sprockets a Type K80A (Japanese KANA Standard), K80A Sprocket, Chain Sprocket
