NEMA32 Brushless DC Planetary Gear Motor

Raydafon Group's NEMA32 Brushless DC Planetary Gear Motor delivers unmatched precision and durability for industrial automation and robotics. With advanced technology, smooth operation, and high torque, it empowers engineers and manufacturers to achieve reliable performance, solving efficiency challenges and enhancing productivity in demanding applications.

Send Inquiry

Product Description

Ep Series Precision Planetary Gear Motor Right NEMA32 Brushless DC Customized High Quality Non-Standard Dedicated Helical Reducer Transmission Gearbox

Features:

1) Power: 5~15W, 15~25W, 25~40W, 40~60W, 60~90W, 90~120W, 120~150W, 150~200W

2) Ratio:i=3~100

Rated output torque	N.M	4.5-1800
Instant stop torque	N.M	Two times of rated output torque
Life	Hour	30,000
Full load efficiency		95%,98%
Operating temperature	°C	-25---+90
IP		IP54
Lubrication type		Lifetime lubrication
Mounting type		Any

Product type		PLS70	PLS90	PLS115	PLS142	PLS190
Torsional stiffness	N.M/arcmin	6,7	9,10	20,22	44,46	130,140
Noise	dB(A)	58	60	65	68	70
Max output speed	Min	14000	10000	8500	6500	6000
Recommend input speed	Min	5000	4500	4000	3000	2500

Noise test standard pressure level,distance 1m,measured on idle running with an input speed of 3000rpm.

High precision planetary gearbox matched with serve motor,stepping motor are widely used.lowest backlash<3");high output torques;high efficiency(96%);honed toothings;22 ratios i=3,...,512;low noise(<65dB(A));any mounting position;easy motor mounting;life time lubrication;Figure diameters 40,60,80,120,160mm.more options.

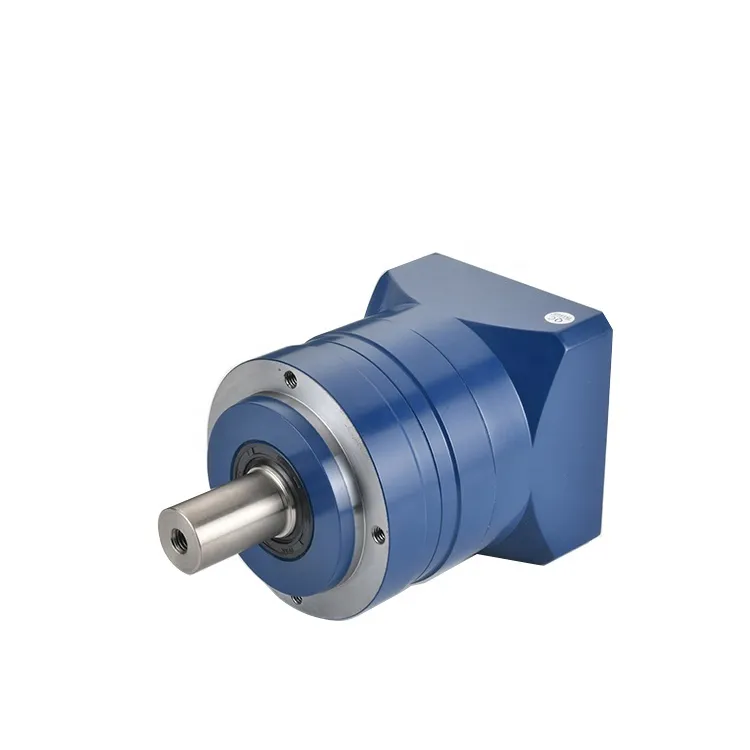

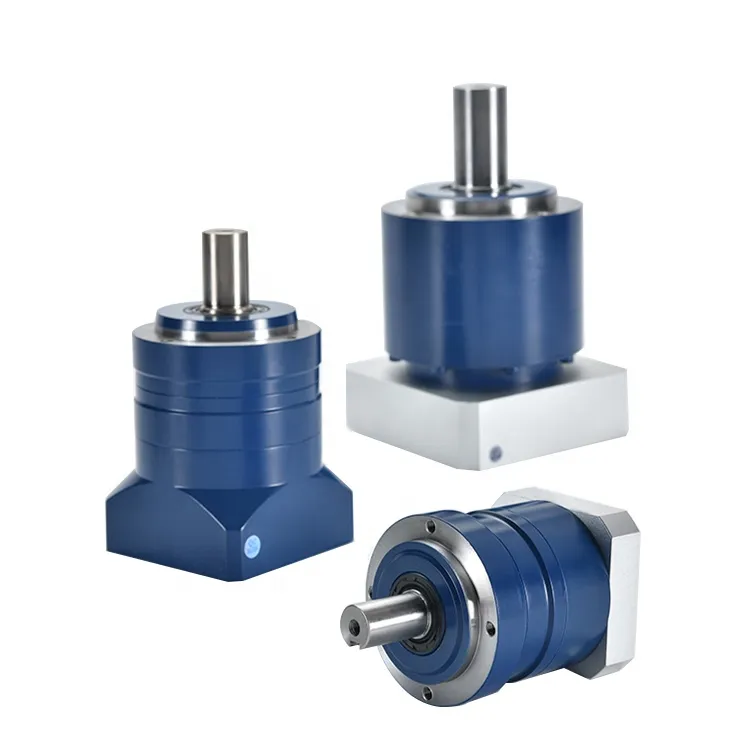

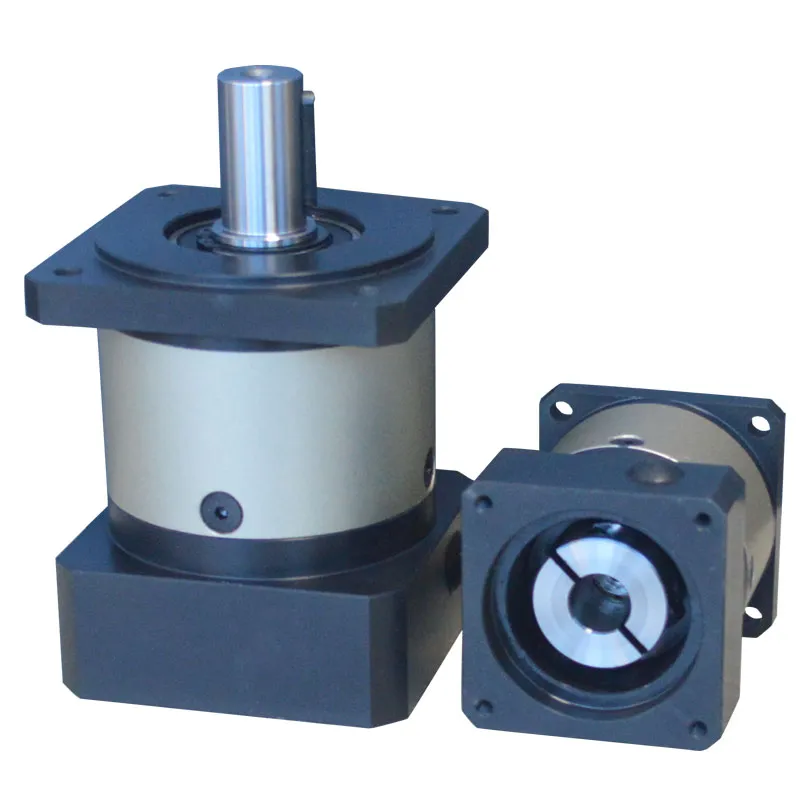

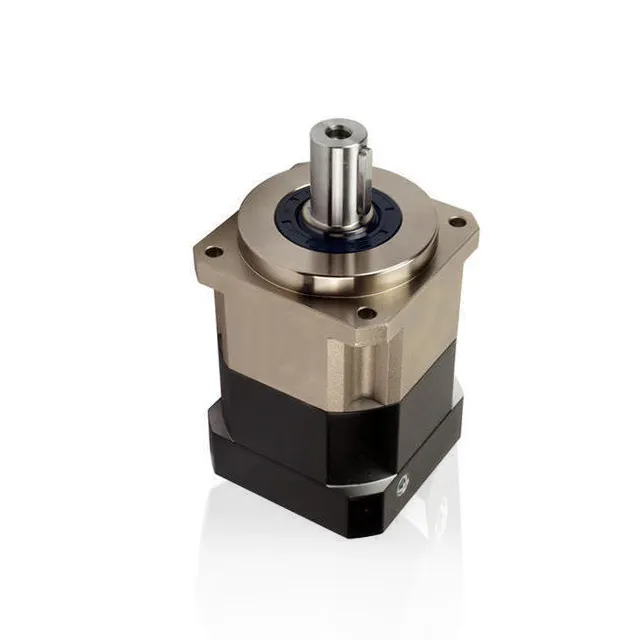

Planetary gearbox:

ZDE:Precision planetary-round flange output

ZDF:Precision planetary-square flange output

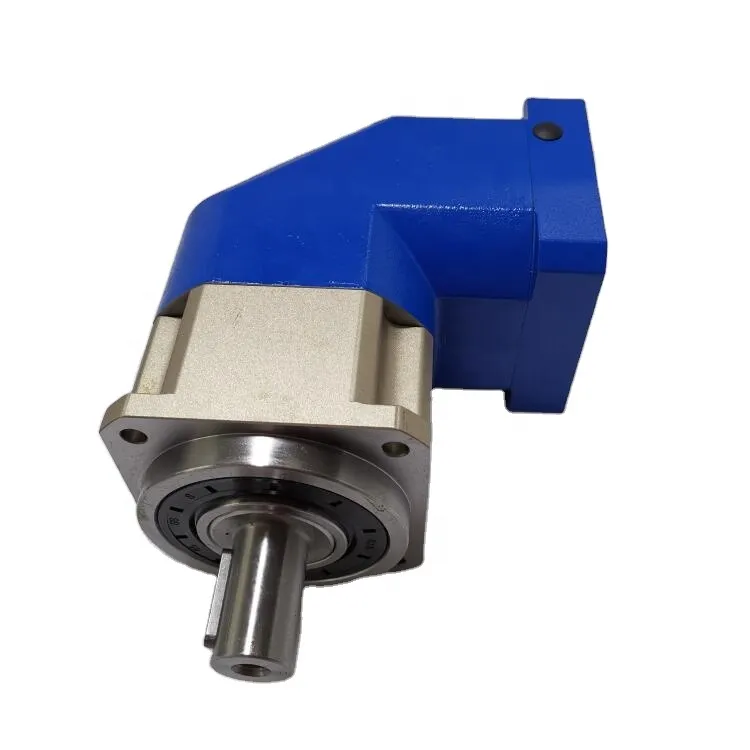

ZDWE:Precise planetary-right angle round flange output

ZDWF:Precise planetary-right angle square flange output

ZDS:Precise planetary-high rigidity,low back lash
Ep Series Precision Planetary Gear Motor Right NEMA32 Brushless DC Customized High Quality Non-Standard Dedicated Helical Reducer Transmission Gearbox
