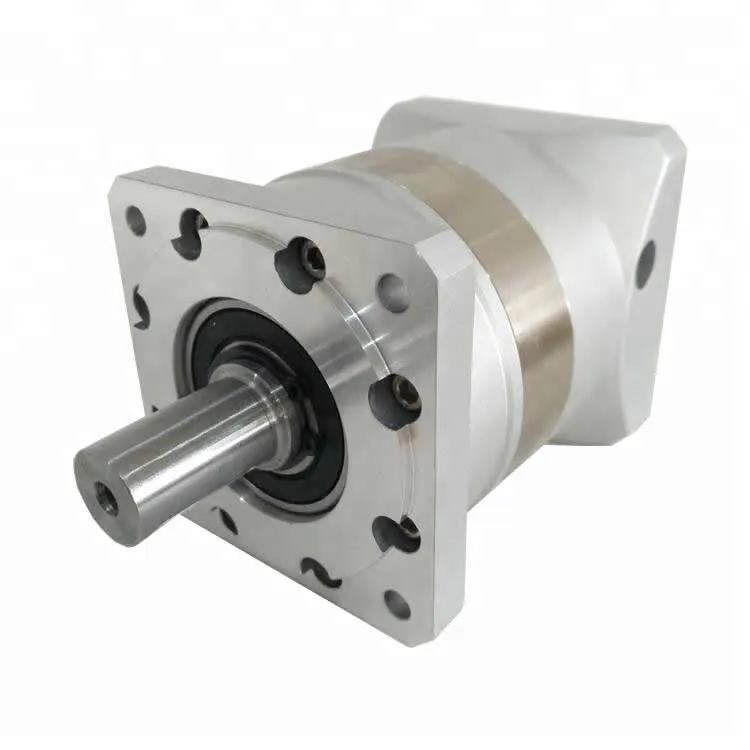

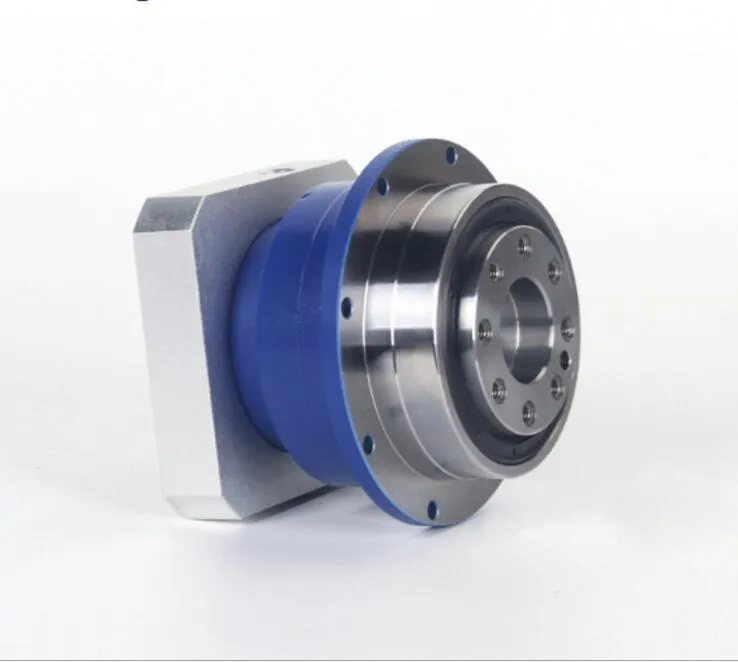

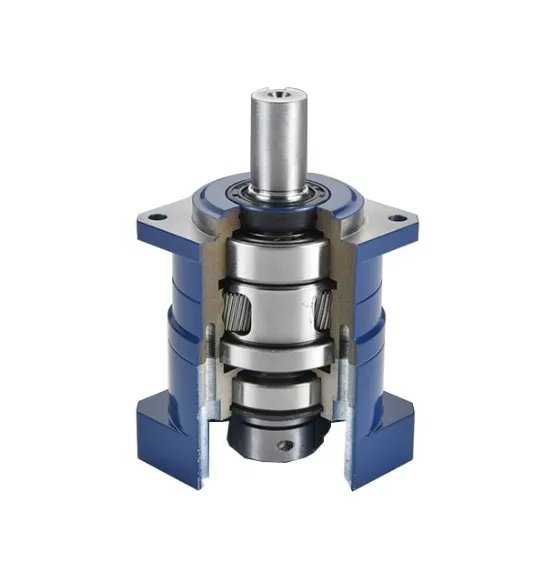

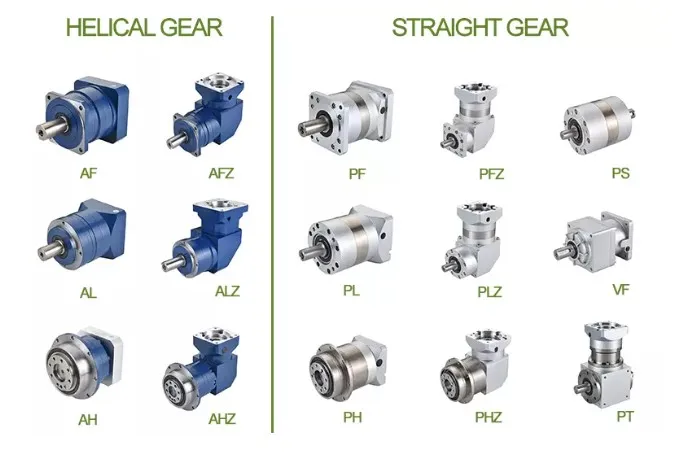

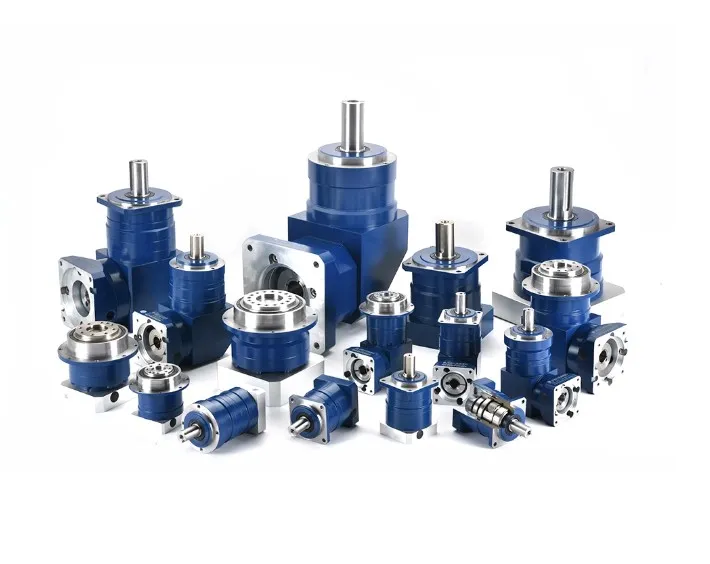

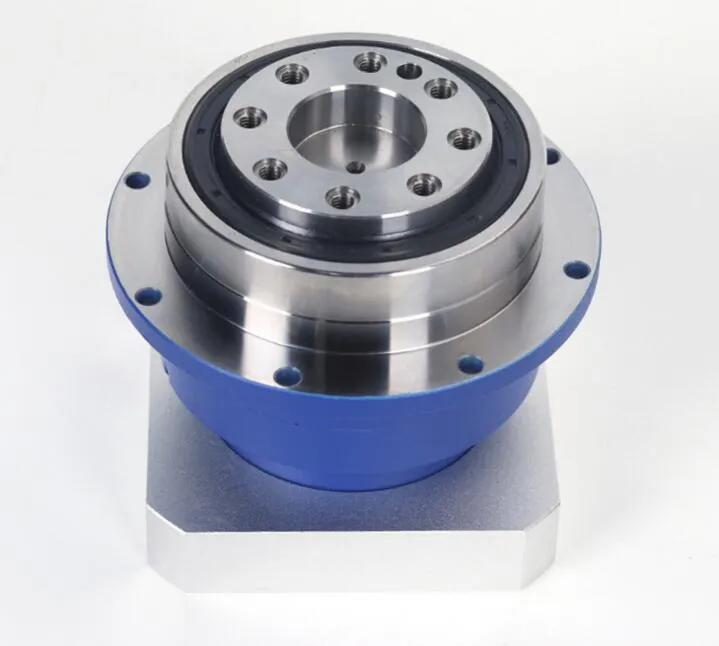

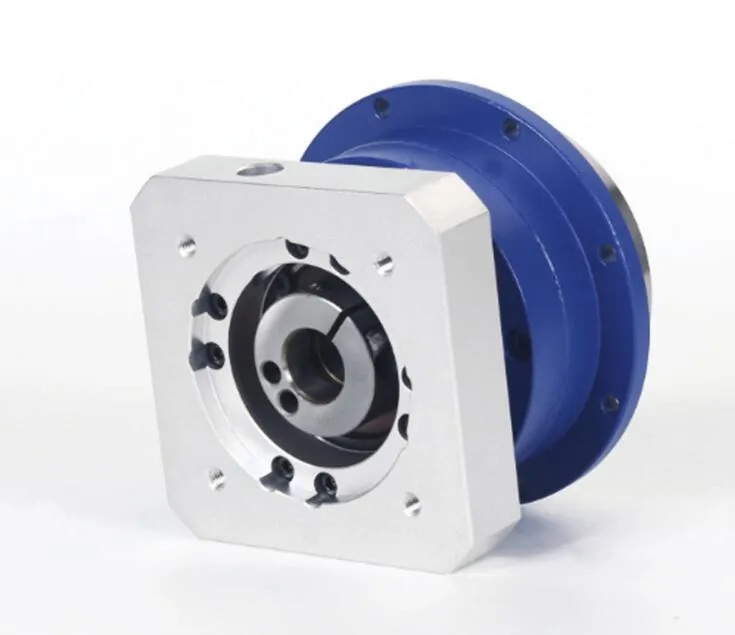

To meet the different precision and usage occasions requirements, we supply two kinds of 2 speed planetary gearbox: spur planetary gear reducer, bevel helical planetary reducer gearbox. And also RV cycloidal pin wheel reducer. They're widely used for stepper motor, servo motor and other high precision industrial occasions, which need to reduce the speed or enlarge the torqure, such as robotics! About the frame size, our small planetary gearbox external diameter can be 40mm, the biggest one can be 242mm. And the gear ratio ranges from 3:1 to 1000:1. Please check the following specifications details:
Specifications:
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||
We are a state-of-the-art manufacturing facility dedicated to the production of high-quality gearboxes, an essential element in power transmission and motion control across a wide array of industries. Our core expertise lies in crafting precision-engineered gearboxes that excel in reliability, efficiency, and durability.
Our gearbox offerings include a diverse range of designs from worm gears to planetary gears, helical gears, and spur gears, catering to various torque and speed requirements. Each gearbox is meticulously manufactured using premium materials such as alloy steels, cast iron, or specialized composites, ensuring optimal strength and resistance to wear and tear under heavy loads and challenging environments.
The design process at our factory adheres strictly to international standards and utilizes cutting-edge technology for precision machining and heat treatment processes. This guarantees exceptional dimensional accuracy, smooth operation, and low noise levels in all our gearboxes.

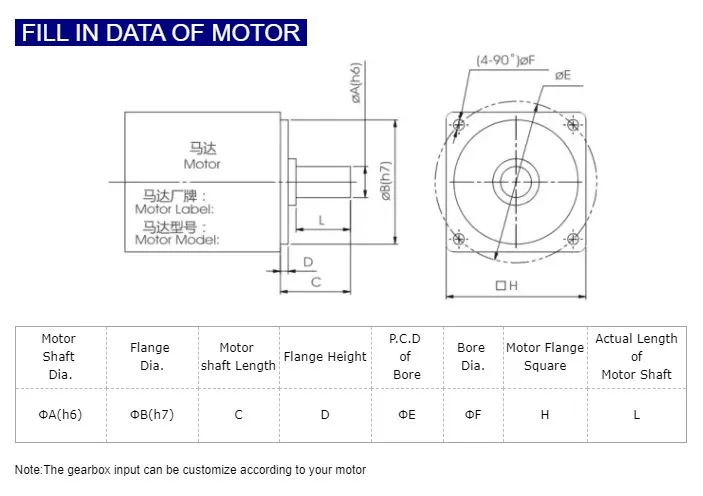

Furthermore, we understand the importance of customization in meeting unique industrial demands. Hence, we also provide bespoke solutions tailored to specific customer needs, ranging from customized ratios to specialized mounting arrangements and compatibility with various motor types.
In essence, by partnering with us for your gearbox requirements, you can expect not only top-notch products but also unparalleled technical support, competitive pricing, and on-time delivery. We take pride in being a one-stop destination for all your gearbox needs, providing a seamless integration into any application and delivering superior performance throughout the product lifecycle.
