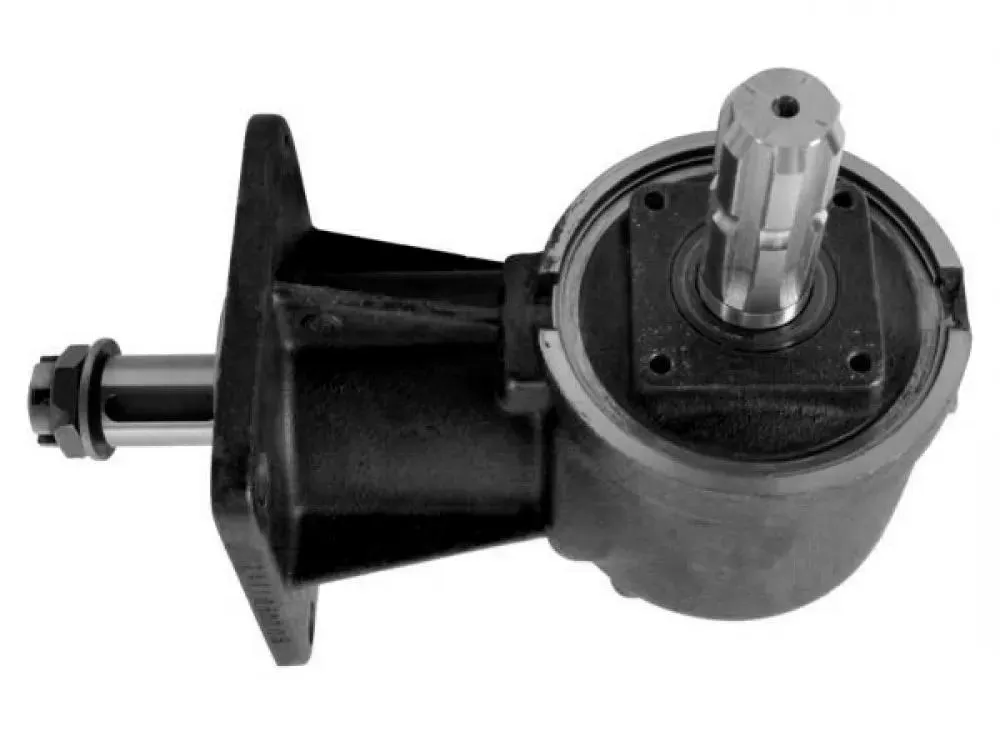

The rotary mower gearbox LF-141A is a type of gearbox that is specifically designed for rotary mowers used in agricultural applications. It is a high-quality, heavy-duty rotary mower gearbox that is made with durable materials. The rotary mower gearbox LF-141A is designed with a 1:2.83 gear ratio that provides the optimum speeds and torque output required for efficient mowing. It is compatible with a range of different types of rotary mowers and can be easily attached to most types of tractors using an agricultural PTO (Power Take-Off) shaft.
| Description |
Rotary Mower Gearboxes - Replacement of Gearbox LF-141A 1:2.83
|
|---|---|
| Application |

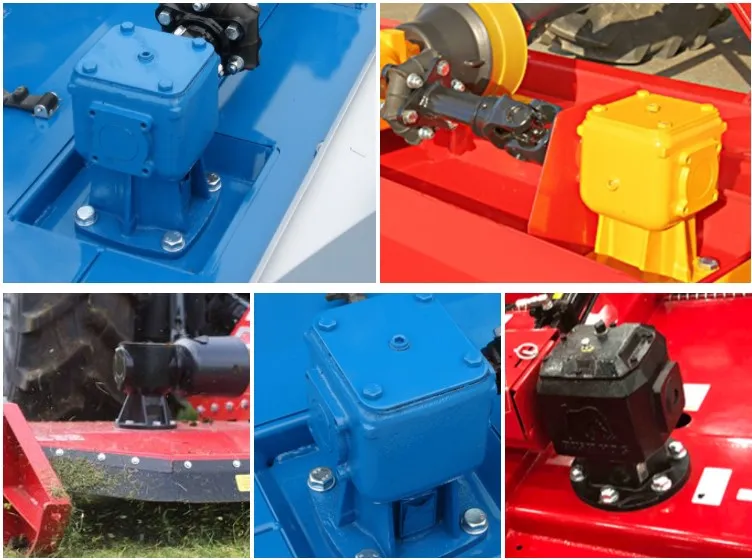

Mowers
|
| Consists of |
|
| Technical information |
|
| Contains oil |
No
|
| Max. oil capacity |
0.5 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GG25
|
| Weight |
14 kg
|
| Gear arrangement Increasing |
23 - 24
|
| Input power kW / HP Increasing |
14.7 / 20 kW/HP
|
| Input shaft Increasing |
Y
|
| Output Torque DaNm Increasing |
8.9 daNm
|
| Ratio Increasing |
1: 2.83
|
| Ratio Reducing |
2.83: 1
|

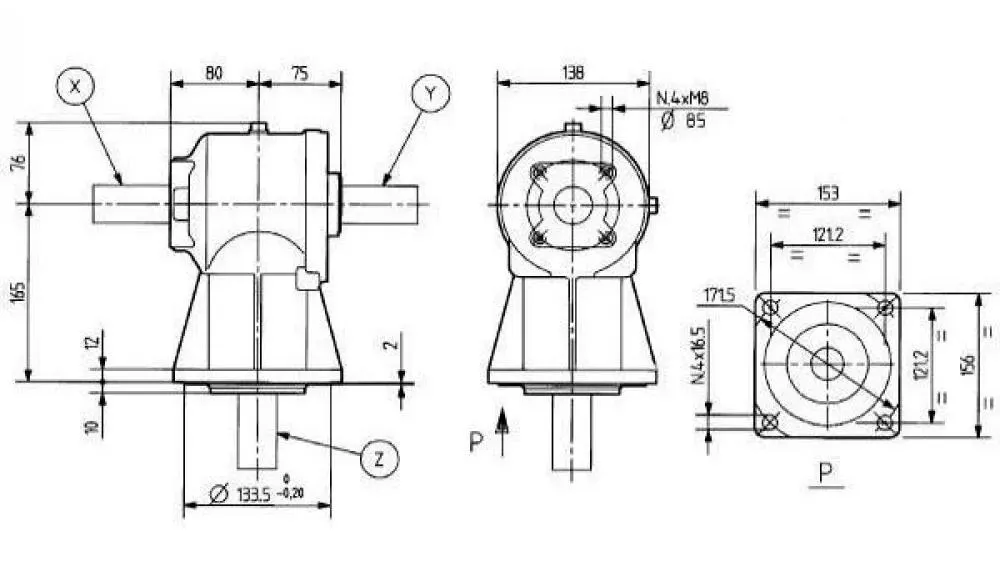

| Shaft Y |
1 3/8" (6) (B)
|
| Shaft Z |
33 (C)
|
We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

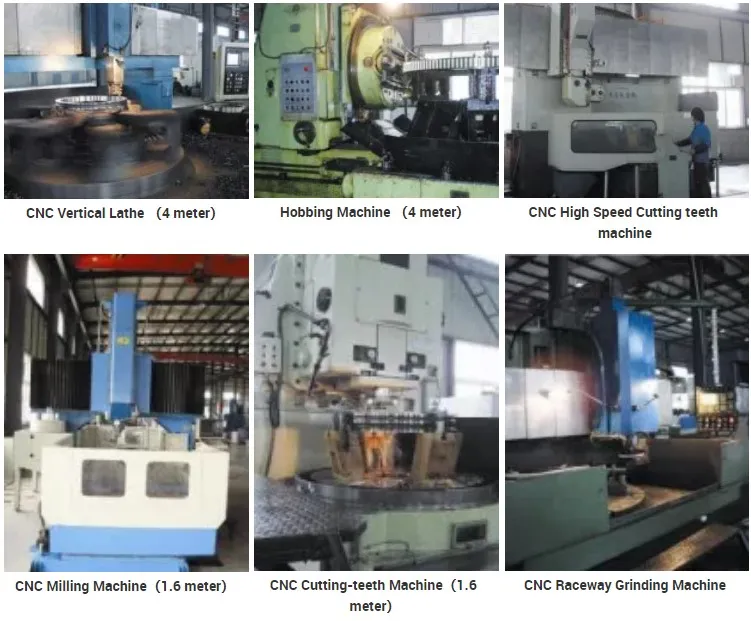

Our Equipments

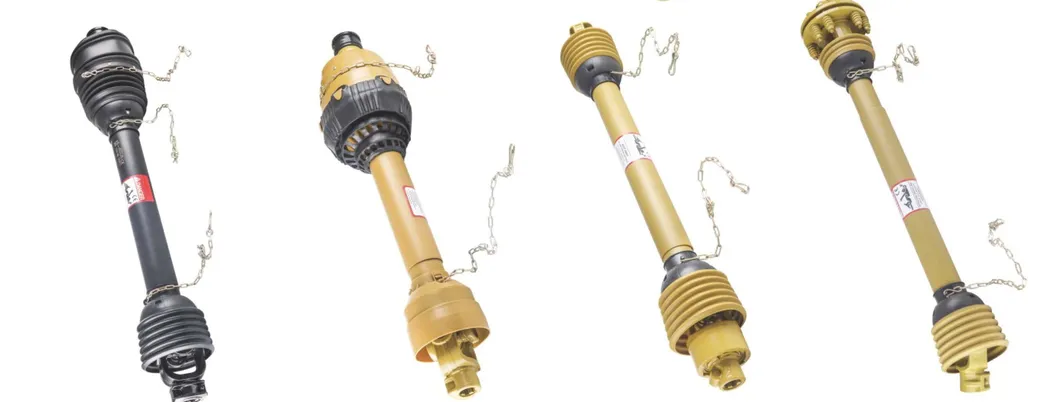

PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
