Stainless Steel Rigid Coupling

Clamped Compression Flexible Rubber Motor Quick Release Spline Fluid Shaft Flange Sleeve Split Threaded Stainless Steel Hydrodynamic Custom Rigid Coupling

A custom rigid coupling is a mechanical component used to connect two rotating shafts in a machine or system. It is designed to transmit torque between the shafts while maintaining their alignment and minimizing any misalignment that may occur during operation.

Rigid couplings are typically made of a durable material such as steel or aluminum and are designed to be very stiff, allowing them to transmit torque with minimal deflection or deformation. They are often used in high-speed or high-torque applications where flexibility or misalignment of the shafts is not desirable.

A custom rigid coupling is designed to meet the specific requirements of a particular machine or system. This may involve customizing the diameter, length, and other dimensions of the coupling to fit the shafts and mounting points in the system. Custom rigid couplings may also include features such as keyways, set screws, or other attachment mechanisms to ensure a secure and reliable connection between the shafts.

Some common types of custom rigid couplings include:

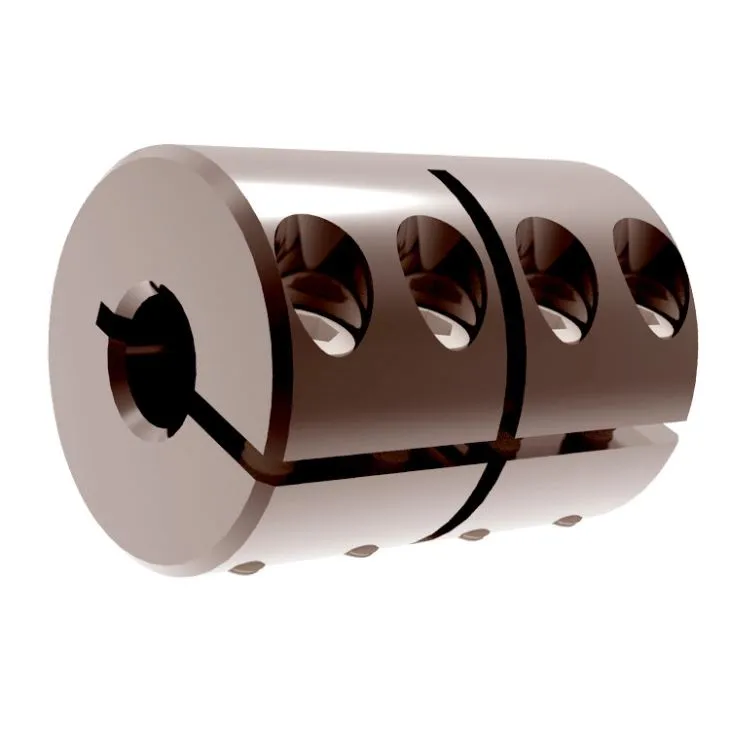

- Clamp-style couplings use a split clamp design to secure the collar to the shafts. These are often used in applications where the shafts are difficult to access or where frequent disassembly is required.
- Set-screw couplings use set screws to secure the collar to the shafts. These are often used in low-torque applications where simplicity and ease of installation are essential.

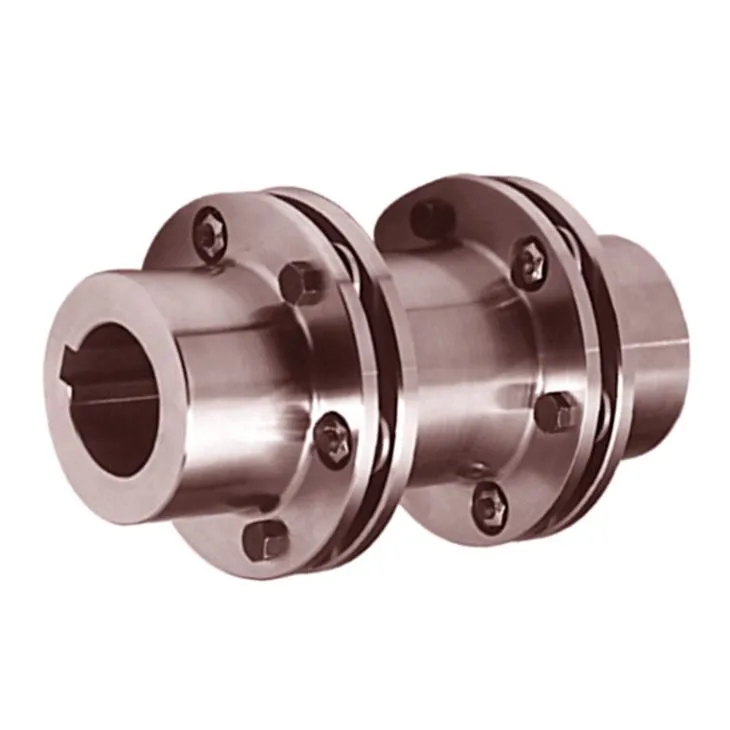

- Flanged couplings use a flange on each end to connect the collar to the shafts. These are often used in applications where a high degree of precision and alignment is required.

Overall, a custom rigid coupling is an essential component in many types of machinery and systems, providing a reliable and efficient means of transmitting torque between two rotating shafts.
