Product Description

V Belt Pulley Transmission Timing Sheaves Wheel Pulleys Chain Block Wheels Wire Rope Crankshaft Timing Double Blocks Lifting Grooved Cast Iron Pulley

V Belt Alternator Chain Double Pulley Block Timing Crankshaft Machine Manufacturer Price Vee Sheave SPA Spb Spc Spz China Manufacturer
pulley machine

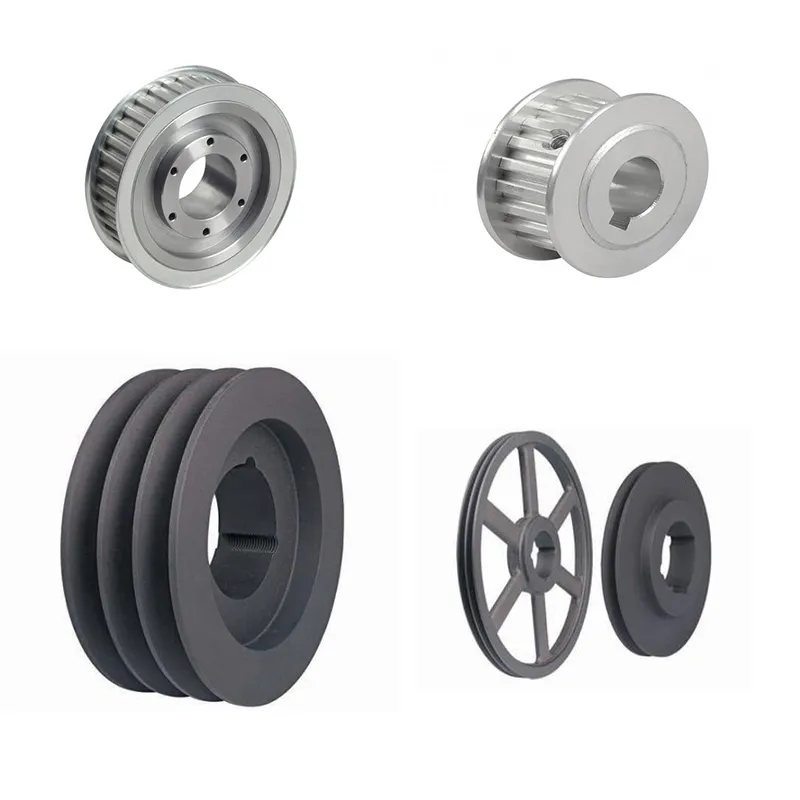

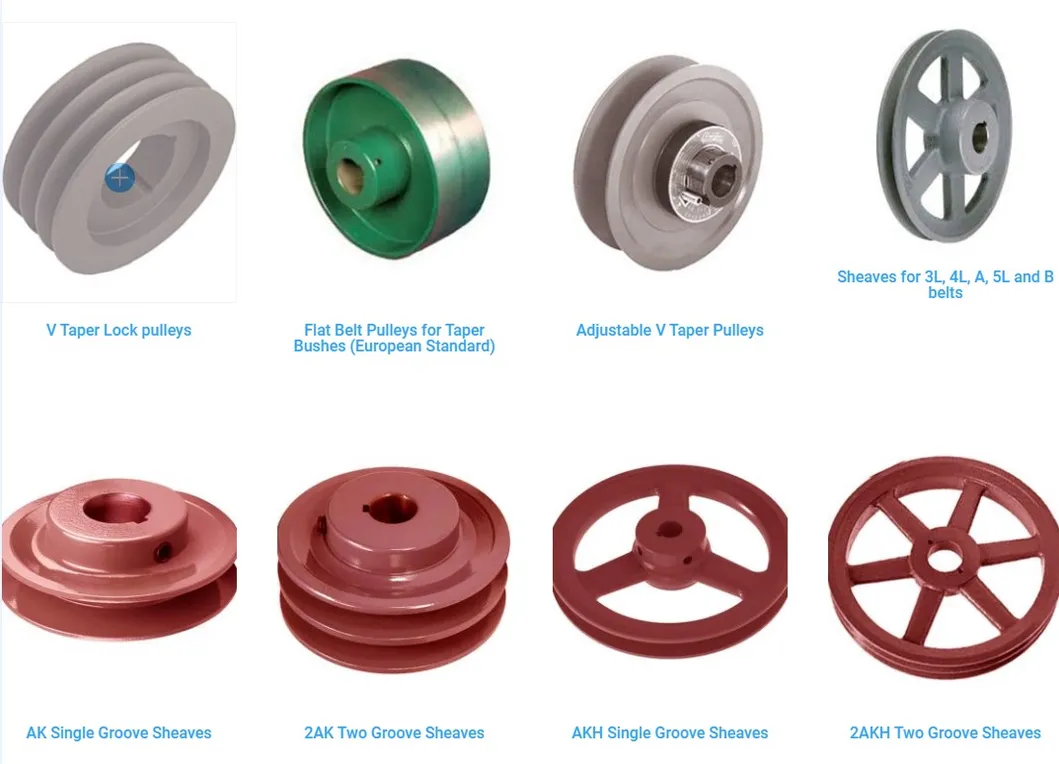

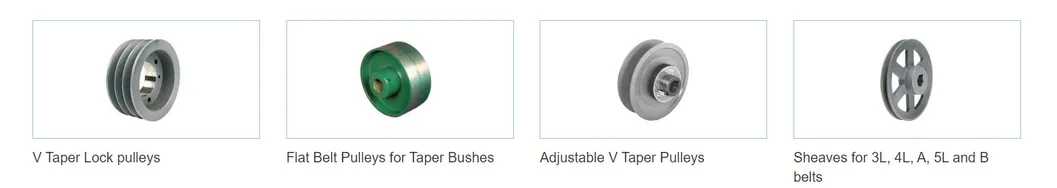

1) V-Belt pulleys for taper bushes

SPZ

Groove	type range
1	50~500
2	50~630
3	63~630
4	80~630
5	85~630
6	100~630
8	140~630

SPA

Groove	type range
1	63~630
2	63~800
3	71~900
4	90~900
5	100~900
6	100~900

SPB

Groove	type range
1	100~315
2	100~800
3	100~1250
4	125~1250
5	125~1250
6	140~1250
8	170~1250
10	224~1000

SPC

Groove	type range
3	200~1250
4	200~1250
5	200~1250
6	200~1250
8	200~1250

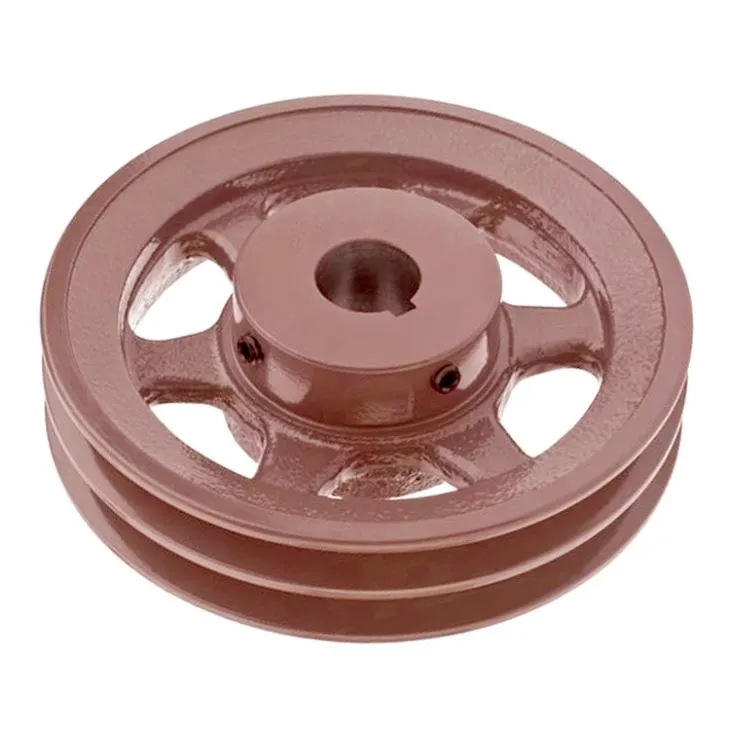

2)V-belt pulleys with solid hub

SPZ

Groove	type range
1	45~355
2	45~400
3	45~400

SPA

Groove	type range
1	40~560
2	40~630
3	56~630
4	63~630
5	63~630

SPB

Groove	type range
1	56~630
2	56~630
3	56~630
4	80~630
5	80~630
6	100~630

SPC

Groove	type range
1	100~315
2	130~450
3	140~630
4	150~630
5	180~630
6	180~630

3) Adjustable Speed V-belt pulleys prebored and for taper bushes

Type	Profile
5VS092-1	10X6 SPZ
5VS093-1	10X6 13X8
5VS108-1	10X6 13X8 SPZ SPA
5VS120-1	10X6 13X8 SPZ SPA
5VS138-1	10X6 13X8 SPZ SPA
5VS159-1	10X8 SPA
5VS180-1	10X8 17X11 SPA SPB
5VS120-2	10X6 13 X8 SPZ SPA
5VS138-2	10X6 13 X8 SPZ SPA
5VS159-2	13X8 SPA
5VS180-2	13X8 17X11 SPA SPB
5VS200-2	13X8 17X11 SPA SPB
5VS250-2	13X8 17X11 SPA SPB SPC

In power transmission, belts are flexible loops of material that can link two rotating shafts mechanically and transmit power
between them. Belts are also the primary component in belt drives, where one or more continuous belts are fitted over two pulleys
at two shafts and rotary motion is transferred from the driving pulley to the driven pulley.

As compared to chain drives and gear drives, belt drives run quietly and smoothly and do not need lubrication. Maintenance is also
comparatively convenient, and the driven shaft speed can be easily altered by changing pulley sizes.

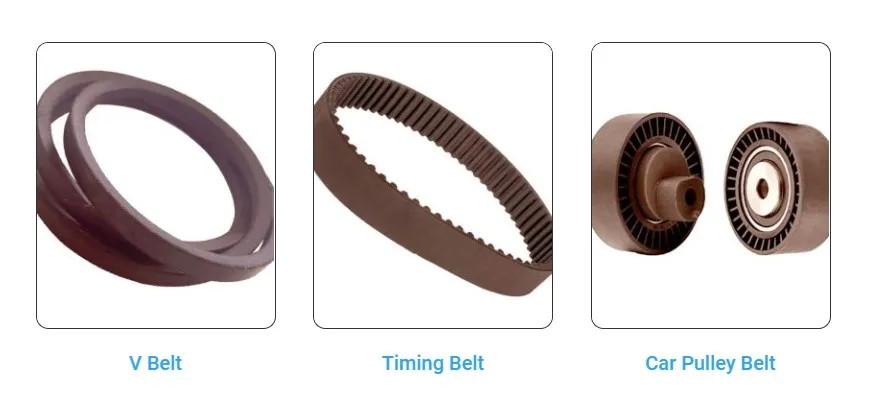

The most common types of belts are V-belts and timing belts. V-belts are the most common type of belt today, and as their name
suggests, their cross-sectional shape comes in the form of a "V". Generally endless, the "V" cross-sections of these belts lodge
in the mating grooves of their corresponding V-belt pulleys, preventing slipping due to under-tensioning. In general, V-belts
require less width and tension compared to flat belts.

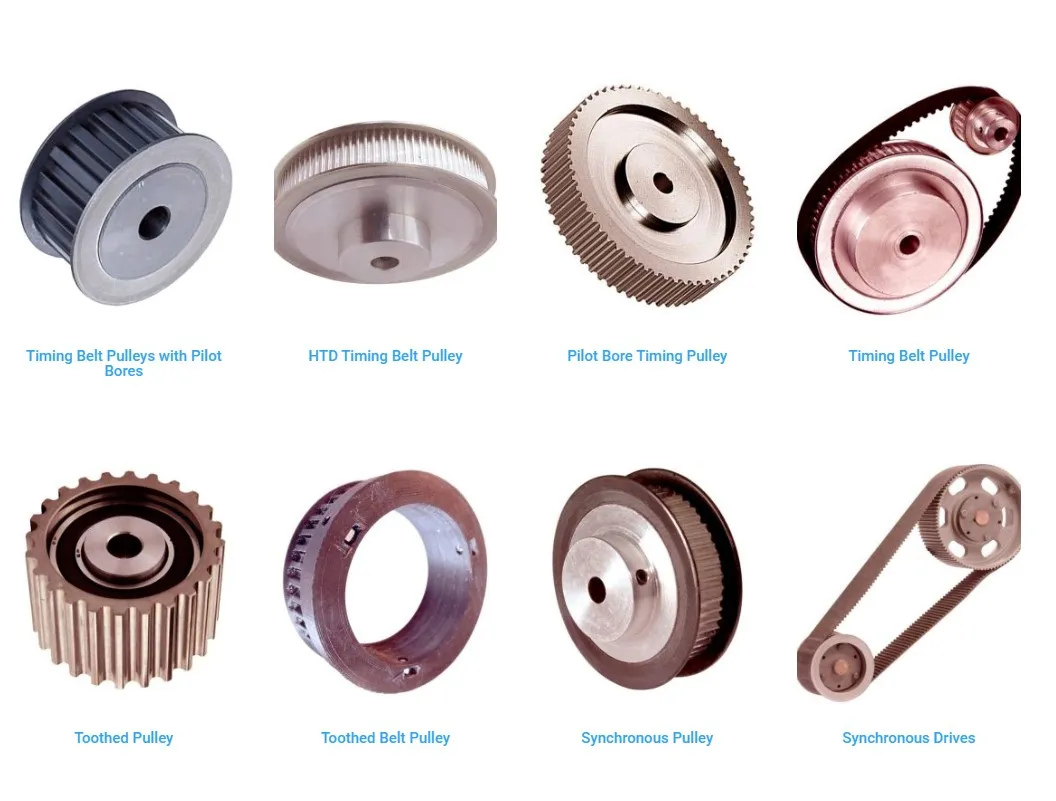

Timing belts are toothed belts that enable positive drive. They have rows of interlocking teeth that fit securely with a toothed
pulley to avoid slipping. Timing belts require less tension than other belts, have no slippage, and do not require lubrication,
however their power capacity is lower than V-belts and chains. They are frequently used in camshafts of automobiles and
crankshafts.
