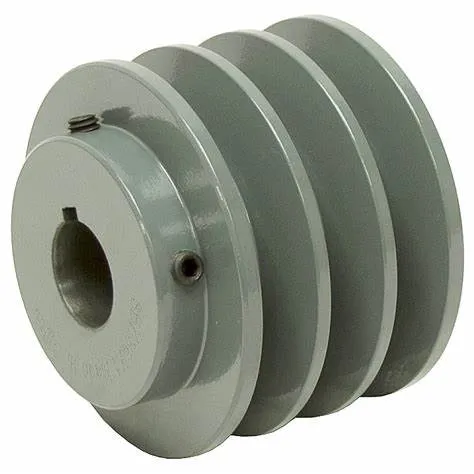

Taper Bushes V-Groove Multi-Ribbed Pulley

Pre-Machined Taper Bushes Endless Single V-Shaped Groove Ribs Multi-Ribbed Pulley with Pilot or Taper Bore

 The specifications of V-belts are divided by the dimensions of back width (top width) and height (thickness). According to different dimensions of back width (top width) and height (thickness), V-belts of different standards have different models. The pitch width, top width and height of V-belts of each model are different, so the pulley must also make various groove types according to the shape of V-belts; These different groove types determine various types of pulley.



V- belt pulley of different types ( according to type and width of belts). The material used is cast iron EN-GJL-250 UNI EN 1561, and for only a few types it is steel C45 E UNI EN 10083-1. They have a small prebore that can be machined  according to  customers' requirements. Moreover the most common types are available also with taperlock bore.

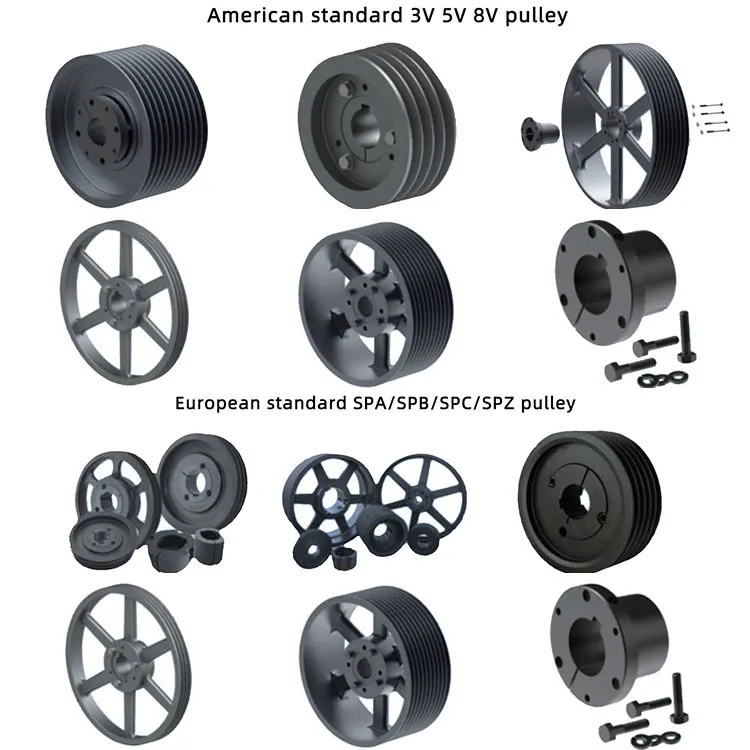

   European standards :

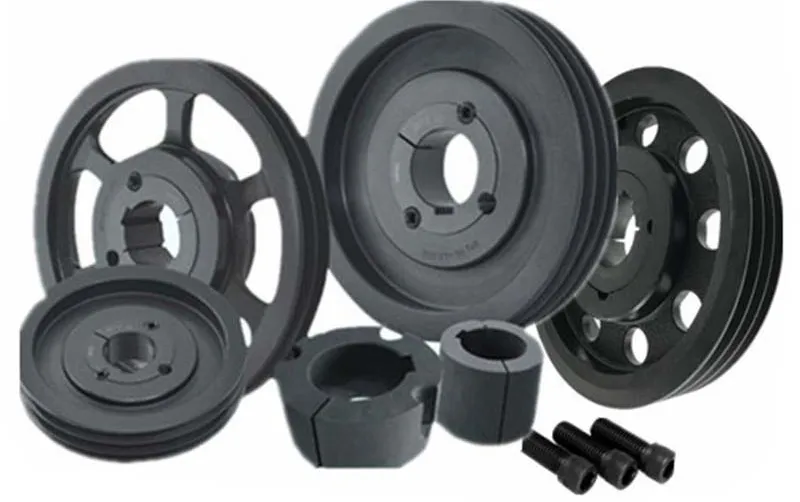

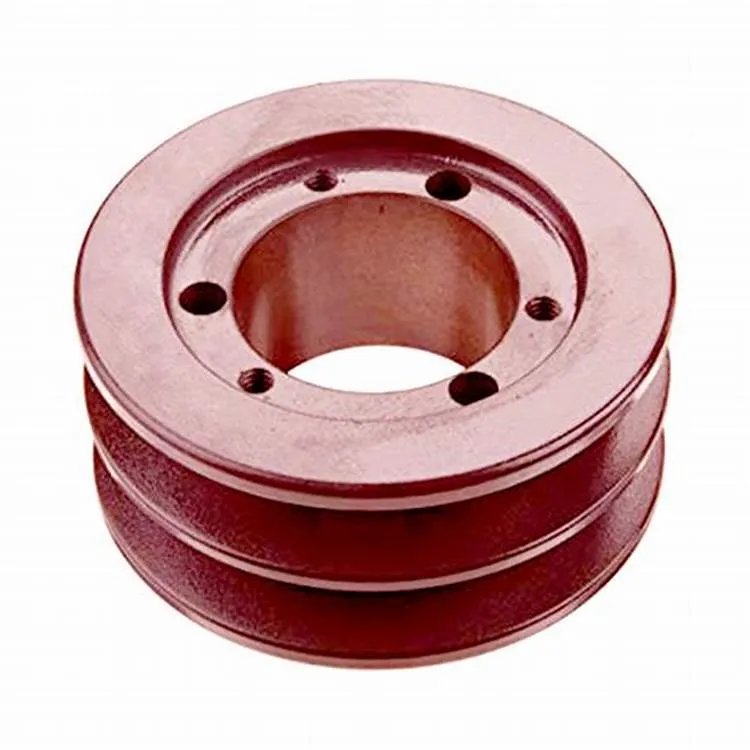

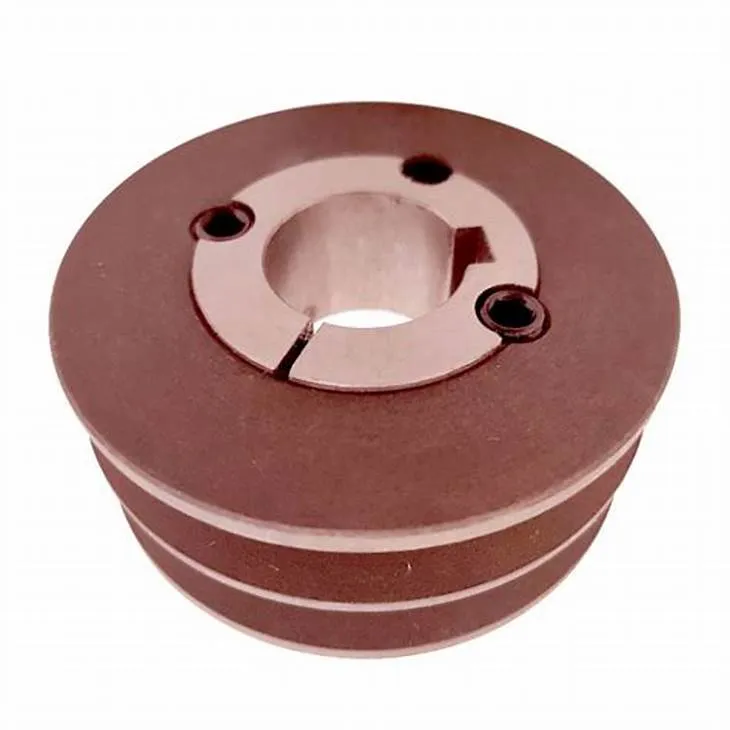

    a) V-belt pulley for taper bushing: SPZ, SPA, SPB, SPC, up to 10 grooves

    b) Adjustable speed V-belt pulleys and variable speed pulleys

    c) Flat belt pulleys and conveyor belt pulleys

·   American standard:

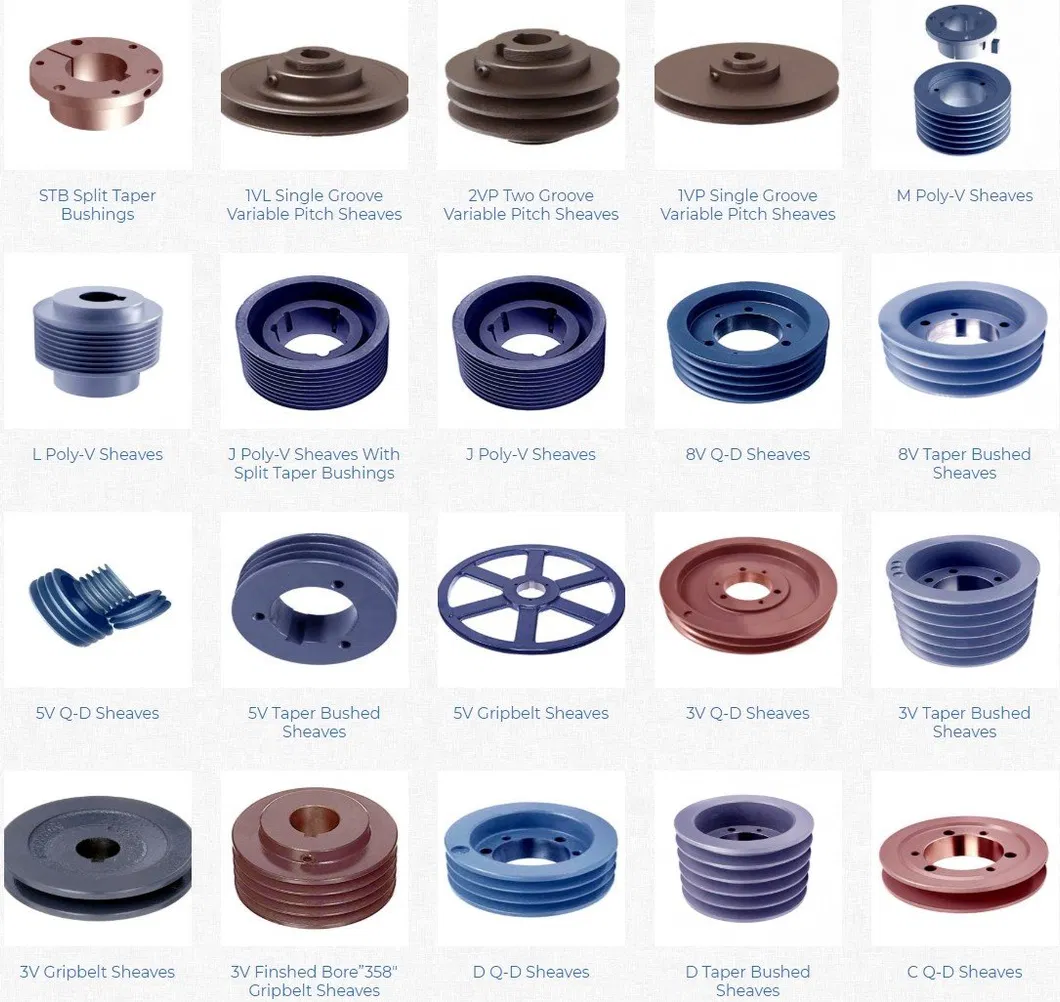

    a) Sheaves for taper bushing: 3V, 5V, 8V

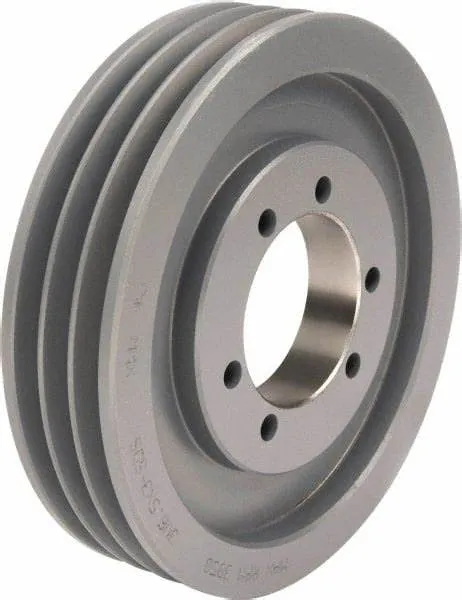

    b) Sheaves for QD bushings: 3V, 5V, 8V

    c) Sheaves for split taper bushing: 3V, 5V, 8V

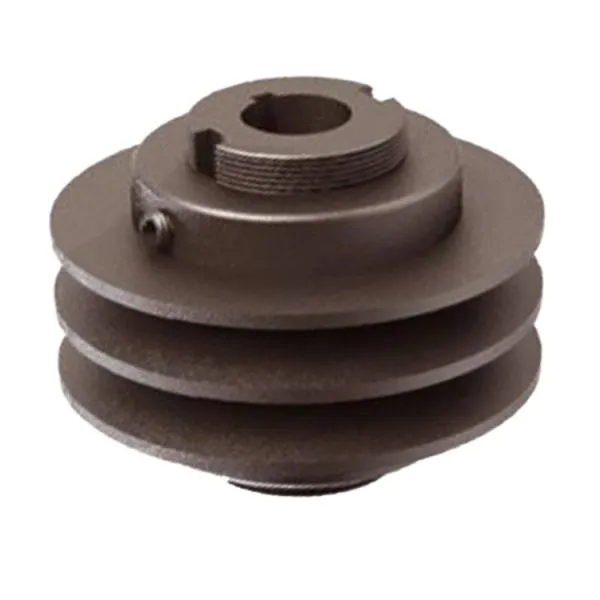

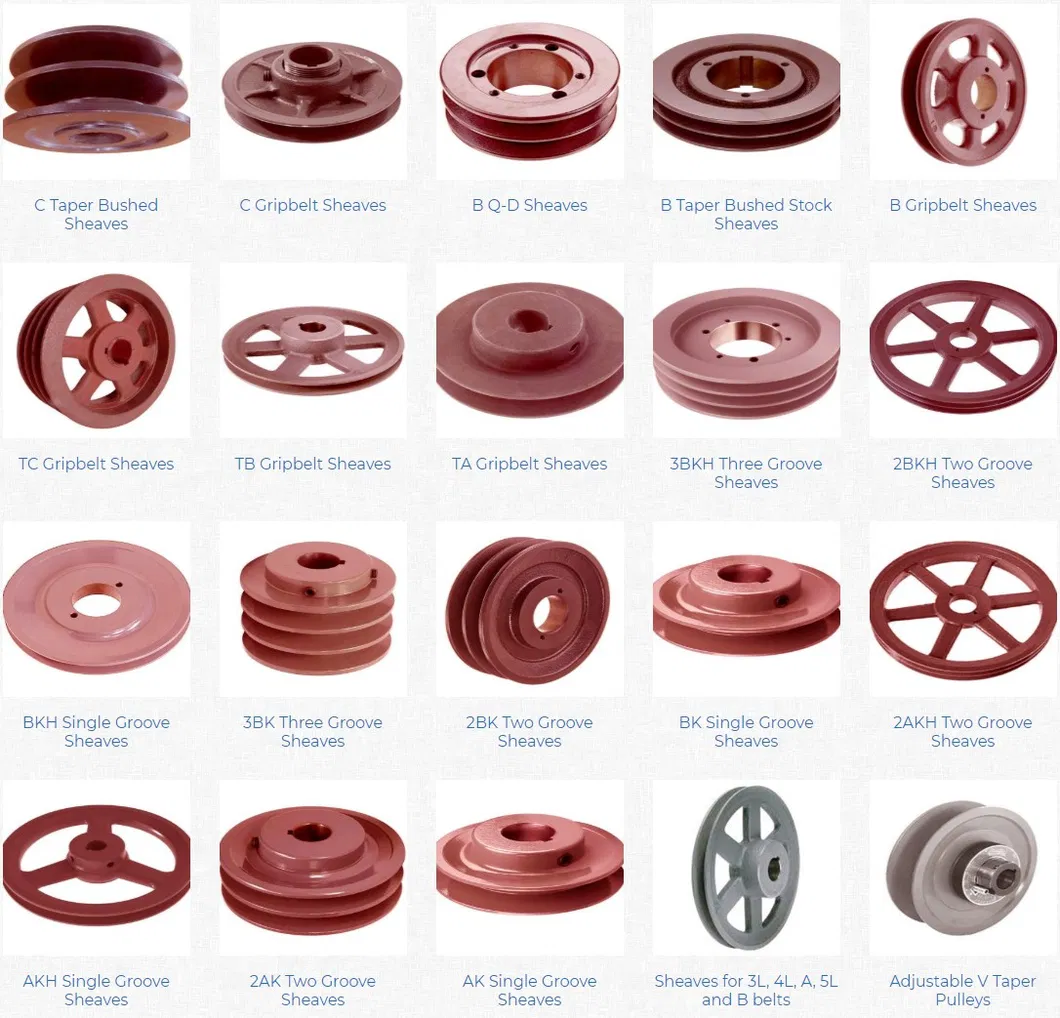

    d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK,  BKH,2BK, 2BKH, 3BK

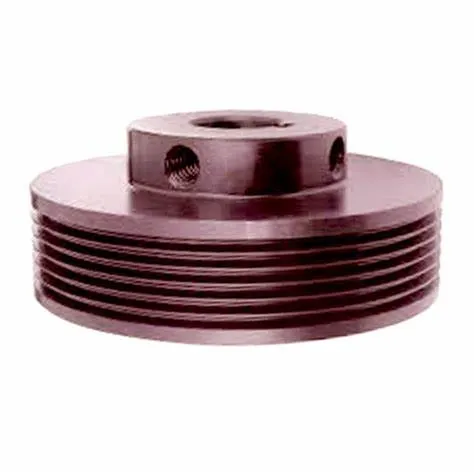

    e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K and M

·   Bore: pilot bore, finish bore, taper bore, bore for QD bushing

-   Parts can be made according to drawings and/or samples

·  we can offer the rang size diameter 62MM~2000MM
