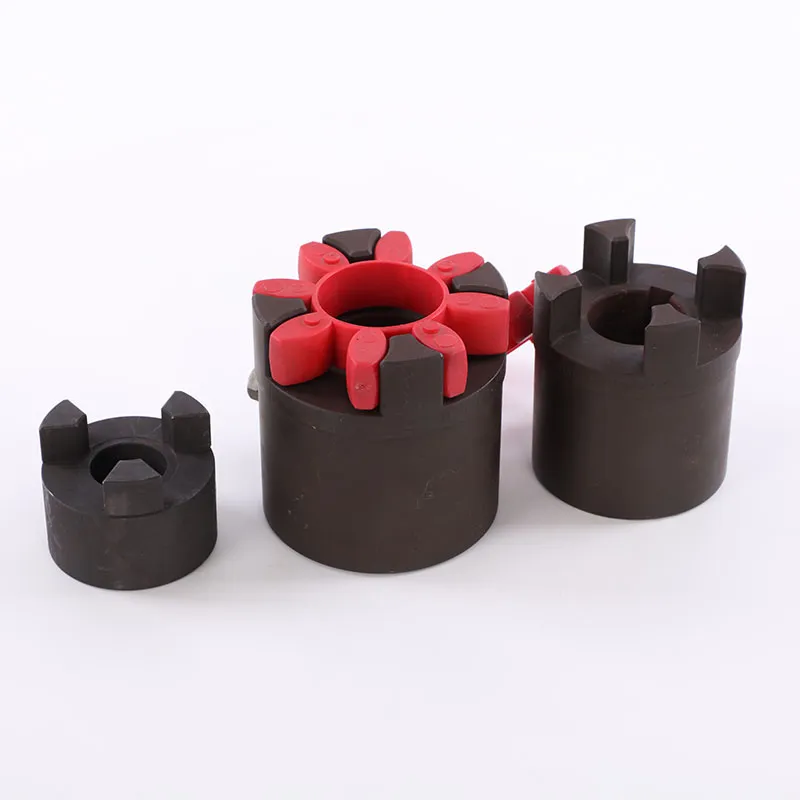

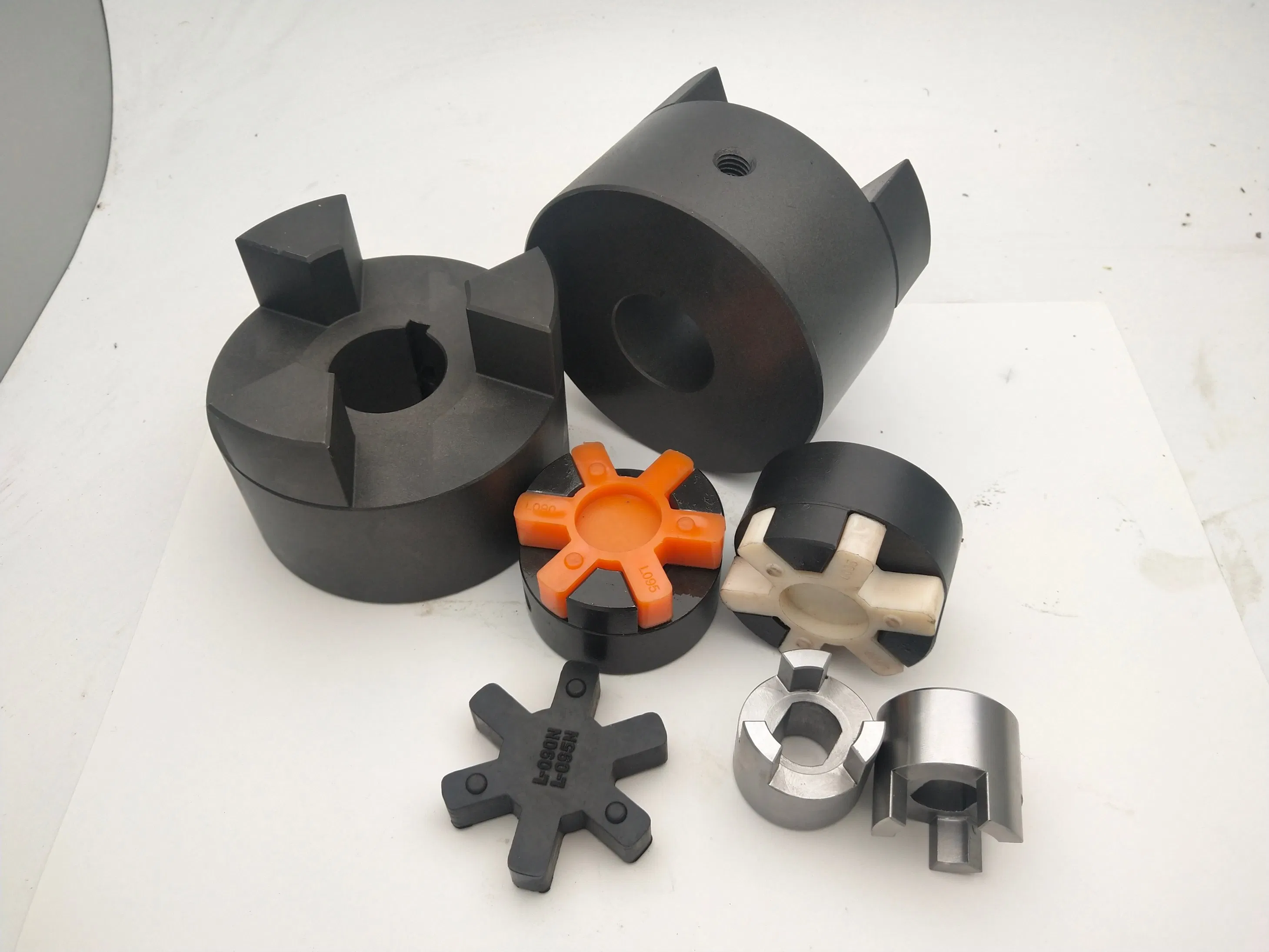

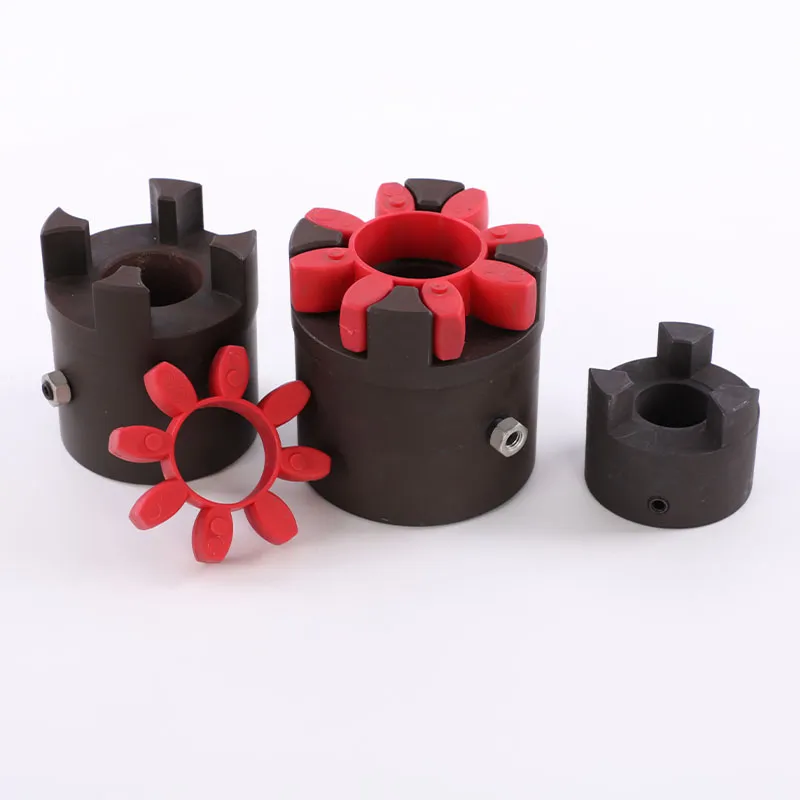

Lovejoy Vacuum Pump Coupler Flexible Flex Alloy Aluminium Rubber Spider Shaft Motor Plum Jaw spider Coupling These are elastomer in compression type couplings. A single piece elastomer (Spider type, Snap-wrap type coupling) is used for low to medium power applications, while individual elastomeric ......
These are elastomer in compression type couplings. A single piece elastomer (Spider type, Snap-wrap type coupling) is used for low to medium power applications, while individual elastomeric elements are used for high power application (T cushion type coupling). Jaw coupling is a failsafe design, designed for positive torque transmission. The couplings means low mass moment of inertia. The elastomeric component provides torsional flexibility and damping to the system reduces the effect of vibrations and operational shocks. This coupling is capable of compensating for angular, parallel and axial misalignments. The raised dimples on the elastomeric element improve the couplings capability under axial thrusts produced by applications
Features
1. Hubs made of cast iron GG25. 2. Torsionally flexible, maintenance free, vibration-damping. 3. Axial plug-in, fail-safe. 4. Varying elastomer hardness of spiders. 5. Compact design with small flywheel effect. 6 Easy assembly / dis-assembly of the coupling hubs Short mounting length.
Applications:
Belt conveyers, csraper conveyers, and conveyers of all kinds Bucket elevators, ball mills, hoisters, crushers,
excavators, mixers, straighteners, cranes, etc.
