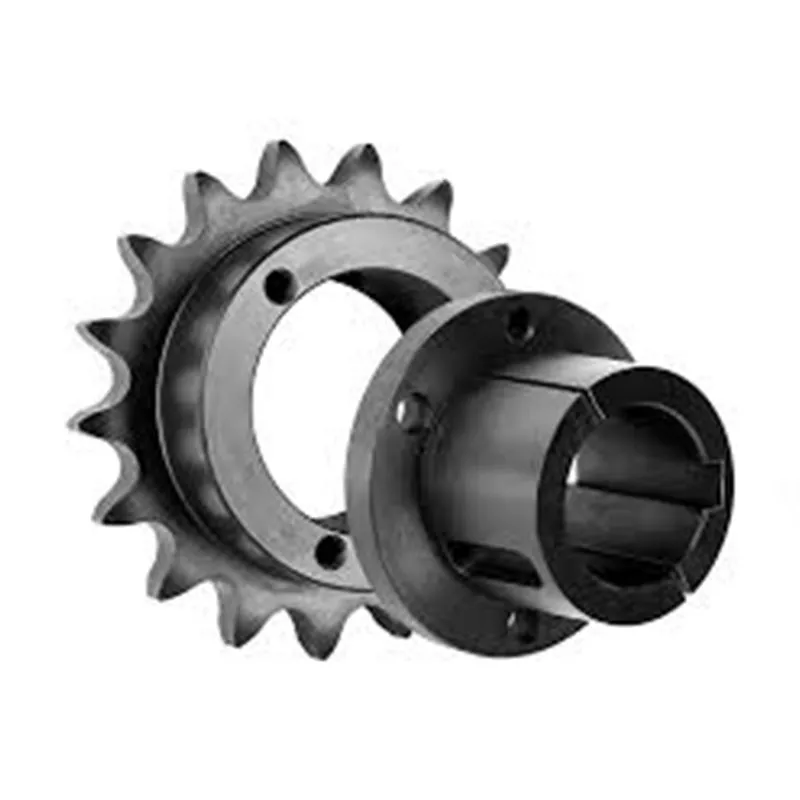

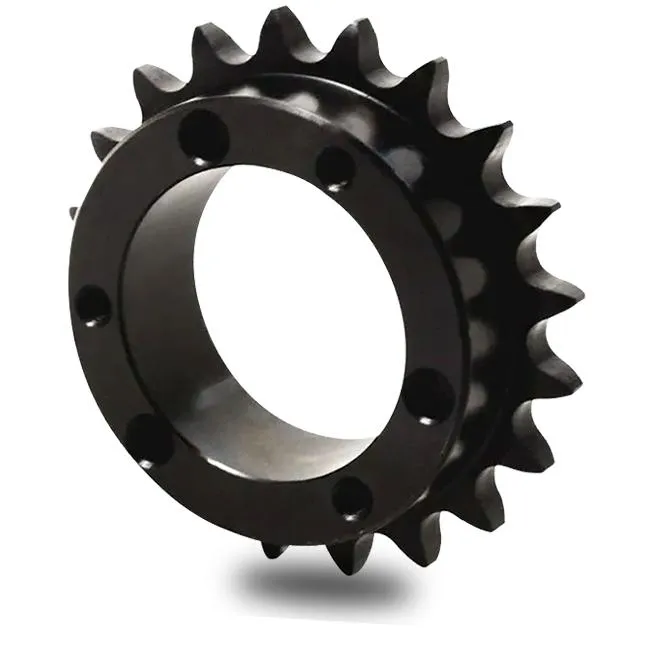

QD (quick detachable) is a sprocket in which the tapered bushing is bolted in the tapered hole machined in the sprocket. When installed, the bushing is compressed onto the shaft, providing a tight grip. Our QD sprockets meet or exceed ANSI standards intolerance, are made of high carbon steel, and precision machining and technology ensure a consistent finish and high quality.
|
Sprocket Size
|
Tooth Count
|
Pitch Diameter
|
Stock Bore
|
Maximum Bore
|
Hub Diameter (H)
|
Length Thru Bore (L)
|
Sprocket Weight (kg)
|
|---|---|---|---|---|---|---|---|
| E06B12 | 12 | 36.80mm | 12mm | 16mm | 25mm | 35mm | 0.23 |
| E06B13 | 13 | 39.80mm | 12mm | 18mm | 28mm | 35mm | 0.27 |
| E06B14 | 14 | 42.80mm | 12mm | 18mm | 31mm | 35mm | 0.32 |
| E06B15 | 15 | 45.81mm | 12mm | 20mm | 34mm | 35mm | 0.36 |
| E06B16 | 16 | 48.82mm | 12mm | 20mm | 37mm | 35mm | 0.45 |
| E06B17 | 17 | 51.84mm | 12mm | 24mm | 40mm | 35mm | 0.54 |
| E06B18 | 18 | 54.84mm | 12mm | 25mm | 43mm | 35mm | 0.64 |
| E06B19 | 19 | 57.87mm | 12mm | 28mm | 46mm | 35mm | 0.72 |
| E06B20 | 20 | 60.89mm | 12mm | 30mm | 49mm | 35mm | 0.77 |
| E06B21 | 21 | 63.91mm | 14mm | 30mm | 52mm | 40mm | 0.86 |
| E06B22 | 22 | 66.93mm | 14mm | 35mm | 54mm | 40mm | 0.95 |
| E06B23 | 23 | 69.95mm | 14mm | 38mm | 58mm | 40mm | 1.04 |
| E06B24 | 24 | 72.97mm | 14mm | 39mm | 61mm | 40mm | 1.18 |
| E06B25 | 25 | 76.00mm | 14mm | 40mm | 64mm | 40mm | 1.27 |
| E06B26 | 26 | 79.02mm | 14mm | 42mm | 67mm | 40mm | 1.31 |
| E06B27 | 27 | 82.02mm | 14mm | 45mm | 70mm | 40mm | 1.36 |
| E06B28 | 28 | 85.07mm | 14mm | 48mm | 73mm | 40mm | 1.50 |
| E06B29 | 29 | 88.10mm | 14mm | 50mm | 76mm | 40mm | 1.68 |
| E06B30 | 30 | 91.12mm | 14mm | 52mm | 80mm | 40mm | 1.72 |
| E06B32 | 32 | 97.18mm | 16mm | 52mm | 80mm | 48mm | 2.00 |
| E06B35 | 35 | 106.26mm | 16mm | 52mm | 80mm | 48mm | 2.25 |
| E06B36 | 36 | 109.29mm | 16mm | 60mm | 90mm | 40mm | 2.33 |
| E06B38 | 38 | 115.34mm | 16mm | 60mm | 90mm | 40mm | 2.49 |
| E06B40 | 40 | 121.40mm | 16mm | 52mm | 90mm | 48mm | 2.65 |
| E06B42 | 42 | 127.46mm | 19mm | 60mm | 90mm | 48mm | 2.81 |
| E06B45 | 45 | 136.55mm | 19mm | 60mm | 90mm | 48mm | 3.00 |
| E06B48 | 48 | 145.64mm | 19mm | 60mm | 90mm | 48mm | 3.20 |
| E06B52 | 52 | 157.75mm | 19mm | 60mm | 90mm | 48mm | 3.46 |
| E06B57 | 57 | 172.91mm | 19mm | 60mm | 90mm | 48mm | 4.77 |
| E06B60 | 60 | 182.00mm | 19mm | 60mm | 80mm | 48mm | 5.02 |
| E06B68 | 68 | 206.24mm | 19mm | 60mm | 90mm | 48mm | 5.69 |
| E06B72 | 72 | 218.37mm | 19mm | 60mm | 90mm | 48mm | 6.02 |
| E06B76 | 76 | 230.49mm | 19mm | 64mm | 100mm | 48mm | 8.48 |
| E06B84 | 84 | 254.74mm | 19mm | 64mm | 100mm | 48mm | 9.37 |
| E06B95 | 95 | 288.08mm | 25mm | 64mm | 100mm | 54mm | 13.61 |
| E06B96 | 96 | 291.11mm | 25mm | 64mm | 100mm | 54mm | 13.75 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
