1.2 MPa Oil-Free Scroll Air Compressor

Raydafon Group's 1.2 MPa Oil-Free Scroll Air Compressor delivers reliable, clean air for industrial applications, featuring advanced scroll technology for superior efficiency and quiet operation, ideal for healthcare and manufacturing sectors to enhance productivity with confidence.

Send Inquiry

Product Description

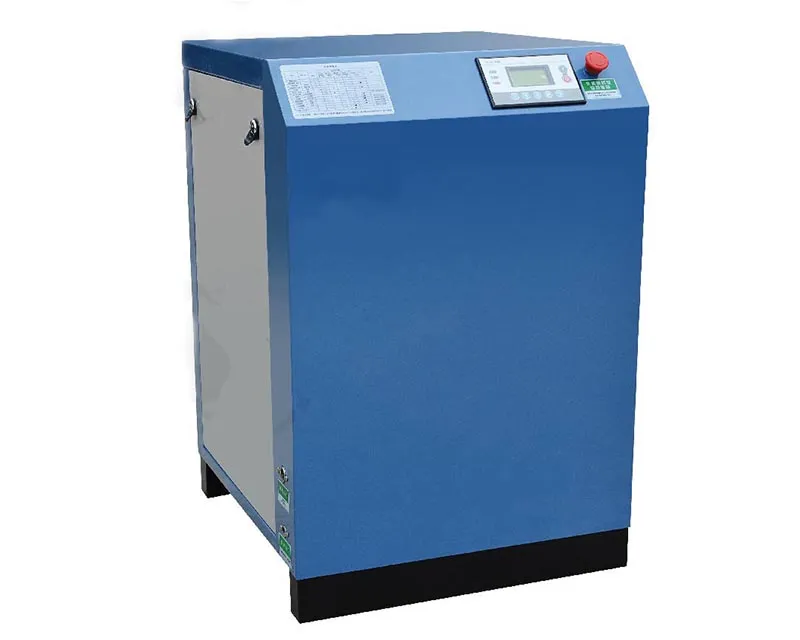

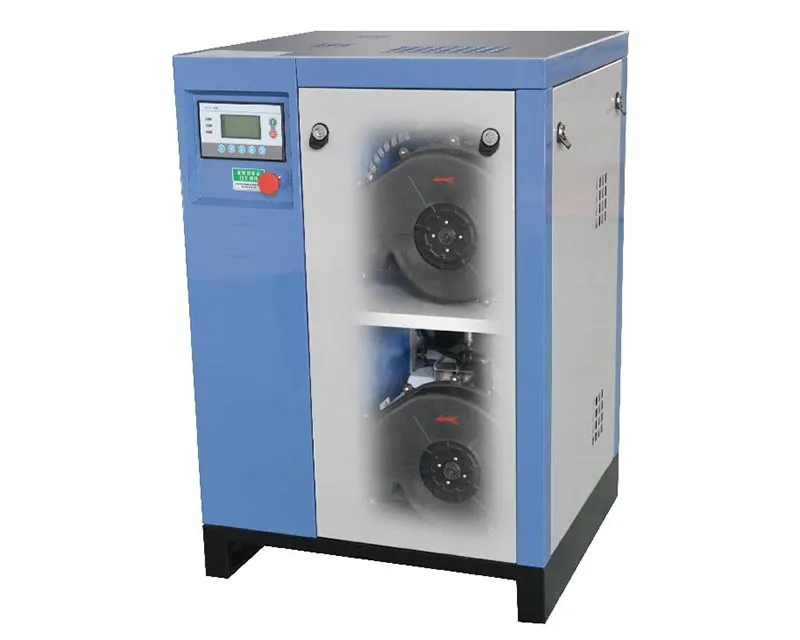

Low Noise Cmw Series 1.2 MPa Oil-free Scroll Air Compressor With Permanent Magnet Motor

Product Description

Oil-free scroll air compressor features :
1,High precision & inventive design air-end, longer service time and 2 years warranty
2,Using permanent magnet motor,compressor efficiency is improved 10%

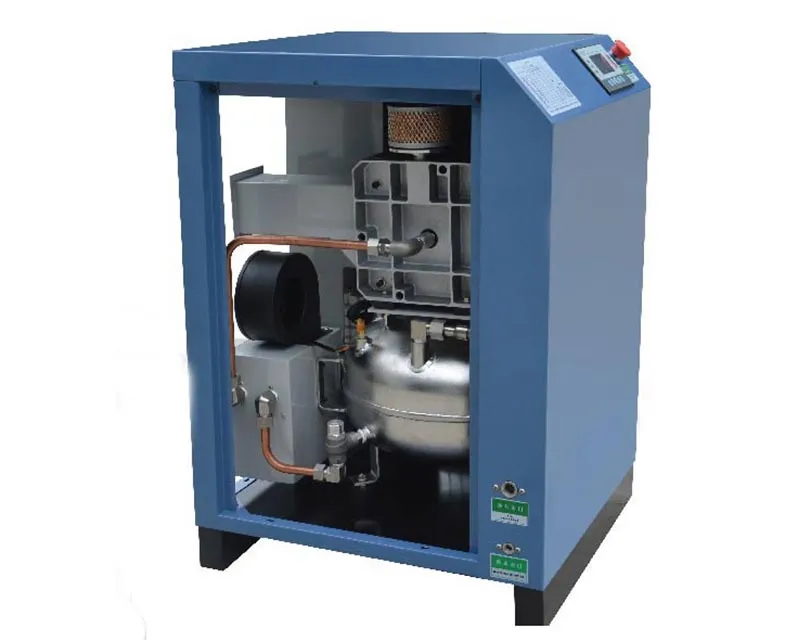

3,Motor is connected with air-end directly, without belt,coupling,no need adjustment, super low noise
4,PLCcontroller display discharge temperature, pressure,operation time, maintenance remain and fault alarm,etc.

Technical parameters for CMW series Oil-free scroll air compressor:

Model	Motor power		Working pressure	FAD	Noise	Connection	N.W.	Dimension
	Motor power		Working pressure	FAD	Noise	Connection	N.W.	LWH
	KW	HP	Mpa	L/min	dB(A)	inch	kg	mm
CMW2.2-0.8	2.2	3	0.2-0.8	255	49±3	1/2″	132	670630945
CMW3.7-0.8	3.7	5	0.2-0.8	415	52±3	1/2″	150	7206801050
CMW4.4-0.8	2.2*2	6	0.2-0.8	510	52±3	1/2″	150	8006501020
CMW7.4-0.8	3.7*2	10	0.2-0.8	830	55±3	1″	185	8807201120
CMW11-0.8	3.7*3	15	0.2-0.8	1245	58±3	1″	300	14509001150
CMW15-0.8	3.7*4	20	0.2-0.8	1660	61±3	1″	350	14509001150

CMW2.2-1.0	2.2	3	0.2-1.0	215	49±3	1/2″	132	670630945
CMW4.5-1.0	4.5	6	0.2-1.0	410	52±3	1/2″	150	7206801050
CMW4.4-1.0	2.2*2	6	0.2-1.0	430	52±3	1/2″	150	8006501020
CMW9-1.0	4.5*2	12	0.2-1.0	820	58±3	1″	185	8807201120
CMW13.5-1.0	4.5*3	18	0.2-1.0	1230	61±3	1″	300	14509001150
CMW18-1.0	4.5*4	25	0.2-1.0	1640	61±3	1″	350	14509001150

CMW3.0-1.2	3	5	0.2-1.2	210	49±3	1/2″	135	670630945
CMW4.2-1.2	4.5	6	0.2-1.2	360	52±3	1/2″	150	7206801050
CMW6.0-1.2	3*2	8	0.2-1.2	420	52±3	1/2″	150	8006501020
CMW9-1.2	4.5*2	12	0.2-1.2	720	58±3	1″	185	8807201120
CMW13.5-1.2	4.5*3	18	0.2-1.2	1080	61±3	1″	300	14509001150
CMW18-1.2	4.5*4	25	0.2-1.2	1440	61±3	1″	350	14509001150
