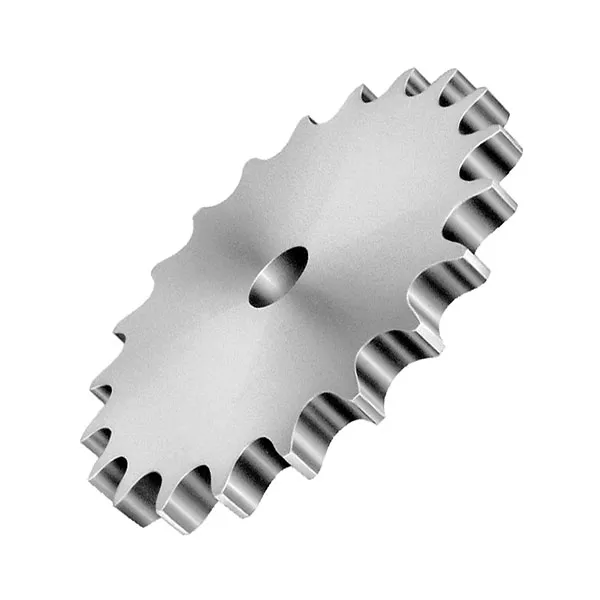

120 sprockets are manufactured for 1.5" pitch ANSI 120 Roller Chains and are available in a wide array of configurations and tooth counts. Our 120 roller chain sprockets are supplied with hardened teeth as a standard for tooth counts 30 and below, are made from a high-strength steel, and are typically black oxided for corrosion resistance. We also supply a slew of custom 120 chain sprockets and can usually have them done within a day or two.
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | (D) | Weight (LBS) |
|---|---|---|---|---|---|---|
| 120A8 | 8 | A | 4.520 | 1-1/4'' | - | 2.4 |
| 120A9 | 9 | A | 5.020 | 1-1/4'' | 3-3/8'' | 3.0 |
| 120A10 | 10 | A | 5.520 | 1-1/4'' | 3-3/4'' | 3.8 |
| 120A11 | 11 | A | 6.010 | 1-1/4'' | 3-9/16'' | 4.8 |
| 120A12 | 12 | A | 6.500 | 1-1/4'' | 4-1/8'' | 5.8 |
| 120A13 | 13 | A | 6.990 | 1-1/4'' | 4-9/16 | 6.7 |
| 120A14 | 14 | A | 7.470 | 1-1/4'' | 4-3/4'' | 8.0 |
| 120A15 | 15 | A | 7.960 | 1-1/4'' | 4-3/4'' | 9.1 |
| 120A16 | 16 | A | 8.440 | 1-1/4'' | 5-1/4'' | 10.6 |
| 120A17 | 17 | A | 8.920 | 1-1/4'' | 5-1/4'' | 12.6 |
| 120A18 | 18 | A | 9.410 | 1-1/4'' | 5-1/4'' | 13.6 |
| 120A19 | 19 | A | 9.890 | 1-1/4'' | 5-1/4'' | 15.1 |
| 120A20 | 20 | A | 10.370 | 1-1/4'' | 5-1/4'' | 16.9 |
| 120A21 | 21 | A | 10.850 | 1-1/4'' | 5-1/4'' | 18.7 |
| 120A22 | 22 | A | 11.330 | 1-1/4'' | 5-1/4'' | 20.0 |
| 120A23 | 23 | A | 11.810 | 1-1/4'' | 5-1/4'' | 22.1 |
| 120A24 | 24 | A | 12.290 | 1-1/4'' | 5-1/4'' | 24.8 |
| 120A25 | 25 | A | 12.770 | 1-1/4'' | 5-1/4'' | 26.3 |
| 120A26 | 26 | A | 13.250 | 1-1/2'' | 6'' | 28.3 |
| 120A27 | 27 | A | 13.730 | 1-1/2'' | - | 30.9 |
| 120A28 | 28 | A | 14.210 | 1-1/2'' | 6'' | 33.6 |
| 120A30 | 30 | A | 15.170 | 1-1/2'' | 6'' | 39.0 |
| 120A32 | 32 | A | 16.130 | 1-1/2'' | 6'' | 43.9 |
| 120A33 | 33 | A | 16.610 | 1-1/2'' | - | 48.2 |
| 120A34 | 34 | A | 17.090 | 1-1/2'' | - | 50.0 |
| 120A35 | 35 | A | 17.570 | 1-1/2'' | 6'' | 52.0 |
| 120A36 | 36 | A | 18.050 | 1-1/2'' | 6'' | 56.0 |
| 120A40 | 40 | A | 19.960 | 1-1/2'' | 6'' | 71.0 |
| 120A42 | 42 | A | 20.920 | 1-1/2'' | 6'' | 75.0 |
| 120A45 | 45 | A | 22.350 | 1-1/2'' | 6'' | 88.0 |
| 120A48 | 48 | A | 23.790 | 1-1/2'' | 6'' | 103.0 |
| 120A54 | 54 | A | 26.650 | 1-1/2'' | 6'' | 140.0 |
| 120A60 | 60 | A | 29.520 | 1-1/2'' | 7'' | 160.0 |
| 120A70 | 70 | A | 34.300 | 1-1/2'' | 7-1/2'' | 216.0 |
| 120A80 | 80 | A | 39.080 | 1-1/2'' | 7-1/2'' | 284.0 |
| 120A90 | 90 | A | 43.850 | 1-1/2'' | - | 358.0 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
