1C Cast Iron QD Sheaves

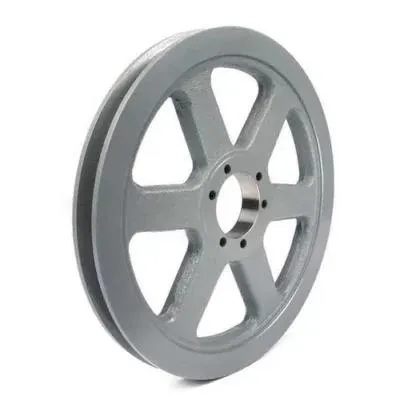

1C Series Cast Iron American Standard QD Sheaves For C Belts1C series single groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 7.40 inches to 24.40 inches. According to the pulley size, they are SF QD (quick disassembly) bushings, which we also have in stock......
Send Inquiry
Product Description

1C Series Cast Iron American Standard QD Sheaves For C Belts

1C series single groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 7.40 inches to 24.40 inches. According to the pulley size, they are SF QD (quick disassembly) bushings, which we also have in stock. Most of our 1C QD pulleys are made of high-strength grade 35 cast iron, phosphate coated, and coated with anti-corrosion paint. All these are balanced at the factory to ensure the machine's smooth operation.

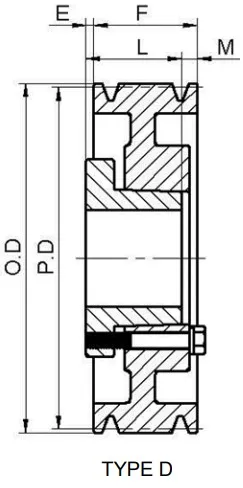

1C QD Sheave Size Chart
1c Series Cast Iron American Standard Qd Sheaves for C Belts
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
1C70SF
SF
D
7.0"
7.40"
27/32"
1-1/4"
2-1/16"
1/32"
10
1C75SF
SF
D
7.5"
7.90"
27/32"
1-1/4"
2-1/16"
1/32"
12
1C80SF
SF
D
8.0"
8.40"
27/32"
1-1/4"
2-1/16"
1/32"
13
1C85SF
SF
D
8.5"
8.90"
27/32"
1-1/4"
2-1/16"
1/32"
14
1C90SF
SF
D
9.0"
9.40"
27/32"
1-1/4"
2-1/16"
1/32"
15
1C95SF
SF
D
9.5"
9.90"
27/32"
1-1/4"
2-1/16"
1/32"
16
1C100SF
SF
D
10.0"
10.40"
27/32"
1-1/4"
2-1/16"
1/32"
17
1C105SF
SF
D
10.5"
10.90"
27/32"
1-1/4"
2-1/16"
1/32"
18
1C110SF
SF
D
11.0"
11.40"
27/32"
1-1/4"
2-1/16"
1/32"
19
1C120SF
SF
D
12.0"
12.40"
27/32"
1-1/4"
2-1/16"
1/32"
20
1C130SF
SF
D
13.0"
13.40"
27/32"
1-1/4"
2-1/16"
1/32"
22
1C140SF
SF
D
14.0"
14.40"
27/32"
1-1/4"
2-1/16"
1/32"
24
1C160SF
SF
D
16.0"
16.40"
27/32"
1-1/4"
2-1/16"
1/32"
26
1C180SF
SF
D
18.0"
18.40"
27/32"
1-1/4"
2-1/16"
1/32"
30
1C200SF
SF
D
20.0"
20.40"
27/32"
1-1/4"
2-1/16"
1/32"
35
1C240SF
SF
D
24.0"
24.40"
27/32"
1-1/4"
2-1/16"
1/32"
41

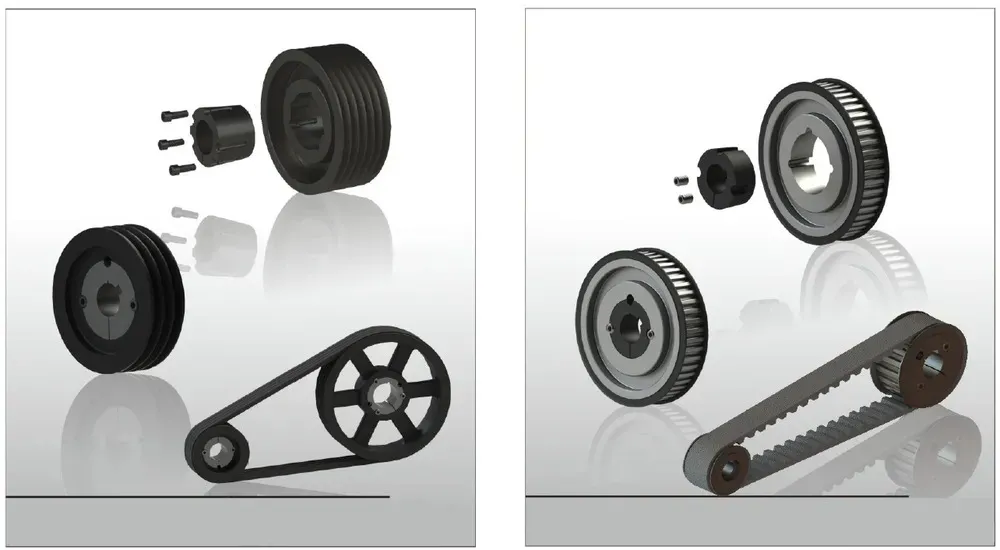

QD bushing pulley
Quick Detachable (QD) bushings are easy to install and remove, minimizing downtime without sacrificing the protection required by the machine. Make full use of the drive system by matching the QD bushing with the QD bushing pulley.
Not sure which ones are for you? HZPT provides various QD bushing pulleys for online purchases. Pulleys are filtered by multiple grooves, outside diameters, and belt types, including 5V, 3V, A, and B belts. View V-pulley dimensions, weights, and shipping details on the product page. If you don't see the QD pulley you need, or you want to make a second observation of your project, please ask us for information or send an email immediately.
