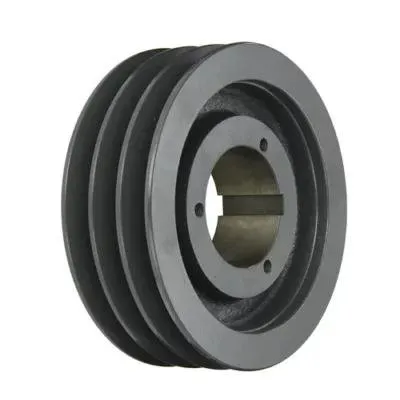

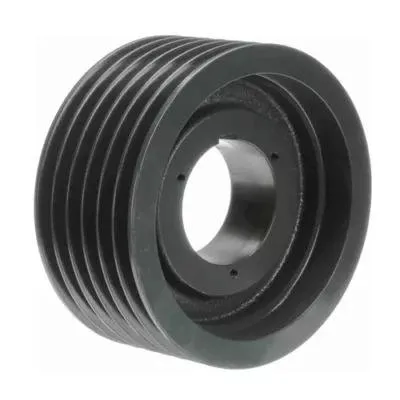

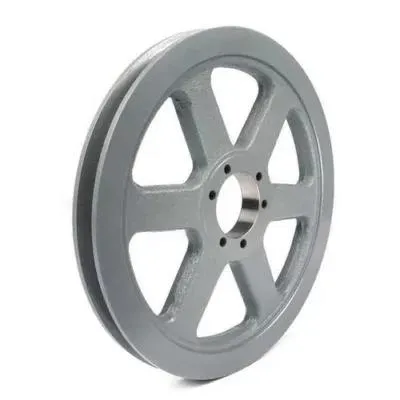

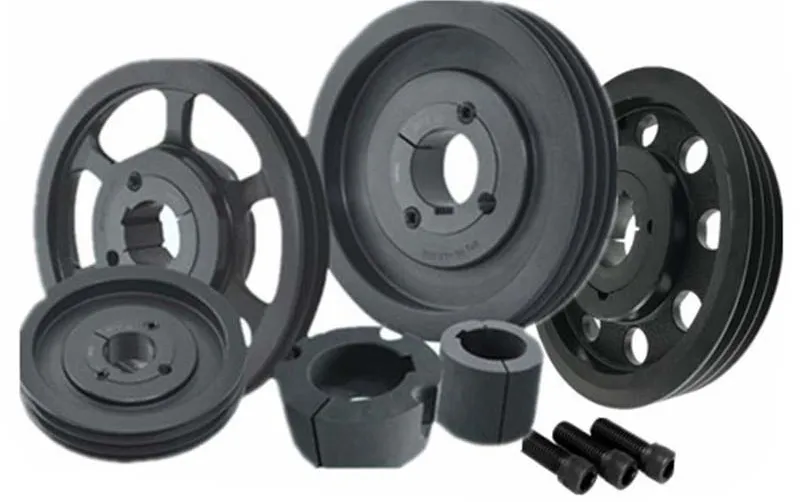

V-Belt Pulley:

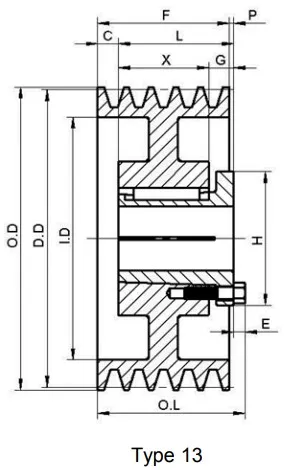

The specifications of V-belts are divided by the dimensions of back width (top width) and height (thickness). According to different dimensions of back width (top width) and height (thickness), V-belts of different standards have different models. The pitch width, top width and height of V-belts of each model are different, so the pulley must also make various groove types according to the shape of V-belts; These different groove types determine various types of pulley.
| American Standard | |
AK/AKH BK/BKH TA/TB/TC Series Sheaves |
B/C/D Series Sheaves |
Poly-V Sheaves |
Variable Speed Sheaves |
| 3V/5V/8V sheaves | Bushings Split Taper Bushings/QD Bushings/TB Bushings |
European standard (SPA SPB SPC SPZ) |
|
Belt Pulleys for Taper Bushings |
V belt pulley with solid hub |
Adjustable Speed V Belt Pulleys |
Flat Belt Pulleys For Taper Bushes |
|

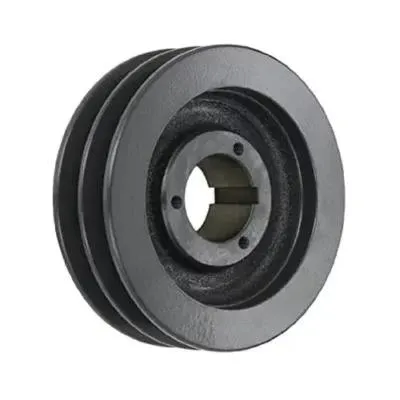

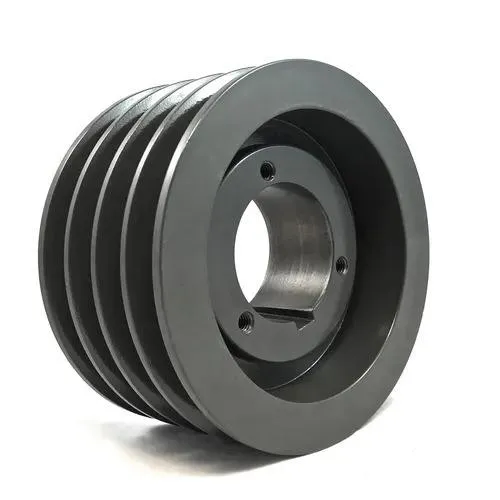

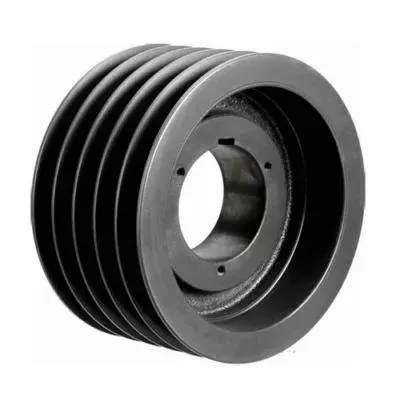

Series
|

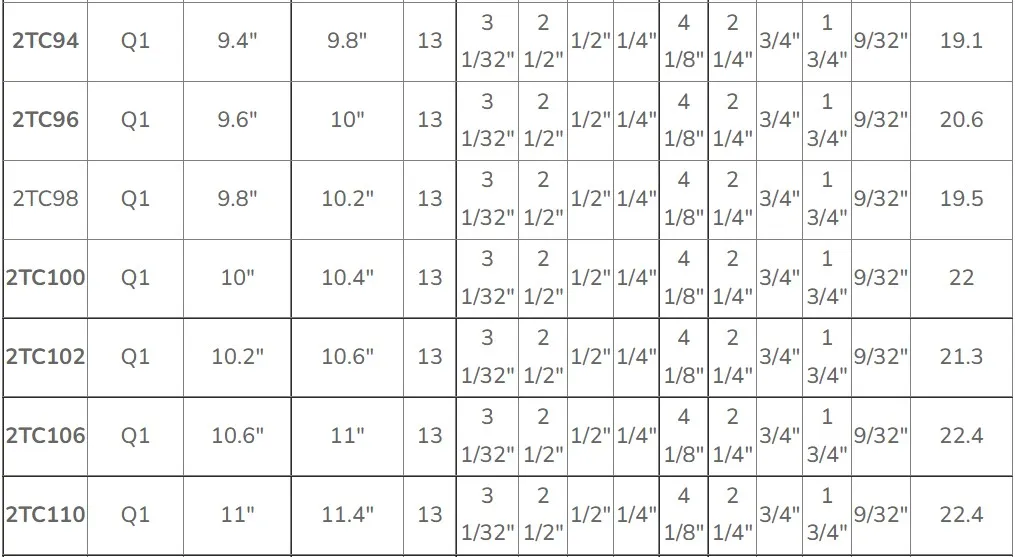

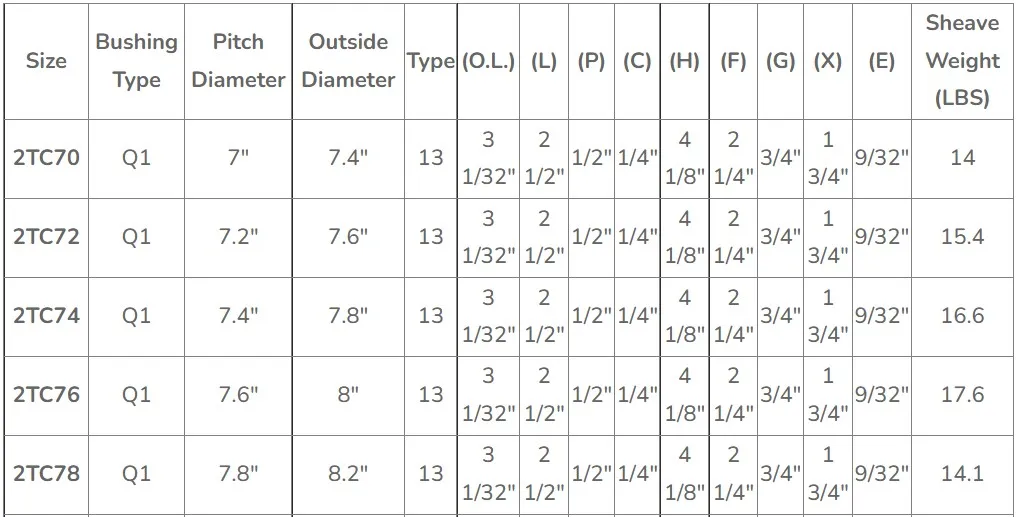

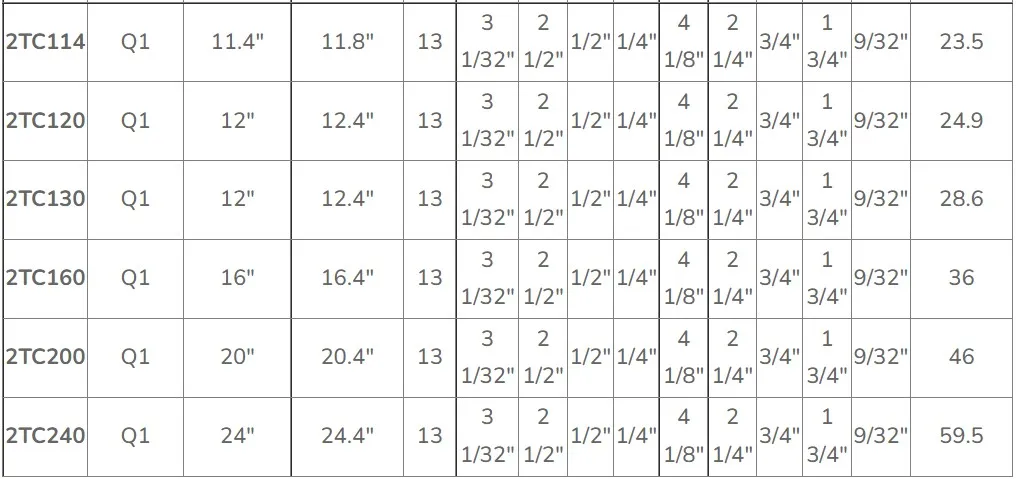

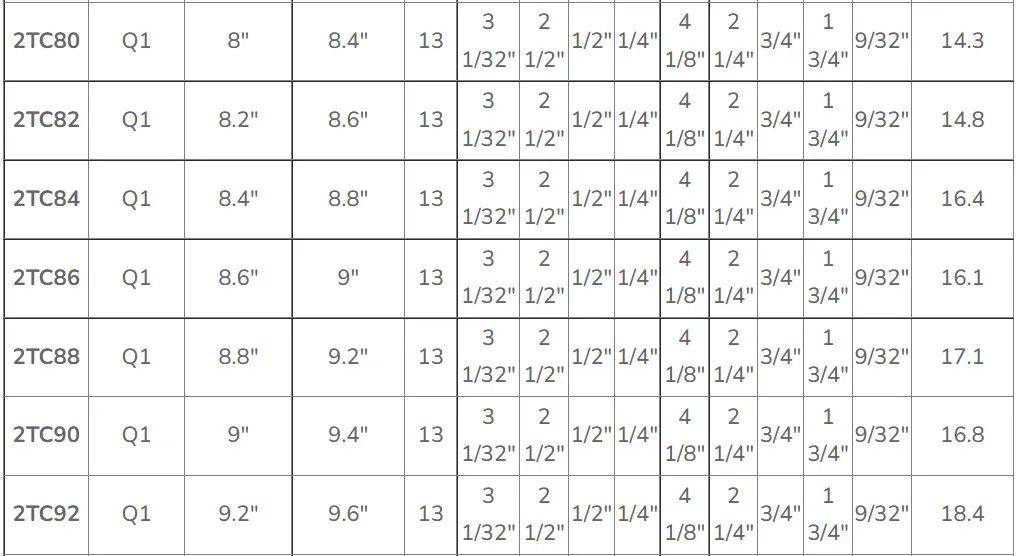

TC-STB Series
|
|
Material
|
cast iron G3000
|
|
Surface Treatment
|
Black Oxide, E-coat, phosphating blacking, powder coating, painting, and Other coatings available upon request
|
|
Machining Process
|
Forging and Machining, Precision Machining and Large Machining,Investment Casting of Lost Wax, Pressure Die
|
|
Heat Treatment
|
Quenching & Tempering, Carburizing & Quenching,High-frequency Hardening, Carbonitriding
|
|
Inspection
|
Raw material, bath analysis, blank physical and chemical analysis, First check, metallography hardness permeating layer,semi-finished product inspection, Adhesion test, finished product inspection
|
|
Standard
|
European Standard & American Standard
|
|
Balance
|
Static & Dynamic Balance
|
