3C Series Cast Iron QD Sheaves for C Belts

Superior Quality 3C Series Cast Iron American Standard QD Sheaves For C Belts3C series three groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 5.40 inches to 50.40 inches. Depending on pulley size, they use SD, SF, E, or F QD (quick disassembly) bushings, wh......
Send Inquiry
Product Description

Superior Quality 3C Series Cast Iron American Standard QD Sheaves For C Belts

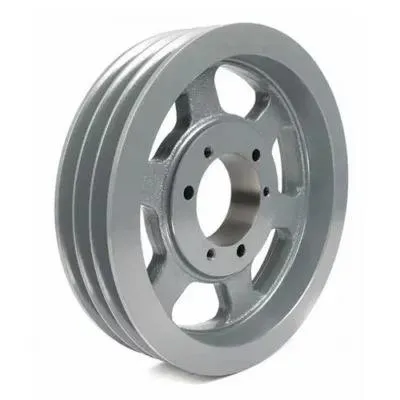

3C series three groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 5.40 inches to 50.40 inches. Depending on pulley size, they use SD, SF, E, or F QD (quick disassembly) bushings, which we also have in stock. Most of our 3C QD pulleys are made of high-strength grade 35 cast iron, phosphate coated, and coated with anti-corrosion paint. All these are balanced at the factory to ensure the machine's smooth operation.

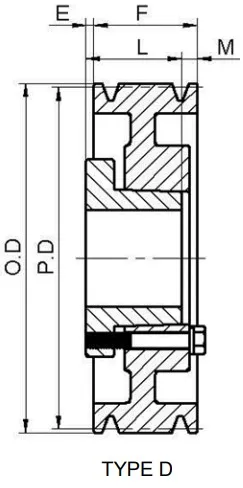

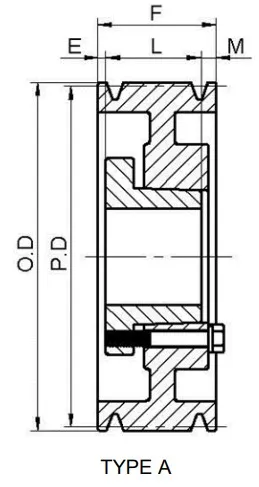

3C QD Sheave Size Chart
Superior Quality 3c Series Cast Iron American Standard Qd Sheaves for C Belts
Superior Quality 3c Series Cast Iron American Standard Qd Sheaves for C Belts

Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
3C50SD
SD
A
5.0"
5.40"
19/32"
3-1/4"
1-13/16"
27/32"
10
3C55SD
SD
A
5.5"
5.90"
19/32"
3-1/4"
1-13/16"
27/32"
12
3C60SF
SF
D
6.0"
6.40"
23/32"
3-1/4"
2-1/16"
1-29/32"
15
3C70SF
SF
A
7.0"
7.40"
13/32"
3-1/4"
2-1/16"
25/32"
18
3C75SF
SF
A
7.5"
7.90"
13/32"
3-1/4"
2-1/16"
25/32"
20
3C80E
E
B
8.0"
8.40"
17/32"
3-1/4"
2-3/4"
1/32"
26
3C85E
E
B
8.5"
8.90"
17/32"
3-1/4"
2-3/4"
1/32"
29
3C90E
E
A
9.0"
9.40"
15/32"
3-1/4"
2-3/4"
1/32"
32
3C95E
E
A
9.5"
9.90"
15/32"
3-1/4"
2-3/4"
1/32"
34
3C100E
E
A
10.0"
10.40"
15/32"
3-1/4"
2-3/4"
1/32"
36
3C105E
E
A
10.5"
10.90"
15/32"
3-1/4"
2-3/4"
1/32"
38
3C110E
E
A
11.0"
11.40"
15/32"
3-1/4"
2-3/4"
1/32"
40
3C120E
E
A
12.0"
12.40"
15/32"
3-1/4"
2-3/4"
1/32"
43
3C130E
E
A
13.0"
13.40"
15/32"
3-1/4"
2-3/4"
1/32"
45
3C140E
E
A
14.0"
14.40"
15/32"
3-1/4"
2-3/4"
1/32"
51
3C160E
E
A
16.0"
16.40"
15/32"
3-1/4"
2-3/4"
1/32"
59
3C180E
E
A
18.0"
18.40"
15/32"
3-1/4"
2-3/4"
1/32"
65
3C200E
E
D
20.0"
20.40"
7/32"
3-1/4"
2-3/4"
23/32"
70
3C240E
E
D
24.0"
24.40"
7/32"
3-1/4"
2-3/4"
23/32"
80
3C270F
F
D
27.0"
27.40"
21/32"
3-1/4"
3-3/4"
5/32"
105
3C300F
F
D
30.0"
30.40"
21/32"
3-1/4"
3-3/4"
5/32"
120
3C360F
F
D
36.0"
36.40"
21/32"
3-1/4"
3-3/4"
5/32"
140
3C440F
F
D
44.0"
44.40"
21/32"
3-1/4"
3-3/4"
5/32"
170
3C500F
F
D
50.0"
50.40"
21/32"
3-1/4"
3-3/4"
5/32"
190
C series QD bushing pulley
C Heavy-duty pulleys use 1 to 12-groove QD inch bushings, and the QD metric bushing type provides inventory flexibility by changing the bushing diameter. The C-groove pulley can see our various C-belts for maximum flexibility and horsepower range. The pulley is balanced and precisely machined to reduce vibration. The pulley manufacturer's extensive product selection guarantees the best results and most economical drive design for a particular application. The company is the first in the industry to provide powder coating for pulleys, which is not durable and can protect products from rust in high-humidity environments. If you need help, please contact us.
