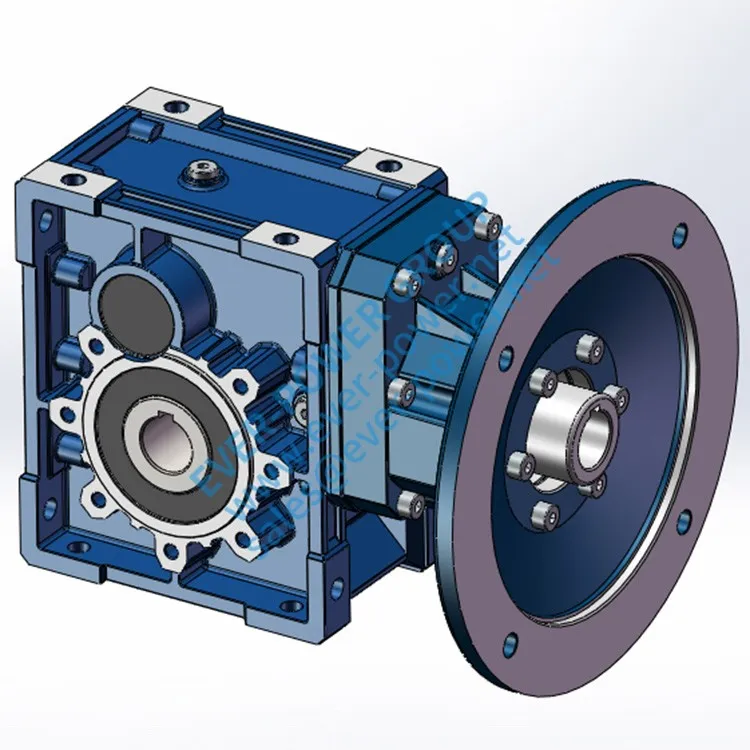

5.5KW Flange Mount Hypoid Gear Reducer

Raydafon Group's 5.5KW Flange Mount Hypoid Gear Reducer delivers powerful, efficient power transmission for industrial machinery. With durable construction and advanced hypoid technology, it ensures smooth operation, reduces downtime, and boosts productivity. Ideal for engineers and manufacturers, this reducer solves reliability issues, offering unmatched precision and long-term value. Stand out with superior performance and trusted quality—upgrade your systems today!

Send Inquiry

Product Description

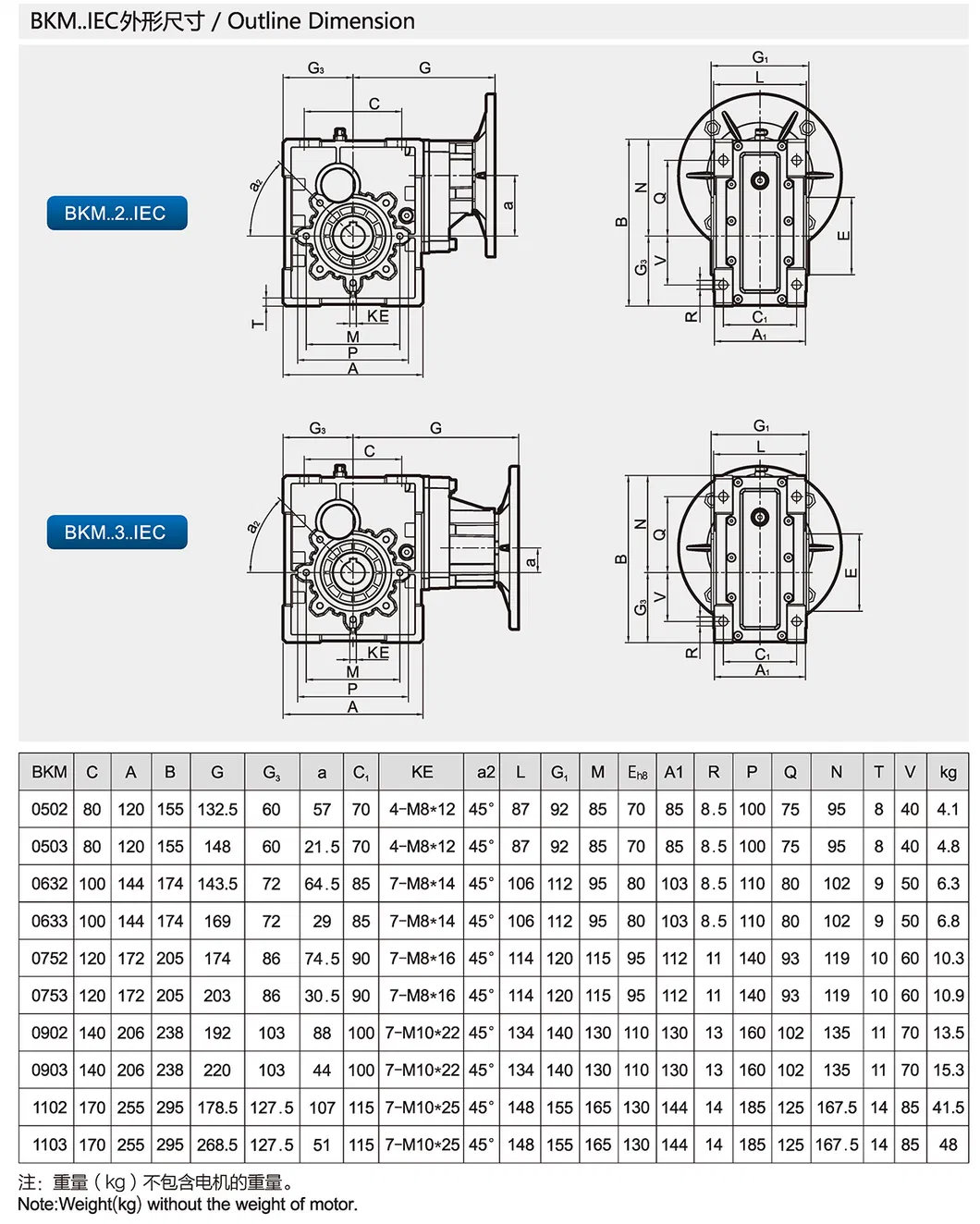

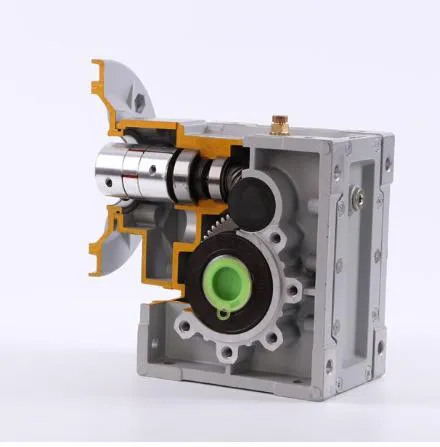

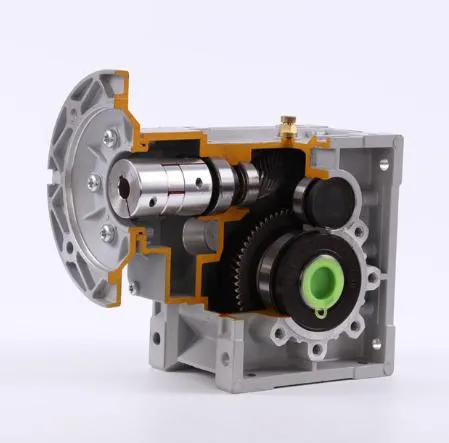

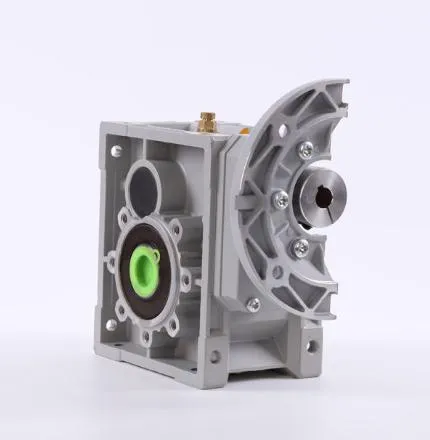

5.5kw Flange Mounting 100: 1 Ratio 90 Degree Gear Reducer Km Hypoid Vertical Hypoid Conveyor Helical Bevel Gearbox

Housing	Nodular Cast Iron(Ductile Iron) QT600
Gears Profile	Hardened Helical Gears
Gears Material	20CrMnTi
Gears Processing	Carburizing, Quenching, Grinding
Gears Hardness	Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
Gears Accuracy	6 Class
Shafts Material	40Cr
Input Configurations	Keyed Solid Shaft Input IEC Normalized Motor Flange
Output Configurations	Keyed Hollow Shaft Output
Oil Seal	TAIWAN SOG
Bearings	NSK, SKF, HRB, ZWZ, LYC
Spare Parts	Torque arm, Optional Backstop

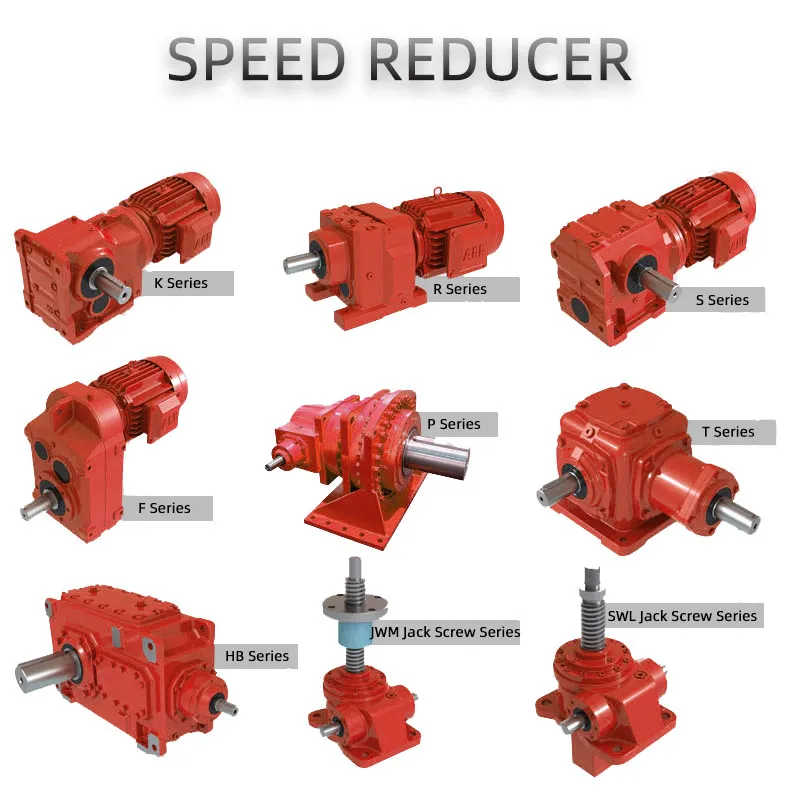

Please click here for more types!

Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and efficiently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
