6 Spline 540 PTO Drive Shaft for Bush Hog

CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter PartsProduct DescriptionPTO drive shaftBrand New Replacement PTO shaft for Finish Mowers, Tillers, Spreaders, Hay Tedders and many more applications. PTO is a series 4, rated f......

Send Inquiry

Product Description

CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter Parts

PTO drive shaft

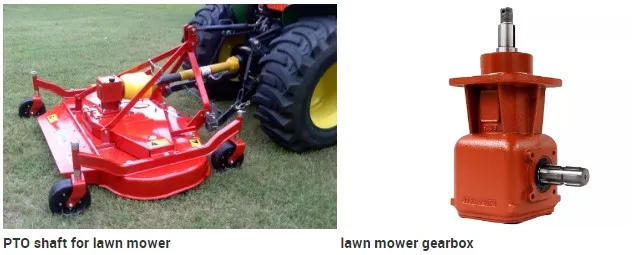

Brand New Replacement PTO shaft for Finish Mowers, Tillers, Spreaders, Hay Tedders and many more applications.

PTO is a series 4, rated for 40HP it has 1-3/8" 6 spline push pin on both ends for easy installment. Complete with safety shield, The PTO measures 43" from end to end and has an 58" maximum extended length.

These PTO shafts fit the following Finish Mowers:

Bush Hog: ATH 600 and ATH 720, ATH 900, FTH 480, FTH 600, FTH 720, MTH 600, MTH 720 Series Mowers;

Landpride: FDR1548, FDR1560, FDR1572, FDR1648, FDR1660, FDR1672, FDR2548, FDR2560, FDR2572, AT2660, AT2672 Series Mowers;

Kubota: BL348A, B342A; Caroni TC480, TC590, TC710, TC910 with spline Input Shaft;

Ever-power most late models with splined input shafts, early models had some with smooth input shaft;

CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter Parts

1. PTO Drive Shafts

PTO SHAFT WITH QUICK RELEASE YOKES AND OVER-RUNNING CLUTCH(RA), YOU CAN CHOOSE THE LENGTH
Chinabase is a professional manufacturer of PTO SHAFTS for farm machines and agricultural tractors from China. We provide more than 8 sizes of PTO shafts. There is also a full range of safety devices for agricultural applications. Our products are sold to America, Europe and all over the world. We will supply best quality products in most reasonable price.
Following are the tips how to order your PTO shafts:

2. Closed overall length (or cross to cross) of a PTO shaft.

3. Tubes or Pipes
We've already got Triangular profile tube and Lemon profile tube for all the series we provide.
And we have some star tube, splined tube and other profile tubes but only for a certain sizes.

4. End yokes
We've got 13 types of splined yokes and 8 types of plain bore yokes. I will suggest the usual type for your reference.
You can also send drawings or pictures to us if you cannot find your item in our catalog.

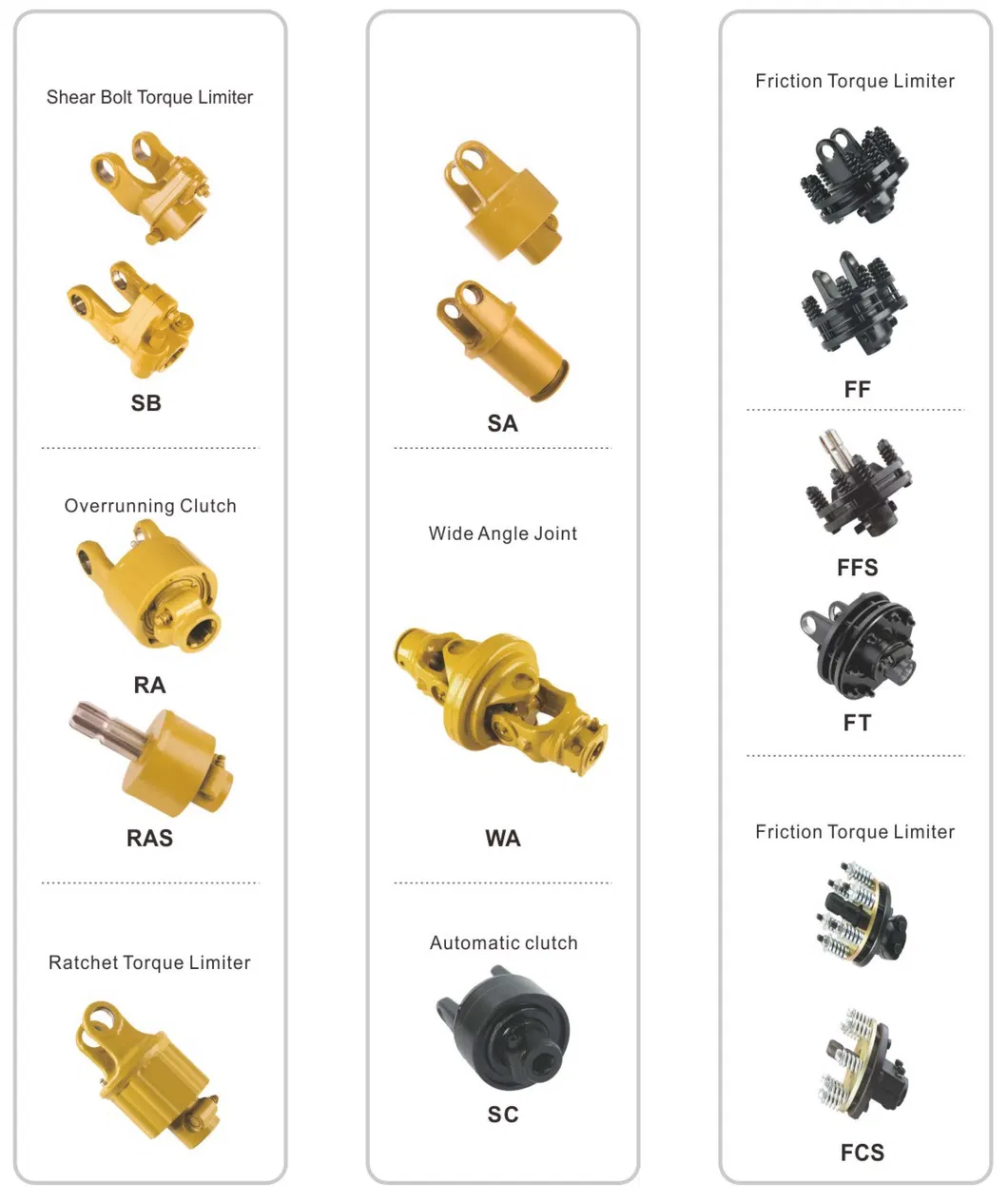

5. Safety devices or clutches
I will attach the details of safety devices for your reference. We've already have Free wheel (RA), Ratchet torque limiter(SA),

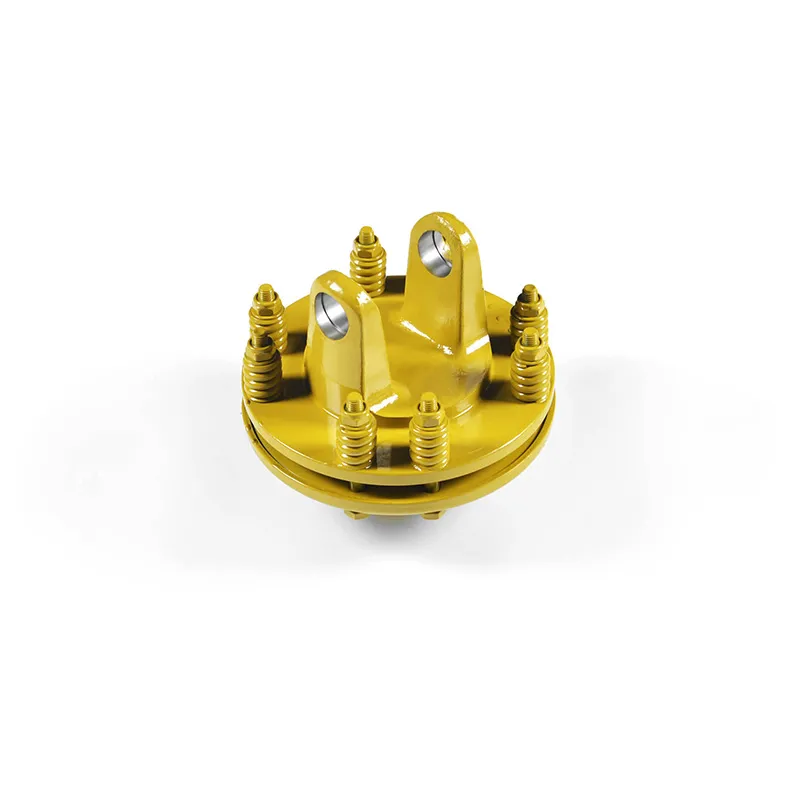

Shear bolt torque limiter(SB), 3types of friction torque limiter (FF,FFS,FCS) and overrunning couplers(adapters) (FAS).

6. For any other more special requirements with plastic guard, connection method, color of painting, package, etc., please feel free to let me know.

CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter Parts

Tube types

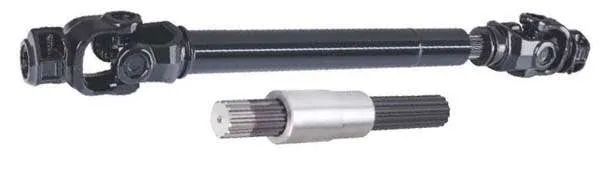

Spline tube	Lemon tube

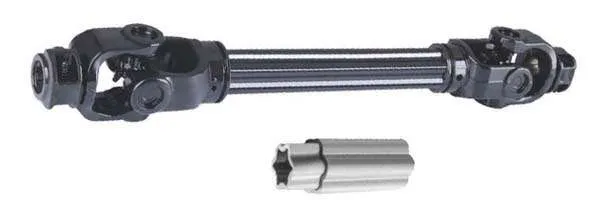

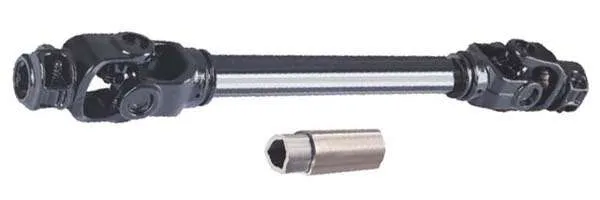

Star tube	Trigonal tube

Function of PTO Shaft	Drive Shaft Parts & Power Transmission

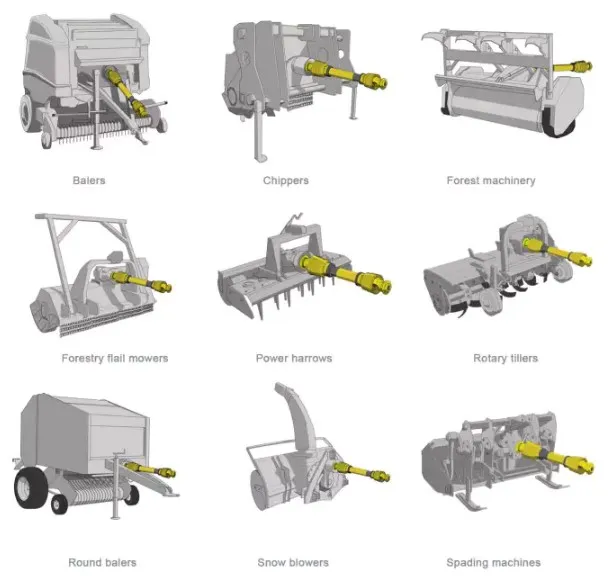

Usage of PTO Shaft	Kinds of Tractors & Farm Implements
Yoke Types for PTO Shaft	Double push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..
Processing Of Yoke	Forging

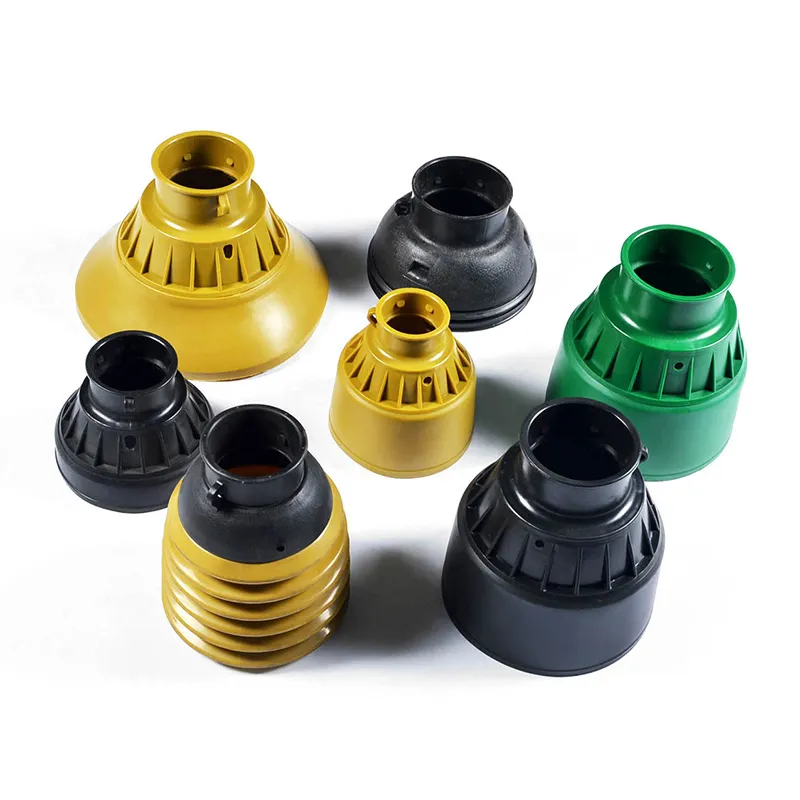

PTO Shaft Plastic Cover	YW; BW; YS; BS; Etc
Colors of PTO Shaft	Green; Orange; Yellow; Black Ect.
PTO Shaft Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Types for PTO Shaft	Lemon, Triangular, Star, Square, Hexangular, Spline, Special Ect
Processing Of Tube	Cold drawn
Spline Types for PTO Shaft	1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38326 8-42367; 8-48428;

CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter Parts

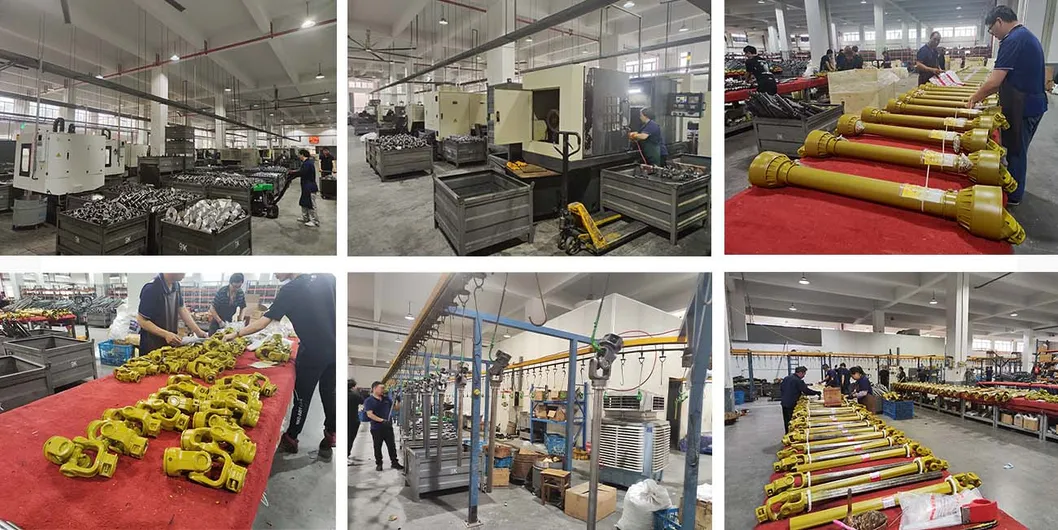

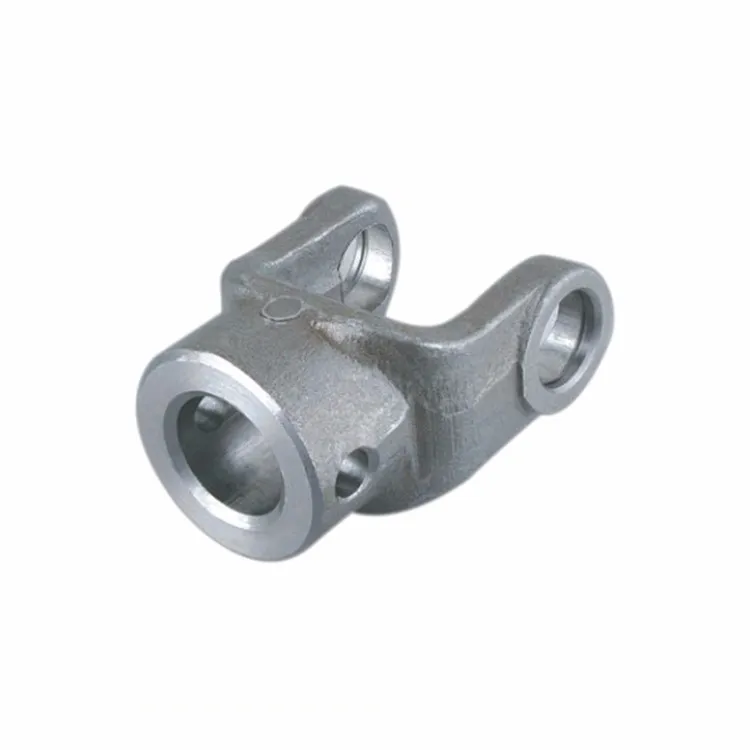

Our factory is a leading manufacturer of PTO shaft yoke and universal joint.

We manufacture high quality PTO yokes for various vehicles, construction machinery and equipment. All products are constructed with rotating lighter.

We are currently exporting our products throughout the world, especially to North America, South America, Europe, and Russia. If you are interested in any item, please do not hesitate to contact us. We are looking forward to becoming your suppliers in the near future.

You can click the picture to learn about relevant products
CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter Parts

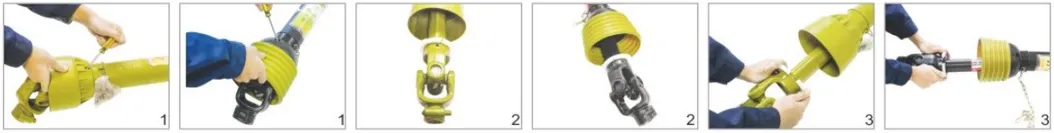

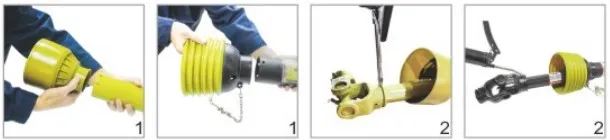

PTO SHAFT INSTALLATION INSTRUCTION

Install assembly

1 press-fit plastic pipe and plastic cap,
2 fill the groove on the horn with oil

3. Slide the nylon bearing into the groove 4. Align nylon bearing and plastic protective cover

Disassembly

1. remove the nylon bearing clamp (three places) with a screwdriver, and then separate the steel pipe and plastic protective cover.
2. Take off the nylon bearing from the groove of the yokes.
3. repeat the above-mentioned steps for the other side.
CE Certification Agricultural Wide Angle Tractor Factory Supply 6 Spline 540 Pto Drive Shaft for Bush Hog with Yoke Adapter Parts

SHORTENING THE PTO DRIVESHAFT

1. Remove the safety shield.
2. Shorten the inner and outer tubes according to the required length, and the inner and outer tubes shall be shortened by the same length at one time
3. Deburr edges of the drive tubes with a file and remove all filings from the tubes.
4. Shorten the inner and outer plastic pipes according to the required length, and the inner and outer plastic pipes shall be
shortened by the same length at one time.
5. Grease the internal drive tubes and reassemble them with a safety shield.
Check the minimum and maximum length of the driveshaft installed on the machine. In working condition, the drive tubes should overlap 2/3 length and the plastic tube should never be separated
