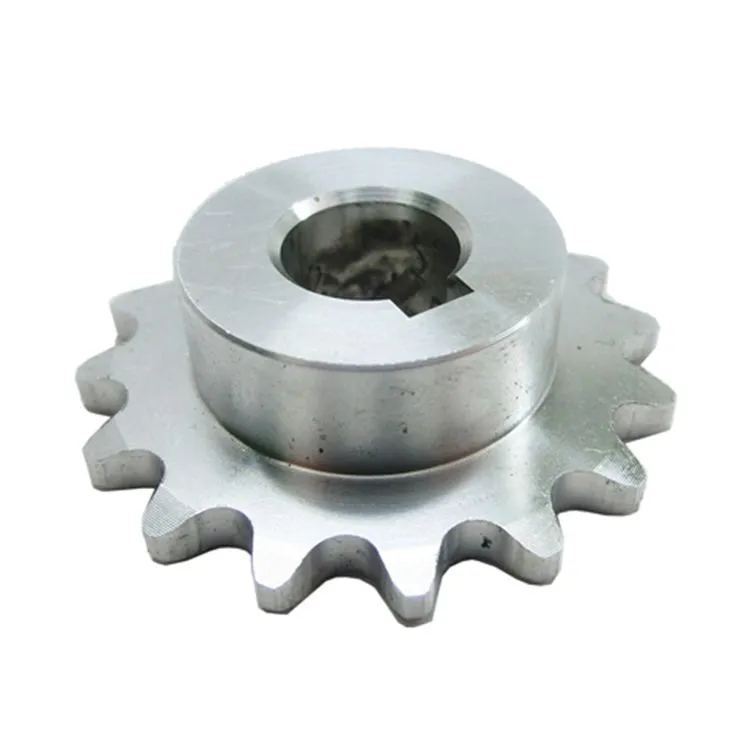

80 Chain Sprockets are manufactured in accordance with ANSI B29.1 Standards and are made for 1" pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity. Out standard steel sprockets utilize a black-oxide coating for added corrosion protection, they are also manufactured from a premium high-strength grade of mild steel for an additional increase in sprocket life.
| Sprocket Size | Type | Tooth Count | Outside Diameter | Stock Bore | Recommend Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 80C11 | 11 | C | 4.010 | 1'' | 1-5/8" | 2-29/32'' | 2-3/8" | 3.87 |
| 80C12 | 12 | C | 4.330 | 1'' | 1-7/8" | 3-1/8'' | 2-3/8" | 4.31 |
| 80C13 | 13 | C | 4.660 | 1'' | 2" | 3-1/64'' | 2-3/8" | 5.32 |
| 80C14 | 14 | C | 4.980 | 1'' | 2-1/4" | 3-11/32'' | 2-3/8" | 6.44 |
| 80C15 | 15 | C | 5.300 | 1'' | 2-1/2" | 3-13/16'' | 2-3/8" | 7.75 |
| 80C16 | 16 | C | 5.630 | 1'' | 2-3/4" | 4'' | 2-3/8" | 8.81 |
| 80C70 | 70 | C | 22.870 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 75.7 |
| 80C72 | 72 | C | 23.500 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 81.4 |
| 80C76 | 76 | C | 24.780 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 87.8 |
| 80C80 | 80 | C | 26.050 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 89.9 |
| 80C84 | 84 | C | 27.330 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 99.2 |
| 80C90 | 90 | C | 29.240 | 1-1/2" | 4-1/4" | 6-1/4" | 31/2" | 106.0 |
| 80C96 | 96 | C | 31.150 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 117.0 |
| 80C112 | 112 | C | 36.240 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 154.0 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
