8C Series Cast Iron Sheaves for C Belts

High Quality 8C Series Cast Iron American Standard QD Sheaves For C Belts8C series 8-groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 8.40 inches to 50.40 inches. Depending on the pulley size, they use E, F, J, or M QD (quick disassembly) bushings, which we......

Send Inquiry

Product Description

High Quality 8C Series Cast Iron American Standard QD Sheaves For C Belts

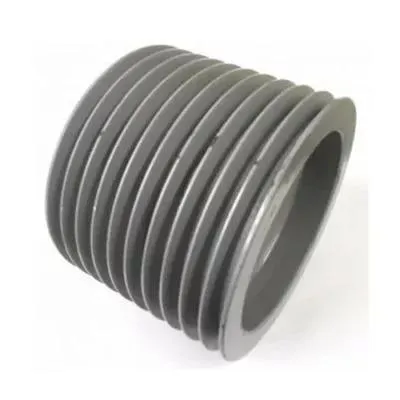

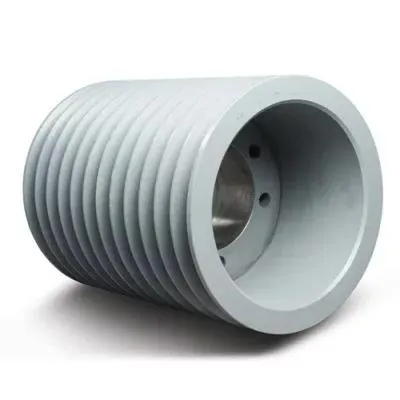

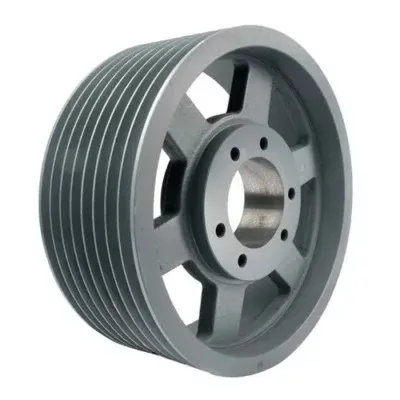

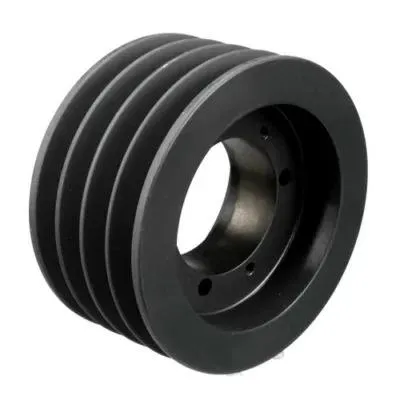

8C series 8-groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 8.40 inches to 50.40 inches. Depending on the pulley size, they use E, F, J, or M QD (quick disassembly) bushings, which we also have in stock. Most of our 8C QD pulleys are high-strength grade 35 cast iron, phosphate coated, and coated with anti-corrosion paint. All these are balanced at the factory to ensure the machine's smooth operation.

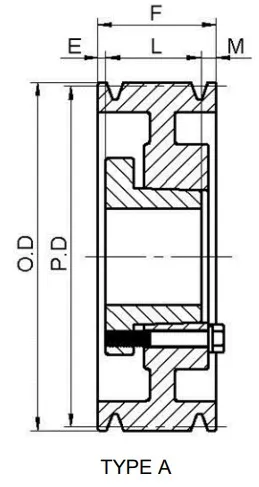

8C QD Sheave Size Chart
High Quality 8c Series Cast Iron American Standard Qd Sheaves for C Belts

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
8C80E	E	A	8.0"	8.40"	2-1/32"	8-1/4"	2-3/4"	3-15/32"	43
8C85E	E	A	8.5"	8.90"	2-1/32"	8-1/4"	2-3/4"	3-15/32"	48
8C90F	F	A	9.0"	9.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	60
8C95F	F	A	9.5"	9.90"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	65
8C100F	F	A	10.0"	10.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	69
8C105F	F	A	10.5"	10.90"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	73
8C110F	F	A	11.0"	11.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	78
8C120F	F	A	12.0"	12.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	83
8C130F	F	A	13.0"	13.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	89
8C140F	F	A	14.0"	14.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	97
8C160F	F	A	16.0"	16.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	113
8C180F	F	A	18.0"	18.40"	1-29/32"	8-1/4"	3-3/4"	2-19/32"	131
8C200J	J	A	20.0"	20.40"	1/16"	8-1/4"	4-5/8"	3-9/16"	152
8C240J	J	A	24.0"	24.40"	1/16"	8-1/4"	4-5/8"	3-9/16"	185
8C270J	J	A	27.0"	27.40"	1/16"	8-1/4"	4-5/8"	3-9/16"	208
8C300J	J	A	30.0"	30.40"	1/16"	8-1/4"	4-5/8"	3-9/16"	230
8C360M	M	A	36.0"	36.40"	9/32"	8-1/4"	6-3/4"	1-7/32"	306
8C440M	M	A	44.0"	44.40"	9/32"	8-1/4"	6-3/4"	1-7/32"	400
8C500M	M	A	50.0"	50.40"	9/32"	8-1/4"	6-3/4"	1-7/32"	475

Product Description
This traditional QD pulley with an A/B belt section is made of 30 gray cast iron with eight grooves. It is a classic V-belt pulley, which applies to various widely used traditional V-belts and many existing power transmission devices. The pulley is made of Grade 30 gray cast iron, with wear resistance, corrosion resistance, and scratch resistance. It has an A/B cross-section and eight grooves, which can be used for multiple belts or belts. V-belt pulley (pulley) is used for various mechanical and electronic drives, including HVAC equipment, agricultural machinery, food processing equipment, and household appliances.
The V-belt pulley (pulley) is a component of the power transmission device, which is used to transmit power to the belt. Usually made of cast iron, the pulley and the V-belt rotating around it match in form - wide (classic) or narrow, with single or multiple grooves. The V-belt pulley is used for drive design in agriculture, textile, printing, mining, and office equipment industries.

Light and heavy duty V-pulleys

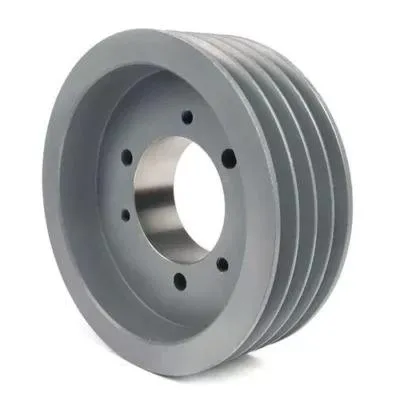

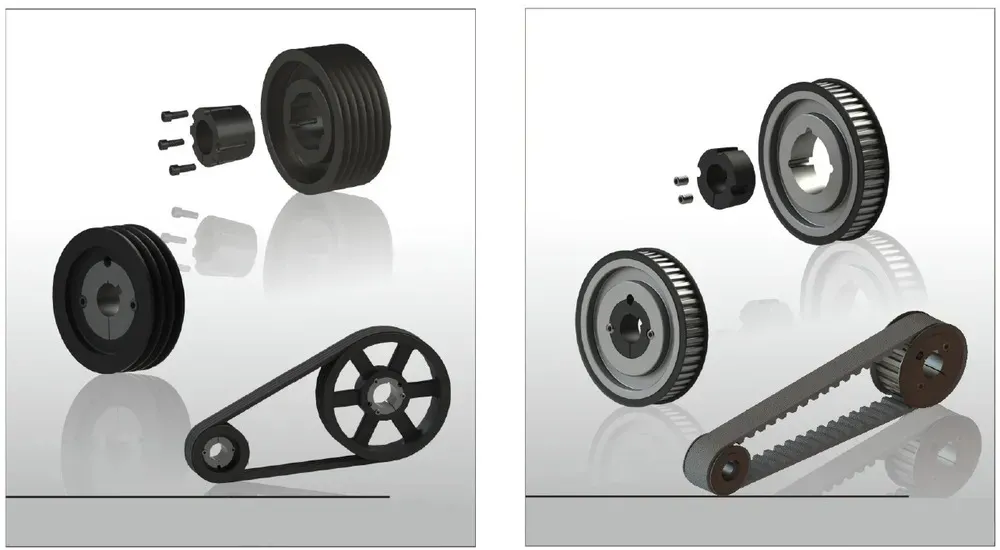

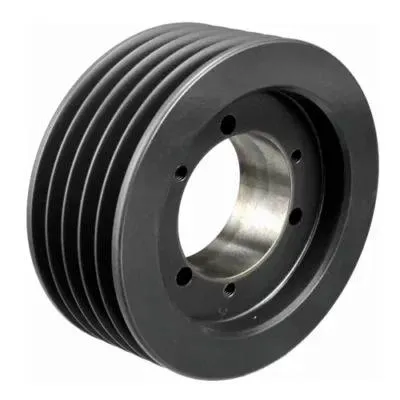

They are available in 1 to 12 slot configurations to fit your drive system and are compatible with static or dynamic balancing. QD pulleys are equipped with removable bushings for easy installation and maintenance to maintain the shape of the drive system.
*Stock of 3V, 5V and 8V belts
*1 to 12 slot configurations
*Static balance, dynamic balance available
*Quick disconnect sleeve for easy installation and maintenance
*Customized pulleys can be stored in large quantities as required
*We shorten the lead time through direct access. Manufacturing factory
