Agricultural Rotary Tiller Gearbox

Rotary Tiller Cultivator Gearbox for AgriculturalITEMHC-9.311 Rotary Tiller GearboxRatio1:3Teeth36/12Module4.35Power(HP)50Rated Input540rpmInput/Output Description1 3/8 Z6 Optic axis/Optic axisWeight(N.W)21KGIf you're looking for Rotary Tiller Gearbox, you've come to the right place. Ever-po......

Send Inquiry

Product Description

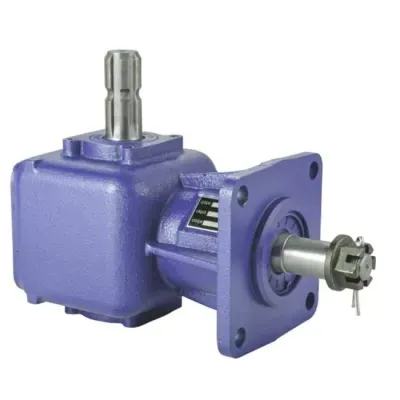

Rotary Tiller Cultivator Gearbox for Agricultural

ITEM	HC-9.311 Rotary Tiller Gearbox
Ratio	1:3
Teeth	36/12
Module	4.35
Power(HP)	50
Rated Input	540rpm

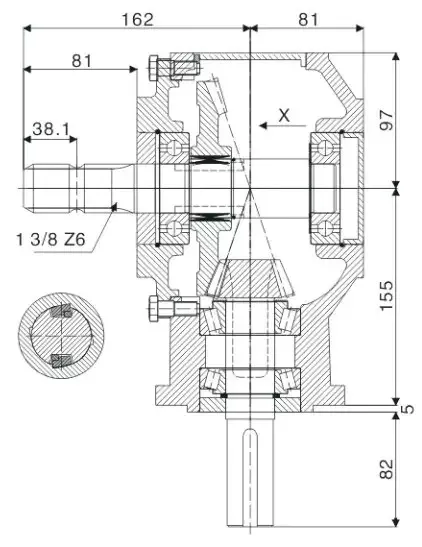

Input/Output Description	1 3/8 Z6 Optic axis/Optic axis
Weight(N.W)	21KG

If you're looking for Rotary Tiller Gearbox, you've come to the right place. Ever-power has a wide selection of the top brands to suit your particular mower and any tough task you need to tackle. Browse our selection to discover your many options in these essential parts to keep life on the farm running smoothly.
These are CB70 Series industrial gearboxes, which were independently designed by Ever-power. RG70 industrial gearbox helps to save mold-making fees, allowing for a lower cost for customers. Meanwhile, it has been sold on global

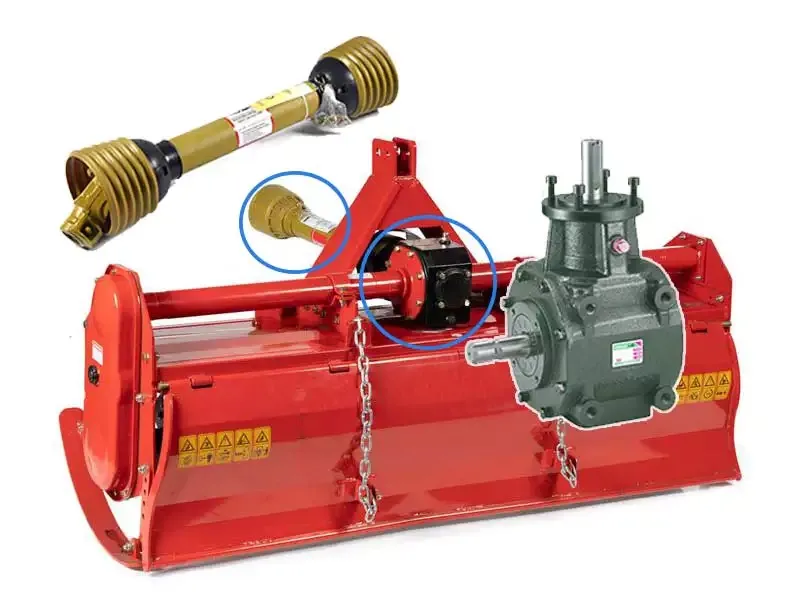

We Also Supply PTO Shafts
https://agricultural-gearbox.en.made-in-china.com/product-group/VqTESwWofuhM/PTO-Shaft-catalog-1.html
Rotary Tiller Cultivator Gearbox for Agricultural

Advantages of Rotary Tiller Gearbox
Our Rotary Tiller Gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request
1. Large output torque
2. Safe, reliable, economical, and durable
3. Stable transmission, quiet operation
4. High carrying ability
5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type
6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.
7. Form of installation: The position to be installed is not limited.
8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.
9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.
10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.
11. Our gearbox has reached the advanced international level and can replace the same kind of products imported.
