Product Description

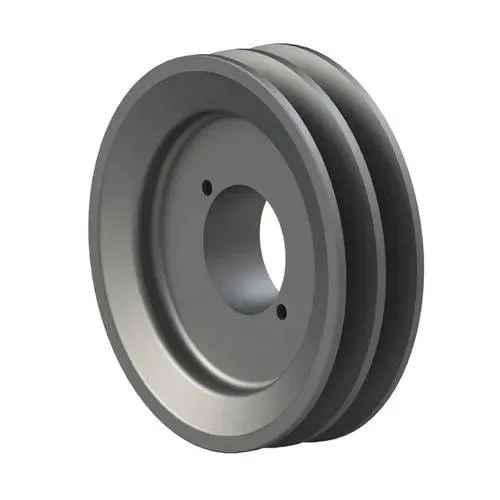

Quality 2BK Series American Standard Cast lron Double Groove Sheaves Pulleys For 4L Or A Belts And 5L Or B Belts

V-Belt Pulley:

The specifications of V-belts are divided by the dimensions of back width (top width) and height (thickness). According to different dimensions of back width (top width) and height (thickness), V-belts of different standards have different models. The pitch width, top width and height of V-belts of each model are different, so the pulley must also make various groove types according to the shape of V-belts; These different groove types determine various types of pulley.

American Standard
AK/AKH BK/BKH TA/TB/TC Series Sheaves	B/C/D Series Sheaves
Poly-V Sheaves	Variable Speed Sheaves
3V/5V/8V sheaves	Bushings Split Taper Bushings/QD Bushings/TB Bushings
European standard (SPA SPB SPC SPZ)
Belt Pulleys for Taper Bushings	V belt pulley with solid hub
Adjustable Speed V Belt Pulleys	Flat Belt Pulleys For Taper Bushes

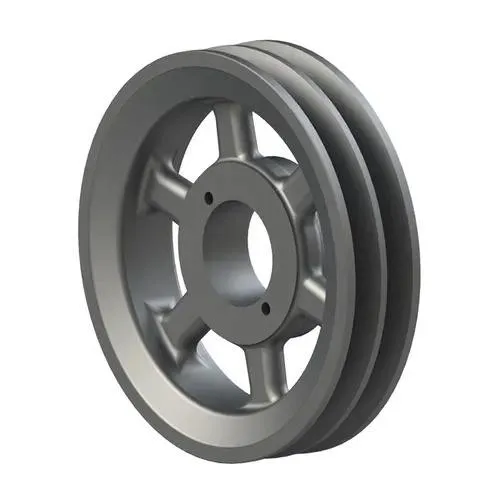

2BK series pulley can be used with 2 belts A, 2 belts B, 2 toothed belts AX, 2 toothed belts BX, single A, B, 4L, 5L, AX, BX, AA, and BB belts. 2BK series pulleys are called double groove BK pulleys, with diameters ranging from 2.50 "to 18.75". They can also be customized as required. 2BK series pulleys are commonly used for medium and heavy agricultural and industrial applications. Our double v-belt pulley is manufactured with the most advanced technology, combining the characteristics of high quality, high performance, and high strength, such as using Grade 35 cast iron instead of Grade 25 cast iron.

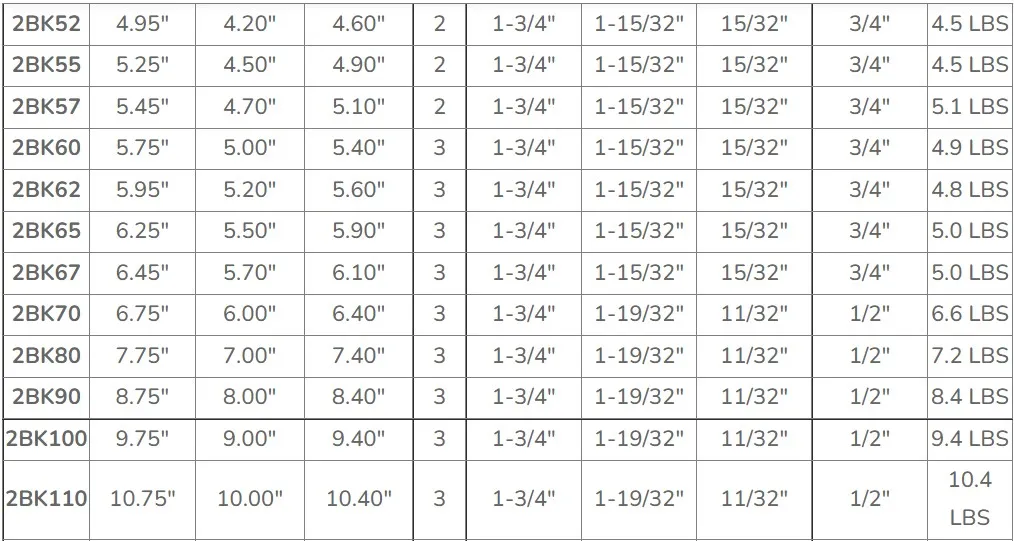

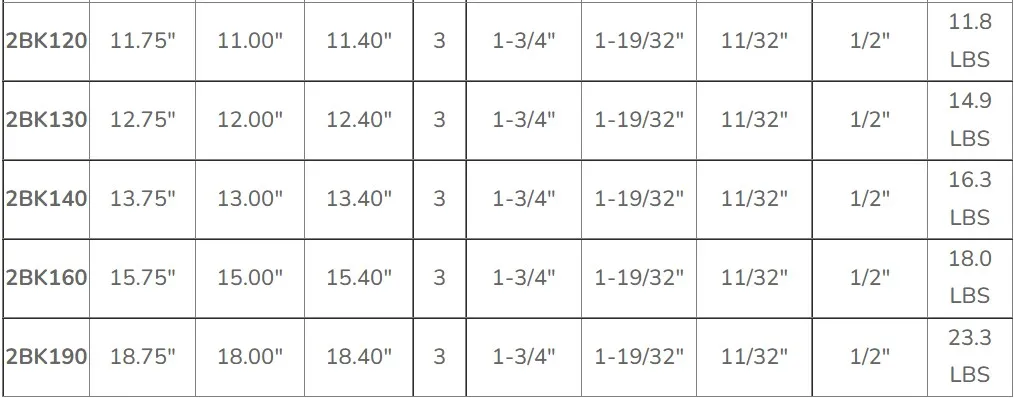

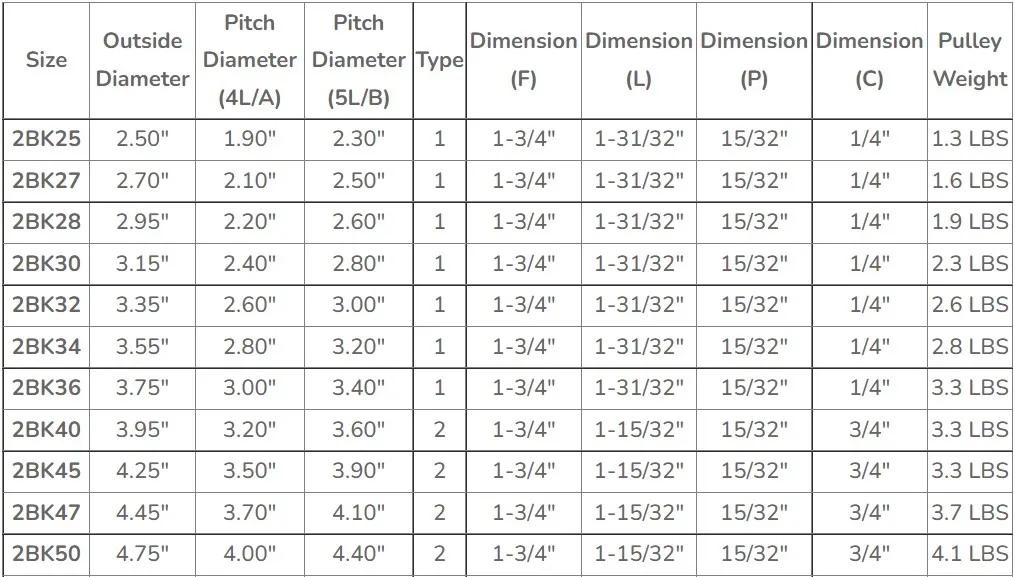

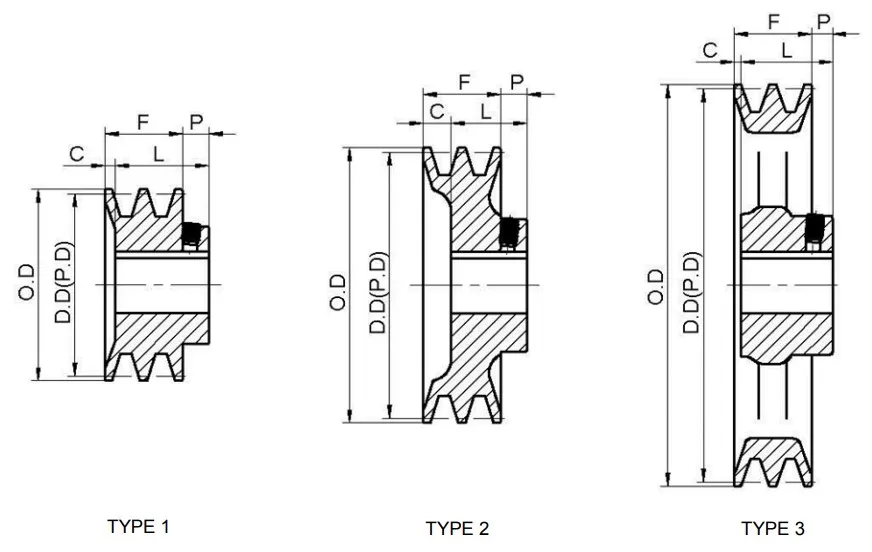

2BK-Series Pulley Size Chart

Quality 2bk Series American Standard Cast Lron Double Groove Sheaves Pulleys for 4L or a Belts and 5L or B Belts

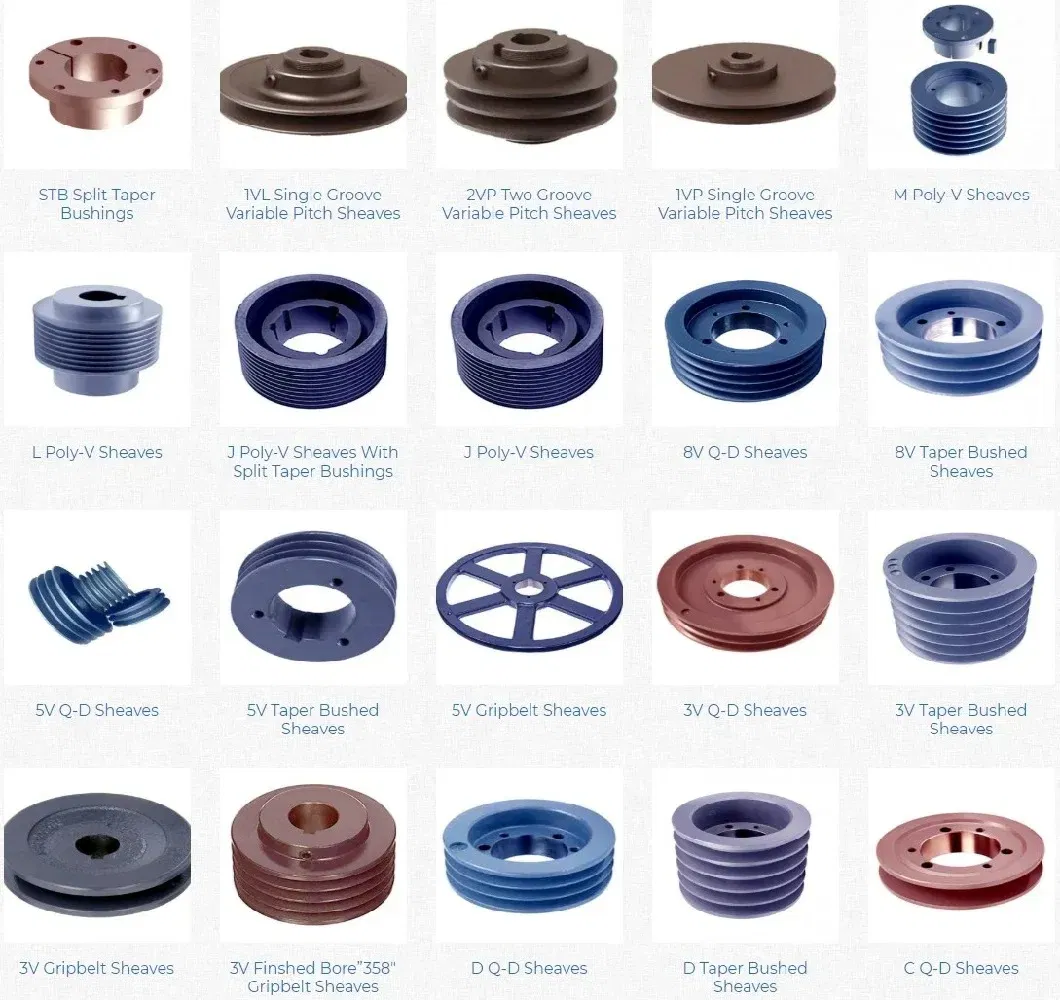

Our V-pulleys include:
·Light Duty Drilled Size Pulleys (AK, BK, 2AK, 2BK, 3BK Series)

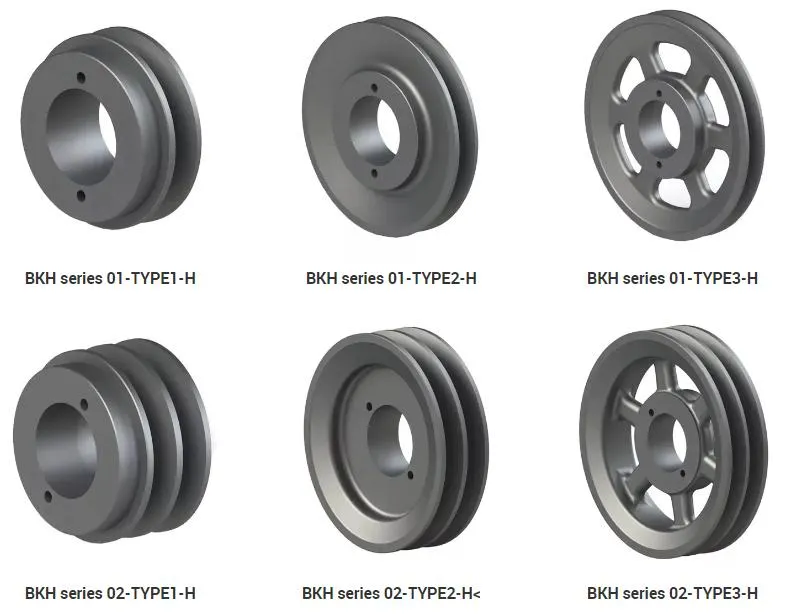

·Light tapered hole pulley (AK-H, BK-H, 2AK-H, 2BK-H series)
·Split tapered bushing pulley (1TB, 2TB, 3TB series)
·Heavy duty Q.D. pulley (1B, 2B, 3B series)
·Light variable speed pulley (1VP, 2VP, 1VL, 1VM series)
·Single groove pulley (OK, O.L., AL series)
·Custom design
Quality 2bk Series American Standard Cast Lron Double Groove Sheaves Pulleys for 4L or a Belts and 5L or B Belts

Application cases:
Related products
Quality 2bk Series American Standard Cast Lron Double Groove Sheaves Pulleys for 4L or a Belts and 5L or B Belts

Warehouse inventory
The warehouse covers an area of 5000 square meters and can provide various standard models of A/B/C/Z, with unlimited quantities and a large inventory. At the same time, it accepts multiple non-standard customized drawings. The daily output is 10 tons, and the delivery time is short.
