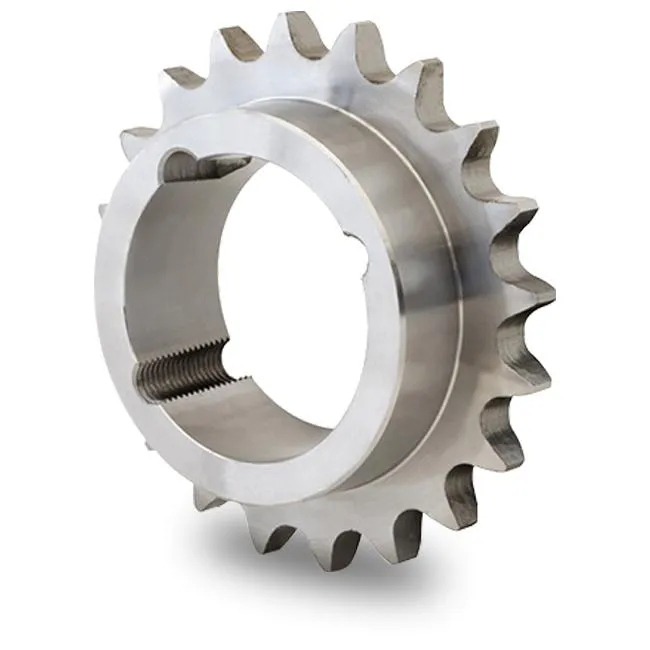

ANSI 120 Roller Chain Sprocket

Product Description #120 Taper Bushed Sprockets Sprocket SizeTooth CountBushingOutside DiameterPitch DiameterMax. BoreDimension (L)Dimension (C)TypeWeight (LBS)120BTB121220126.4985.7962''1-1/4''3-9/16''B5.5120BTB131325176.8966.2682-1/2''1-3/4''4-1/4''......

Send Inquiry

Product Description

#120 Taper Bushed Sprockets

Sprocket Size	Tooth Count	Bushing	Outside Diameter	Pitch Diameter	Max. Bore	Dimension (L)	Dimension (C)	Type	Weight (LBS)
120BTB12	12	2012	6.498	5.796	2''	1-1/4''	3-9/16''	B	5.5
120BTB13	13	2517	6.896	6.268	2-1/2''	1-3/4''	4-1/4''	B	6.0
120BTB14	14	2517	7.472	6.741	2-1/2''	1-3/4''	4-1/4''	B	7.0
120BTB15	15	2517	7.957	7.215	2-1/2''	1-3/4''	4-1/4''	B	8.0
120BTB16	16	3020	8.441	7.689	3''	2''	5-1/4''	B	10.0
120BTB17	17	3020	8.924	8.163	3''	2''	5-1/4''	B	11.0
120BTB18	18	3020	9.407	8.638	3''	2''	5-1/4''	B	12.0
120BTB19	19	3020	9.889	9.113	3''	2''	5-1/4''	B	14.0
120BTB20	20	3020	10.371	9.588	3''	2''	5-1/4''	B	15.5
120BTB21	21	3020	10.851	10.064	3''	2''	5-1/4''	B	17.5
120BTB24	24	3020	12.294	11.492	3''	2''	5-1/4''	B	23.5
120BTB26	26	3020	13.254	12.444	3''	2''	5-1/4''	B	28.5
120BTB30	30	3020	15.171	14.351	3''	2''	5-1/4''	B	33.5
120CTB35	35	3020	17.566	16.734	3''	2''	5-1/4''	C	52.0
120CTB45	45	3030	22.351	21.503	3''	2''	5-7/8''	C	82.0
120CTB60	60	3535	29.552	28.661	3-1/2''	3-1/2''	6-1/2''	C	140.0
120CTB70	70	3535	34.301	33.434	3-1/2''	3-1/2''	6-1/2''	C	175.0
120CTB80	80	3535	39.078	38.207	3-1/4''	3-1/2''	6-1/2''	C	220.0

#120 Taper Bushed Sprockets

Sprocket Size	Tooth Count	Bushing	Outside Diameter	Pitch Diameter	Type	Max. Bore	Dimension (OL)	Dimension (L)	Dimension (C)	Dimension (H)	Dimension (P)	Dimension (T)	Weight (LBS)
120Q11H	11	Q1	6.010	5.324	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-9/16''	0.924	4.8
120Q12H	12	Q1	6.500	5.796	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-9/16''	0.924	6.3
120Q13H	13	Q1	6.990	6.268	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-9/16''	0.924	7.9
120Q14H	13	Q1	7.470	6.741	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-9/16''	0.924	9.2
120Q15H	14	Q1	7.960	7.215	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-9/16''	0.924	10.4
120Q16H	14	Q1	8.440	7.689	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-15/16''	0.924	11.8
120R16H	15	R1	8.440	7.689	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	12.0
120Q17H	15	Q1	8.920	8.163	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-15/16''	0.924	13.4
120R17H	16	R1	8.920	8.163	4	3-3/4''	5-5/32''	2-7/8''		5-3/8''	1-15/16''	0.924	13.7
120Q18H	16	Q1	9.410	8.638	4	2-11/16''	2-25/32	2-1/2''	-	4-1/8''	1-15/16''	0.924	15.6
120R18H	17	R1	9.410	8.638	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	15.0
120R19H	17	R1	9.890	9.113	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	16.9
120R20H	18	R1	10.370	9.589	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	18.8
120R21H	18	R1	10.850	10.064	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	20.7
120R22H	19	R1	11.330	10.540	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	22.5
120R23H	19	R1	11.810	11.016	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	24.3
120R24H	20	R1	12.290	11.492	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	27.1
120R25H	20	R1	12.770	11.968	4	3-3/4''	5-5/32''	2-7/8''	-	5-3/8''	1-15/16''	0.924	29.1
120R26H	20	R1	13.250	12.444	5	3-3/4''	5-5/32''	2-7/8''	1-1/16''	5-3/8''	7/8''	0.924	33.3
120R28H	21	R1	14.210	13.397	5	3-3/4''	5-5/32''	2-7/8''	1-1/16''	5-3/8''	7/8''	0.924	38.0
120R30H	21	R1	15.170	14.350	5	3-3/4''	5-5/32''	2-7/8''	1-1/16''	5-3/8''	7/8''	0.924	43.3
120R32	22	R1	16.130	15.303	5	3-3/4''	5-5/32''	2-7/8''	1-1/16''	5-3/8''	7/8''	0.924	48.4
120R35	22	R2	17.570	16.734	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	68.0
120R36	22	R2	18.050	17.211	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	72.0
120R40	23	R2	19.960	19.118	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	82.0
120S40	23	S1	19.960	19.118	5	4-1/4''	4-3/4''	4-3/8''	2-3/8''	6-3/8	1-1/16''	0.924	83.0
120S42	24	S1	20.920	20.072	5	4-1/4''	4-3/4''	4-3/8''	2-3/8''	6-3/8	1-1/16''	0.924	90.0
120R45	24	R2	22.350	21.503	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	102.0
120S45	24	S1	22.350	21.503	5	4-1/4''	4-3/4''	4-3/8''	2-3/8''	6-3/8	1-1/16''	0.924	100.0
120S48	25	S1	23.790	22.935	5	4-1/4''	4-3/4''	4-3/8''	2-3/8''	6-3/8	1-1/16''	0.924	111.0
120R54	25	R1	26.650	25.798	5	4-1/4''	4-3/4''	4-3/8''	2-3/8''	6-3/8	1-1/16''	0.924	138.0
120R60	26	R2	29.520	28.661	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	179.0
120S60	26	S1	29.520	28.661	5	4-1/4''	4-3/4''	4-3/8''	2-3/8''	6-3/8	1-1/16''	0.924	180.0
120R70	27	R2	34.300	33.434	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	148.0
120S70	27	S2	34.300	33.434	5	4-3/16''	7-1/8''	6-3/4''	2-3/8''	6-3/8	2-15/16''	0.924	167.0
120R80	28	R2	39.080	38.207	6	3-5/8''	5-5/32''	4-7/8''	2''	5-3/8''	1-15/16''	0.924	291.0
120S80	28	S2	39.080	38.207	6	4-3/16''	7-1/8''	6-3/4''	2-3/8''	6-3/8	2-15/16''	0.924	305.0

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

#120 Taper Bushed Roller Chain Sprocket ANSI Certified

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: #120 Taper Bushed Roller Chain Sprocket ANSI Certified, Sprocket, #120 Sprockets
